0B – 18IGENERAL INFORMATION
DAEWOO V–121 BL4
Engine Number – Family I (1.4L/1.6L DOHC Engine)
Engine Number – Family II (1.8L DOHC Engine)
Page 26 of 2643
GENERAL INFORMATION 0B – 19
DAEWOO V–121 BL4
Manual Transaxle Identification Number
Plate (D16)
1. Identification Code
2. Sequential Number
Identification
Code
EngineGear Ratio
SY1.4L DOHC3.722 CR
CR1.6L DOHC3.722 CR
CV1.8L DOHC3.722 CR
Manual Transaxle Identification Number
Plate Location (D16)
The manual transaxle identification number is attached to
the top of the transmission case near the engine.
Automatic Transaxle Identification Number
Plate (ZF 4HP16)
1. Part Number
2. Sirial Number
3. Model Code
4. Manufactured Nation and Company
Part Code
Engine
AW1.8L DOHC
Automatic Transaxle Identification Number
Plate Location (ZF 4HP16)
The automatic transaxle identification number plate is at-
tached on the rear bottom side of the transaxle case near
the bulk head.
Page 27 of 2643
0B – 20IGENERAL INFORMATION
DAEWOO V–121 BL4
Automatic Transaxle Identification Number
Plate (AISIN : 81–40LE)
1. AW’s Lot Number
2. Part ID Code
3. DW’s Part Number4. AW’s Serial Number
Automatic Transaxle Identification Number
Plate Location (AISIN : 81–40LE)
The automatic transaxle identification number plate is at-
tached on the upper side of the transaxle case.
Page 28 of 2643
GENERAL INFORMATION 0B – 21
DAEWOO V–121 BL4
VEHICLE LIFTING PROCEDURES
Notice : To raise the vehicle, place the lifting equipment
only at the points indicated. Failure to use these precise
positions may result in permanent vehicle body deforma-
tion. Many dealer service facilities and service stations areequipped with automotive hoists that bear upon some
parts of the frame in order to lift the vehicle. If any other
hoist method is used, use special care to avoid damaging
the fuel tank, the filler neck, the exhaust system, or the un-
derbody.

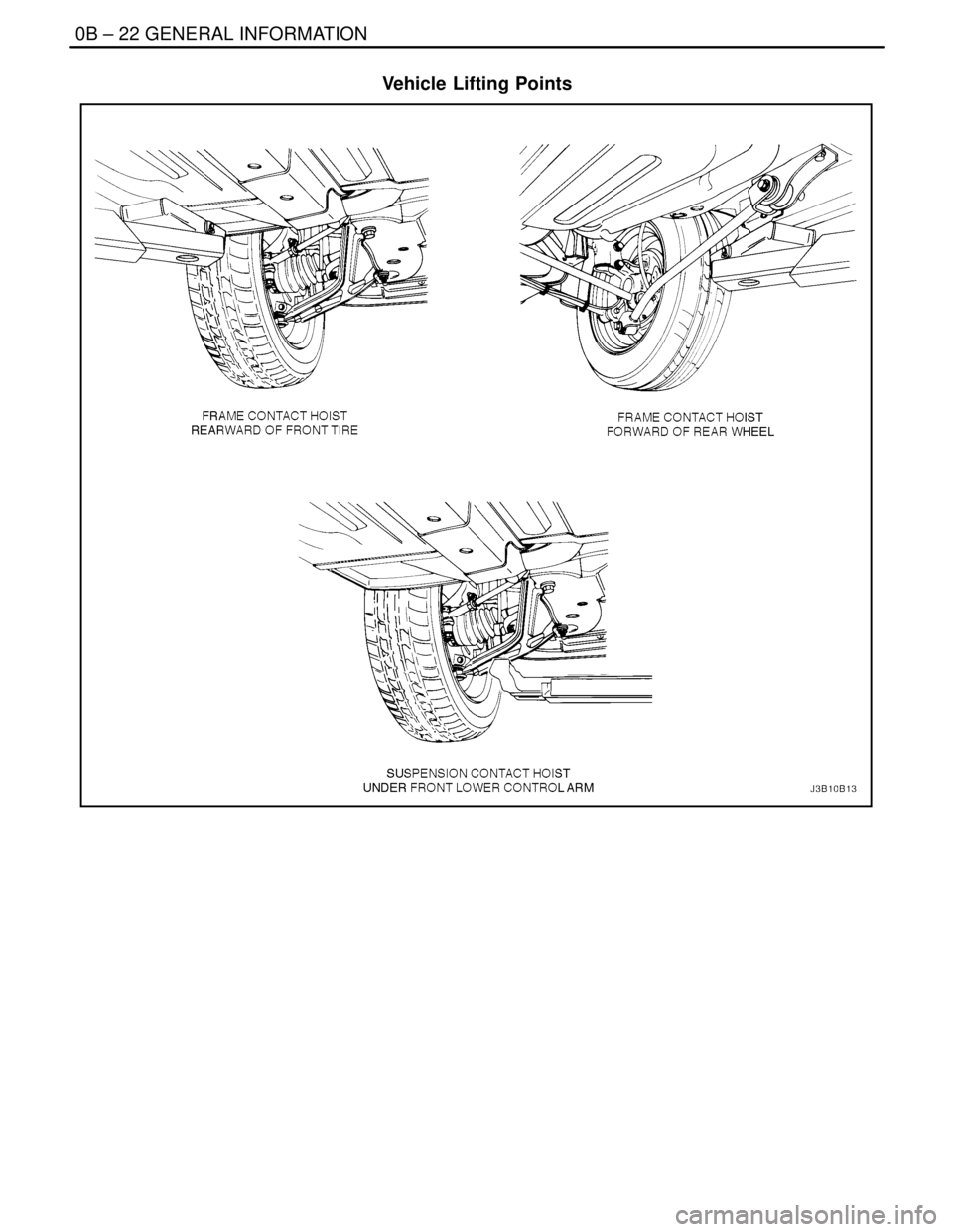

Vehicle Lifting Points
Page 29 of 2643
0B – 22IGENERAL INFORMATION
DAEWOO V–121 BL4
Vehicle Lifting Points
Page 30 of 2643
SECTION 1
HOW TO USE ELECTRICAL WIRING DIAGRAM
CONTENTS
1. HOW TO READ ELECTRICAL WIRING DIAGRAM 1–2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2. CIRCUIT IDENTIFICATION SYMBOL 1–3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3. FUNCTION OF POWER SUPPLY LINE 1–3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4. WIRING HARNESS COLOR IDENTIFICATION 1–3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5. HOW TO CHECK TERMINAL NUMBER OF CONNECTOR 1–3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Page 31 of 2643
1–2WHOW TO USE ELECTRICAL WIRING DIAGRAM
1. HOW TO READ ELECTRIC WIRING DIAGRAM1) CONTENTS OF ELECTRICAL WIRING DIAGRAM (CIRCUIT)
POSITION
EXPLANATION
A" Upper horizontal lines : Power supply lines
" Power supply lines : 30, 15, 15A, 15C, 58
B" Ef20 or F2 : Fuse Number
S Ef20 : Fuse No #20 in engine room fuse box
S F2 : Fuse No #2 in passenger room fuse box
C" Connector (C101~C902)
S Connector No C203 terminal No1
S Refer to Major Connector Position (Section 2)
D" S201 : Splice pack (S101~S303)
S Refer to Major Splice Pack Position (Section2)
E" Internal circuit of component (Relay)
(Component Name and Terminal Number)
F" Internal circuit of component (switch)
(Component Name, Terminal Number and Connecting Wiring Circuit)
G" Wiring Harness Color
S Refer to Wiring Harness Color Abbreviation
H" Lower horizontal line : Ground line
S Ground position(G101~G401)
S B : Body Ground
S Refer to Major Ground Position (Section2)
Page 32 of 2643

HOW TO USE ELECTRICAL WIRING DIAGRAMW1–3
2. CIRCUIT IDENTIFICATION SYMBOL
IDENTIFICATION
SYMBOLMEANING
CConnector
DDiode
EfFuse in engine room fuse box
FFuse in passenger room fuse box
GGround
SSplice pack(Junction connector)
3. FUNCTION OF POWER SUPPLY LINE (NUMBER)
Power supply NoPower supply condition
15Battery Voltage(B+) supply in Ignition Switch ”ON” and ”ST” (IGN 1)
15ABattery Voltage(B+) supply in Ignition Switch ”ON” (IGN 2)
15CBattery Voltage(B+) supply in Ignition Switch ”ON” and ”ACC”
30Battery Voltage(B+) supply directly regardless of Ignition Switch
31Ground connected to battery()
58Battery Voltage(B+) supply in Head Lamp Switch 1st and 2nd step (Illumination circuit)
4. WIRING HARNESS COLOR IDENTIFICATION
AbbreviationColorAbbreviationColor
BrBrownSbSky Blue
GGreenRRed
VVioletLBlue
PPinkYYellow
WWhiteGrGray
OrOrangeBBlack
LgLight Green
5. HOW TO CHECK TERMINAL NUMBER OF CONNECTOR
" Terminal number is given based on Female Terminal Connectorex) Terminal Number 4 of C901 connection
