ENGINE CONTROLS 1F – 603
DAEWOO V–121 BL4
Installation Procedure
1. Coat the threads of the ECT sensor with sealer.
2. Install the ECT sensor into the EI system ignition
coil adapter.
Tighten
Tighten the engine coolant temperature sensor to 20
NSm (15 lb–ft).
3. Connect the ECT sensor connector.
4. Fill the coolant system.
5. Connect the negative battery cable.
THROTTLE POSITION SENSOR
(1.8L DOHC)
Removal Procedure
1. Disconnect the negative battery cable.
2. Remove the air intake tube and resonator.
3. Disconnect the throttle position (TP) sensor con-
nector.
4. Remove the TP sensor retaining bolts and the TP
sensor.
Installation Procedure
1. With the throttle valve closed, position the TP sen-
sor on the throttle shaft. Align the TP sensor with
the bolt holes.
2. Install the TP sensor retaining bolts.
Tighten
Tighten the throttle position sensor retaining bolts to
2 NSm (18 lb–in).
3. Connect the TP sensor connector.
4. Install the air intake tube and resonator.
5. Connect the negative battery cable.
THROTTLE BODY (1.4L/1.6L DOHC)
Removal Procedure
1. Disconnect the negative battery cable.
2. Remove the intake air tube.
3. Disconnect the breather hose.
Page 850 of 2643
1F – 604IENGINE CONTROLS
DAEWOO V–121 BL4
4. Disconnect the coolant hose from the throttle body.
5. Disconnect the throttle cables by opening the re-
lease slot.
6. Disconnect the main throttle idle actuator (MTIA)
electrical connector.
7. Remove the throttle body bolt and the nuts.
8. Remove the throttle body.
Installation Procedure
1. Install the throttle body assembly to the intake man-
ifold.
2. Install the throttle body retaining nuts and the bolt.
Tighten
Tighten the throttle body retaining nuts and the bolt to
15 NSm (11 lb–ft).
3. Connect the throttle cable.
4. Connect the coolant hoses.
5. Connect the breather hose.
6. Install the intake air tube.
7. Connect the negative battery cable.
THROTTLE BODY (1.8L DOHC)
Removal Procedure
1. Disconnect the negative battery cable.
2. Disconnect the intake air temperature (IAT) sensor
connector.
3. Disconnect the breather hose from the valve cover.
4. Remove the air intake tube.
Page 851 of 2643

ENGINE CONTROLS 1F – 605
DAEWOO V–121 BL4
5. Disconnect the throttle cables by opening the
throttle and moving the cable through the release
slot.
6. Disconnect the vacuum hoses from the throttle
body.
7. Disconnect the throttle position (TP) sensor and the
idle air control valve connectors.
8. Disconnect the coolant hoses from the throttle
body.
9. Remove the throttle body retaining nuts.
Notice : Cover the opening of the intake manifold after re-
moving the throttle body assembly. This will prevent any
objects or debris from entering the engine which may
cause damage.
10. Remove the throttle body and discard the gasket.
11. Remove the TP sensor. Refer to ”Throttle Position
Sensor ”in this section.
12. Remove the idle air control (IAC) valve. Refer to
”Idle Air Control Valve ”in this section.
Installation Procedure
Notice : Use care in cleaning old gasket material from ma-
chined aluminum surfaces. Sharp tools may damage seal-
ing surfaces.
1. Clean the gasket mating surface on the intake man-
ifold.
Notice : The throttle body may be cleaned in a cold immer-
sion–type cleaner following disassembly. The TP sensor
and the idle air control valve should not come in contact
with any solvent or cleaner, as they may be damaged.
2. Clean the throttle body.
3. Install the TP sensor. Refer to ” Throttle Position
Sensor ”in this section.
4. Install the IAC valve. Refer to ”Idle Air Control Valve
” in this section.
5. Install the throttle body assembly with a new gasket
to the intake manifold.
6. Install the throttle body retaining nuts.
Tighten
Tighten the throttle body retaining nuts to 10 NSm (89
lb–in).
Page 852 of 2643

1F – 606IENGINE CONTROLS
DAEWOO V–121 BL4
7. Connect the TP sensor connector and the IAC
valve connector.
8. Connect the coolant hoses to the throttle body.
9. Connect the vacuum hoses to the throttle body.
Important : Make sure the throttle/cruise control cables
do not hold the throttle open. With the engine off, check to
see that the accelerator pedal is free.
10. Connect the throttle cable.
11. Install the air intake tube.
12. Connect the breather hose to the valve cover.
13. Connect the IAT sensor connector.
14. Connect the negative battery cable.
15. Fill the cooling system.
FRONT HEATED OXYGEN SENSOR
(HO2S1) (1.4L/1.6L DOHC)
Removal Procedure
1. Disconnect the negative battery cable.
Notice : The oxygen sensor uses a permanently attached
pigtail and connector. This pigtail should not be removed
from the oxygen sensor. Damage or removal of the pigtail
or the connector could affect proper operation of the oxy-
gen sensor. Take care when handling the oxygen sensor.
Do not drop the oxygen sensor.
2. Disconnect the front heated oxygen sensor
(HO2S1) connector.
Notice : The oxygen sensor may be difficult to remove
when engine temperature is below 48°C (120°F). Exces-
sive force may damage threads in the exhaust manifold.
3. Carefully remove the HO2S1 from the exhaust
manifold.
Installation Procedure
Important : A special anti–seize compound is used on the
oxygen sensor threads. This compound consists of a liq-
uid graphite and glass beads. The graphite will burn away,
but the glass beads will remain, making the sensor easier
to remove. New or service sensors will already have the
compound applied to the threads. If a sensor is removed
from any engine and if for any reason it is to be reinstalled,
the threads must have anti–seize compound applied be-
fore reinstallation.
1. Coat the threads of the HO2S1 with an anti–seize
compound, if needed.
2. Install the HO2S1 into the exhaust manifold.
Tighten
Tighten the oxygen sensor to 42 NSm (31 lb–ft).
3. Connect the HO2S1 connector.
4. Connect the negative battery cable.
Page 853 of 2643

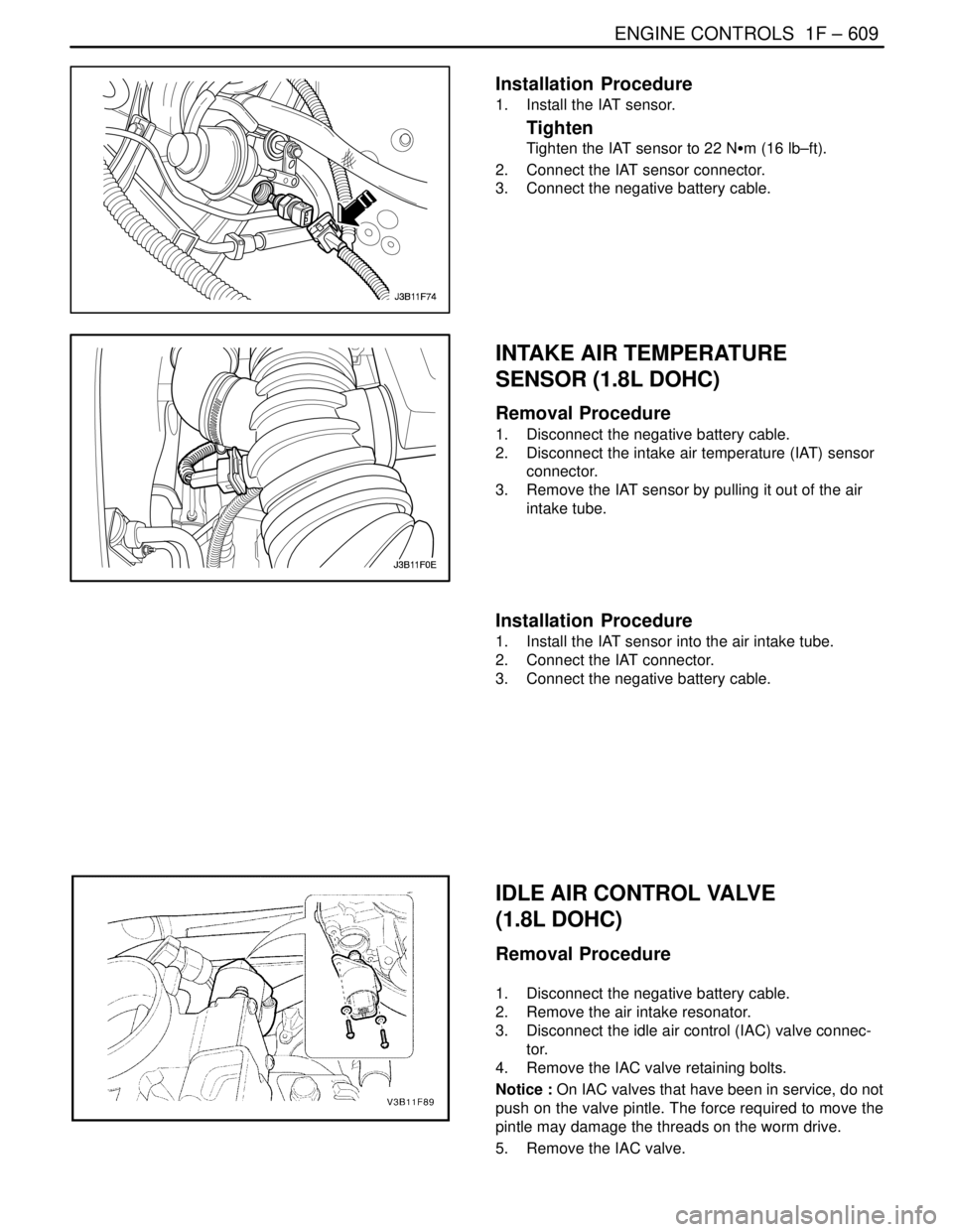

ENGINE CONTROLS 1F – 607
DAEWOO V–121 BL4
FRONT HEATED OXYGEN SENSOR
(HO2S1) (1.8L DOHC)
Removal Procedure
1. Disconnect the negative battery cable.
Notice : The oxygen sensor (O2S) uses a permanently at-
tached pigtail and connector. This pigtail should not be re-
moved from the O2S. Damage or removal of the pigtail or
the connector could affect proper operation of the O2S.
Take care when handling the O2S. Do not drop the O2S.
2. Disconnect the HO2S1 connector.
Notice : The oxygen sensor may be difficult to remove
when engine temperature is below 118°F (48°C). Exces-
sive force may damage threads in the exhaust manifold.
3. Carefully remove the HO2S1 from the exhaust
manifold.
Installation Procedure
Important : A special anti–seize compound is used on the
oxygen sensor threads. This compound consists of a liq-
uid graphite and glass beads. The graphite will burn away,
but the glass beads will remain, making the sensor easier
to remove. New or serviced sensors will already have the
compound applied to the threads. If a sensor is removed
from any engine and is to be reinstalled, the threads must
have an anti–seize compound applied before reinstalla-
tion.
1. Coat the threads of the HO2S1 with an anti–seize
compound, if needed.
2. Install the HO2S1 into the exhaust manifold.
Tighten
Tighten the oxygen sensor to 42 NSm (31 lb–ft).
3. Connect the HO2S1 connector.
4. Connect the negative battery cable.
REAR HEATED OXYGEN SENSOR
(HO2S2)
Removal Procedure
1. Disconnect the negative battery cable.
2. Disconnect the electrical connector.
Page 854 of 2643
1F – 608IENGINE CONTROLS
DAEWOO V–121 BL4
3. Remove the heated oxygen sensor.
Installation Procedure
1. Install the rear heated oxygen sensor.
Tighten
Tighten the heated oxygen sensor to 42 NSm (31 lb–
ft).
2. Connect the electrical connector.
3. Connect the negative battery cable.
INTAKE AIR TEMPERATURE
SENSOR (1.4L/1.6L DOHC)
Removal Procedure
1. Disconnect the negative battery cable.
2. Disconnect the intake air temperature (IAT) sensor
connector.
3. Remove the IAT sensor.
Page 855 of 2643

ENGINE CONTROLS 1F – 609
DAEWOO V–121 BL4
Installation Procedure
1. Install the IAT sensor.
Tighten
Tighten the IAT sensor to 22 NSm (16 lb–ft).
2. Connect the IAT sensor connector.
3. Connect the negative battery cable.
INTAKE AIR TEMPERATURE
SENSOR (1.8L DOHC)
Removal Procedure
1. Disconnect the negative battery cable.
2. Disconnect the intake air temperature (IAT) sensor
connector.
3. Remove the IAT sensor by pulling it out of the air
intake tube.
Installation Procedure
1. Install the IAT sensor into the air intake tube.
2. Connect the IAT connector.
3. Connect the negative battery cable.
IDLE AIR CONTROL VALVE
(1.8L DOHC)
Removal Procedure
1. Disconnect the negative battery cable.
2. Remove the air intake resonator.
3. Disconnect the idle air control (IAC) valve connec-
tor.
4. Remove the IAC valve retaining bolts.
Notice : On IAC valves that have been in service, do not
push on the valve pintle. The force required to move the
pintle may damage the threads on the worm drive.
5. Remove the IAC valve.
Page 856 of 2643

1F – 610IENGINE CONTROLS
DAEWOO V–121 BL4
Notice : Do not use methyl ethyl ketone because it can
damage the parts.
6. Clean the IAC valve O–ring seal area, the pintle
valve seat, and the air passage with a suitable fuel
system cleaner.
Installation Procedure
Important : If installing a new IAC valve, be sure to re-
place it with an identical part. The IAC valve pintle shape
and diameter are designed for the specific application.
Measure the distance between the tip of the IAC valve
pintle and the mounting flange. If the distance is greater
than 1.1 inches (28 mm), use finger pressure to slowly re-
tract the pintle. The force required to retract the pintle will
not damage the IAC valve. The purpose of the 1.1–inch
(28–mm) setting is to prevent the IAC pintle from bottom-
ing out on the pintle seat. This 1.1–inch (28–mm) setting
is also an adequate setting for controlled idle on a restart.
1. Lubricate a new O–ring with engine oil. Install the
new O–ring onto the valve.
2. Install the IAC valve into the throttle body.
3. Install the IAC valve retaining bolts.
Tighten
Tighten the idle air control valve retaining bolts to 3
NSm (27 lb–in).
4. Connect the IAC valve connector.
5. Install the air intake resonator.
6. Connect the negative battery cable.
7. Start the engine and check for the proper idle
speed.
MANIFOLD ABSOLUTE PRESSURE
SENSOR (1.4L/1.6L DOHC)
Removal Procedure
1. Disconnect the negative battery cable.
2. Remove the manifold Absolute pressure (MAP)
sensor electrical connector.
3. Disconnect the MAP sensor vacuum hose.
4. Remove the MAP sensor bolt.
5. Remove the MAP sensor.
