2004 DAEWOO NUBIRA Service Repair Manual

Page 1873 of 2643

DAEWOO NUBIRA 2004  Service Repair Manual FIVE–SPEED MANUAL TRANSAXLE  5B – 49
DAEWOO V–121 BL4
7.  Remove the clutch–release bearing and the clutch–
release bearing guide. Refer to Section 5C, Clutch.
8.  Remove the speedometer–d

Page 1874 of 2643

DAEWOO NUBIRA 2004  Service Repair Manual 5B – 50IFIVE–SPEED MANUAL TRANSAXLE
DAEWOO V–121 BL4
7.  Install the transaxle cover and the transaxle cover
bolts.
Tighten
Tighten the transaxle cover bolts to 18 NSm (13 lb–ft).
8.  Install

Page 1875 of 2643

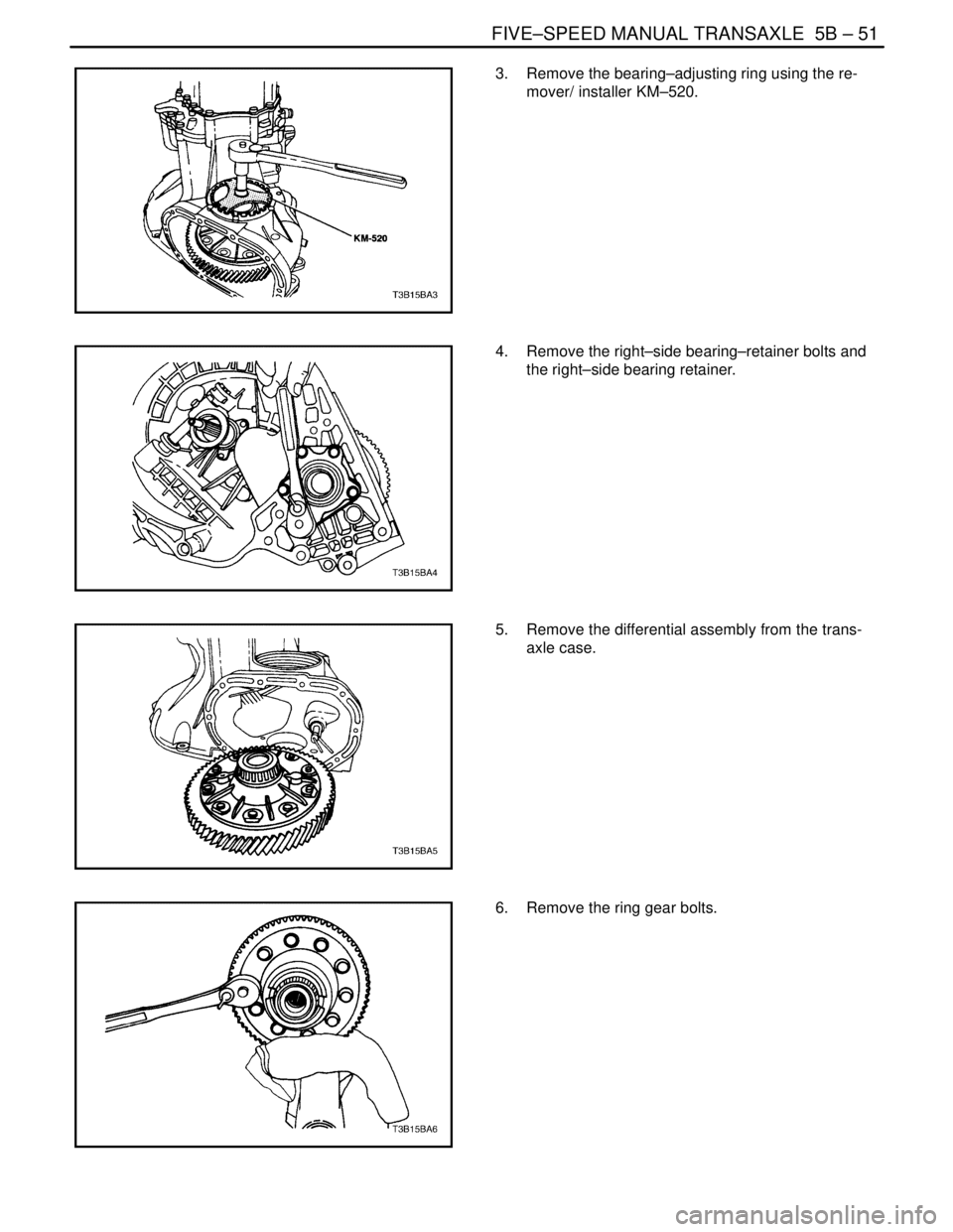

DAEWOO NUBIRA 2004  Service Repair Manual FIVE–SPEED MANUAL TRANSAXLE  5B – 51
DAEWOO V–121 BL4
3.  Remove the bearing–adjusting ring using the re-
mover/ installer KM–520.
4.  Remove the right–side bearing–retainer bolts and
th

Page 1876 of 2643

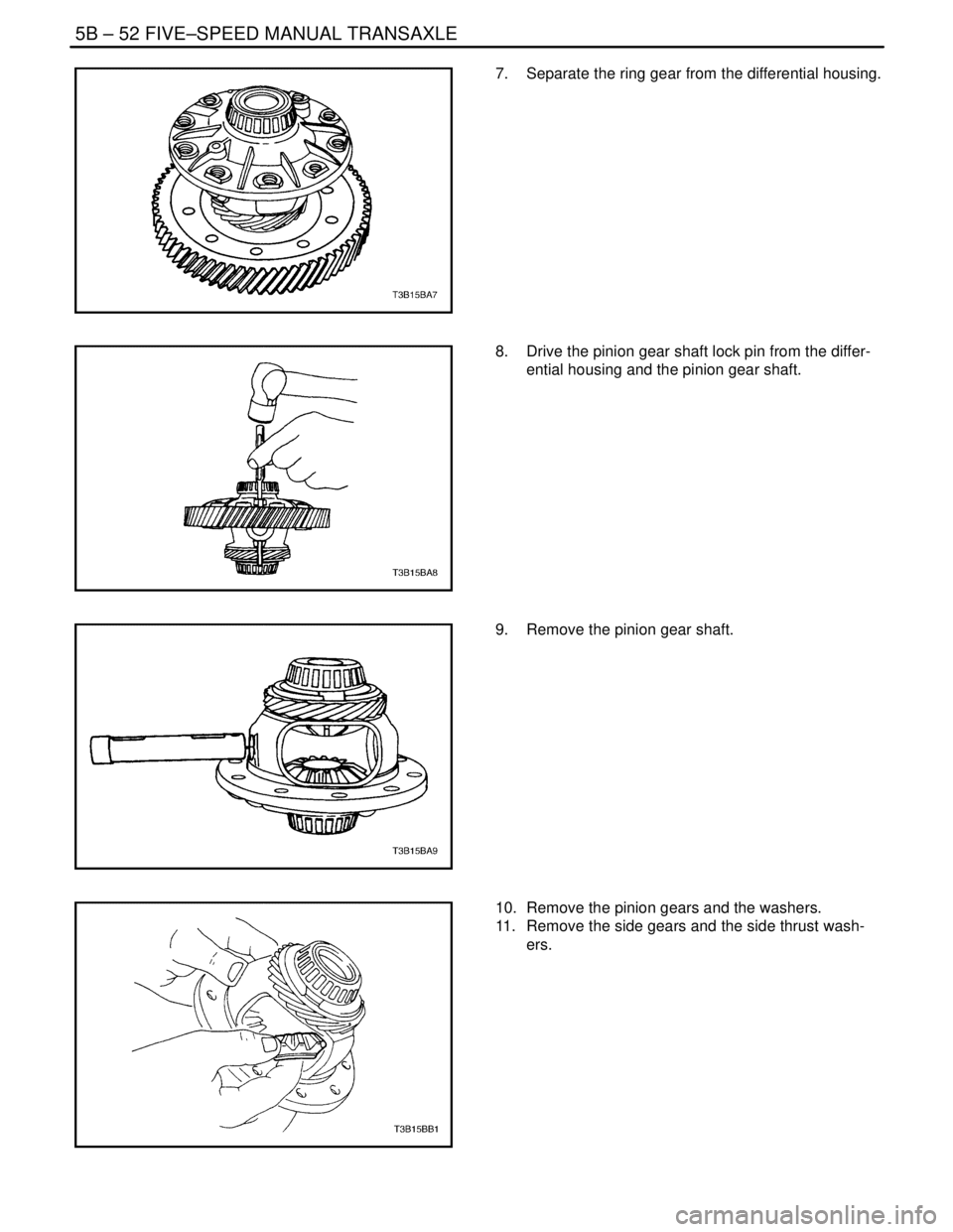

DAEWOO NUBIRA 2004  Service Repair Manual 5B – 52IFIVE–SPEED MANUAL TRANSAXLE
DAEWOO V–121 BL4
7.  Separate the ring gear from the differential housing.
8.  Drive the pinion gear shaft lock pin from the differ-
ential housing and the pi

Page 1877 of 2643

DAEWOO NUBIRA 2004  Service Repair Manual FIVE–SPEED MANUAL TRANSAXLE  5B – 53
DAEWOO V–121 BL4
12.  Remove both of the differential bearings using the
bearing puller J–22888–20–A with the puller legs
J–22888–35.
13.  Remove t

Page 1878 of 2643

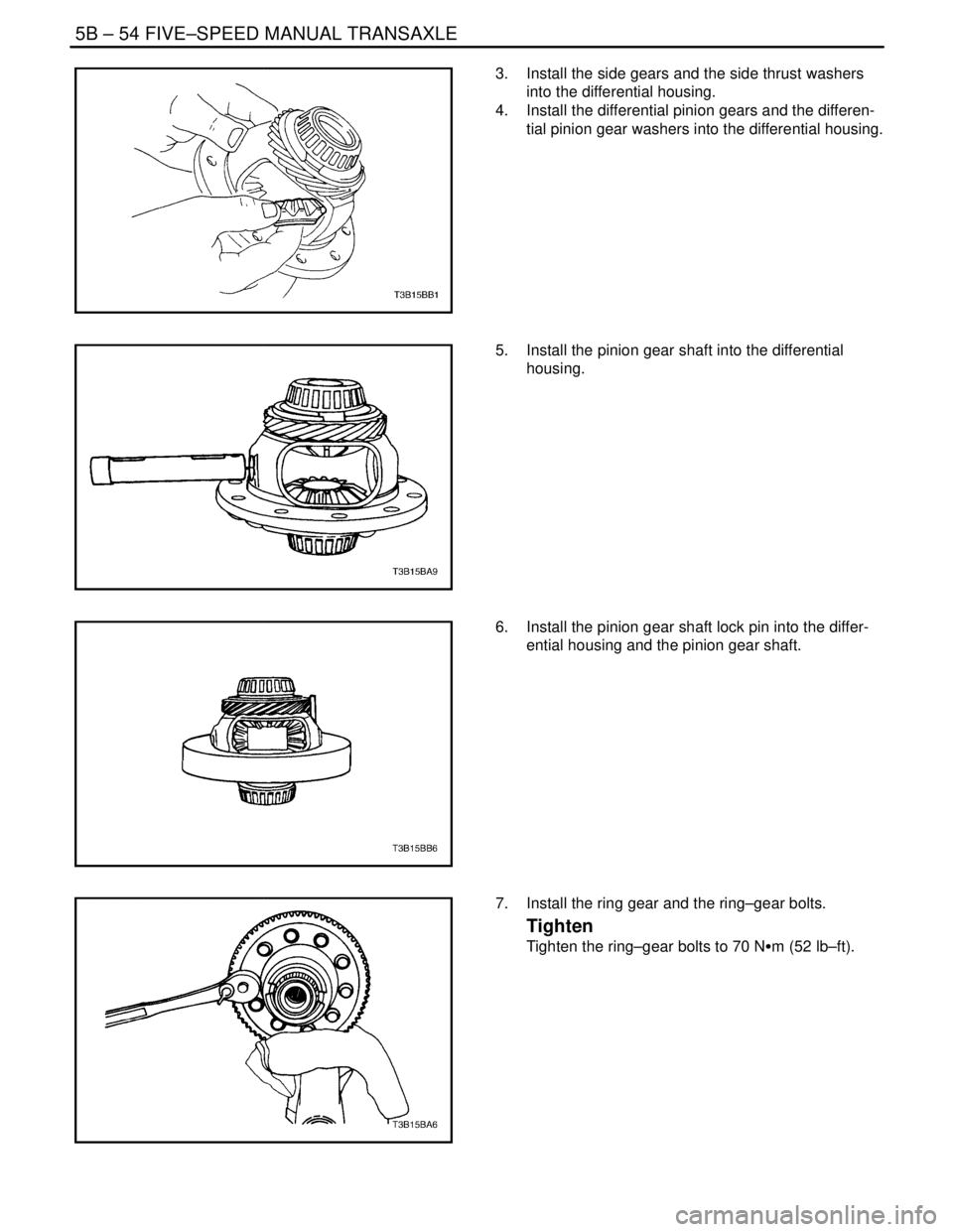

DAEWOO NUBIRA 2004  Service Repair Manual 5B – 54IFIVE–SPEED MANUAL TRANSAXLE
DAEWOO V–121 BL4
3.  Install the side gears and the side thrust washers
into the differential housing.
4.  Install the differential pinion gears and the diffe

Page 1879 of 2643

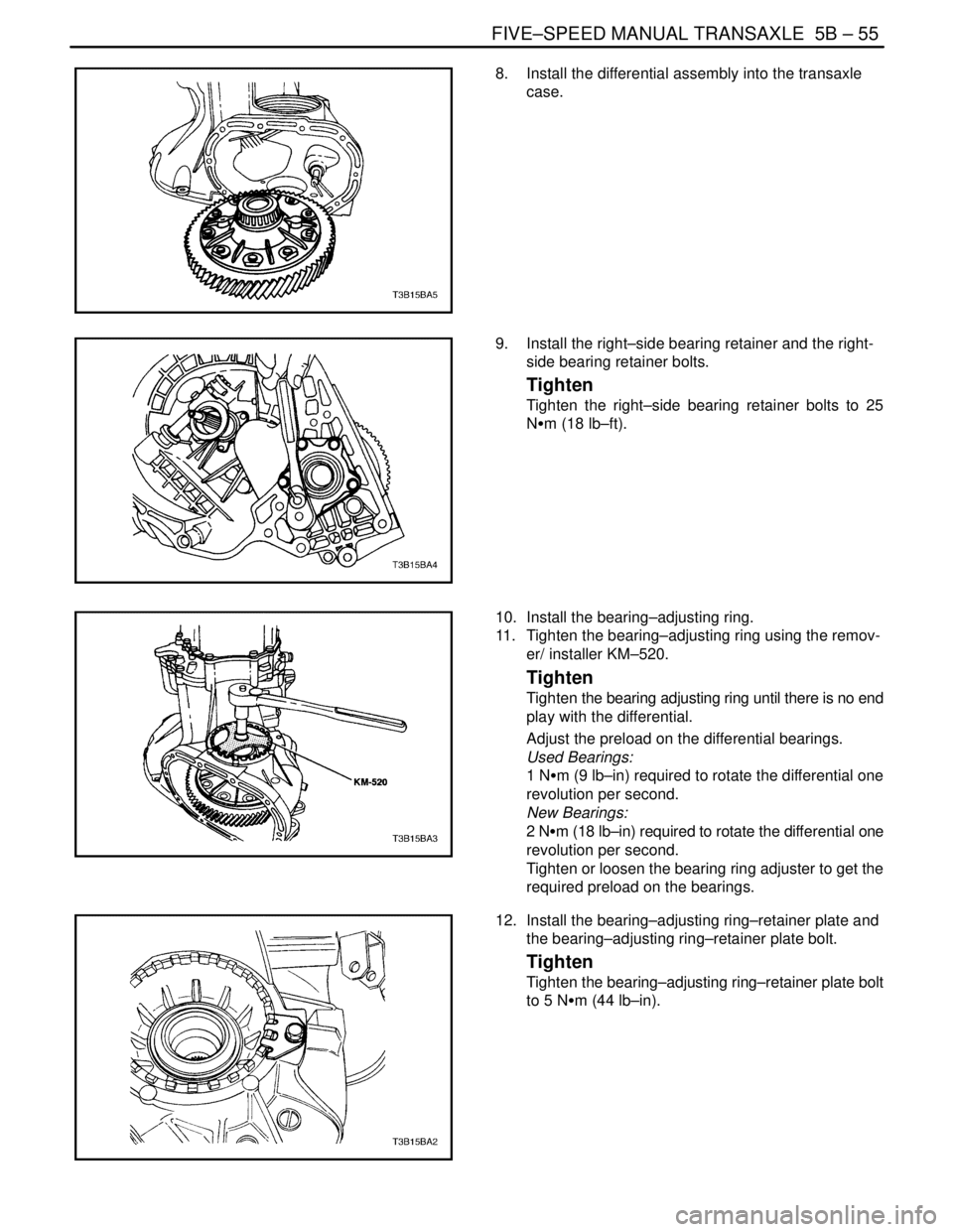

DAEWOO NUBIRA 2004  Service Repair Manual FIVE–SPEED MANUAL TRANSAXLE  5B – 55
DAEWOO V–121 BL4
8.  Install the differential assembly into the transaxle
case.
9.  Install the right–side bearing retainer and the right-
side bearing ret

Page 1880 of 2643

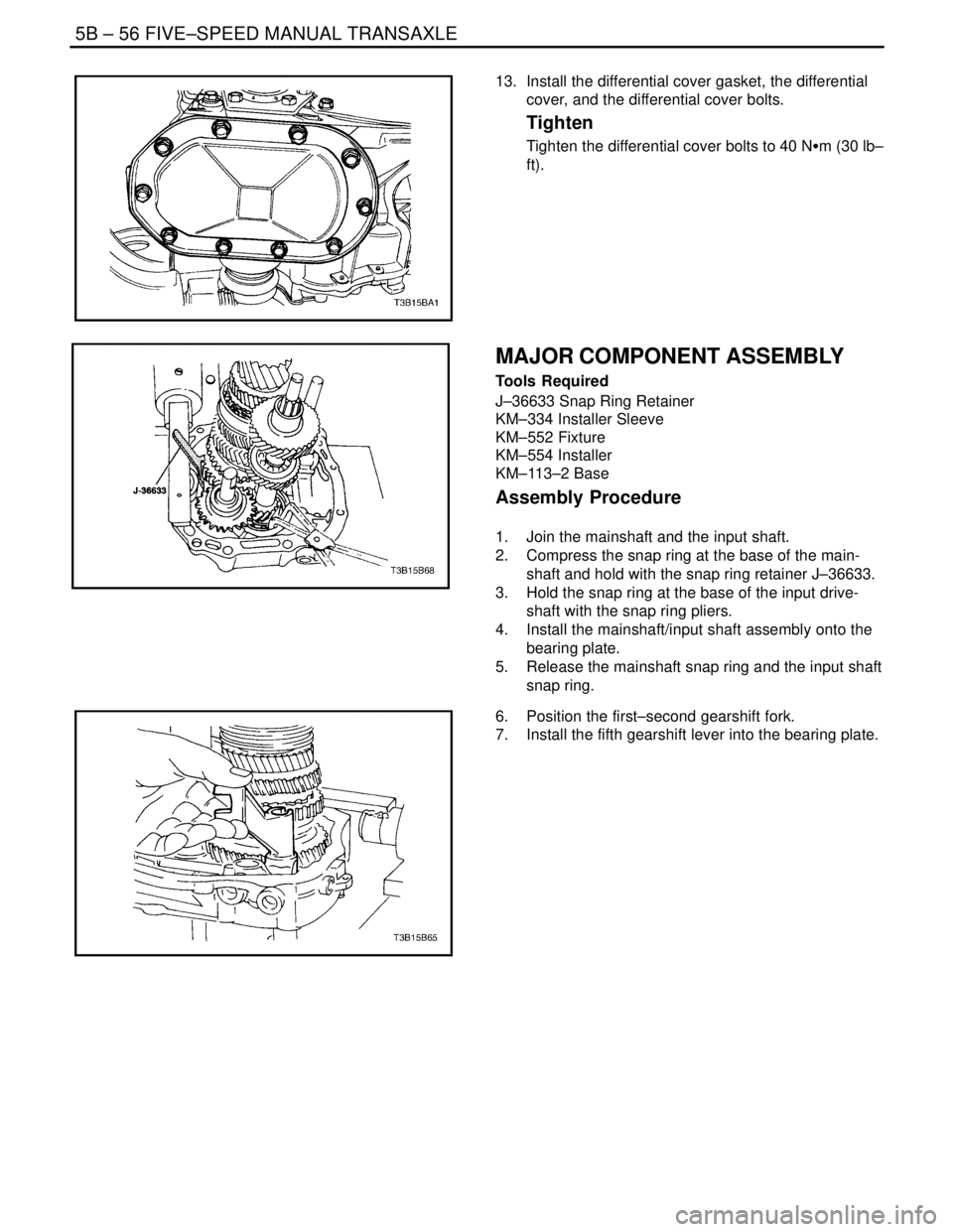

DAEWOO NUBIRA 2004  Service Repair Manual 5B – 56IFIVE–SPEED MANUAL TRANSAXLE
DAEWOO V–121 BL4
13.  Install the differential cover gasket, the differential
cover, and the differential cover bolts.
Tighten
Tighten the differential cover
