DAEWOO NUBIRA 2004 Service Repair Manual HEATING AND VENTILATION SYSTEM 7A – 11
DAEWOO V–121 BL4
StepNo Yes Value(s) Action
211. Disconnect the resistor block connector.
2. Connect one lead of a self–powered test light
to any single

Page 1986 of 2643

DAEWOO NUBIRA 2004 Service Repair Manual 7A – 12IHEATING AND VENTILATION SYSTEM
DAEWOO V–121 BL4
StepActionValue(s)YesNo
1Verify the customer’s complaint.
Are the customer’s concerns verified?Go to Step 2System OK
2S Examine the af

7A – 12IHEATING AND VENTILATION SYSTEM
DAEWOO V–121 BL4
StepActionValue(s)YesNo
1Verify the customer’s complaint.
Are the customer’s concerns verified?Go to Step 2System OK
2S Examine the affected door in the unit for proper
attachment to the vacuum actuator.
S Check the actuator connection to the door.
S Check that the vacuum hose is properly con-
nected.
Is everything connected properly?–Go to Step 4Go to Step 3
3Repair as necessary.
Is the repair complete?–System OK–
41. Disconnect the actuator at the door.
2. Check the range of the door travel and the ef-
fort required to move it.
Does the door move freely through its entire range
of travel so that it can close at both ends of the
range?–Go to Step 5Go to Step 3
5Check the travel of the actuator by turning the con-
trol knob with the engine running.
Is the actuator travel OK?–Go to Step 6Go to Step 7
61. Reinstall the actuator.
2. Recheck the system using the ”Control Set-
tings/Correct Results” tests in this procedure.
Does the system perform properly?–System OKGo to Step 9
71. Check the vacuum hose at the control.
2. Check for a broken control.
Is there a problem with the vacuum hose or the con-
trol?–Go to Step 8Go to Step 9
8Repair the vacuum hose or the control as necessary.
Is the repair complete?–System OKGo to Step 9
9Recheck the system using the ”Control Settings/
Correct Results” tests in this procedure.
Is the repair complete?–System OKGo to Step 10
10Check for airflow from the defroster or the vent out-
lets.
Is there high airflow from the defroster or the vent
outlets?–Go to Step 11Go to Step 12
11Adjust the heater door at the floor and the vent door
to get the proper airflow.
Is the repair complete?–System OK–
12Switch the mode knob to defrost.
Is the defroster airflow OK?–Go to Step 13Go to Step 14
131. Remove the heater outlet.
2. Check the heater outlet for obstructions.
3. Remove any obstructions in the heater outlet.
Is the repair complete?–System OK–
14Check the blower speeds for change in the airflow.
Does the blower speed increase as the control is
turned from 1 to 4?–Go to Step 15Go to ”Blower
Electrical
(Manual and
Non–A/C)”

Page 1987 of 2643

DAEWOO NUBIRA 2004 Service Repair Manual HEATING AND VENTILATION SYSTEM 7A – 13
DAEWOO V–121 BL4
StepNo Yes Value(s) Action
151. Check for obstructions in the system at the
blower inlet and check the air filter if the vehicle
is so equ

Page 1988 of 2643

DAEWOO NUBIRA 2004 Service Repair Manual 7A – 14IHEATING AND VENTILATION SYSTEM
DAEWOO V–121 BL4
StepNo Yes Value(s) Action
71. Check the temperature door travel, the cable,
and the linkage.
2. Adjust to full cold.
3. Check for full h

Page 1989 of 2643

DAEWOO NUBIRA 2004 Service Repair Manual HEATING AND VENTILATION SYSTEM 7A – 15
DAEWOO V–121 BL4
CONTROLS
StepActionValue(s)YesNo
1Verify the customer’s complaint.
Are the customer’s concerns verified?–Go to Step 2System OK
2Move

Page 1990 of 2643

DAEWOO NUBIRA 2004 Service Repair Manual 7A – 16IHEATING AND VENTILATION SYSTEM
DAEWOO V–121 BL4
BLOWER NOISE
StepActionValue(s)YesNo
1Verify the customer’s complaint.
Are the customer’s concerns verified?–Go to Step 2System OK
21

7A – 16IHEATING AND VENTILATION SYSTEM
DAEWOO V–121 BL4
BLOWER NOISE
StepActionValue(s)YesNo
1Verify the customer’s complaint.
Are the customer’s concerns verified?–Go to Step 2System OK
21. Sit inside the vehicle.
2. Close the doors and the windows.
3. Turn the ignition ON.
4. Start the engine.
5. Set the temperature to full cold.
6. Cycle through the blower speeds, the modes,
and the temperature settings in order to find
the noise.
Is the blower noise constant at high blower speeds
or certain modes, but absent at lower speeds or in
other modes?–Go to Step 11Go to Step 3
3Check for vibrations from the blower motor and fan
assembly at each blower speed by feeling the blower
motor housing.
Did you find excessive vibration?–Go to Step 6Go to Step 4
41. Remove the blower motor and the fan assem-
bly. Refer to ”Blower Motor” in this section.
2. Check for foreign material at the opening of the
blower inlet.
Do you find any foreign material at the blower inlet?–Go to Step 5Go to Step 6
5Remove all foreign material.
Is the repair complete?–System OKGo to Step 6
61. Examine the blower fan for wear spots,
cracked blades, a cracked hub, a loose fan re-
taining nut, or bad alignment.
2. Examine the blower case for wear spots.
Did you find any problem?–Go to Step 7Go to Step 9
7Repair as required.
Is the repair complete?–System OKGo to Step 8
8Replace the motor and the fan assembly.
Is the repair complete?–System OKGo to Step 9
9If the noise is a click/tick or whine, replace the motor.
Is the repair complete?–System OKGo to Step 10
10Reinstall the original motor.
Is the problem still present?–Go to Step 11System OK
111. Set the blower speed on maximum.
2. Check full–hot to full–cold temperature posi-
tions in the defrost, floor, and vent modes.
Is the noise present in the defrost mode only?–Go to Step 12Go to Step 13
121. Check the ducts for obstructions or foreign ma-
terials.
2. Remove any obstructions or foreign materials.
3. Check the floor/defroster door seals.
4. Repair or replace the components, as needed.
Is the repair complete?–System OK–
13Is the noise present in the floor mode only?–Go to Step 12Go to Step 14
14Is the noise present in the vent mode only?–Go to Step 15Go to Step 16

Page 1991 of 2643

DAEWOO NUBIRA 2004 Service Repair Manual HEATING AND VENTILATION SYSTEM 7A – 17
DAEWOO V–121 BL4
StepNo Yes Value(s) Action
151. Check the ducts for obstructions or foreign ma-
terials.
2. Remove any obstructions or foreign materials.

Page 1992 of 2643

DAEWOO NUBIRA 2004 Service Repair Manual 7A – 18IHEATING AND VENTILATION SYSTEM
DAEWOO V–121 BL4
MAINTENANCE AND REPAIR
ON–VEHICLE SERVICE

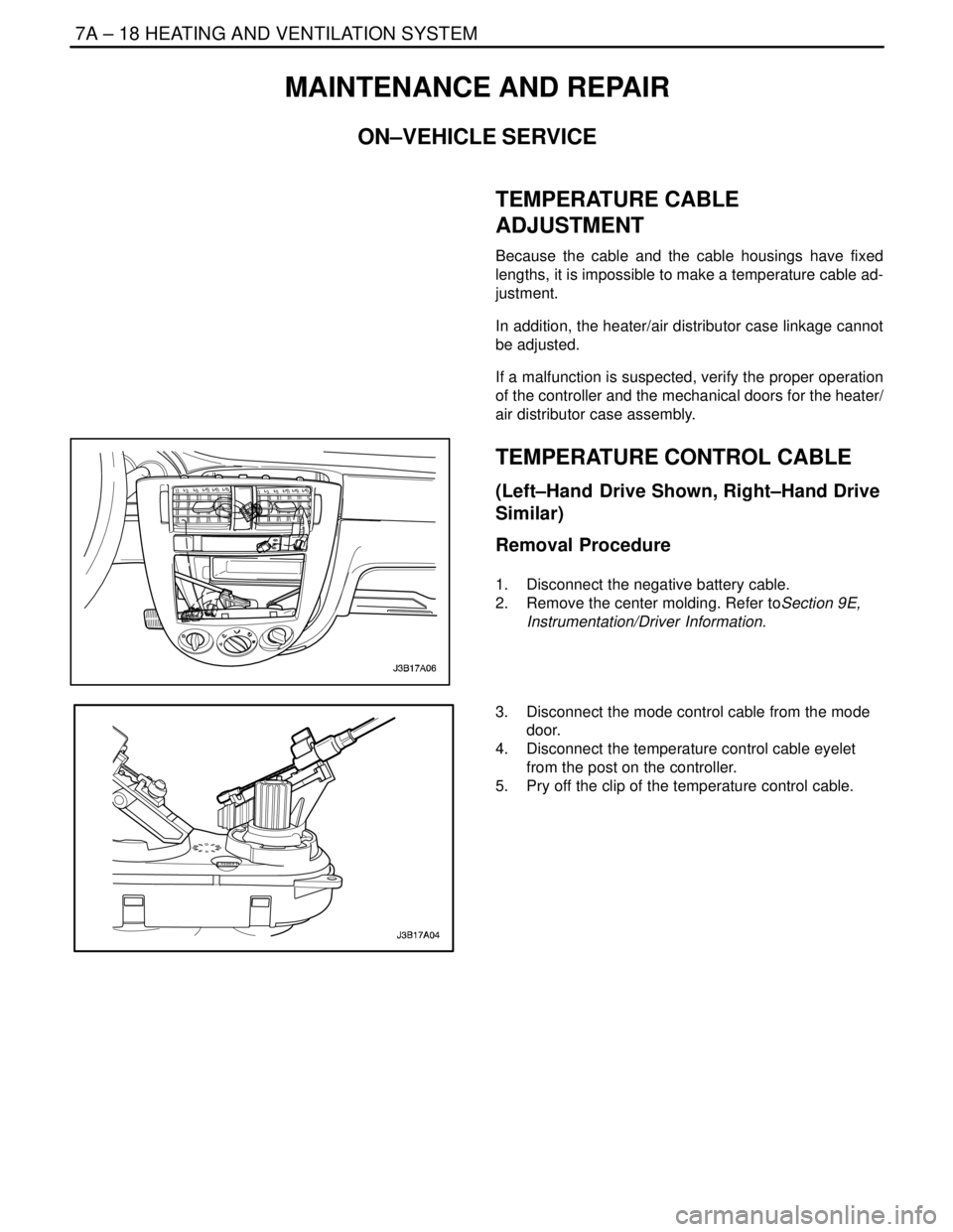

TEMPERATURE CABLE
ADJUSTMENT
Because the cable and the cable housings have fixed
lengths, it is
