18. Remove the snap ring and the washer from the
mainshaft.
19. Remove the third–fourth synchronizer gear contain-
ing the synchronizer spring.
20. Remove the fourth–gear assembly.
21. Separate the synchronizer blocking ring from the
fourth gear.
Page 1866 of 2643
5B – 42IFIVE–SPEED MANUAL TRANSAXLE
DAEWOO V–121 BL4

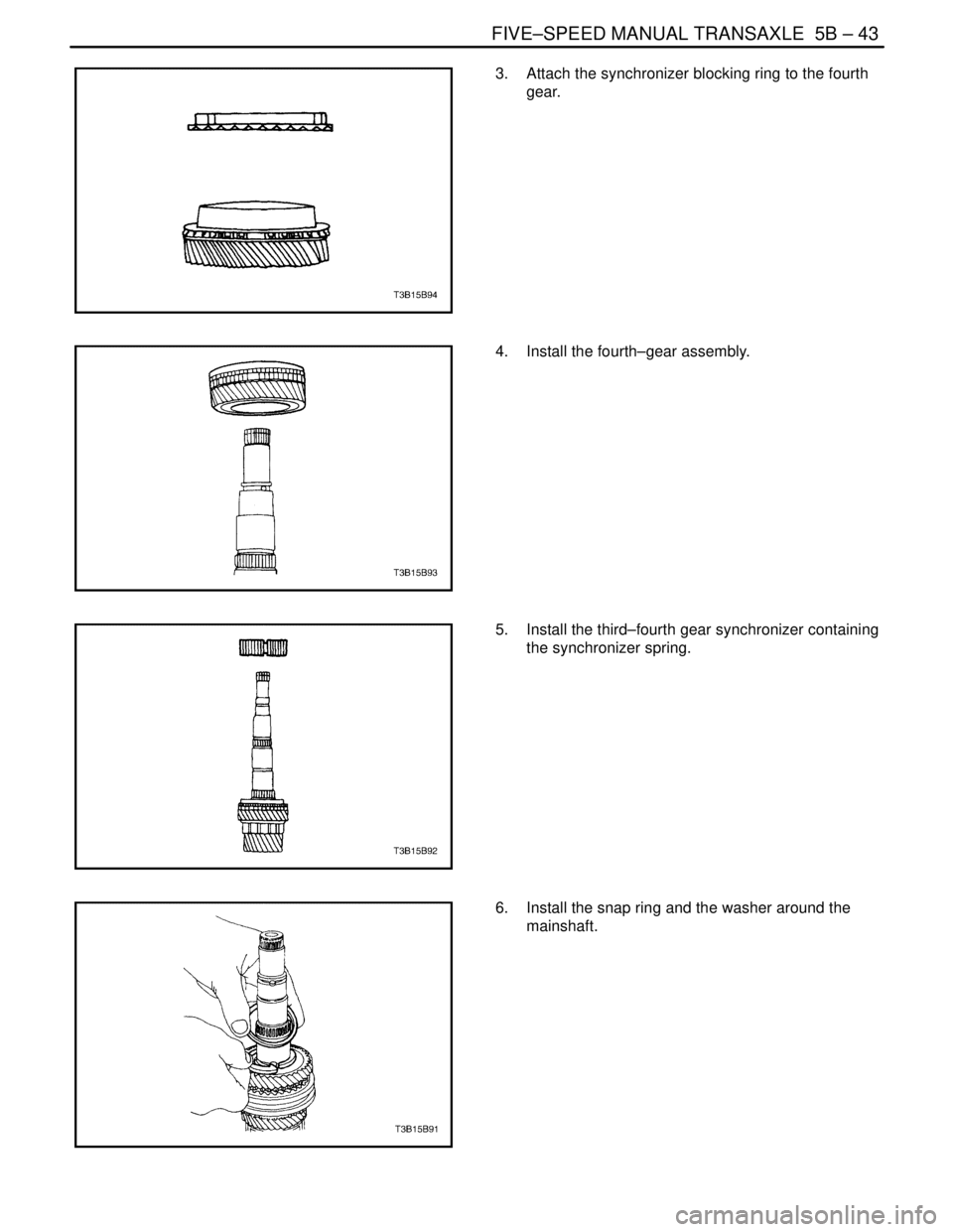

22. Remove the fourth–gear needle bearing, the ring,
and the thrust washer.
23. Remove the mainshaft bearing.
Assembly Procedure
1. Install the mainshaft bearing.
2. Install the ring, the thrust washer, and the fourth–
gear needle bearing.
Page 1867 of 2643
FIVE–SPEED MANUAL TRANSAXLE 5B – 43
DAEWOO V–121 BL4

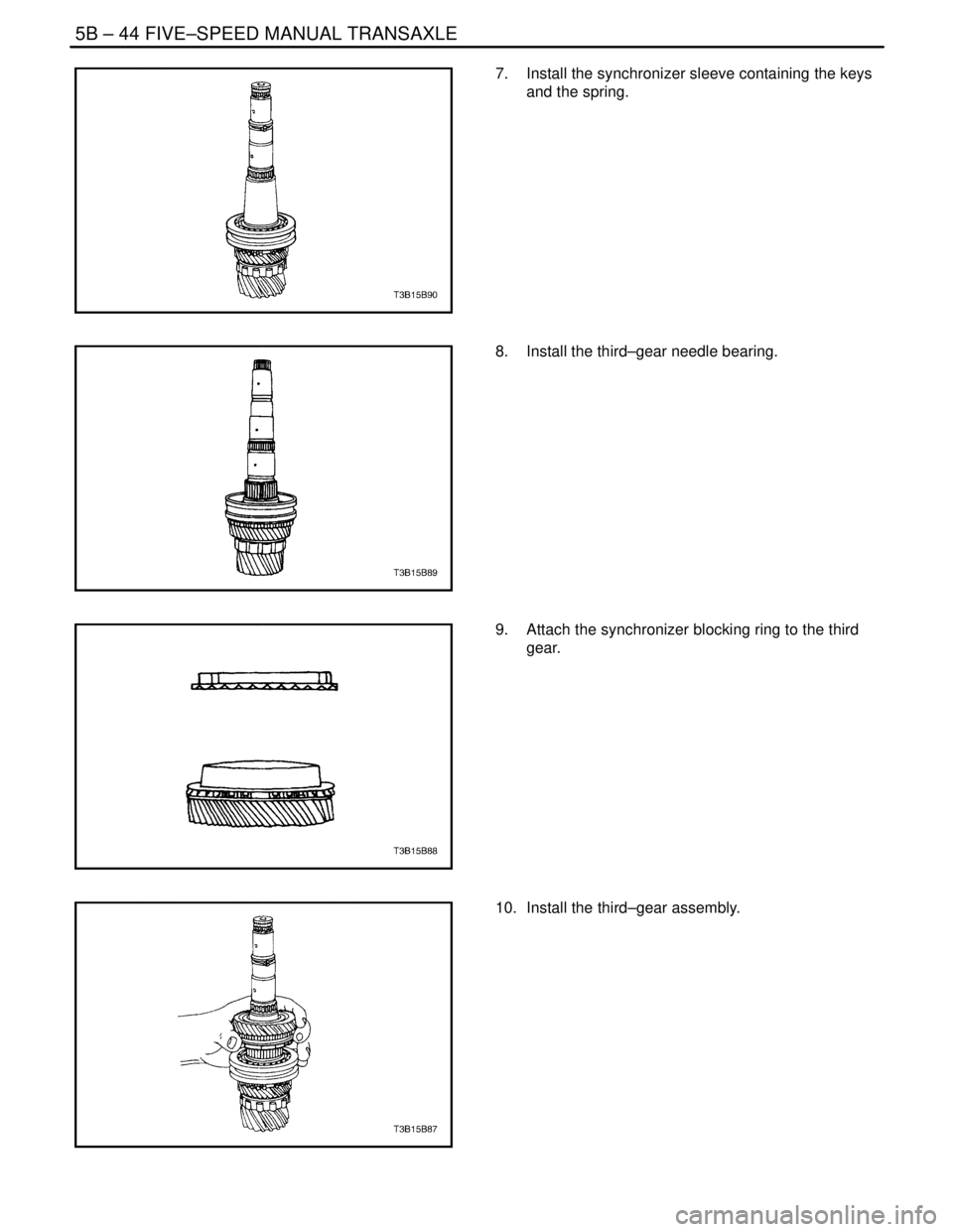

3. Attach the synchronizer blocking ring to the fourth
gear.
4. Install the fourth–gear assembly.
5. Install the third–fourth gear synchronizer containing
the synchronizer spring.
6. Install the snap ring and the washer around the
mainshaft.
Page 1868 of 2643
5B – 44IFIVE–SPEED MANUAL TRANSAXLE
DAEWOO V–121 BL4

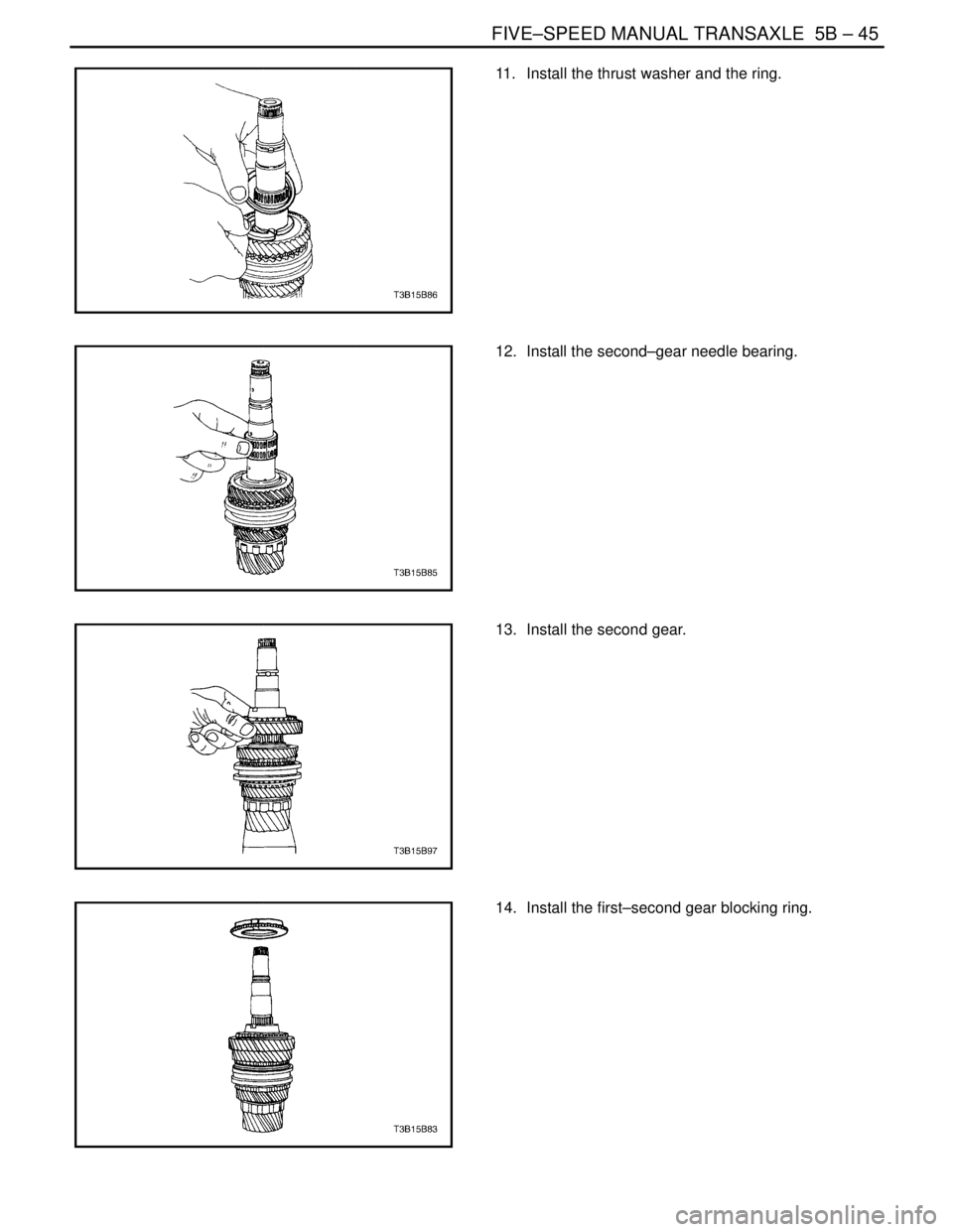

7. Install the synchronizer sleeve containing the keys
and the spring.
8. Install the third–gear needle bearing.
9. Attach the synchronizer blocking ring to the third
gear.
10. Install the third–gear assembly.
Page 1869 of 2643
FIVE–SPEED MANUAL TRANSAXLE 5B – 45
DAEWOO V–121 BL4
11. Install the thrust washer and the ring.
12. Install the second–gear needle bearing.
13. Install the second gear.
14. Install the first–second gear blocking ring.
Page 1870 of 2643
5B – 46IFIVE–SPEED MANUAL TRANSAXLE
DAEWOO V–121 BL4

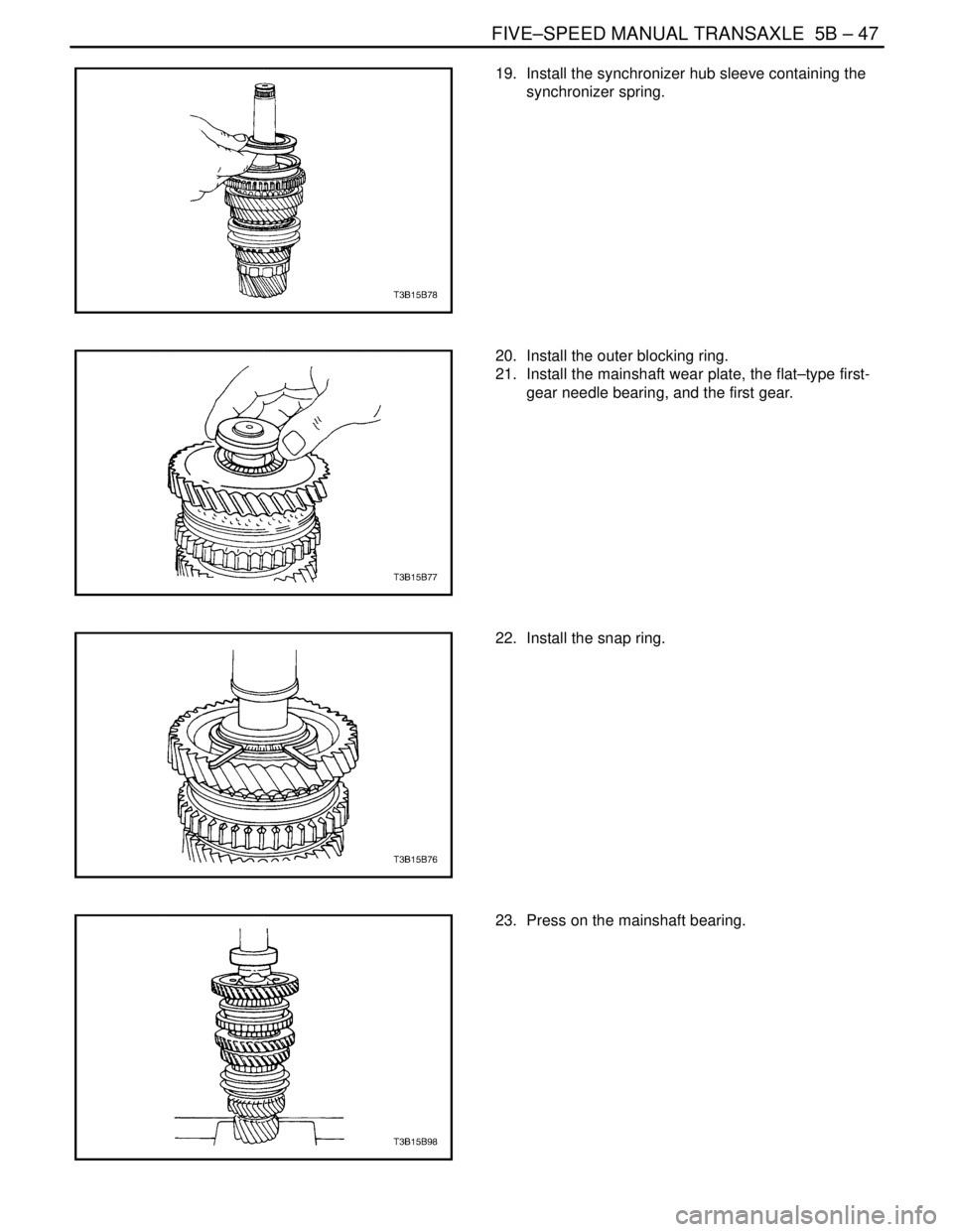

15. Install the first–second synchronizer gear.
16. Install the washer and the snap ring.
17. Install the first–gear needle bearing.
18. Install the keys onto the first–second synchronizer
gear.
Page 1871 of 2643
FIVE–SPEED MANUAL TRANSAXLE 5B – 47
DAEWOO V–121 BL4

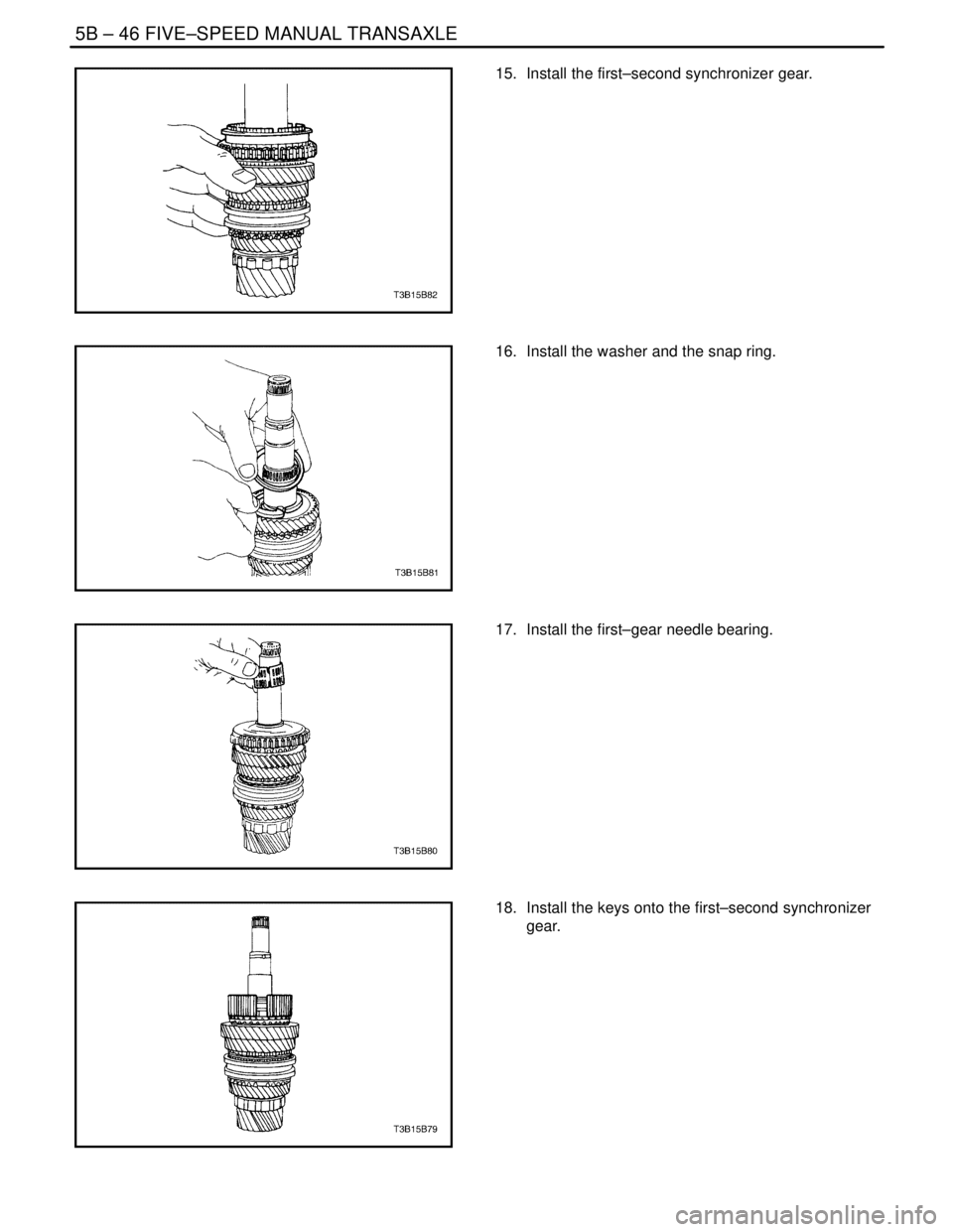

19. Install the synchronizer hub sleeve containing the
synchronizer spring.
20. Install the outer blocking ring.
21. Install the mainshaft wear plate, the flat–type first-
gear needle bearing, and the first gear.
22. Install the snap ring.
23. Press on the mainshaft bearing.
Page 1872 of 2643
5B – 48IFIVE–SPEED MANUAL TRANSAXLE
DAEWOO V–121 BL4
HOUSING CASE
Disassembly Procedure

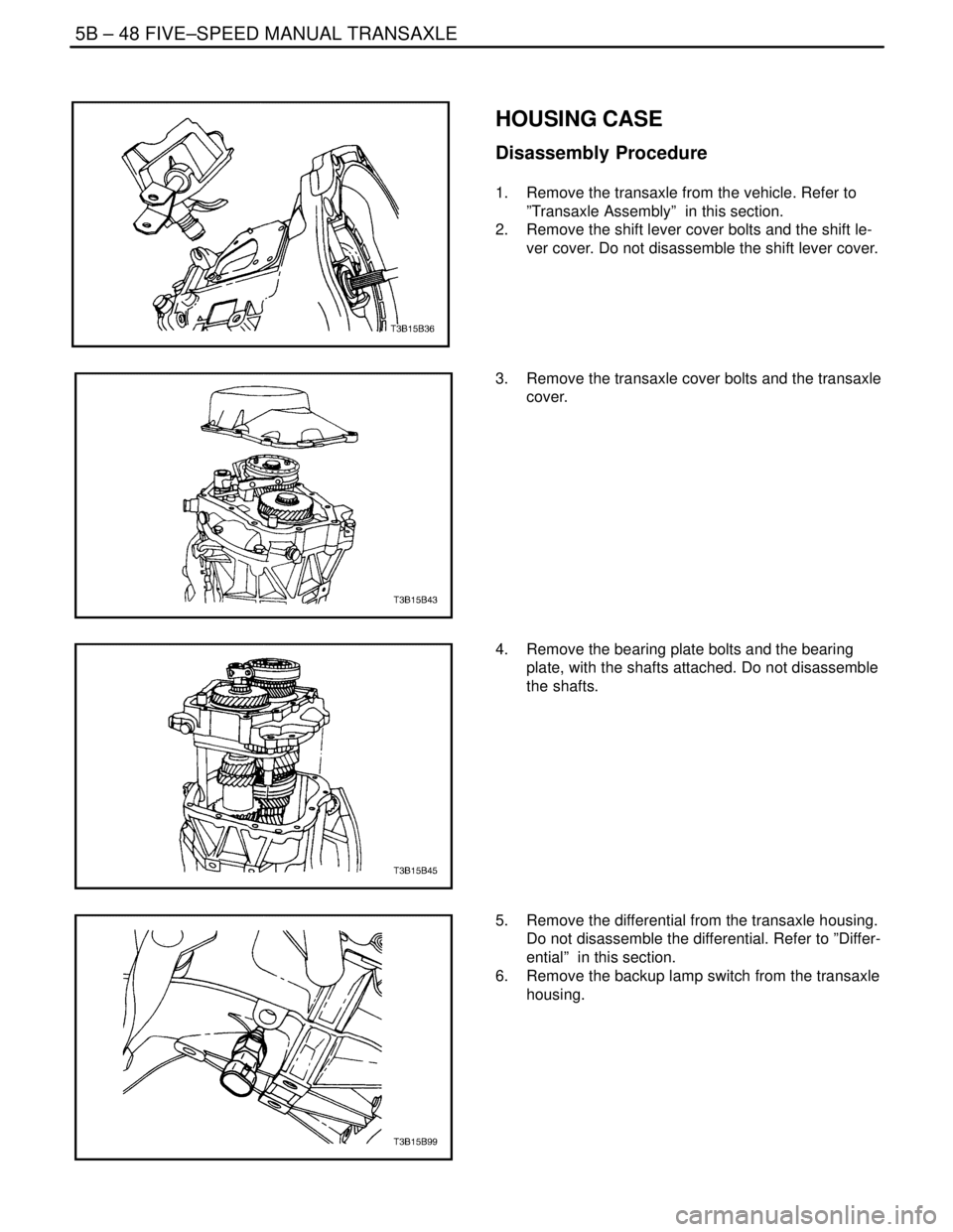

1. Remove the transaxle from the vehicle. Refer to
”Transaxle Assembly” in this section.
2. Remove the shift lever cover bolts and the shift le-
ver cover. Do not disassemble the shift lever cover.
3. Remove the transaxle cover bolts and the transaxle
cover.
4. Remove the bearing plate bolts and the bearing
plate, with the shafts attached. Do not disassemble
the shafts.
5. Remove the differential from the transaxle housing.
Do not disassemble the differential. Refer to ”Differ-
ential” in this section.
6. Remove the backup lamp switch from the transaxle
housing.
