2001 TOYOTA PRIUS Service Repair Manual

PP3B2±01
± PREPARATIONBODY
PP±55
2001 PRIUS (RM778U)
LUBRICANT
ItemCapacityclassification
MP grease±±

PP3B3±01
PP±56
± PREPARATIONBODY
2001 PRIUS (RM778U)
SSM (Special Service Materials)
08833±00070Adhesive 1324,
THREE BOND 1324 or equivalent
08833±00070Adhesive 1324,
THREE BOND 1324 or equivalent
08850±00801Windshield Glass Adhesive Set
or equivalent

PP3AD±01
± PREPARATIONAIR CONDITIONING
PP±57
11 8 Author: Date:
2001 PRIUS (RM778U)
AIR CONDITIONING

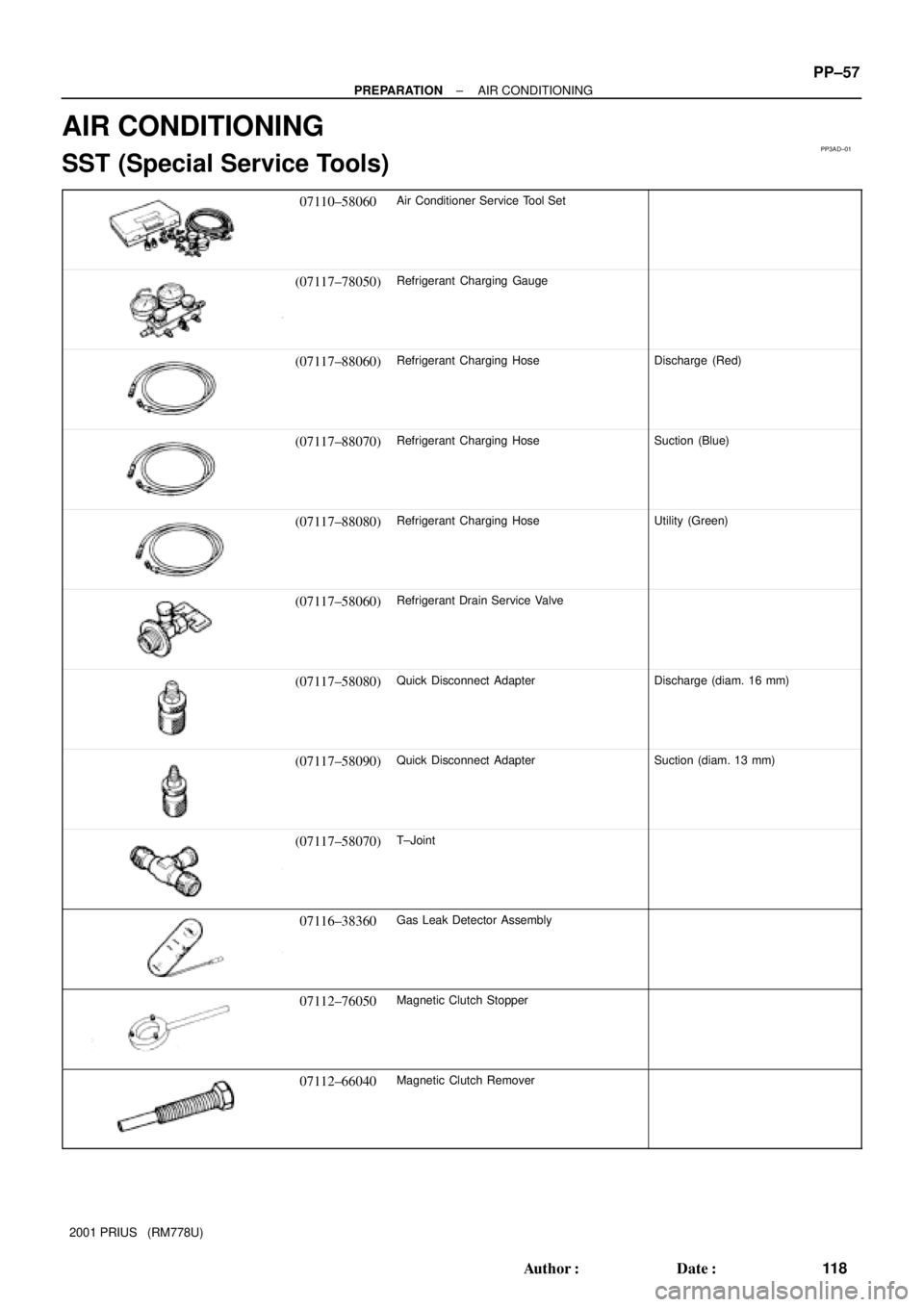

SST (Special Service Tools)
07110±58060Air Conditioner Service Tool Set
(07117±78050)Refrigerant Charging Gauge
(07117±88060)Refrigerant Charging HoseDischarge (Red)
(07117±88070)Refrigerant Charging HoseSuction (Blue)
(07117±88080)Refrigerant Charging HoseUtility (Green)
(07117±58060)Refrigerant Drain Service Valve
(07117±58080)Quick Disconnect AdapterDischarge (diam. 16 mm)
(07117±58090)Quick Disconnect AdapterSuction (diam. 13 mm)
(07117±58070)T±Joint
07116±38360Gas Leak Detector Assembly
07112±76050Magnetic Clutch Stopper
07112±66040Magnetic Clutch Remover

PP±58
± PREPARATIONAIR CONDITIONING
11 9 Author: Date:
2001 PRIUS (RM778U)

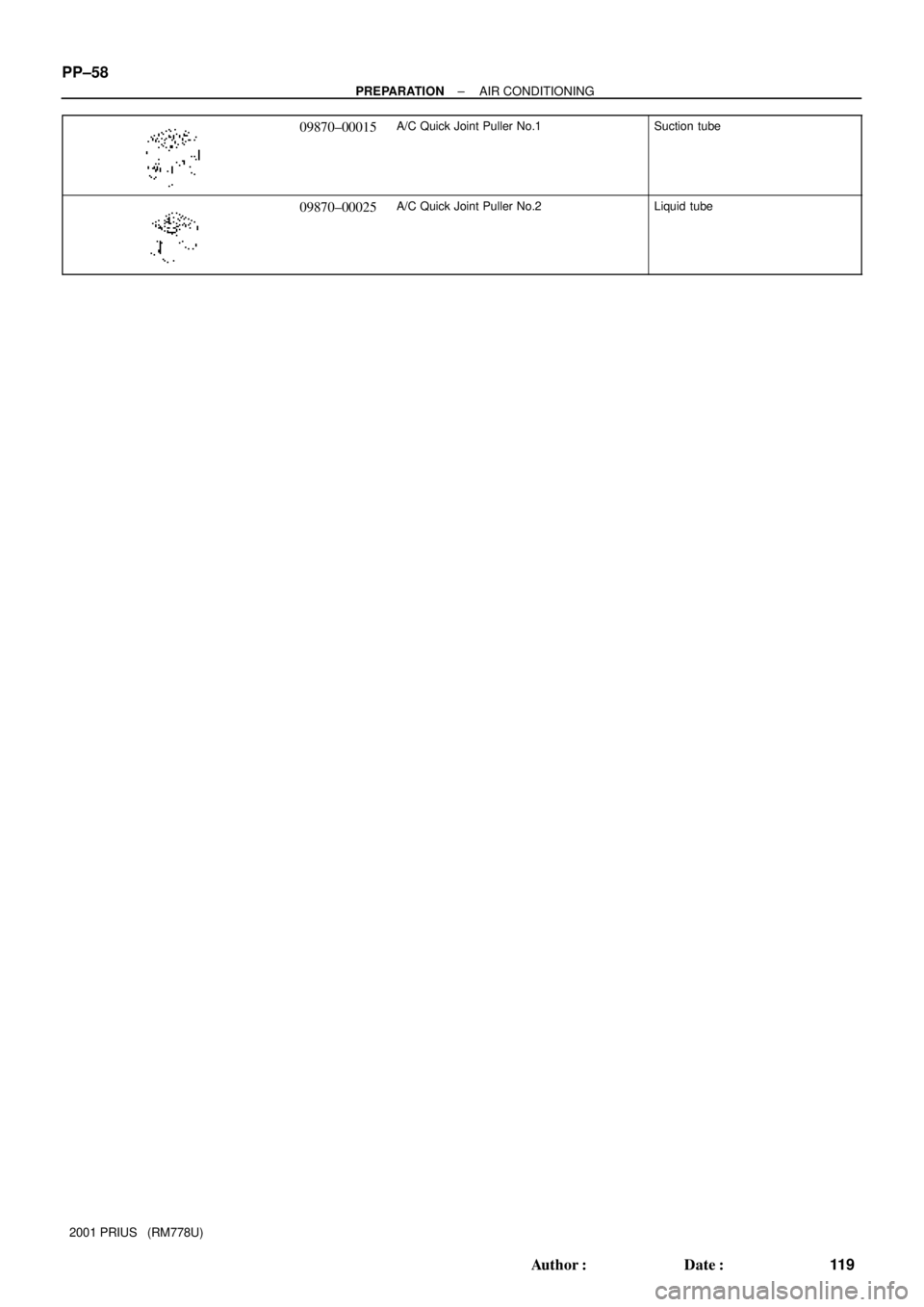

09870±00015A/C Quick Joint Puller No.1Suction tube
09870±00025A/C Quick Joint Puller No.2Liquid tube

PP3AE±01
± PREPARATIONAIR CONDITIONING
PP±59
2001 PRIUS (RM778U)

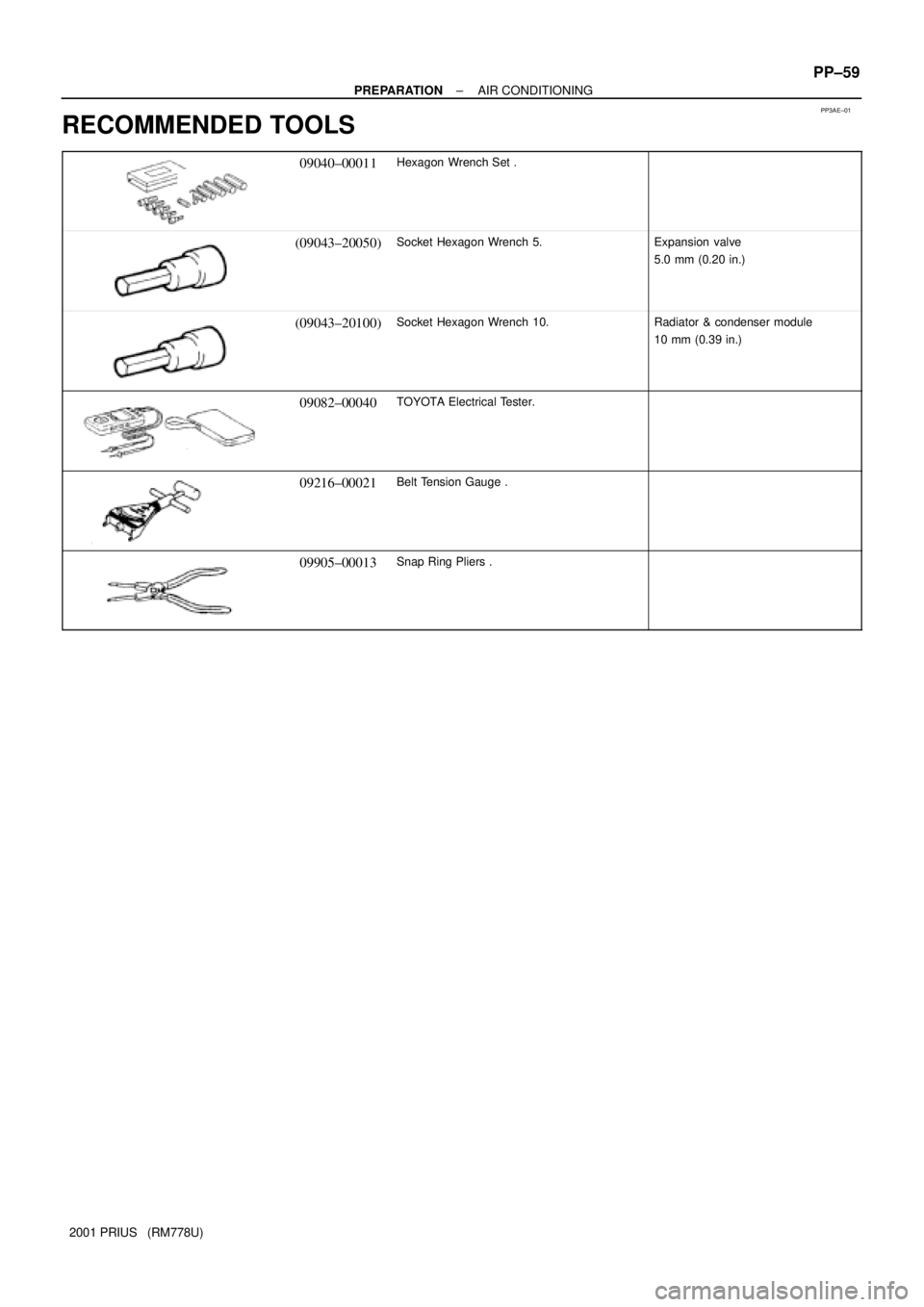

RECOMMENDED TOOLS
09040±00011Hexagon Wrench Set .
(09043±20050)Socket Hexagon Wrench 5.Expansion valve
5.0 mm (0.20 in.)
(09043±20100)Socket Hexagon Wrench 10.Radiator & condenser module
10 mm (0.39 in.)
09082±00040TOYOTA Electrical Tester.
09216±00021Belt Tension Gauge .
09905±00013Snap Ring Pliers .

PP3AF±02
PP±60
± PREPARATIONAIR CONDITIONING
2001 PRIUS (RM778U)
EQUIPMENT
Voltmeter
Ammeter
Ohmmeter
Test lead
ThermometerSensor, ECT switch
Torque wrench
Dial indicatorMagnetic clutch
Plastic hammerMagnetic clutch

PP3AG±01
± PREPARATIONAIR CONDITIONING
PP±61
2001 PRIUS (RM778U)
LUBRICANT
ItemCapacityClassification
Compressor oil±ND±OIL 8 or equivalent
When replacing condenser40 cc (1.4 fl.oz.)
When replacing evaporator40 cc (1.4 fl.oz.)
When replacing compressor120 cc (4.1 fl.oz.)

SS0ZS±01
4
5
6
7
8
9
10
11
B06431

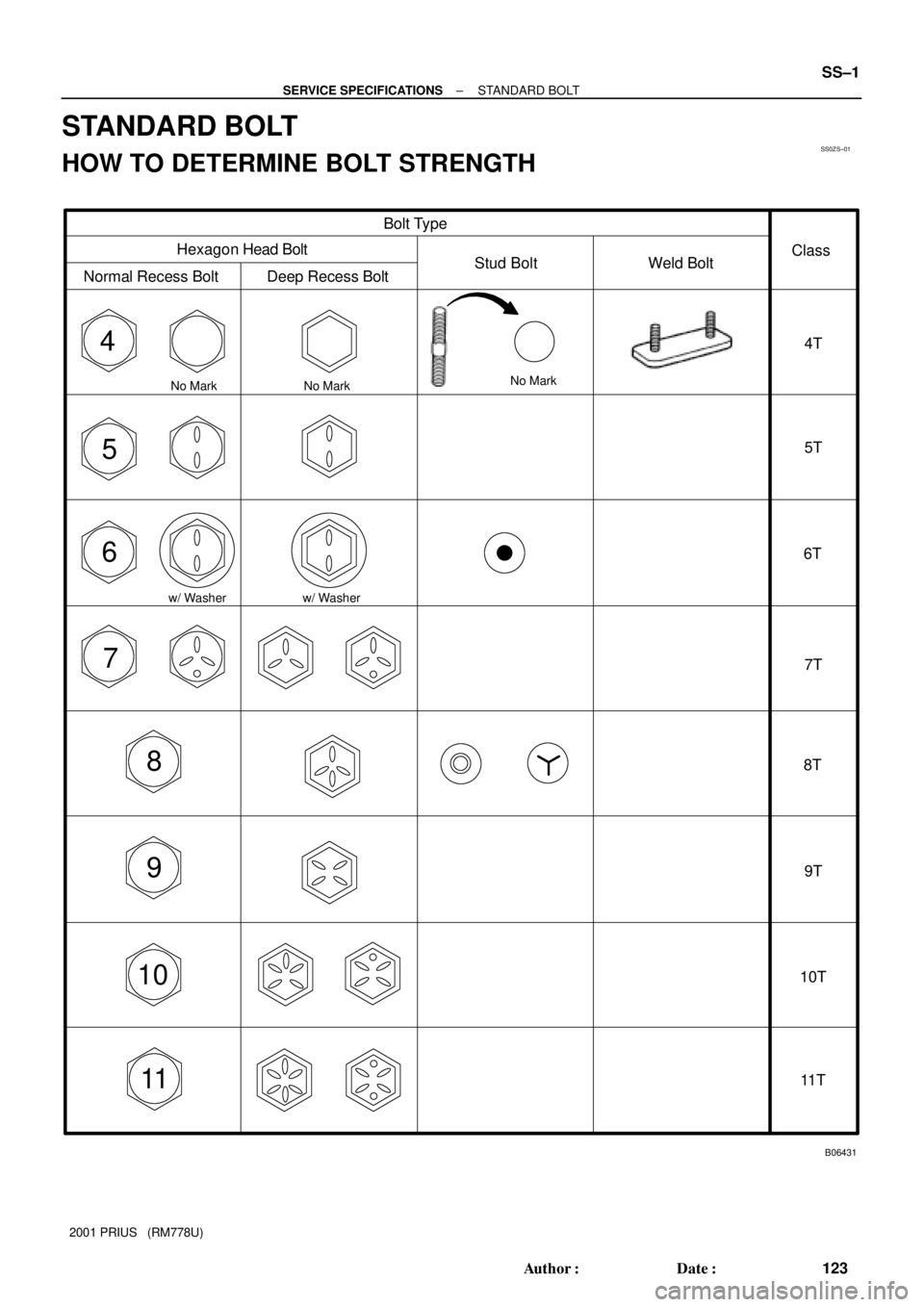

Bolt Type
Hexagon Head Bolt
Normal Recess Bolt Deep Recess BoltStud Bolt Weld BoltClass
4T
5T
6T
7T
8T
9T
10T
11 T
No Mark
w/ WasherNo MarkNo Mark
w/ Washer
± SERVICE SPECIFICATIONSSTANDARD BOLT
SS±1
123 Author: Date:
2001 PRIUS (RM778U)
STANDARD BOLT
HOW TO DETERMINE BOLT STRENGTH
