Page 1769 of 1943
BE1UY±02
I18844
Engine Room J/B No. 2 Relay Block
Instrument Panel
J/B
No. 3 Relay Block BE±12
± BODY ELECTRICALPOWER SOURCE
1679 Author: Date:
2001 PRIUS (RM778U)
POWER SOURCE

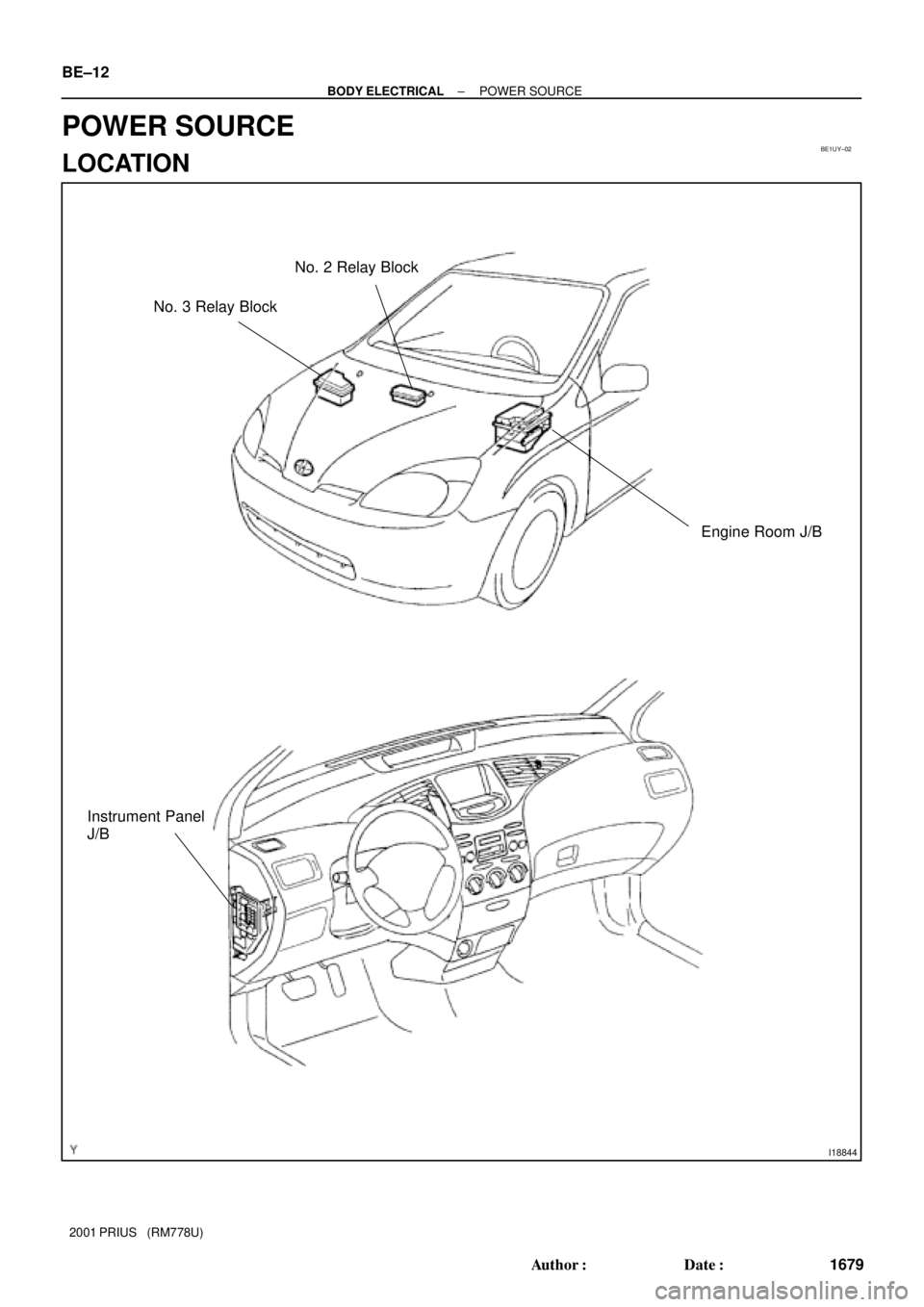

LOCATION
Page 1770 of 1943
I17787

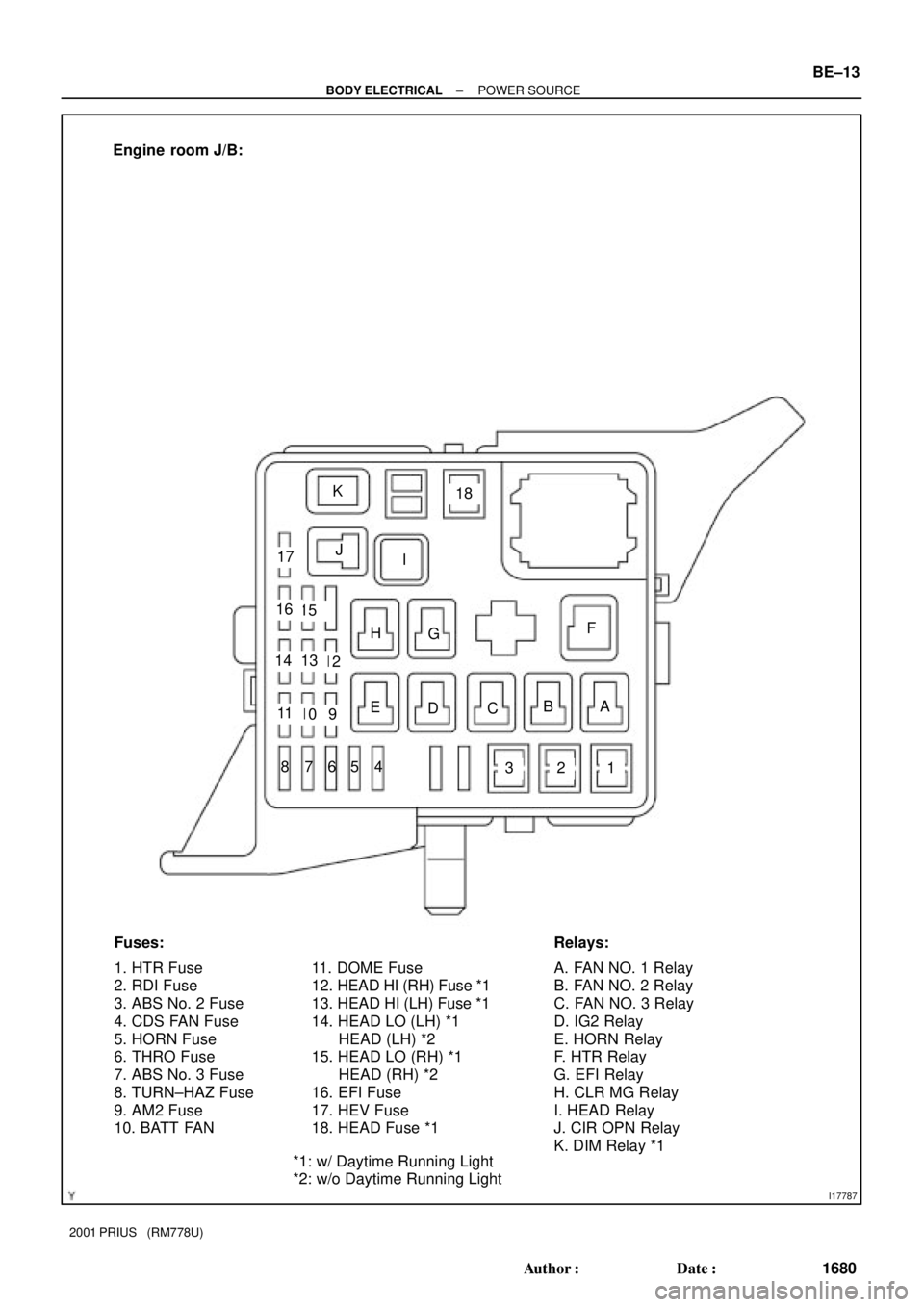

Engine room J/B:
Fuses:
1. HTR Fuse
2. RDI Fuse
3. ABS No. 2 Fuse
4. CDS FAN Fuse
5. HORN Fuse
6. THRO Fuse
7. ABS No. 3 Fuse
8. TURN±HAZ Fuse
9. AM2 Fuse
10. BATT FANRelays:
A. FAN NO. 1 Relay
B. FAN NO. 2 Relay
C. FAN NO. 3 Relay
D. IG2 Relay
E. HORN Relay
F. HTR Relay
G. EFI Relay
H. CLR MG Relay
I. HEAD Relay
J. CIR OPN Relay
K. DIM Relay *1
123 4 5 6 7 8
91011
121314
1516
17
18 K
J
A B
C D E
F
G H
I
11. DOME Fuse
12. HEAD HI (RH) Fuse *1
13. HEAD HI (LH) Fuse *1
14. HEAD LO (LH) *1
HEAD (LH) *2
15. HEAD LO (RH) *1
HEAD (RH) *2
16. EFI Fuse
17. HEV Fuse
18. HEAD Fuse *1
*1: w/ Daytime Running Light
*2: w/o Daytime Running Light
± BODY ELECTRICALPOWER SOURCE
BE±13
1680 Author: Date:
2001 PRIUS (RM778U)
Page 1771 of 1943
I17788

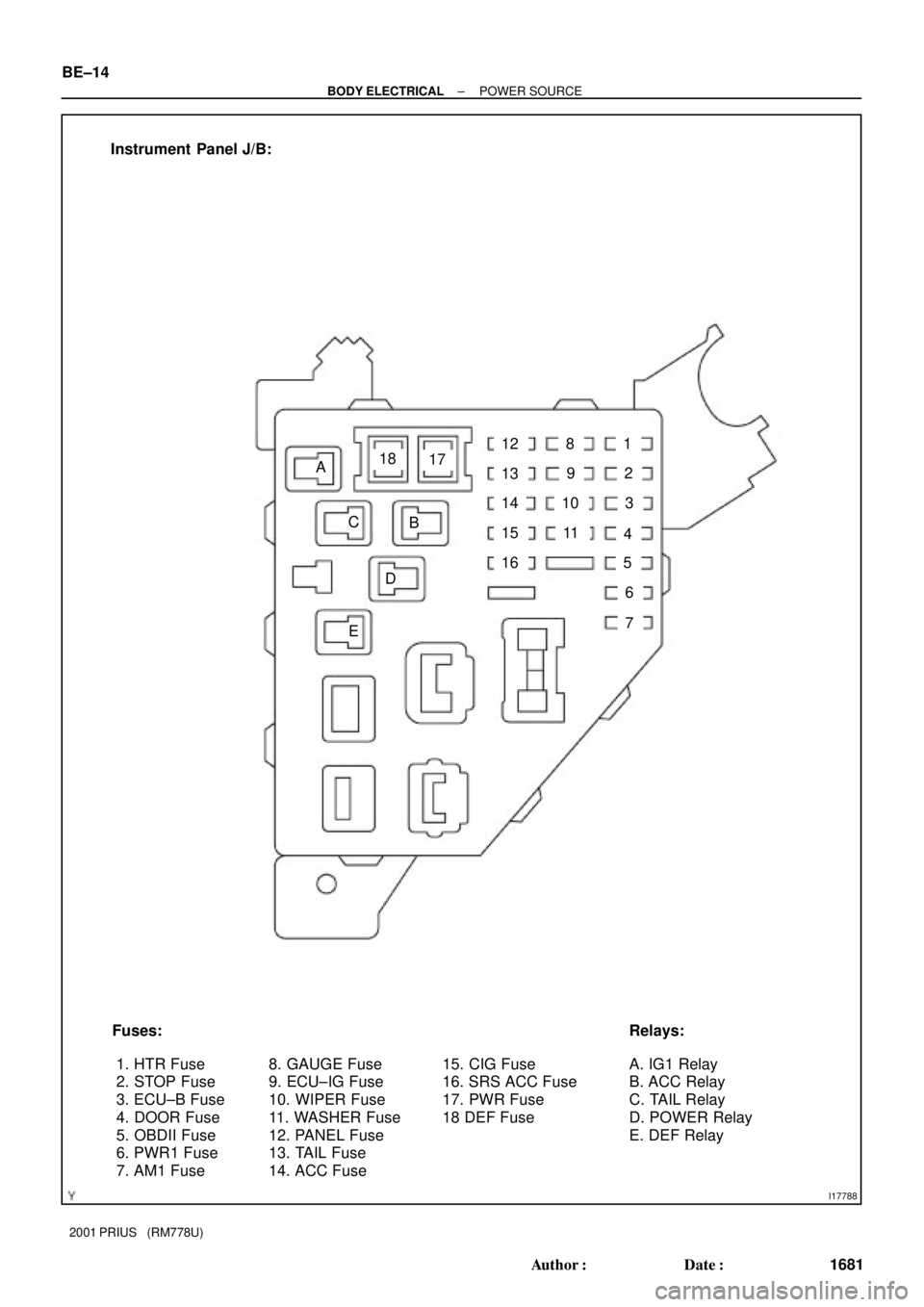

Instrument Panel J/B:
Fuses: Relays:
A. IG1 Relay
B. ACC Relay
C. TAIL Relay
D. POWER Relay
E. DEF Relay
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15 A
B C
D
16
E
1. HTR Fuse
2. STOP Fuse
3. ECU±B Fuse
4. DOOR Fuse
5. OBDII Fuse
6. PWR1 Fuse
7. AM1 Fuse8. GAUGE Fuse
9. ECU±IG Fuse
10. WIPER Fuse
11. WASHER Fuse
12. PANEL Fuse
13. TAIL Fuse
14. ACC Fuse15. CIG Fuse
16. SRS ACC Fuse
17. PWR Fuse
18 DEF Fuse
1718 BE±14
± BODY ELECTRICALPOWER SOURCE
1681 Author: Date:
2001 PRIUS (RM778U)
Page 1772 of 1943
I17789
1 2 3456
7 A B
C
D E

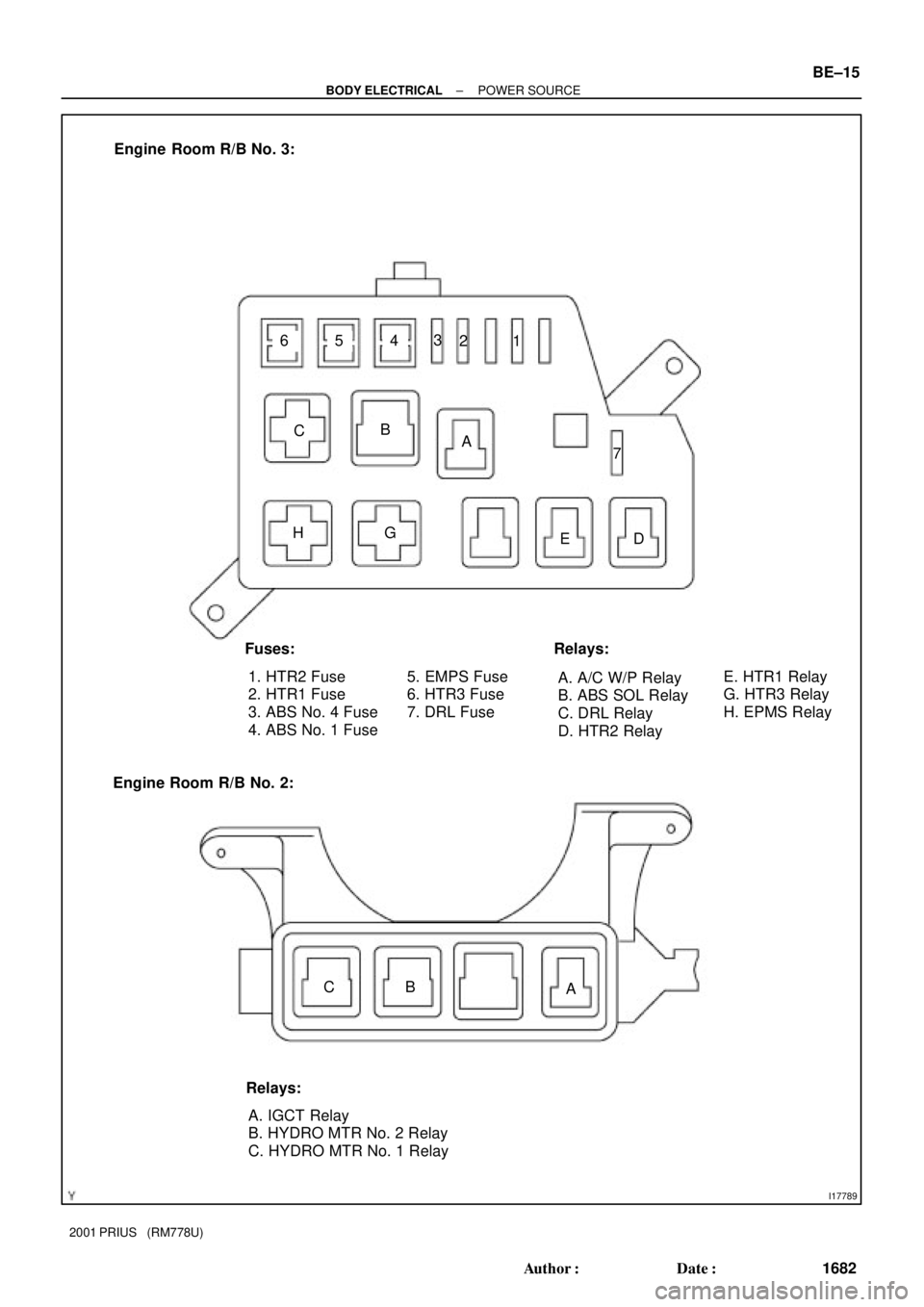

Fuses: Relays: Engine Room R/B No. 3:
G H
1. HTR2 Fuse
2. HTR1 Fuse
3. ABS No. 4 Fuse
4. ABS No. 1 Fuse5. EMPS Fuse
6. HTR3 Fuse
7. DRL FuseA. A/C W/P Relay
B. ABS SOL Relay
C. DRL Relay
D. HTR2 RelayE. HTR1 Relay
G. HTR3 Relay
H. EPMS Relay
Engine Room R/B No. 2:
A B C
Relays:
A. IGCT Relay
B. HYDRO MTR No. 2 Relay
C. HYDRO MTR No. 1 Relay
± BODY ELECTRICALPOWER SOURCE
BE±15
1682 Author: Date:
2001 PRIUS (RM778U)
Page 1773 of 1943

BE1UX±02
I14295
7
8
13
14 16
17
HI
Flash OFFTAIL HEAD LO
Z05930
1
2
31
55 3
2
N14863
12
35
12 35
Z05930
1
2
351
2 3
5 BE±20
± BODY ELECTRICALHEADLIGHT AND TAILLIGHT SYSTEM
2001 PRIUS (RM778U)
INSPECTION

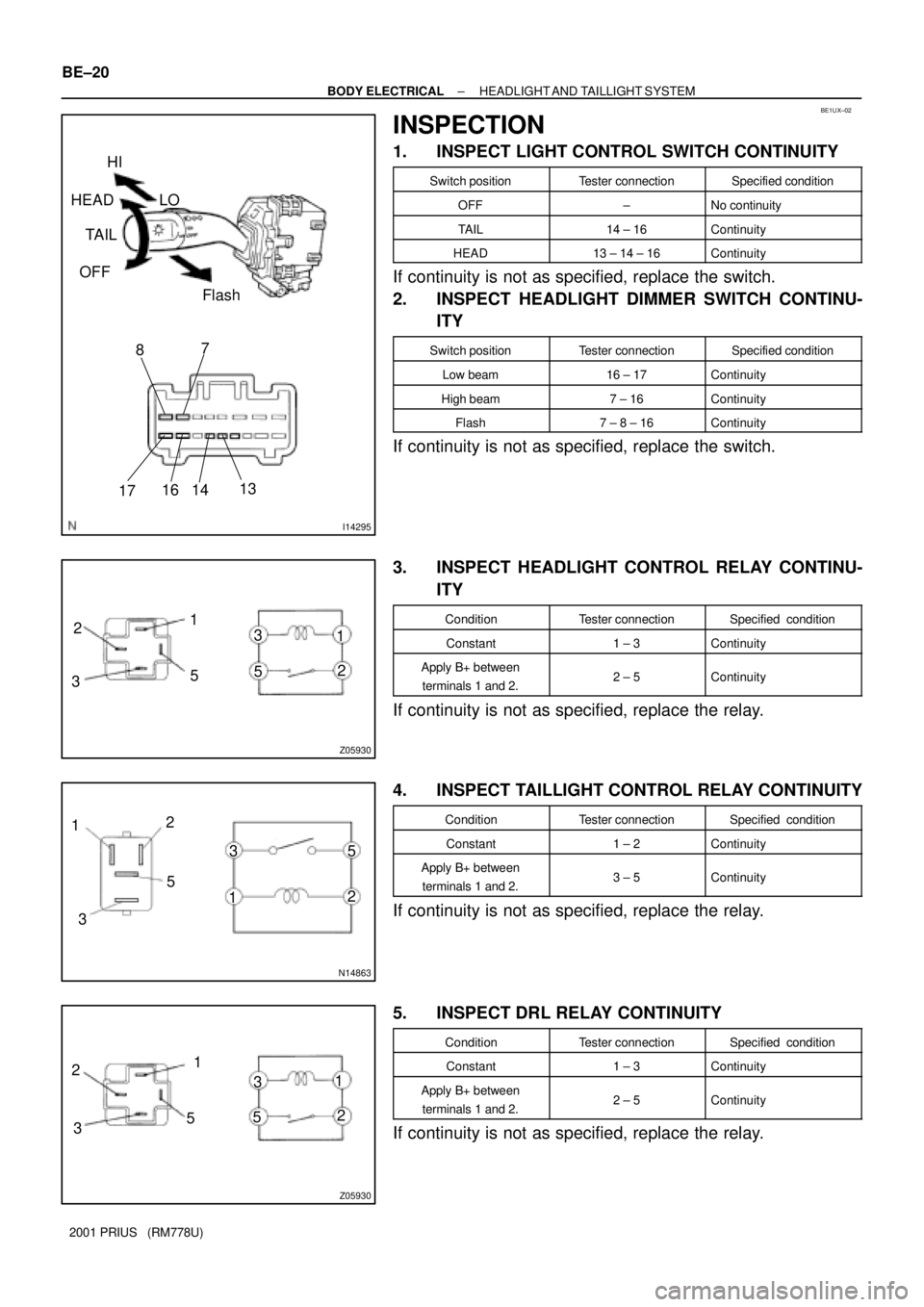

1. INSPECT LIGHT CONTROL SWITCH CONTINUITY
Switch positionTester connectionSpecified condition
OFF±No continuity
TAIL14 ± 16Continuity
HEAD13 ± 14 ± 16Continuity
If continuity is not as specified, replace the switch.
2. INSPECT HEADLIGHT DIMMER SWITCH CONTINU-
ITY
Switch positionTester connectionSpecified condition
Low beam16 ± 17Continuity
High beam7 ± 16Continuity
Flash7 ± 8 ± 16Continuity
If continuity is not as specified, replace the switch.
3. INSPECT HEADLIGHT CONTROL RELAY CONTINU-
ITY
ConditionTester connectionSpecified condition
Constant1 ± 3Continuity
Apply B+ between
terminals 1 and 2.2 ± 5Continuity
If continuity is not as specified, replace the relay.
4. INSPECT TAILLIGHT CONTROL RELAY CONTINUITY
ConditionTester connectionSpecified condition
Constant1 ± 2Continuity
Apply B+ between
terminals 1 and 2.3 ± 5Continuity
If continuity is not as specified, replace the relay.
5. INSPECT DRL RELAY CONTINUITY
ConditionTester connectionSpecified condition
Constant1 ± 3Continuity
Apply B+ between
terminals 1 and 2.2 ± 5Continuity
If continuity is not as specified, replace the relay.
Page 1774 of 1943
I17862
Wire Harness Side
h±10±1±A
± BODY ELECTRICALHEADLIGHT AND TAILLIGHT SYSTEM
BE±21
2001 PRIUS (RM778U)
6. INSPECT DAYTIME RUNNING LIGHT MAIN RELAY
CIRCUIT
Disconnect the connector from the relay and inspect the con-
nector on the wire harness side.
Tester connectionConditionSpecified condition
2 ± GroundConstantContinuity
3 ± GroundConstantBattery voltage
4 ± GroundTerminal 5 groundBattery voltage
6 ± GroundConstantBattery voltage
7 ± GroundLight control switch OFF or TAILNo continuity
7 ± GroundLight control switch HEADContinuity
8 ± GroundHeadlight dimmer switch FLASH or HIContinuity
9 ± GroundEngine runningBattery voltage
12 ± GroundIgnition switch OFFNo voltage
12 ± GroundIgnition switch ONBattery voltage
If circuit is specified, try replacing the relay with a new one.
If circuit is not as specified, inspect the circuits connected to oth-
er parts.
Page 1775 of 1943
BE1CY±05
I23044
For Adjustment in
Vertical Direction
BE±22
± BODY ELECTRICALHEADLIGHT AND TAILLIGHT SYSTEM
2001 PRIUS (RM778U)
ADJUSTMENT
Page 1776 of 1943

I17791
0.4 °
3 m (9.84 ft) H 29.7 mm
(1.17 in.)
7
V RH Line
W90 °
V LH Line4
Low Beam:
V LH LineV Line V RH Line 65
6
29.7 mm
(1.17 in.)
High Beam:
V LH LineV Line V RH Line 6
5629.7 mm
(1.17 in.)
29.7 mm
(1.17 in.) H 4
O: step No.
7
H4
W
W
± BODY ELECTRICALHEADLIGHT AND TAILLIGHT SYSTEM
BE±23
2001 PRIUS (RM778U)
ADJUST HEADLIGHT AIM ONLY
(a) Place the vehicle in the following conditions.
The area around the headlight is not deformed.
The vehicle is parked on a level surface.
Tire inflation pressure is the specified value.
A driver is in the driver's seat and the vehicle is in
a state ready for driving (with a tank full).
The vehicle has been bounced several times.
(b) Check the headlight aiming.
(1) Prepare a thick white paper.
(2) Stand the paper perpendicular to the ground at the
position 9.84 ft away from the headlights.
(3) Ensure that the center line of the vehicle and the pa-
per face forms a 90±degree angle as shown in the
illustration.
(4) Draw a horizontal line (H line) on the paper, showing
where the headlights should strike.
(5) Draw a vertical line (V line) to where the center line
of the vehicle is to be.
(6) Draw 2 vertical lines (by connecting the low and
high beam center marks) to where the both head-
lights should strike (V RH and V LH lines).
(7) Draw a horizontal line (by connecting the both low
beam center marks) to where the headlights should
strike (H RH and H LH lines).
(8) Start the engine.
(9) Turn the headlights ON.
(10) Check that the headlights properly strike the posi-
tion shown in the illustration.
(11) If not, adjust the lights in the vertical direction.
HINT:
As shown in the illustration, adjust each aim of the RH and LH
lights.

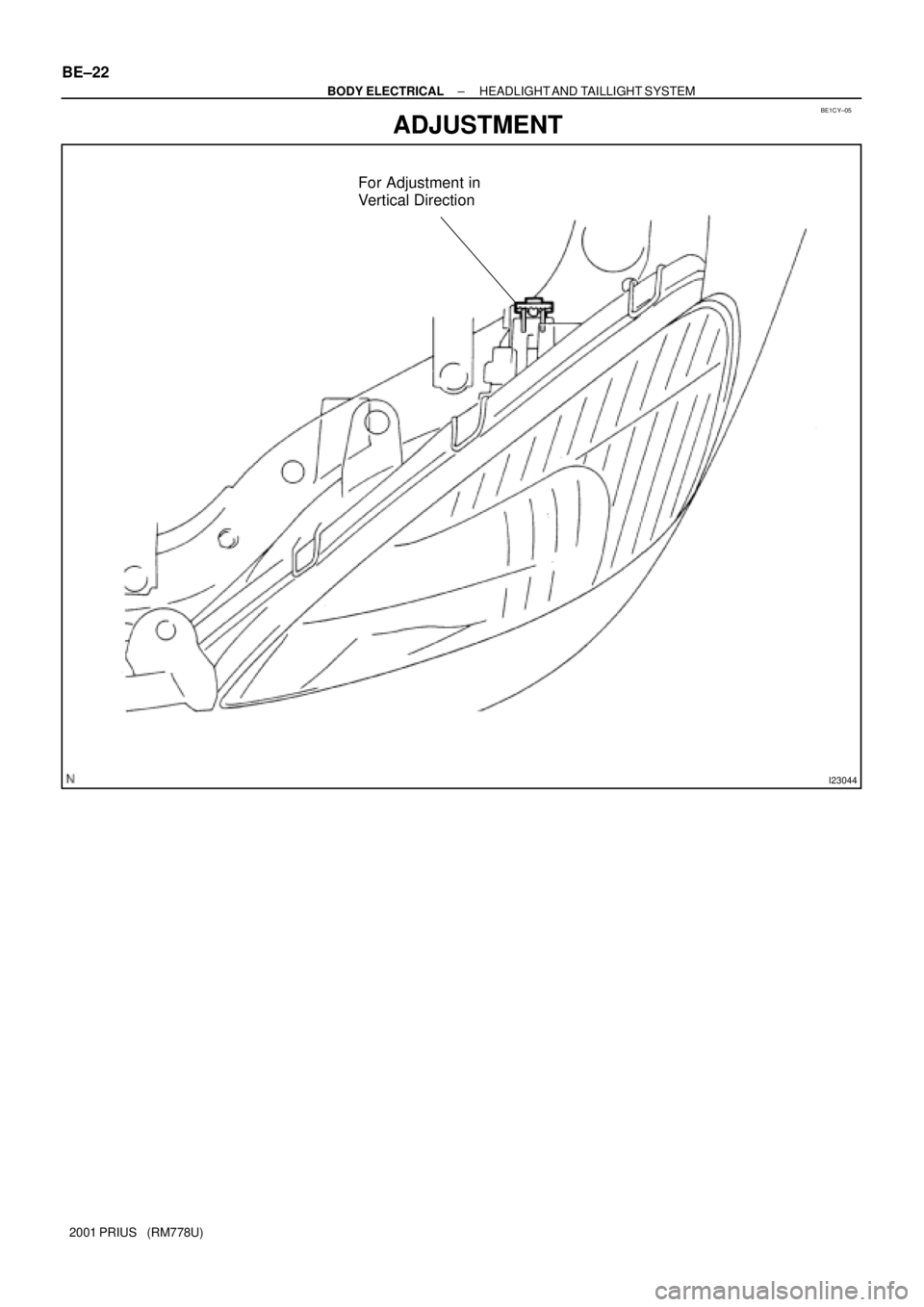

(c) When adjusting it in the vertical direction:
Using adjusting bolt, adjust the headlight aim to within the
specified range.
