Page 1017 of 1943

F12444
ON
WA
B11
± DIAGNOSTICSANTI±LOCK BRAKE SYSTEM WITH EBD & RBS
DI±441
2001 PRIUS (RM778U)
5 Check battery positive voltage.
CHECK:
Check the battery positive voltage.
OK:
Voltage: 10 ± 14 V
NG Check and repair charging system (See page
HV±39).
OK
6 Check operation of the ABS warning light.
In case of using the TOYOTA hand±held tester:
PREPARATION:
(a) Connect the TOYOTA hand±held tester to the DLC3.
(b) Turn the ignition switch ON, and push the TOYOTA hand±held tester main switch ON.
(c) Select the ACTIVE TEST mode on the TOYOTA hand±held tester.
CHECK:
Check that ºONº and ºOFFº of the ABS warning light can be shown on the combination meter by the TOYOTA
hand±held tester.
In case of not using the TOYOTA hand±held tester:
(a) Disconnect the connector (B11) from the brake ECU.
(b) Using service wire, connect terminal WA of brake ECU
harness side connector and body ground.
(c) Turn the ignition switch ON.
OK:
ABS warning light goes off.
OK Check and replace brake ECU.
NG
Check for short circuit in harness and connector between combination meter and brake ECU,
combination meter and DLC3 (See page IN±41).
Check ABS solenoid relay circuit (See page DI±376).
Page 1018 of 1943
F12683
Brake ECU
Instrument Panel J/B GAUGE 4
IH L FL Block No. 1
1
BatteryIgnition Switch
2
2
2K2A18
W
3AM1IP1
AABS
2A14 2B F11
C10
J11
J/CB±W
5WA
W±B W±G
2H 2D DC/DC
B±Y
1
FL Block
No. 2 B±G
F131
B11
1C10
C10L2
10
22
5 1
3
6
87
LCommbination
Mater
2B 6
IDBR MAIN DI±442
± DIAGNOSTICSANTI±LOCK BRAKE SYSTEM WITH EBD & RBS
2001 PRIUS (RM778U)

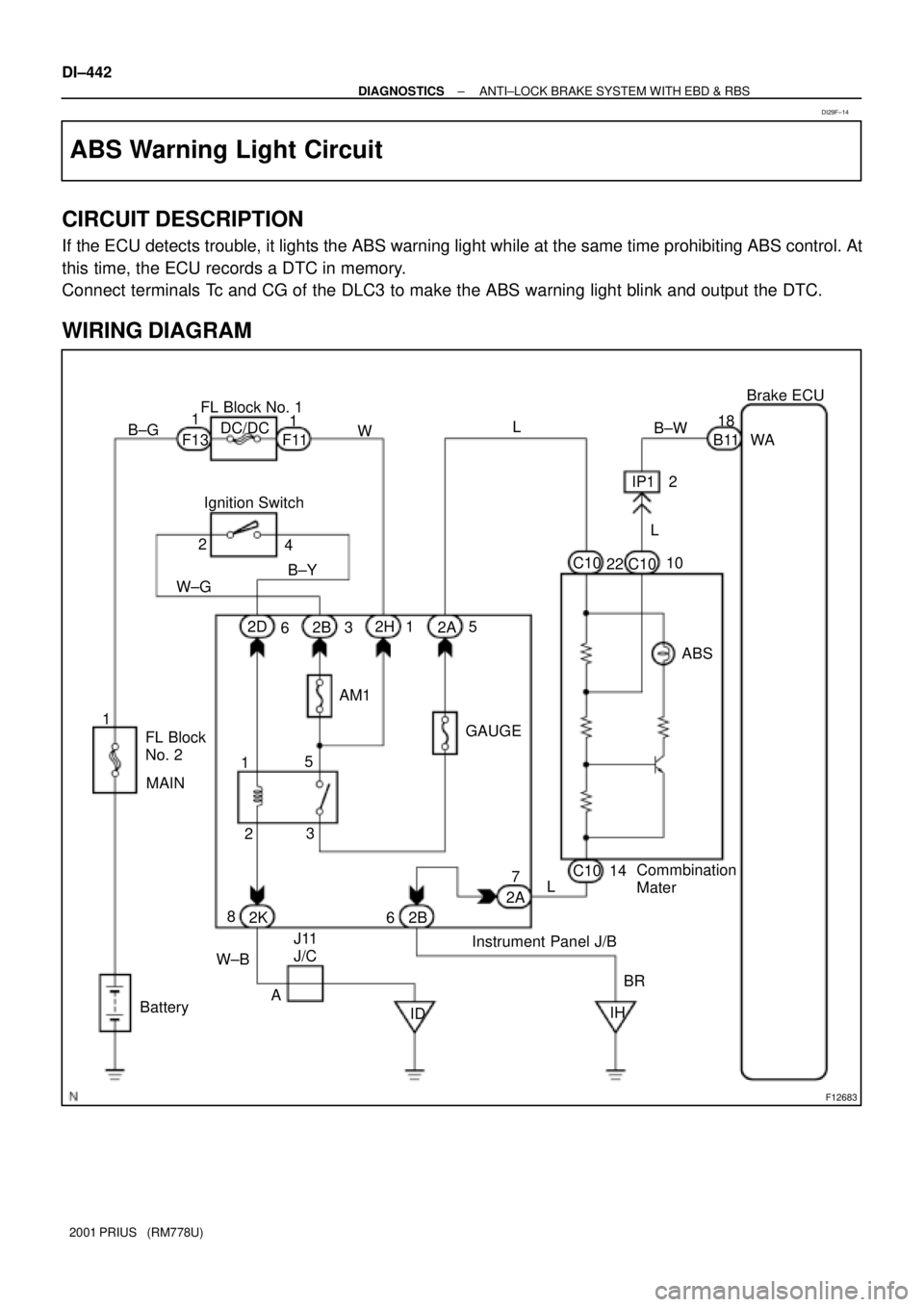

ABS Warning Light Circuit
CIRCUIT DESCRIPTION
If the ECU detects trouble, it lights the ABS warning light while at the same time prohibiting ABS control. At
this time, the ECU records a DTC in memory.
Connect terminals Tc and CG of the DLC3 to make the ABS warning light blink and output the DTC.
WIRING DIAGRAM
DI29F±14
Page 1019 of 1943

± DIAGNOSTICSANTI±LOCK BRAKE SYSTEM WITH EBD & RBS
DI±443
2001 PRIUS (RM778U)
INSPECTION PROCEDURE
HINT:
Troubleshoot in accordance with the chart below for each trouble symptom.
ABS warning light does not light up*1
ABS warning light remains on*2
*1: Start the inspection from step 1 in case of using the TOYOTA hand±held tester and start from step 2 in
case of not using TOYOTA hand±held tester.
*2: After inspection with step 4, start the inspection from step 5 in case of using the TOYOTA hand±held
tester and start from step 6 in case of not using TOYOTA hand±held tester.
1 Check operation of the brake warning light.
PREPARATION:
(a) Connect the TOYOTA hand±held tester to the DLC3.
(b) Turn the ignition switch ON, and push the TOYOTA hand±held tester main switch ON.
(c) Select the ACTIVE TEST mode on the TOYOTA hand±held tester.
CHECK:
Check that ºONº and ºOFFº of the ABS warning light can be shown on the combination meter on the TOYOTA
hand±held tester.
OK Check and replace brake ECU.
NG
2 Check ABS warning light.
See combination meter troubleshooting on page BE±2.
NG Repair bulb or combination meter assembly.
OK
Page 1020 of 1943

F00043
1 2 3
4 5 6
1 2 3
4 5 6
1 2 3
4
65 Open
Continuity
Continuity
Continuity
Open
(+)(±)
(+) (±)1 2 3
4 5 6 Continuity
DI±444
± DIAGNOSTICSANTI±LOCK BRAKE SYSTEM WITH EBD & RBS
2001 PRIUS (RM778U)
3 Check ABS solenoid relay.
PREPARATION:
Remove the ABS solenoid relay from engine room R/B No. 3.
CHECK:
Check continuity between each terminal of ABS solenoid relay.
OK:
Terminals 4 and 6Continuity (Reference value 80 W)
Terminals 2 and 3Continuity
Terminals 1 and 3Open
CHECK:
(a) Apply battery positive voltage between terminals 4 and 6.
(b) Check continuity between each terminal of ABS solenoid
relay.
OK:
Terminals 2 and 3Open
Terminals 1 and 3Continuity
CHECK:
Connect the test lead to terminal 5 and the lead to terminal
3. Check continuity between the terminals.
OK:
Continuity
If there is no continuity, connect the test lead to terminal 5
and the lead to terminal 3. Recheck continuity between ter-
minals.
NG Replace ABS solenoid relay.
OK
Repair or replace and check for open circuit in harness and connector between DLC3 and ABS
solenoid relay and body ground (See page IN±41).
Page 1021 of 1943
± DIAGNOSTICSANTI±LOCK BRAKE SYSTEM WITH EBD & RBS
DI±445
2001 PRIUS (RM778U)
4 Check that the brake ECU connectors are securely connected to the brake ECU.
NO Connect the connector to the brake ECU.
YES
5 Check operation of the ABS warning light (See step 1).
OK Check and replace brake ECU.
NG
6 Is DTC output?
Check DTC on page DI±353.
YES Repair circuit indicated by the output code.
NO
7 Check ABS solenoid relay (See step 3).
NG Replace ABS solenoid relay.
OK
Check for short circuit in harness and connector between DLC3 and ABS solenoid relay (See
page IN±41).
Page 1022 of 1943
F12684
Brake Fluid Level
Warning Switch
IG1
Relay FL Block No. 2
Body ECU
Multiplex Communication CircuitR±Y
BrakePKB
E
83
GAUGE5
WJ12
J/C Parking
Brake Switch
2 1
1C10
2A7
LG±R
A 4BRL Brake ECU
W±GB12
6
Battery
IE LBL B12 B1113
R±Y R±Y
R±Y E
J7
J/C
J1
J/C
J11
J/C 2D2B
2H2K
2K5
23 15
2A7 AM1
C10C11C11
143
2
22 2
W±BB±Y
L
BRA A
A
W±BW±B 21 IA2 18
MAIN
B±GFL Block No. 1
111
DC/DC
F13 F11
B8 B8 15 164 Instrument
Panel J/B
LGR GR±B Ignition Switch
Instrument
Panel J/B
Commbination Meter
2B6
IH ID DI±446
± DIAGNOSTICSANTI±LOCK BRAKE SYSTEM WITH EBD & RBS
2001 PRIUS (RM778U)

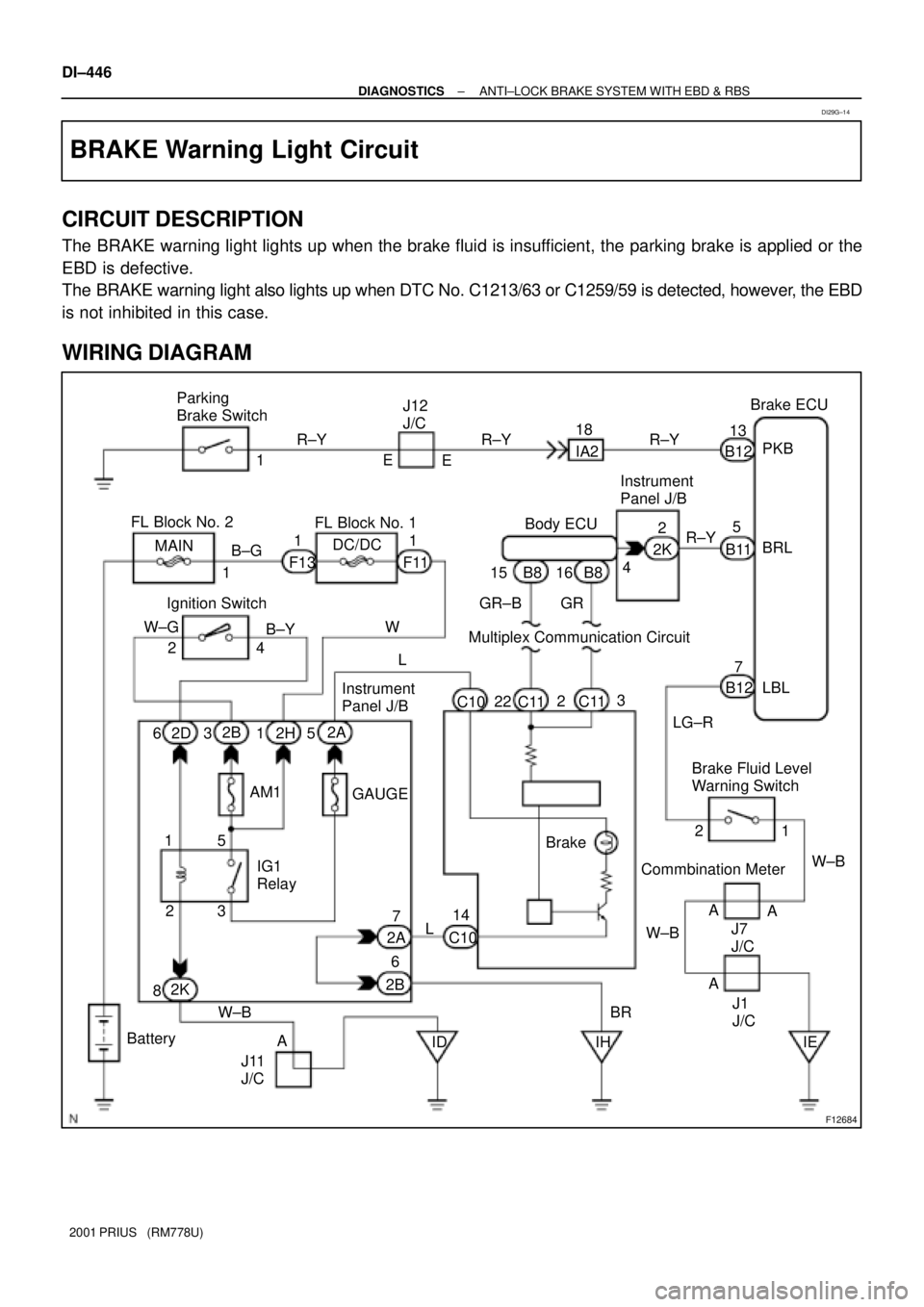

BRAKE Warning Light Circuit
CIRCUIT DESCRIPTION
The BRAKE warning light lights up when the brake fluid is insufficient, the parking brake is applied or the
EBD is defective.
The BRAKE warning light also lights up when DTC No. C1213/63 or C1259/59 is detected, however, the EBD
is not inhibited in this case.
WIRING DIAGRAM
DI29G±14
Page 1023 of 1943

± DIAGNOSTICSANTI±LOCK BRAKE SYSTEM WITH EBD & RBS
DI±447
2001 PRIUS (RM778U)
INSPECTION PROCEDURE
HINT:
Start the inspection from step 1 in case of using the TOYOTA hand±held tester and start from step 2 in case
of not using the TOYOTA hand±held tester.
1 Check operation of the BRAKE warning light.
PREPARATION:
(a) Release the parking brake pedal.
(b) Connect the TOYOTA hand±held tester to the DLC3.
(c) Turn the ignition switch ON, and push the TOYOTA hand±held tester main switch ON.
(d) Select the ACTIVE TEST mode on the TOYOTA hand±held tester.
CHECK:
Check that ºONº and ºOFFº of BRAKE warning light can be shown on the combination meter by the TOYOTA
hand±held tester.
OK Check and replace brake ECU.
NG
2 Check parking brake switch circuit (See page BE±2).
NG Repair or replace parking brake switch circuit.
OK
3 Check brake fluid level warning switch circuit (See page BE±2).
NG Repair or replace brake fluid level warning
switch circuit.
OK
4 Is DTC output for ABS ?
Yes Repair circuit indicated by the output code.
No
Page 1024 of 1943
DI±448
± DIAGNOSTICSANTI±LOCK BRAKE SYSTEM WITH EBD & RBS
2001 PRIUS (RM778U)
5 Check BRAKE warning light.
See combination meter troubleshooting on page BE±2.
NG Repair or replace combination meter.
OK
6 Check multiplex communication system (See page DI±752).
NG Repair or replace multiplex communication cir-
cuit.
OK
Check and replace brake ECU.
