Page 1585 of 1943

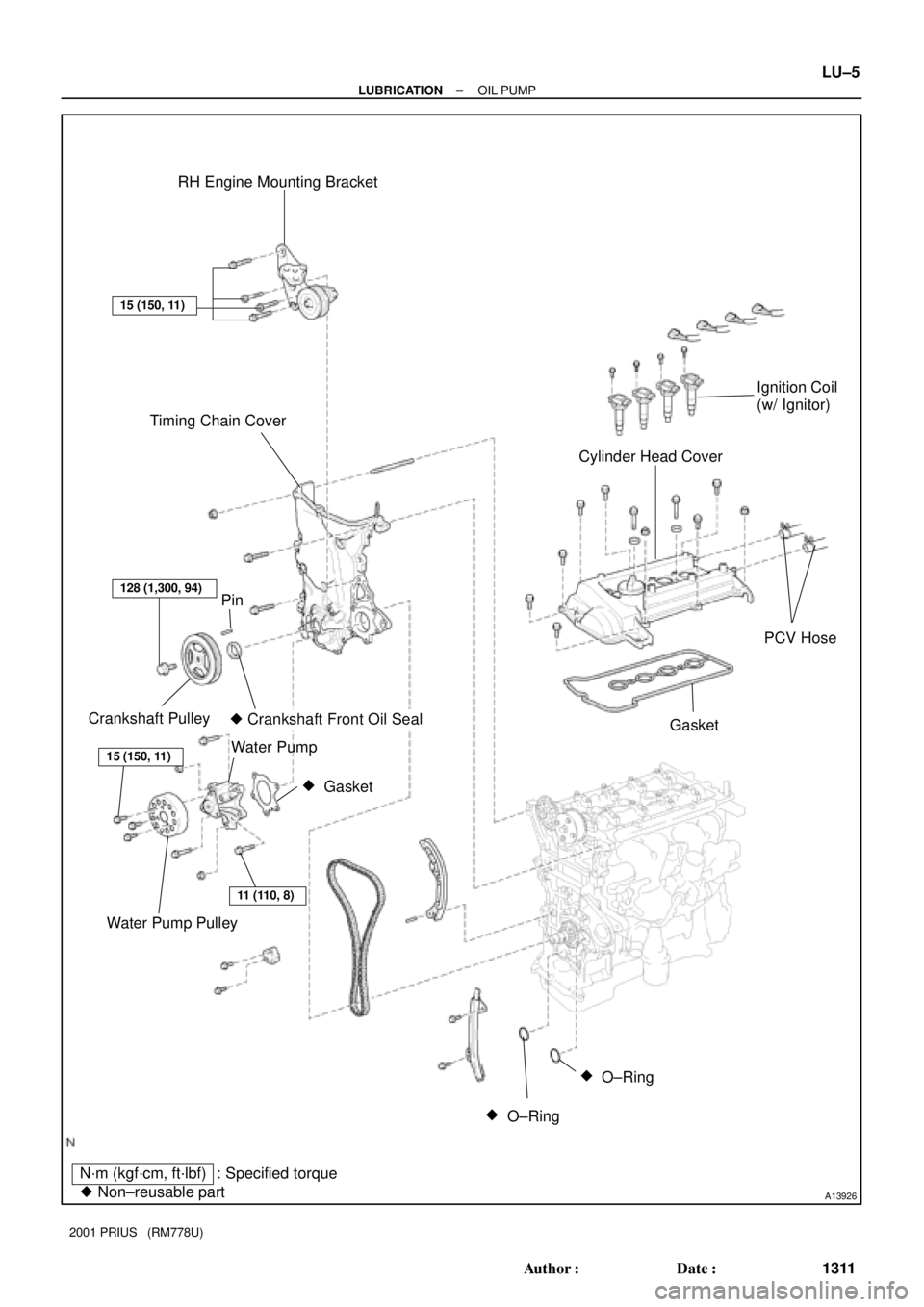

A13926
RH Engine Mounting Bracket
Timing Chain Cover
Cylinder Head Cover
Crankshaft Front Oil Seal
Gasket
Water Pump Crankshaft Pulley
PCV Hose
N´m (kgf´cm, ft´lbf) : Specified torque
Non±reusable part
Water Pump Pulley
Ignition Coil
(w/ Ignitor)
O±Ring
O±Ring
15 (150, 11)
11 (110, 8)
15 (150, 11)
Gasket
Pin128 (1,300, 94)
± LUBRICATIONOIL PUMP
LU±5
1311 Author: Date:
2001 PRIUS (RM778U)
Page 1586 of 1943

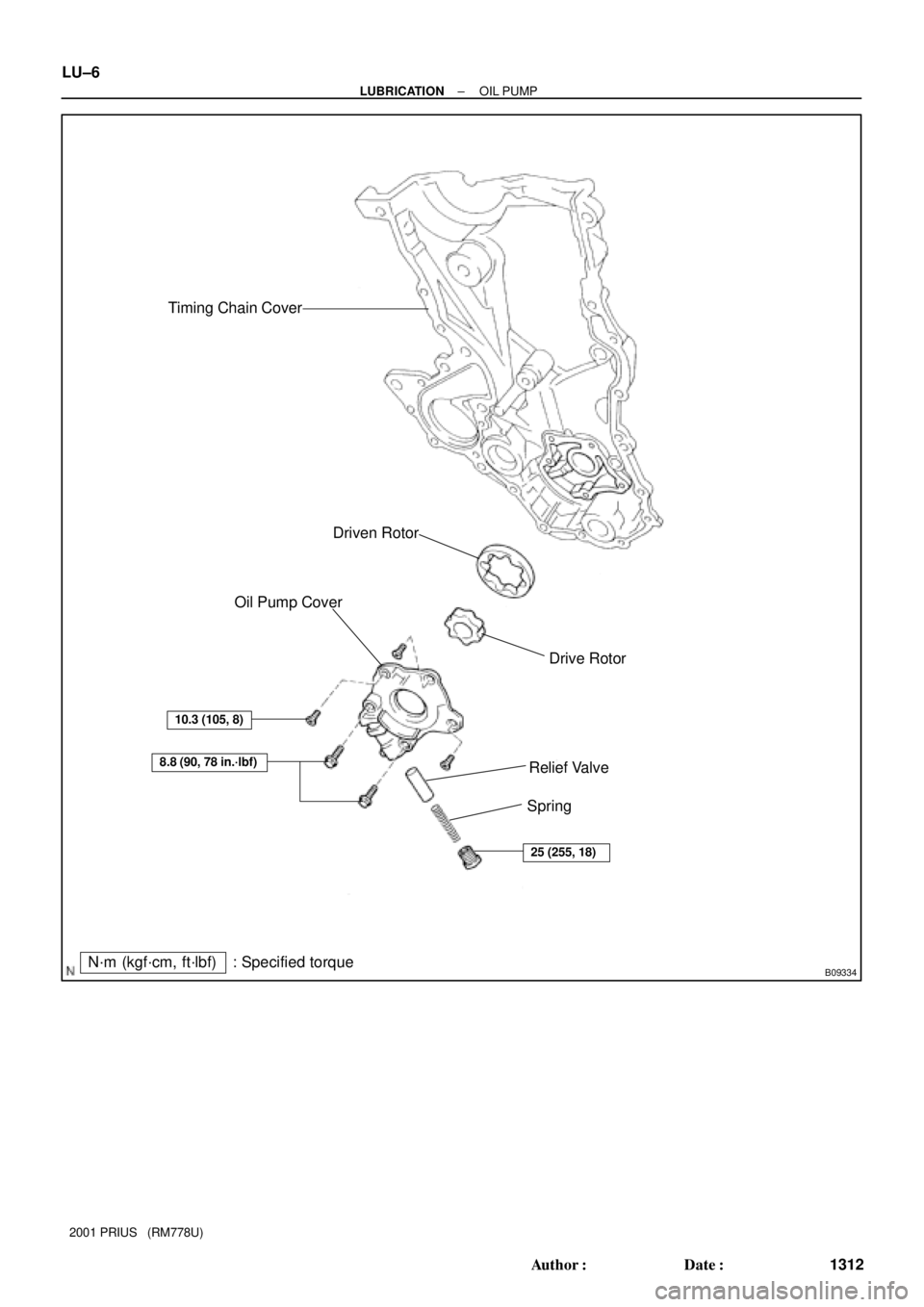

B09334
Timing Chain Cover
Driven Rotor
Drive Rotor Oil Pump Cover
Relief Valve
Spring
25 (255, 18)
N´m (kgf´cm, ft´lbf) : Specified torque
8.8 (90, 78 in.´lbf)
10.3 (105, 8)
LU±6
± LUBRICATIONOIL PUMP
1312 Author: Date:
2001 PRIUS (RM778U)
Page 1587 of 1943
IG0EP±07
± IGNITIONIGNITION SYSTEM
IG±1
1318 Author: Date:
2001 PRIUS (RM778U)
IGNITION SYSTEM
ON±VEHICLE INSPECTION
NOTICE:
ºColdº and ºHotº in these sentences express the tempera-
ture of the coils themselves. ºColdº is from ±10°C (14°F) to
50°C (122°F) and ºHotº is from 50°C (122°F) to 100°C
(212°F).
1. INSPECT IGNITION COIL (WITH IGNITER) AND
SPARK TEST
Check that the spark occurs.
(1) Remove the ignition coils (with igniter) (See page
IG±6).
(2) Using a 16 mm (0.63 in.) plug wrench, remove the
spark plugs.
(3) Install the spark plugs to each ignition coils (with ig-
niter), and connect the ignition coil connectors.
(4) Disconnect the 4 injector connectors.
(5) Ground the spark plugs.
(6) Check if spark occurs while engine is being
cranked.
NOTICE:
To prevent gasoline from being injected from injectors dur-
ing this test, crank the engine for no more than 5 ± 10 se-
conds at time.
Page 1588 of 1943

CHECK POWER SUPPLY TO IGNITION COIL (WITH
SENSOR (See step 3)
SPARK TEST
Replace the crankshaft position sensor.
CHECK RESISTANCE OF CAMSHAFT POSITION
1. Turn ignition switch to ON.
2. Check that there is battery voltage at ignition coil positive (+)
terminal.
CHECK CONNECTION OF IGNITION COIL
CONNECTOR
Resistance:Cold Hot
CHECK RESISTANCE OF CRANKSHAFT POSITION
Resistance:Cold Hot 1,630 ± 2,740 W2,065 ± 3.225 W
CHECK IGT SIGNAL FROM ECM
(See page
DI±115)
TRY ANOTHER IGNITION COIL (WITH IGNITER)
Replace the camshaft position sensor. Connect securely.
Check wiring between ignition switch
to ignition coil (with igniter).
Check wiring between ECM and ignition
coil (with igniter), and then try another ECM.
NO
OK
OK
OK
OKBAD
BAD
BAD
BAD
BAD
SENSOR (See step 4) IGNITER) CHANGE IT TO NORMAL IGNITION COIL (WITH
IGNITER) AND PERFORM SPARK TEST AGAIN
OKReplace the ignition coil (with igniter).
NO
OK
985 ± 1,600 W1,265 ± 1,890 W
B11755
16 mm (0.63 in.)
Plug Wrench IG±2
± IGNITIONIGNITION SYSTEM
1319 Author: Date:
2001 PRIUS (RM778U)
If the spark does not occur, do the test as follows:
(7) Using a 16 mm (0.63 in.) plug wrench, install the
spark plugs.
Torque: 18 N´m (184 kgf´cm, 13 ft´lbf)
(8) Install the ignition coils (with igniter) (See page
IG±7).
2. INSPECT SPARK PLUGS
(a) Remove the ignition coils (with igniter) (See page
IG±6).
(b) Using a 16 mm (0.63 in.) plug wrench, remove the spark
plugs.
Page 1589 of 1943

IG0152
IG0148
B02101
B11756
B11757
± IGNITIONIGNITION SYSTEM
IG±3
1320 Author: Date:
2001 PRIUS (RM778U)
(c) Clean the spark plugs.
If the electrode has traces of wet carbon, allow it to dry and then
clean with a spark plug cleaner.
Air pressure: Below 588 kPa (6 kgf/cm
2, 85 psi)
Duration: 20 seconds or less
HINT:
If there are traces of oil, remove it with gasoline before using the
spark plug cleaner.
(d) Check the spark plug for thread damage and insulator
damage.
If abnormal, replace the spark plug.
Recommended spark plug:
DENSO madeSK16R11
NGK madeIFR5A11
(e) Check the electrode gap.
Electrode gap: 1.0 ± 1.1 mm (0.039 ± 0.043 in.)
Maximum electrode gap: 1.2 mm (0.047 in.)
If the electrode gap is greater than maximum, replace the spark
plug.
(f) Using a 16 mm (0.63 in.) plug wrench, install the spark
plugs.
Torque: 18 N´m (184 kgf´cm, 13 ft´lbf)
(g) Install the ignition coils (with igniter) (See page IG±7).
3. INSPECT CAMSHAFT POSITION SENSOR
(a) Disconnect the camshaft position sensor connector.
(b) Using an ohmmeter, measure the resistance between ter-
minals.
Resistance:
Cold1,630 ± 2,740 W
Hot2,065 ± 3,225 W
If the resistance is not as specified, replace the camshaft posi-
tion sensor.
(c) Connect the camshaft position sensor connector.
Page 1590 of 1943
B11758
B11759
IG±4
± IGNITIONIGNITION SYSTEM
1321 Author: Date:
2001 PRIUS (RM778U)
4. INSPECT CRANKSHAFT POSITION SENSOR
(a) Remove the engine under cover RH.
(b) While sliding the connector lock, remove the connector.
(c) Using an ohmmeter, measure the resistance between the
terminals.
Resistance:
Cold985 ± 1,600 W
Hot1,265 ± 1,890 W
If the resistance is not as specified, replace the crankshaft posi-
tion sensor.
(d) Install the connector.
(e) Install the engine under cover RH.
Page 1591 of 1943
HV002±01

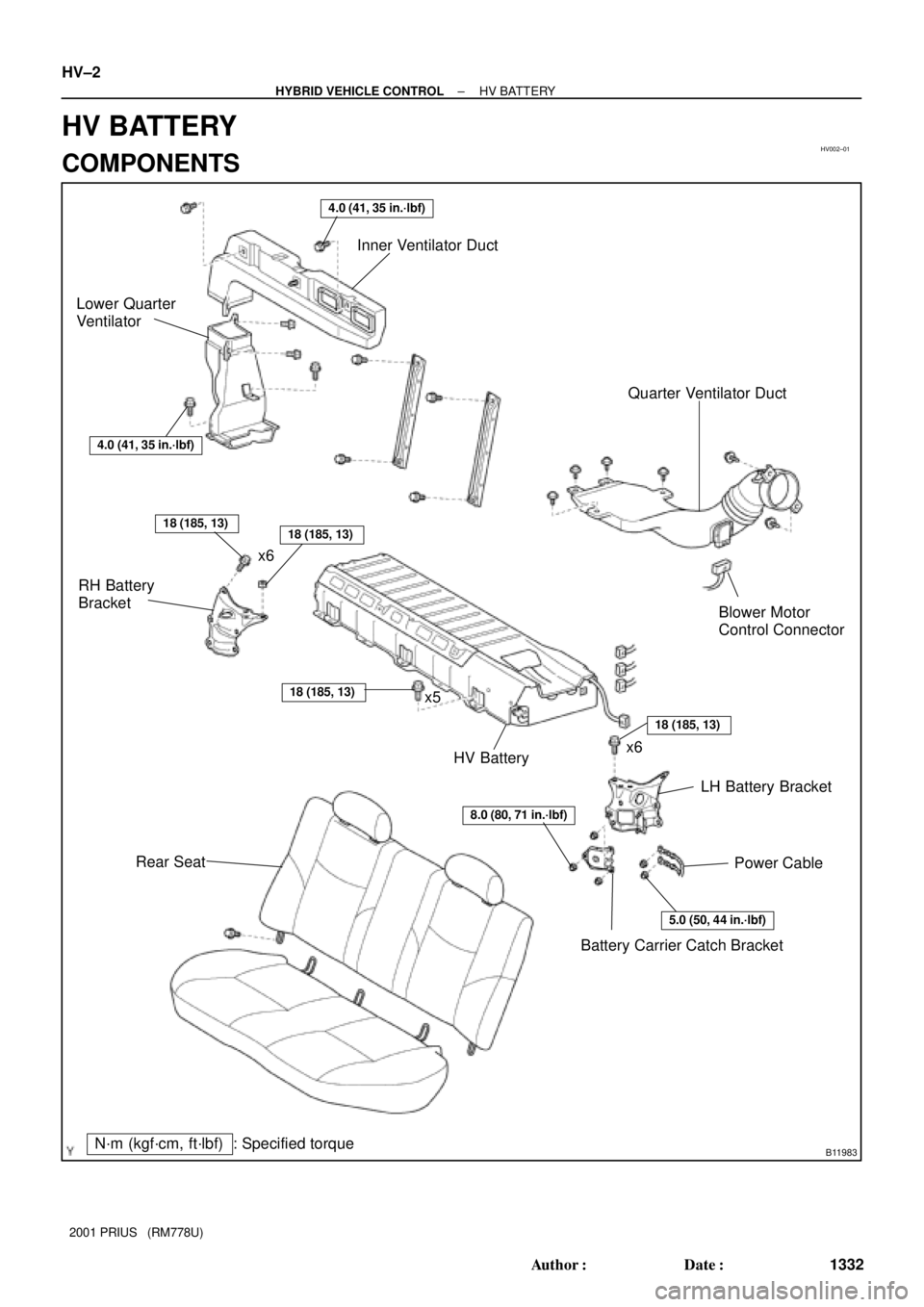

B11983N´m (kgf´cm, ft´lbf) : Specified torque
4.0 (41, 35 in.´lbf)
Inner Ventilator Duct
Lower Quarter
Ventilator
RH Battery
Bracket
HV Battery
Rear SeatQuarter Ventilator Duct
Blower Motor
Control Connector
LH Battery Bracket
Power Cable
Battery Carrier Catch Bracket
18 (185, 13)
x6
18 (185, 13)x5
x6
18 (185, 13)
8.0 (80, 71 in.´lbf)
4.0 (41, 35 in.´lbf)
5.0 (50, 44 in.´lbf)
18 (185, 13)
HV±2
± HYBRID VEHICLE CONTROLHV BATTERY
1332 Author: Date:
2001 PRIUS (RM778U)
HV BATTERY
COMPONENTS
Page 1592 of 1943

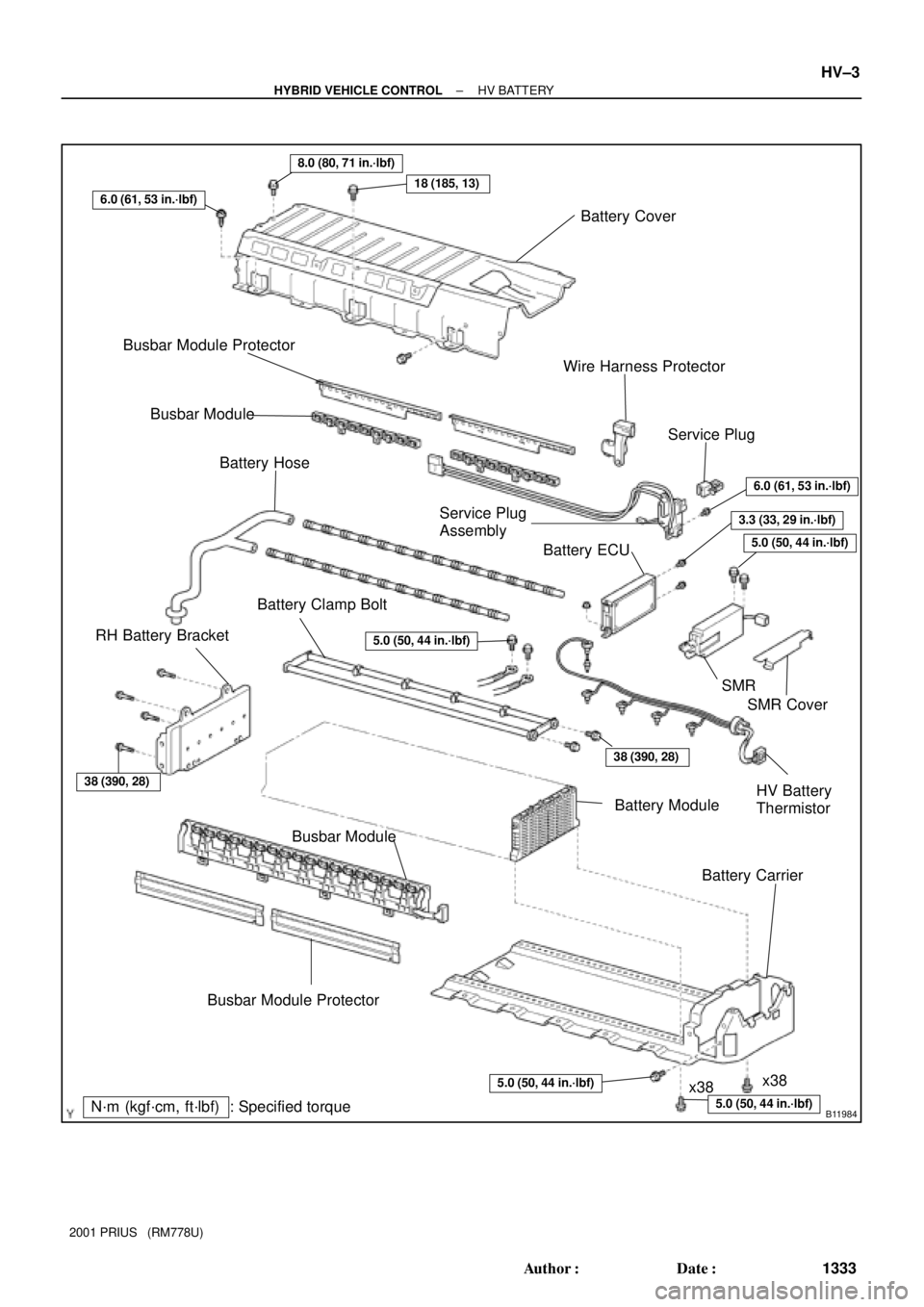

B11984N´m (kgf´cm, ft´lbf) : Specified torque
18 (185, 13)
Battery Cover
Busbar Module Protector
Busbar Module
Battery Hose
Service Plug
Assembly
Battery ECU
SMR Battery Clamp Bolt
RH Battery Bracket
HV Battery
Thermistor
Battery Carrier Battery Module
Busbar Module Protector
x38
x38
38 (390, 28)
Service Plug Wire Harness Protector
Busbar Module
38 (390, 28)
6.0 (61, 53 in.´lbf)
8.0 (80, 71 in.´lbf)
6.0 (61, 53 in.´lbf)
SMR Cover
5.0 (50, 44 in.´lbf)
5.0 (50, 44 in.´lbf)
3.3 (33, 29 in.´lbf)
5.0 (50, 44 in.´lbf)
5.0 (50, 44 in.´lbf)
± HYBRID VEHICLE CONTROLHV BATTERY
HV±3
1333 Author: Date:
2001 PRIUS (RM778U)
