2001 TOYOTA PRIUS Service Repair Manual

N14677
Fuse
AB0119H01300
H01301
Airbag Sensor Assembly
ON
LA
(+)
(±)
± DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
DI±639
2001 PRIUS (RM778U)
Does not light up, when ignition switch is turned to ON
1 Check AM2 Fuse.
PREPARATION:
Remove the AM2 fuse.
CHECK:
Check continuity of the AM2 fuse.
OK:
Continuity
HINT:

Fuse may be burnt out even if it appears to be OK during
visual inspection.

If fuse is OK, install it.
NG Go to step 4.
OK
2 Prepare for inspection (See step 1 on page DI±629).
3 Check SRS warning light circuit.
PREPARATION:
(a) Disconnect the airbag sensor assembly connector.
(b) Connect negative (±) terminal cable to the battery.
(c) Turn the ignition switch to ON.
CHECK:
Measure the voltage between body ground and LA terminal of
the harness side connector of the airbag sensor assembly.
OK:
Voltage: 10 ± 14 V
NG Check combination meter or repair SRS warn-
ing light circuit.
OK
Replace airbag sensor assembly.

DI±640
± DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
2001 PRIUS (RM778U)
4 Is new AM2 fuse burnt out again?
NO Using simulation method, reproduce malfunc-
tion symptoms (See page IN±30).
YES
Check harness between AM2 fuse and SRS
warning light.

H15526
J11
J/C AW±B 2KW±BJ24
J/C
W±BDLC3
P±BJ26
J/C
P±B
Tc
8 2D 8AA
413 CGTc
E
E19
A18
Instrument Panel J/BAirbag Sensor
Assembly
ID
± DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
DI±641
2001 PRIUS (RM778U)
Tc Terminal Circuit
CIRCUIT DESCRIPTION
By connecting terminals Tc and CG of the DLC3 the airbag sensor assembly is set in the DTC output mode.
The DTCs are displayed by blinking the SRS warning light.

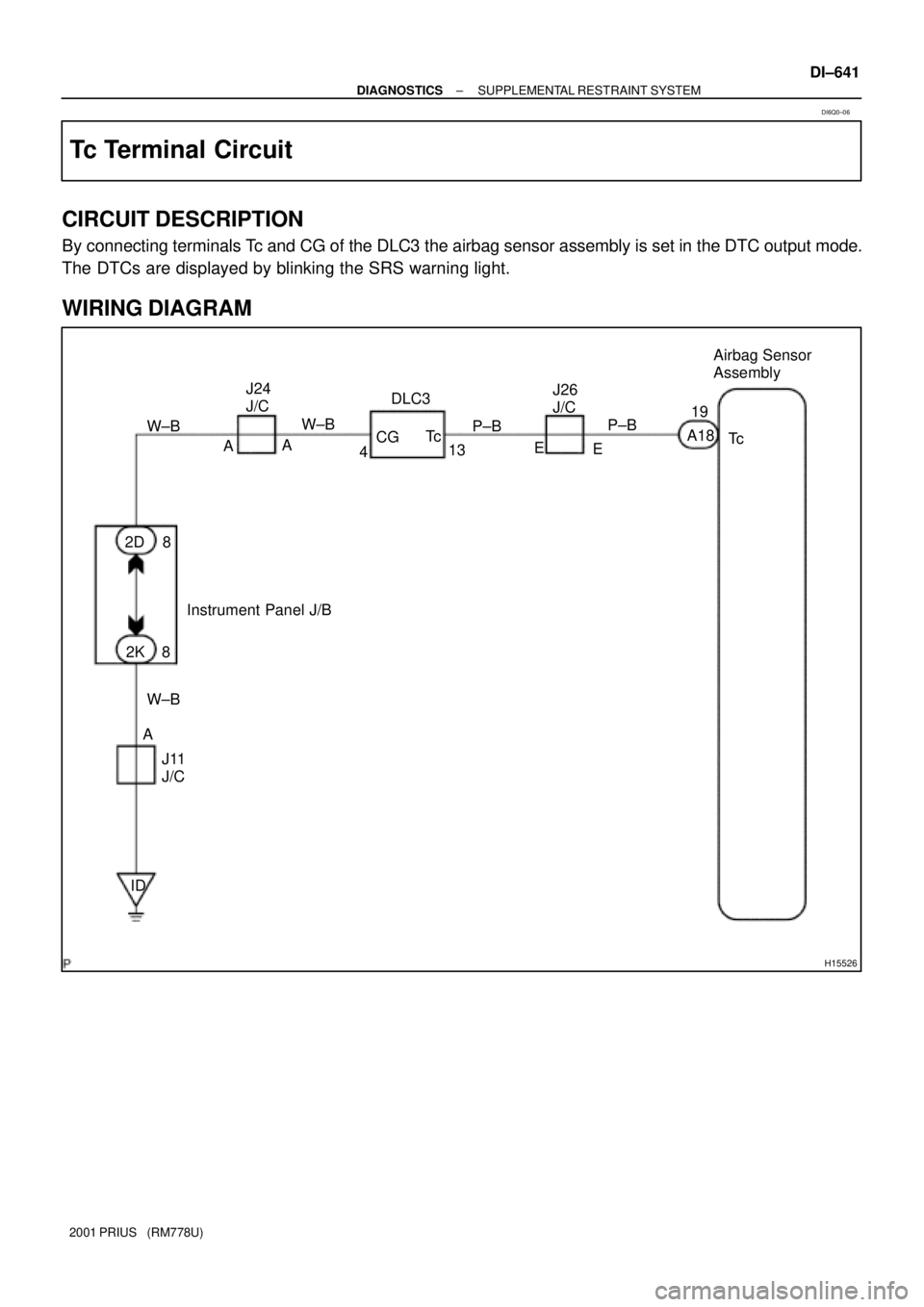

WIRING DIAGRAM
DI6Q0±06

AB0117AB0119H15218H15700
LOCK
ON
AB0119H10688H10654
ON
CG
Tc
(+) (±)
DI±642
± DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
2001 PRIUS (RM778U)
INSPECTION PROCEDURE
If the DTC is not displayed, do the following troubleshooting.
1 Does SRS warning light light up for approx. 6 seconds?
PREPARATION:
Check operation of the SRS warning light after ignition switch
is turned from LOCK position to ON position.
NO Check SRS warning light system (See page
DI±632).
YES
2 Check voltage between terminals Tc and CG of DLC3.
PREPARATION:
Turn the ignition switch to ON.
CHECK:
Measure the voltage between terminals Tc and CG of DLC3.
OK:
Voltage: 10 ± 14 V
OK Go to step 4.
NG

AB0119H10689H10656
ON
Tc
(+) (±)
AB0117 AB0119H01302H12918
LOCK
ON
Airbag Sensor Assembly
Tc
± DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
DI±643
2001 PRIUS (RM778U)
3 Check voltage between terminal Tc of DLC3 and body ground.
CHECK:
Measure the voltage between terminal Tc of DLC3 and body
ground.
OK:
Voltage: 10 ± 14 V
OK Check harness between terminal E1 of DLC3
and body ground.
NG
4 Check airbag sensor assembly.
PREPARATION:
(a) Turn the ignition switch to LOCK.
(b) Disconnect negative (±) terminal cable from the battery,
and wait at least for 90 seconds.
(c) Disconnect the airbag sensor assembly connector.
(d) Insert service wire into terminal Tc from back side as
shown in the illustration.
(e) Connect the airbag sensor assembly connector with ser-
vice wire.
(f) Connect negative (±) terminal cable to the battery.
(g) Turn the ignition switch to ON and wait at least for 20 se-
conds.
(h) Connect service wire of terminal Tc to body ground.
CHECK:
Check operation of the SRS warning light.
OK:
SRS waning light comes on.
NOTICE:
Pay due attention to the terminal connecting position to
avoid a malfunction.
OK Check harness between the airbag sensor as-
sembly and DLC3.
NG
Replace airbag sensor assembly.
