TOYOTA PRIUS 2001 Service Repair Manual I18203
Display
check screen switchHorizontal line
check screen switch
DI±810
± DIAGNOSTICSNAVIGATION SYSTEM
2001 PRIUS (RM778U)

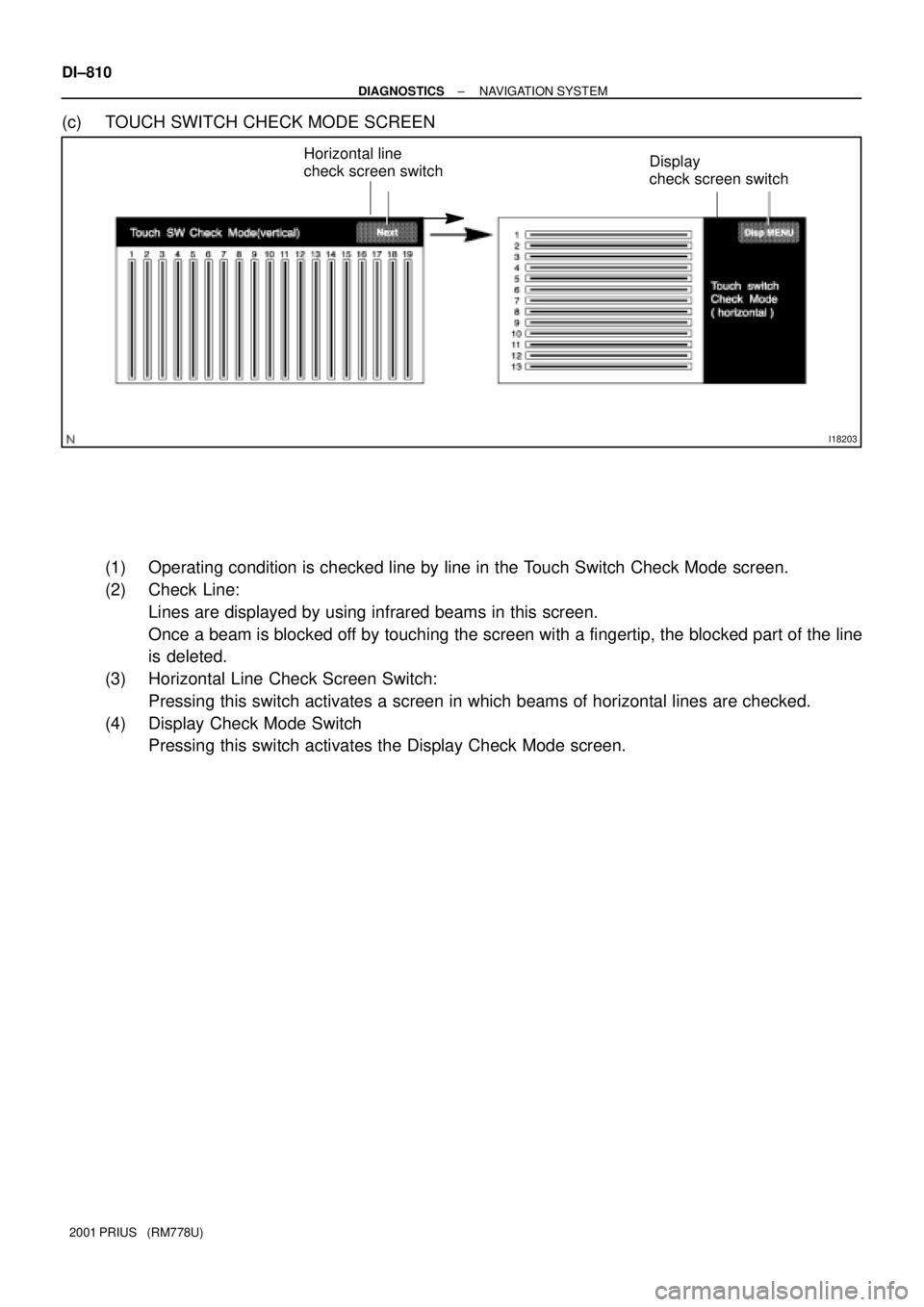

(c) TOUCH SWITCH CHECK MODE SCREEN
(1) Operating condition is chec

Page 1338 of 1943

TOYOTA PRIUS 2001 Service Repair Manual I15462
Display
check screen switch
Press point
± DIAGNOSTICSNAVIGATION SYSTEM
DI±811
2001 PRIUS (RM778U)
(d) TOUCH POINT CHECK MODE SCREEN
(1) In this screen, the position detected by the pressure

Page 1339 of 1943

TOYOTA PRIUS 2001 Service Repair Manual I15461
Display
check screen switch
DI±812
± DIAGNOSTICSNAVIGATION SYSTEM
2001 PRIUS (RM778U)

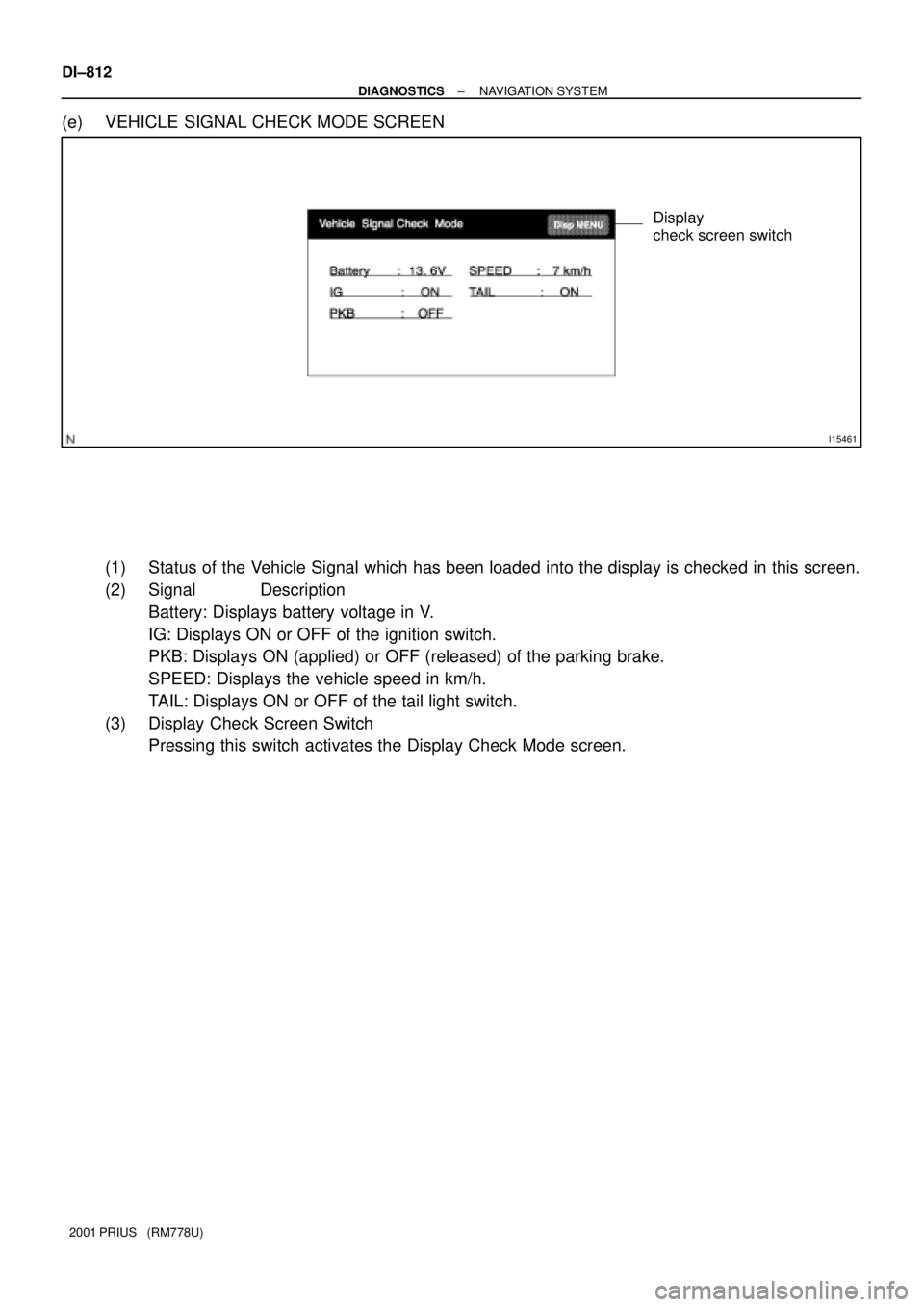

(e) VEHICLE SIGNAL CHECK MODE SCREEN
(1) Status of the Vehicle Signal which has been loaded into the d

Page 1340 of 1943

TOYOTA PRIUS 2001 Service Repair Manual DI27Z±05
Physical address
Logical addressMeaning
Three±digit code (shown in hexadecimal) which is given to each component comprising the
AVC ± LAN
Corresponding to the function, individual symbols

DI27Z±05
Physical address
Logical addressMeaning
Three±digit code (shown in hexadecimal) which is given to each component comprising the
AVC ± LAN
Corresponding to the function, individual symbols are specified..
Two±digit code (shown in hexadecimal) which is given to each function comprising the inner system
of the AVC ± LAN.
Physical address: 110 Multi display
Diagnosis item
Panel Switch
Error
Touch Switch
ErrorDiagnosis contentCountermeasure and
inspected parts
Error in panel switch input part is de-
tected.
(Error in switch control part, or inter-
nal communication error with switch
control part is detected.)
Error in touch switch sensor is de-
tected. Inspect all switches on touch
switch test screen in display check
mode. If any of lines and point does
not react, replace multi±display as-
sembly.
If all switches function without
problem, observe them for a while.
Inspect all touch switches on
touch switch test screen in display
check mode. If any of lines does
not react, replace multi±display as-
sembly.
If all of vertical and horizontal
lines react normally, observe them
for a while. Logical address
21 *1
(Switch)
Replace multi±display assembly.
21
(Switch)
34
(Front passenger
monitor)
DTC
11
10
Error in power supply system for
picture circuit (abnormal voltage) is
detected. Error in Picture
Circuit 10
Decline in power output from in-
verter circuit for backlight. Backlight Error
(No current)Replace multi±display assembly.
34
(Front passenger
monitor)11
Excess power output from inverter
circuit for backlight.Replace multi±display assembly.
34
(Front passenger
monitor)12
Backlight Error
(Excess
current)
Abnormal condition of ROM is de-
tected.Replace multi±display assembly.
01
(Communication
control)21ROM Error
Abnormal condition of RAM is de-
tected.Replace multi±display assembly.
01
(Communication
control)22RAM Error
Terms
*1: Check if the operation in Touch Point Check or Touch Switch Check screen is normal. If it operates without any
problem, see how things go for a while.
Although this code is defined as Panel Switch Error, there are touch switches only on the display. If the internal com-
munication is erroneous, however, this code is stored.
± DIAGNOSTICSNAVIGATION SYSTEM
DI±813
2001 PRIUS (RM778U)
DIAGNOSTIC TROUBLE CODE CHART

Page 1341 of 1943

TOYOTA PRIUS 2001 Service Repair Manual Mode Status
Error DB01 *2
(Communication
Control)Dual sound is detected. Check harness for power supply
system of component shown by
auxiliary code.
Check harness for communica-
tion system of comp

Mode Status
Error DB01 *2
(Communication
Control)Dual sound is detected. Check harness for power supply
system of component shown by
auxiliary code.
Check harness for communica-
tion system of component shown by
auxiliary code.
Transmission
Error DC 01 *4
(Communication
Control)Transmission to component shown
by auxiliary code has been failed.
(This code does not necessarily
mean actual failure.)If same component shown by auxil-
iary code is recorded in other com-
ponent(s), check harness for power
supply and communication system
of components shown sub code.
Slave Reset
(Momentary
Interruption) DE 01 *5
(Communication
Control)After engine start, slave component
has been disconnected.
DB Check harness for power supply
system of component shown by
auxiliary code.
Check harness for communica-
tion system of component shown by
auxiliary code.
No response to
connection
checkComponent shown by auxiliary
code is or was disconnected from
system after engine is started.
Component operated (sound and/
or image was provided) before en-
gine stop is or was disconnected
with ignition switch in ACC or ON. Check harness for power supply
of component shown by auxiliary
code
Check harness for communica-
tion system of component shown
by auxiliary code D8
D9 Last Mode
Error Check harness for power supply
of component shown by auxiliary
code
Check harness for communica-
tion system of component shown
by auxiliary code 01 *3
(Communication
Control)
01 *2
(Communication
Control)
Multiple Frame
Abort E4 01 *1
(Communication
Control)Since this DTC is provided for engi-
neering, it may be detected when
no actual failure exists. Multiple frame transmission is
aborted. Registered
component
disconnectedComponent shown by auxiliary
code is or was disconnected from
system with ignition switch in ACC
or ON.
Communication with component
shown by auxiliary code is not es-
tablished when engine is started. Check harness for power supply
of component shown by auxiliary
code
Check harness for communica-
tion system of component shown by
auxiliary code D5 01 *2
(Communication
Control)
No Response
to ON/OFF
Instruction DA 01
(Communication
Control)No response is identified when
changing mode (audio and visual
mode change). Detected when
sound and picture does not change
by button operation. Check harness for power supply
of component shown by auxiliary
code.
Check harness for communica-
tion system of component shown by
auxiliary code.
If error occurs again, replace
component shown by auxiliary
code.
*2: Even if no failure is detected, it may be stored depending on the battery condition or voltage for starting an engine.
*3: It is stored when 180 sec. has passed after the power supply connector is pulled out after engine start.
*4: It may be stored when the engine key is turned again 1 min. after engine start.
*5: It may be stored when the engine key is turned again after engine start. DI±814
± DIAGNOSTICSNAVIGATION SYSTEM
2001 PRIUS (RM778U)

Page 1342 of 1943

TOYOTA PRIUS 2001 Service Repair Manual Physical address: 190 Radio receiver assembly
Diagnosis item
ROM Error
Absence of
MasterDiagnosis contentCountermeasure and
inspected parts
Error is detected in internal ROM. Logical address
01
(Comm

Physical address: 190 Radio receiver assembly
Diagnosis item
ROM Error
Absence of
MasterDiagnosis contentCountermeasure and
inspected parts
Error is detected in internal ROM. Logical address
01
(Communication
Control)
01 *2
(Communication
Control)Component in which this code is re-
corded has been disconnected from
system with ignition in ACC or ON.
Or, when this code was recorded,
multi±display assembly was discon-
nected. Check harness for power supply
system of multi display.
Check harness for communica-
tion system of multi display.
Check harness for power supply
system of radio receiver assembly.
Check harness for communica-
tion system of radio receiver as-
sembly.
DTC
21
D6Replace radio receiver assembly.
RAM Error Error is detected in internal RAM. 01
(Communication
Control)22Replace radio receiver assembly.
No Response
to Connection
Check 01 *3
(Communication
Control)Component shown by auxiliary code
is or had been disconnected from
system after engine start.
D9 Check harness for power supply
system of component shown by
auxiliary code.
Check harness for communica-
tion system of component shown by
auxiliary code. D8
Last Mode Error 01 *2
(Communication
Control)Component operated (sounds and/
or images were provided) before en-
gine stop is or has been discon-
nected with ignition switch in ACC or
ON.Check harness for power supply
system of component shown by
auxiliary code.
Check harness for communication
system of component shown by
auxiliary code. D9
No Response
to ON/OFF
Instruction
Mode Status
ErrorNo response is identified when
changing mode (audio and visual
mode change). Detected when
sound and picture does not change
by button operation. DA
DB 01
(Communication
Control)
01 *2
(Communication
Control)Dual alarm is detected. Check harness for power supply
of component shown by auxiliary
code.
Check harness for communica-
tion system of component shown by
auxiliary code. Check harness for power supply
of component shown by auxiliary
code.
Check harness for communica-
tion system of component shown by
auxiliary code.
If error occurs again, replace
component shown by auxiliary
code.
Transmission
Error DC 01 *4
(Communication
Control)Transmission to component shown
by auxiliary code has been failed.
(Detecting this DTC does not nec-
essary mean actual failure.)
If same auxiliary code is recorded
in other component, check harness
for power supply and communica-
tion system of components shown
sub code.
Master Reset
(Momentary
Interruption) DD 01 *5
(Communication
Control)After engine is started, multi±dis-
play assembly was disconnected
from system. If this error occurs frequently, re-
place multi±display assembly.
± DIAGNOSTICSNAVIGATION SYSTEM
DI±815
2001 PRIUS (RM778U)

Page 1343 of 1943

TOYOTA PRIUS 2001 Service Repair Manual Slave Reset
(Momentary
Interruption) DE 01 *5
(Communication
Control)After engine is started, slave com-
ponent was disconnected from sys-
tem. Check harness for power supply
of component shown by au

Slave Reset
(Momentary
Interruption) DE 01 *5
(Communication
Control)After engine is started, slave com-
ponent was disconnected from sys-
tem. Check harness for power supply
of component shown by auxiliary
code.
Check harness for communica-
tion system of component shown by
auxiliary code.
Master Error DF 01 *6
(Communication
Control)Due to defective condition of multi
display, master function is switched
to audio equipment.
Error occurs in communication be-
tween sub±master (audio) and mul-
ti display. Check harness for power supply
of multi±display assembly.
Check harness for communica-
tion system of multi±display assem-
bly.
Check harness for communica-
tion system between multi±display
assembly and sub±master compo-
nent.
Registration
Completion
Instruction
Error E0 01
(Communication
Control)ºRegistration Completion Instruc-
tionº command from multi display
cannot be received. Since this DTC is provided for en-
gineering purpose, it may be de-
tected when no actual failure exists.
Audio
processor ON
error E1 01 *2
(Communication
Control)While source equipment is operat-
ing, AMP output is stopped. Check harness for power supply
of multi±display assembly.
Check harness for communica-
tion system of multi±display assem-
bly.
ON/OFF
Instruction
Parameter
Error E2 01
(Communication
Control)Error occurs in ON/OFF controlling
command from multi±display as-
sembly. Replace multi±display assembly.
Registration
Request
Transmission E3 01
(Communication
Control)Registration Request command is
output from slave component.
Receiving Connection Check
Instruction, Registration Request
command is output from sub±mas-
ter component. Since this DTC is provided for en-
gineering purpose, it may be de-
tected when no actual failure exists.
Plural Frame
Abort E4 01
(Communication
Control) Since this DTC is provided for en-
gineering purpose, it may be de-
tected when no actual failure exists. Plural frame transmission is
aborted.
AM Tuner Error 43 60
(Radio receiver
assembly)Replace radio receiver assembly. Abnormal condition is detected in
AM tuner.
Inspect radio receiver assembly.
FM Tuner Error 44 60
(Radio receiver
assembly)Replace radio receiver assembly.
Abnormal condition is detected in
FM tuner.
Mechanical or
Media Error 40 61
(Cassette
switch)Inspect cassette tape.
Malfunction due to mechanical fail-
ure is identified. Or, cassette tape is
cut or entangled.
EJECT
Malfunction 41 61
(Cassette
switch)Malfunction due to mechanical fail-
ure.Replace radio receiver assembly.
No Disc
Readout 42 62
(CD player)Disc cannot be read.Inspect CD.
CD Error 44 62
(CD player)Error is detected in CD player.Replace radio receiver assembly. DI±816
± DIAGNOSTICSNAVIGATION SYSTEM
2001 PRIUS (RM778U)

Page 1344 of 1943

TOYOTA PRIUS 2001 Service Repair Manual EJECT Error 45 62
(CD player)Magazine cannot be ejected.
Scratched/
Reversed Disc 46 62
(CD player)Scratches or dirt is found on CD sur-
face or CD is set upside down.Replace radio receiver assembly.

EJECT Error 45 62
(CD player)Magazine cannot be ejected.
Scratched/
Reversed Disc 46 62
(CD player)Scratches or dirt is found on CD sur-
face or CD is set upside down.Replace radio receiver assembly.
Inspect CD.
Physical address: 178 Navigation ECU
Gyro Error Error in gyro sensor is detected.
(Abnormal value in voltage output
from sensor is detected for more
than specified time.) Check the Gyro voltage in the
diagnosis system mode. 10 58
(Navigation ECU)
Map Disc Error Data cannot be read for a specified
time due to scratches or dirt on disc
surface or insertion of music CD. Inspect disc and replace if neces-
sary. (Visually check disc surface
and wipe it with soft cloth.) 42 58
(Navigation ECU)
Vehicle speed
sensor Signal
ErrorInput error of vehicle speed sensor
signal is detected. (When no vehicle
speed sensor signal has been input
for a specified time.) Check the vehicle speed signal in
the diagnosis system mode.
Inspect wire harness for vehicle
speed signal.
If wire harness is normal, replace
navigation ECU. 43 58
(Navigation ECU)
Player Error Malfunction of player continues for a
specified length of time. Check if disc can be inserted/tak-
en out or not. If not , replace naviga-
tion ECU.
When the same code is detected
in recheck after deleting the DTC
memory. 44 58
(Navigation ECU)
GPS Receiver
ErrorOperation error of GPS receiver is
detected. At an outdoor site with a clear
view, operate to display the GPS in-
formation screen of the diagnosis
system. If GPS time stamp is not
properly displayed after 15 min. or
more, replace navigation ECU. 11 58
(GPS receiver)
GPS Antenna
ErrorOperation condition of GPS anten-
na cable is detected. (Open circuit,
connection failure of connectors,
etc.) Check if the GPS antenna is cor-
rectly connected or positioned or
not. After replacing the antenna, if
the error remains, replace the navi-
gation ECU. 40 58
(GPS receiver)
Power Supply
Error of GPS
AntennaAbnormal voltage of GPS antenna
cable or short circuit is detected. Inspect GPS antenna and replace
if necessary. (When no continuity is
identified between connector's core
and sealed part, GPS antenna is
normal.)
If GPS antenna is normal, replace
navigation ECU. 41 58
(GPS receiver)
Player Temp.
Too HighReadout cannot be done because
temperature around player's pickup
(reading part) is too high.With IG switch OFF, leave vehicle in
cool shaded place for a while and
recheck. After deleting the DTC
memory, If same code detected, re-
place navigation ECU. 45 58
(Navigation ECU)
*2: Even if no failure is detected, it may be stored depending on the battery condition or voltage for starting an engine.
*3: It is stored when 180 sec. has passed after the power supply connector is pulled out after engine start.
*4: It may be stored when the engine key is turned again 1 min. after engine start.
*5: It may be stored when the engine key is turned again after engine start.
*6: When 210 sec. has passed after pulling out the power supply connector of the master component with the ignition
switch in ACC or ON, this code is stored.
± DIAGNOSTICSNAVIGATION SYSTEM
DI±817
2001 PRIUS (RM778U)

Load next 8 pages

Page: < prev 1-10 ... 1305-1312 1313-1320 1321-1328 1329-1336 1337-1344 1345-1352 1353-1360 1361-1368 1369-1376 ... 1944 next >

odometer fuel cap engine oil refrigerant type fuel filter location coolant capacity
