± BODYSEAT BELT PRETENSIONER
1875 Author: Date:
2001 PRIUS (RM778U)
SEAT BELT PRETENSIONER
REMOVAL
NOTICE:

If the wiring connector of the seat belt pretensioner is
disconnected with the ignition switch at ON or ACC,
diagnostic trouble codes will be recorded.

Never use seat belt pretensioner from another ve-
hicle. When replacing parts, replace them with new
parts.
1. REMOVE FRONT DOOR INSIDE SCUFF PLATE
Using a screwdriver, remove the front door inside scuff plate.
HINT:
Tape the screwdriver tip before use.
2. REMOVE REAR DOOR INSIDE SCUFF PLATE
Using a screwdriver, remove the rear door inside scuff plate.
HINT:
Tape the screwdriver tip before use.
3. REMOVE FRONT DOOR OPENING TRIM
4. REMOVE REAR DOOR OPENING TRIM
5. REMOVE CENTER PILLAR LOWER GARNISH
Remove the center pillar lower garnish as shown in the illustra-
tion.
6. REMOVE FRONT SEAT OUTER BELT
(a) Using a screwdriver, remove the shoulder anchor cover.
HINT:
Tape the screwdriver tip before use.
(b) Remove the bolt and shoulder anchor.
(c) Using a screwdriver, remove the floor anchor cover.
HINT:
Tape the screwdriver tip before use.
(d) Remove the bolt and floor anchor.

H15467
H15471
± BODYSEAT BELT PRETENSIONER
BO±91
1876 Author: Date:
2001 PRIUS (RM778U)
(e) Driver's side:
Remove the retractor of front seat outer belt.
CAUTION:
Never disassemble the front seat outer belt.
NOTICE:
When removing the retractor of front seat outer belt, take
care not to pull the seat belt pretensioner wire harness.
(1) Disconnect the pretensioner connector as shown in
the illustration.
(2) Disconnect the tension reducer connector.
CAUTION:
When removing the seat belt pretensioner, work must be
started 90 seconds after the ignition switch is turned to the
ºLOCKº position and the negative (±) terminal cable is dis-
connected from the battery.
NOTICE:
When handling the pretensioner connector and tensionre-
ducer, take care not to damage the harness.
(3) Remove the bolts and retractor of front seat outer
belt.
(f) Except driver's side:
Remove the retractor of front seat outer belt.
CAUTION:
Never disassemble the front seat outer belt.
NOTICE:
When removing the retractor of front seat outer belt, take
care not to pull the seat belt pretensioner wire harness.
(1) Disconnect the pretensioner connector as shown in
the illustration.
CAUTION:
When removing the seat belt pretensioner, work must be
started 90 seconds after the ignition switch is turned to the
ºLOCKº position and the negative (±) terminal cable is dis-
connected from the battery.
NOTICE:
When handling the pretensioner connector and tensionre-
ducer, take care not to damage the harness.
(2) Remove the bolts and retractor of front seat outer
belt.

BO3T8±01
AB0152
SST
AB0158
SSTBattery
± BODYSEAT BELT PRETENSIONER
BO±93
2001 PRIUS (RM778U)
DISPOSAL
HINT:
When scrapping vehicles equipped with a seat belt pretension-
er or disposing of a front seat outer belt (with seat belt preten-
sioner) always first activate the seat belt pretensioner in accor-
dance with the procedure described below. If any abnormality
occurs in the seat belt pretensioner operation, contact the SER-
VICE DEPT. of the TOYOTA MOTOR SALES, USA, INC.
CAUTION:

Never dispose of the front seat outer belt which has
an inactivated pretensioner.

The seat belt pretensioner produces a sizeable ex-
ploding sound when it activates, so perform the op-
eration out±of±door and where it will not create a nui-
sance to nearby residents.

When activating the seat belt pretensioner, always
use the specified SST. (SRS Airbag Deployment Tool)
Perform the operation in a place away from electrical
noise.
SST 09082±00700

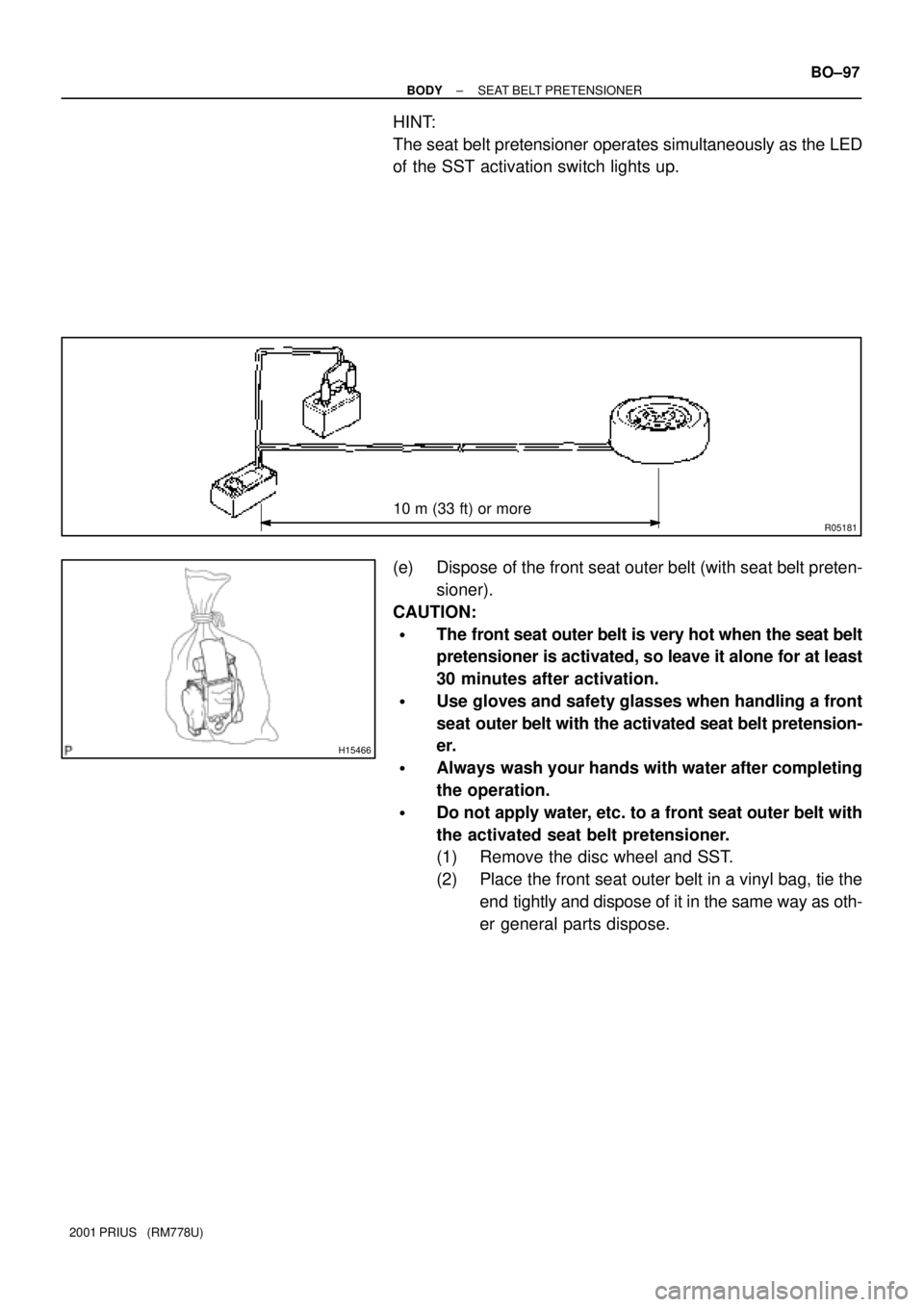

When activating a front seat outer belt (with seat belt
pretensioner), perform the operation at least 10 m (33
ft) away from the front seat outer belt.

The front seat outer belt (with seat belt pretensioner)
is very hot when the pretensioner is deployed, so
leave it alone for at least 30 minutes after deployment.

Use gloves and safety glasses when handling a front
seat outer belt with activated pretensioner.

Always wash your hands with water after completing
the operation.

Do not apply water, etc. to a front seat outer belt with
the activated pretensioner.
1. SEAT BELT PRETENSIONER ACTIVATION WHEN
SCRAPPING VEHICLE
HINT:
Have a battery ready as the power source to activate the seat
belt pretensioner.

AB0152
SST
AB0158
SSTBattery
H01580
SST
H15467H15471H16295
Driver's side:
Except driver's side:
BO±94
± BODYSEAT BELT PRETENSIONER
2001 PRIUS (RM778U)
(a) Check the functioning of SST.
CAUTION:
When activating the seat belt pretensioner, always use the
specified SST: SRS Airbag Deployment Tool.
SST
Driver's side: 09082±00700, 09082±00730
Except driver's side: 09082±00700, 09082±00740

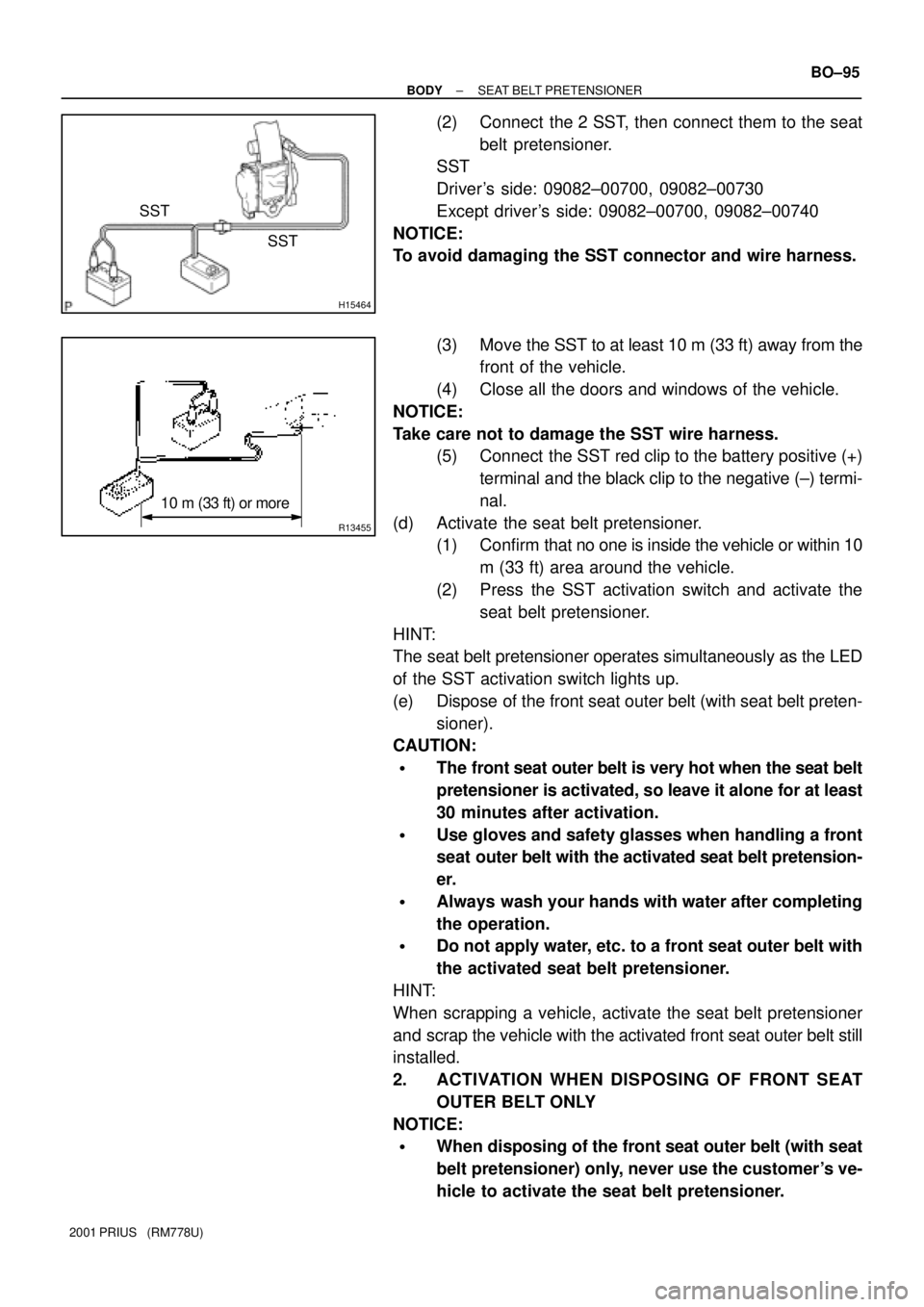

(1) Connect the SST to the battery.
Connect the red clip of the SST to the battery posi-
tive (+) terminal and the black clip to the battery neg-
ative (±) terminal.
HINT:
Do not connect the yellow connector which will be connected
with the seat belt pretensioner.
(2) Press the SST activation switch, and check the LED
of the SST activation switch lights up.
CAUTION:
If the LED lights up when the activation switch is not being
pressed, SST malfunction is probable, so definitely do not
use the SST.
(3) Disconnect the SST from the battery.

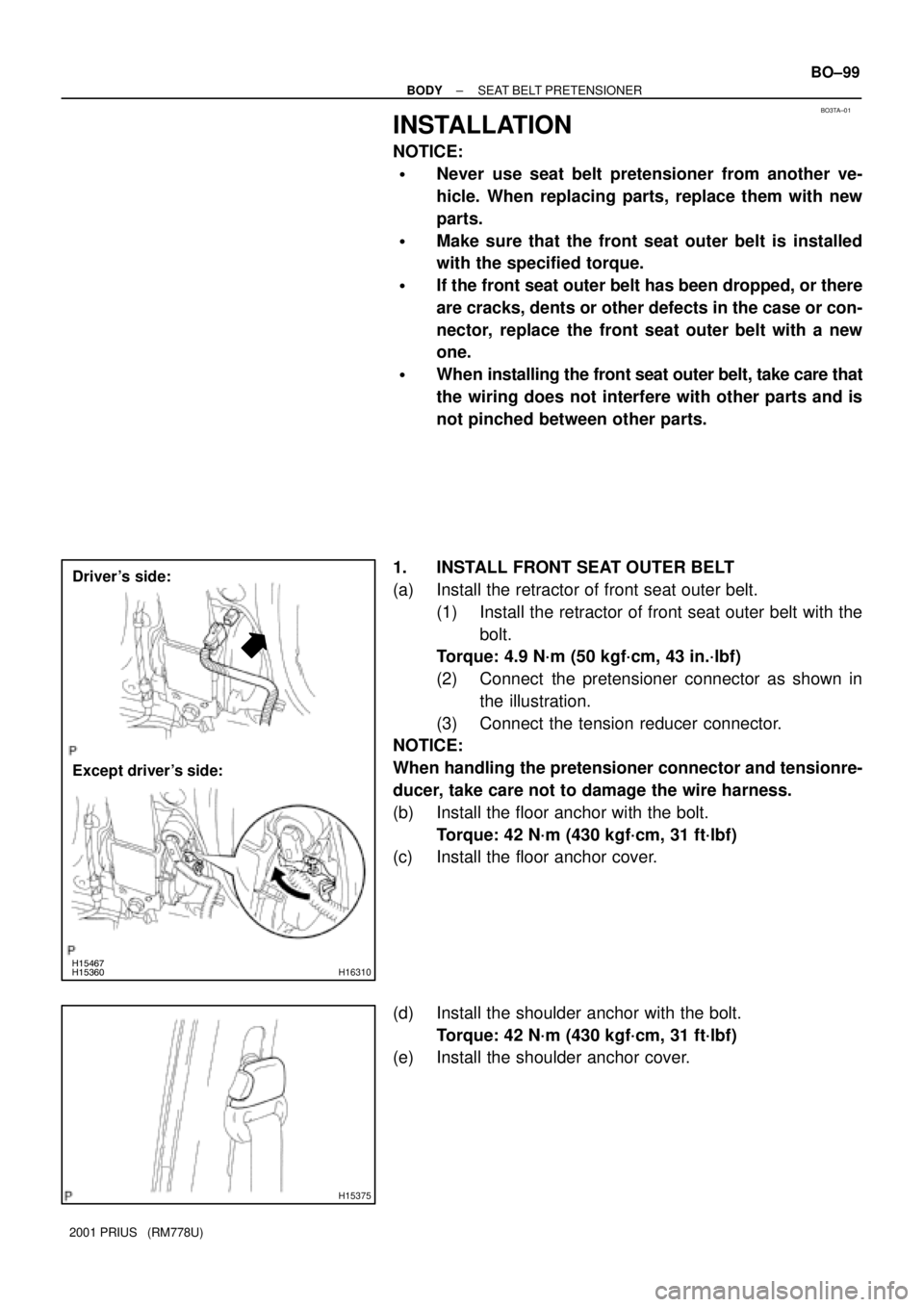

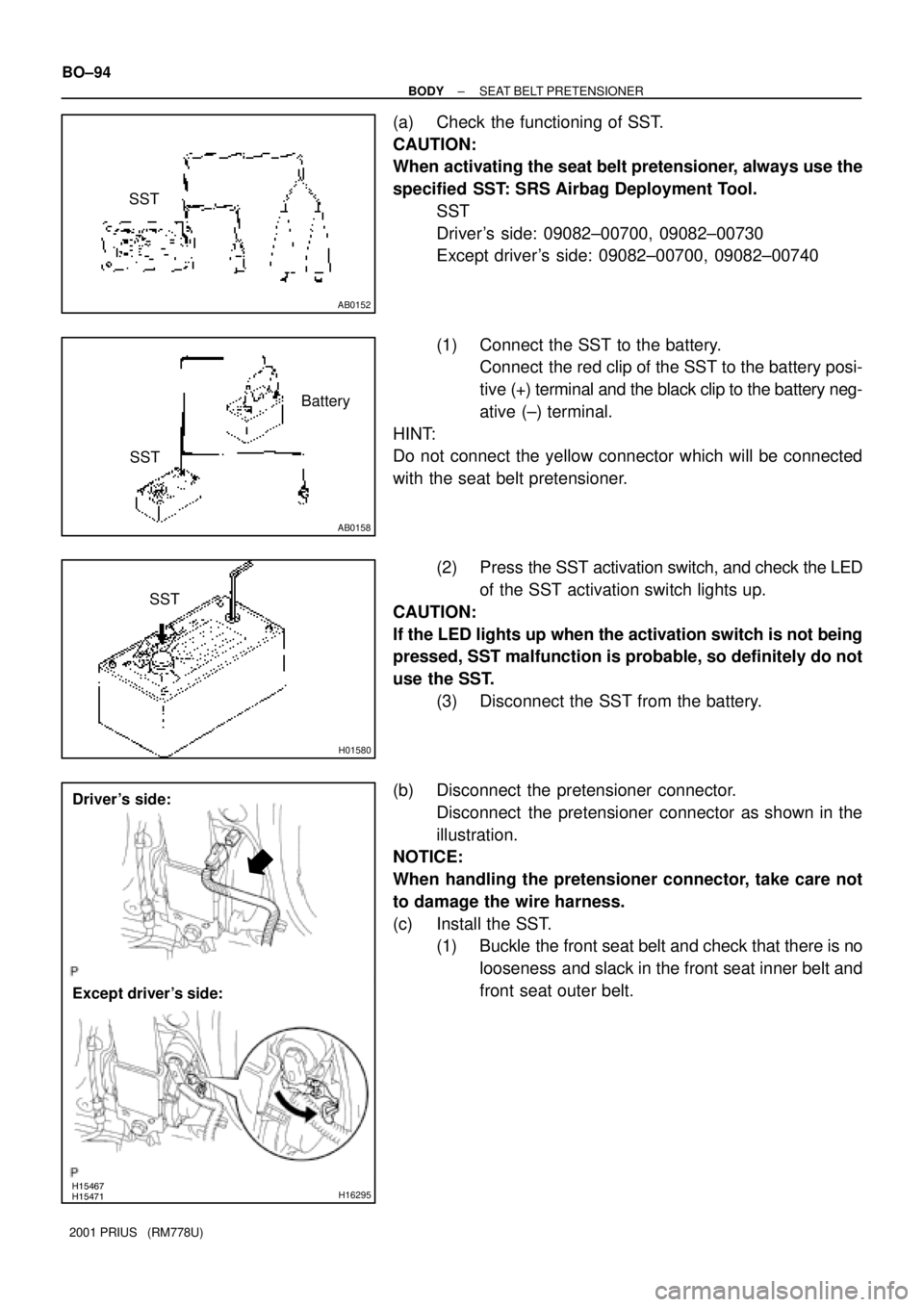

(b) Disconnect the pretensioner connector.
Disconnect the pretensioner connector as shown in the
illustration.
NOTICE:
When handling the pretensioner connector, take care not
to damage the wire harness.

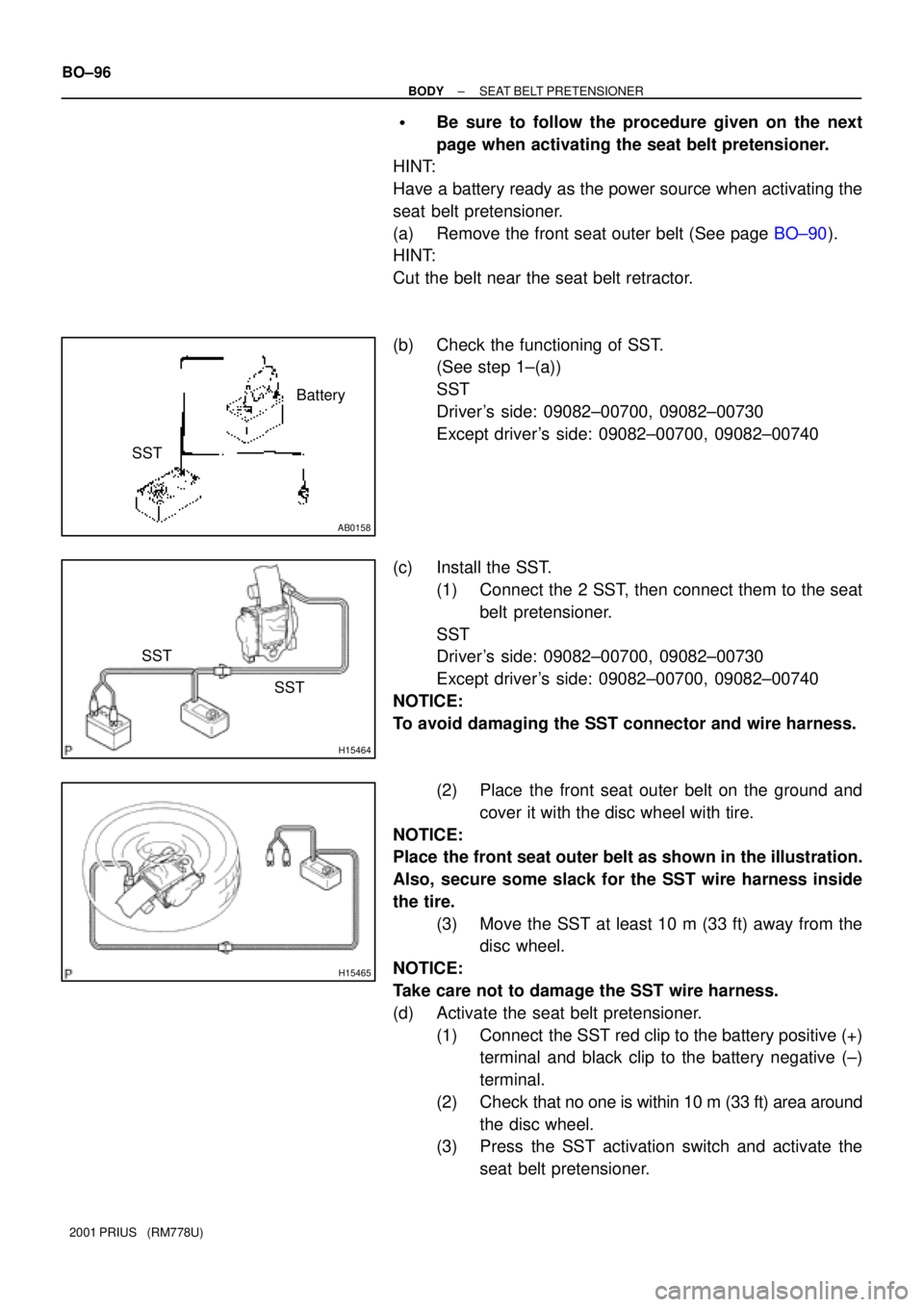

(c) Install the SST.
(1) Buckle the front seat belt and check that there is no
looseness and slack in the front seat inner belt and
front seat outer belt.
