± BODY ELECTRICALPOWER WINDOW CONTROL SYSTEM
BE±59
2001 PRIUS (RM778U)
(d) Continue to apply voltage, check that the current changes
from approximately 14 A to less than 1 A within 4 to 90 se-
conds.
(e) Disconnect the leads from terminals.

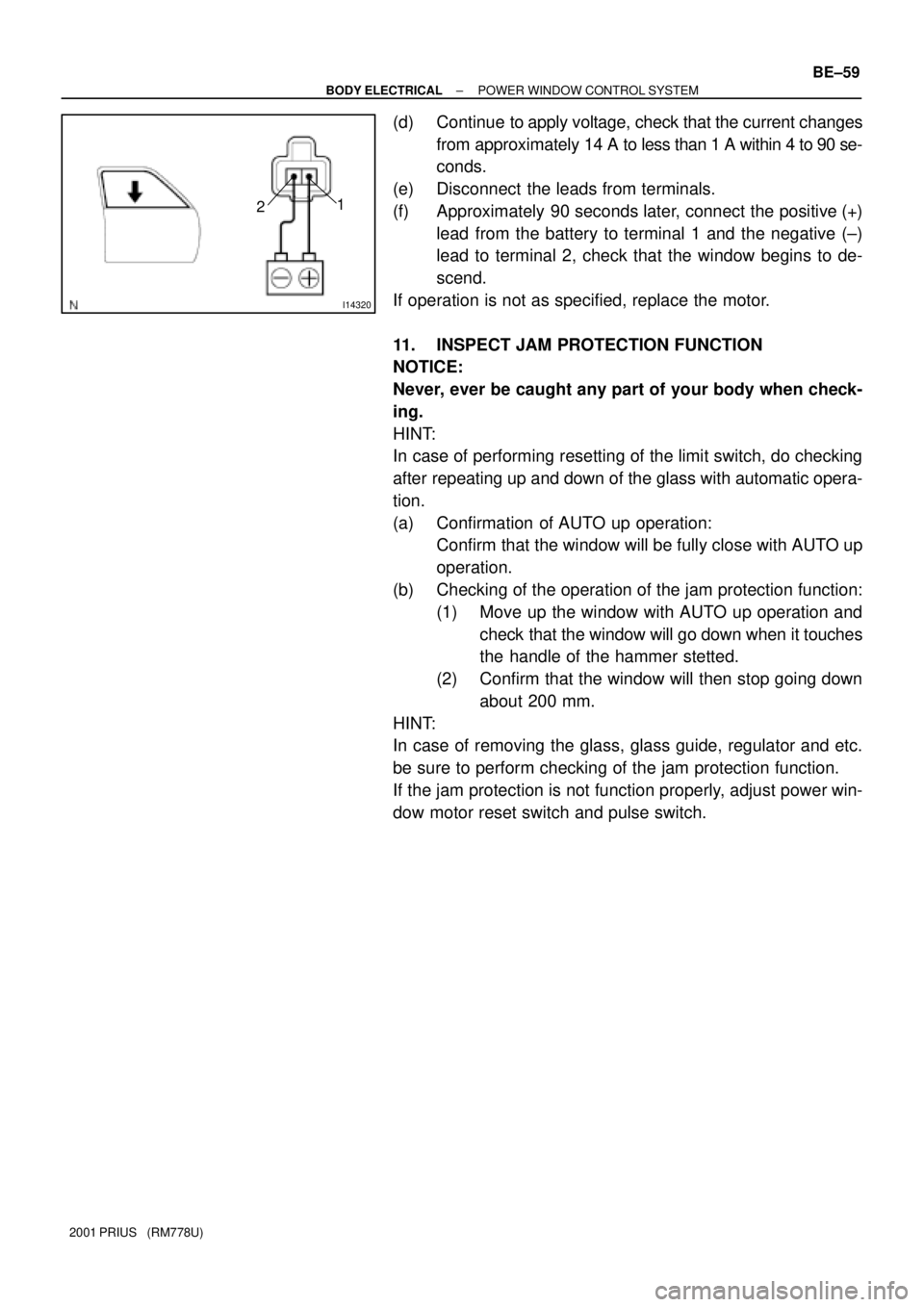

(f) Approximately 90 seconds later, connect the positive (+)
lead from the battery to terminal 1 and the negative (±)
lead to terminal 2, check that the window begins to de-
scend.
If operation is not as specified, replace the motor.
11. INSPECT JAM PROTECTION FUNCTION
NOTICE:
Never, ever be caught any part of your body when check-
ing.
HINT:
In case of performing resetting of the limit switch, do checking
after repeating up and down of the glass with automatic opera-
tion.
(a) Confirmation of AUTO up operation:
Confirm that the window will be fully close with AUTO up
operation.
(b) Checking of the operation of the jam protection function:
(1) Move up the window with AUTO up operation and
check that the window will go down when it touches
the handle of the hammer stetted.
(2) Confirm that the window will then stop going down
about 200 mm.
HINT:
In case of removing the glass, glass guide, regulator and etc.
be sure to perform checking of the jam protection function.
If the jam protection is not function properly, adjust power win-
dow motor reset switch and pulse switch.

BE1W7±01
I03147
I11689
LOCK
UNLOCK
I11690
LOCK
UNLOCK
I11689UNLOCKLOCK
I11690UNLOCK LOCK BE±62
± BODY ELECTRICALPOWER DOOR LOCK CONTROL SYSTEM
2001 PRIUS (RM778U)
INSPECTION

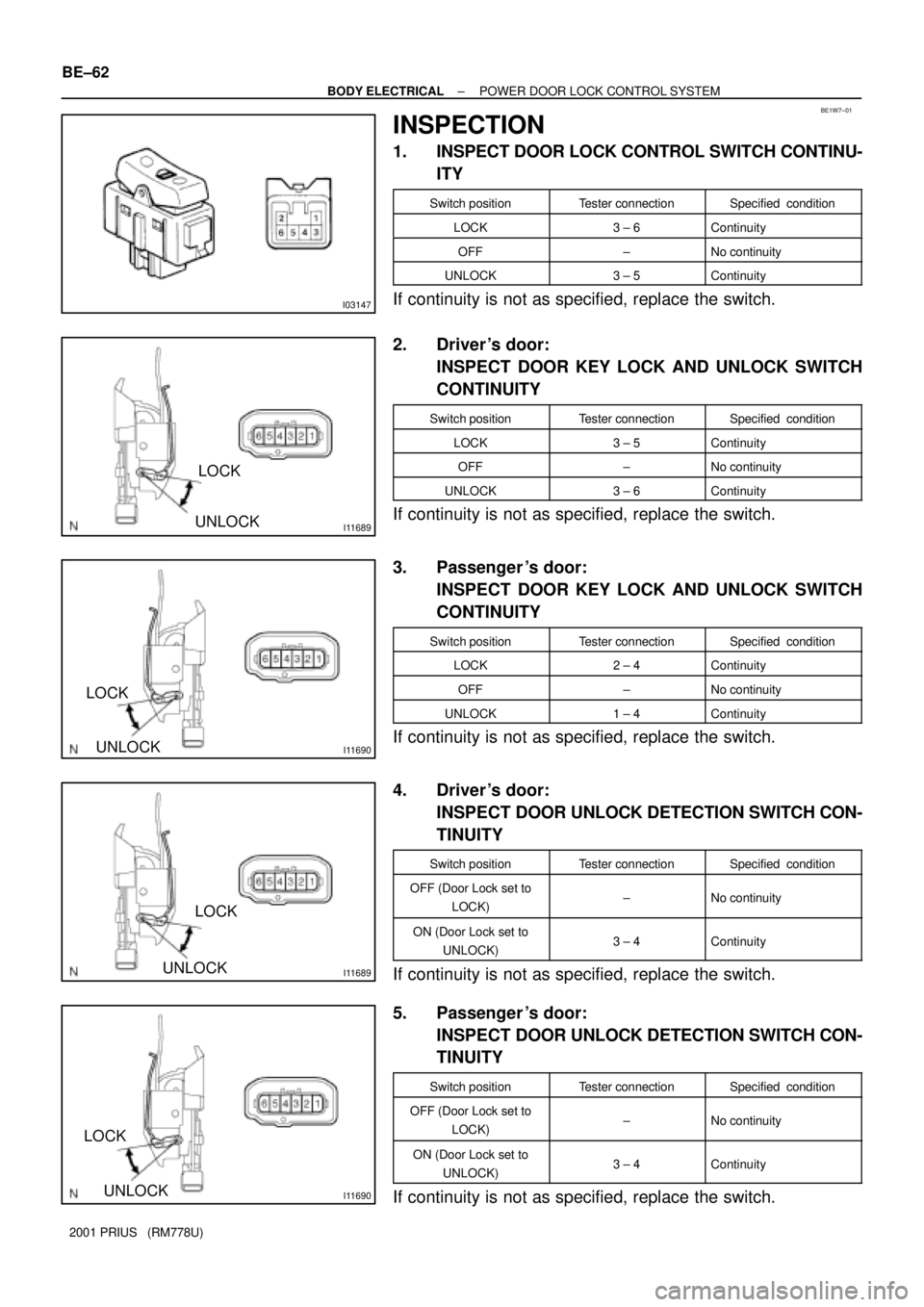

1. INSPECT DOOR LOCK CONTROL SWITCH CONTINU-
ITY
Switch positionTester connectionSpecified condition
LOCK3 ± 6Continuity
OFF±No continuity
UNLOCK3 ± 5Continuity
If continuity is not as specified, replace the switch.
2. Driver 's door:
INSPECT DOOR KEY LOCK AND UNLOCK SWITCH
CONTINUITY
Switch positionTester connectionSpecified condition
LOCK3 ± 5Continuity
OFF±No continuity
UNLOCK3 ± 6Continuity
If continuity is not as specified, replace the switch.
3. Passenger 's door:
INSPECT DOOR KEY LOCK AND UNLOCK SWITCH
CONTINUITY
Switch positionTester connectionSpecified condition
LOCK2 ± 4Continuity
OFF±No continuity
UNLOCK1 ± 4Continuity
If continuity is not as specified, replace the switch.
4. Driver 's door:
INSPECT DOOR UNLOCK DETECTION SWITCH CON-
TINUITY
Switch positionTester connectionSpecified condition
OFF (Door Lock set to
LOCK)±No continuity
ON (Door Lock set to
UNLOCK)3 ± 4Continuity
If continuity is not as specified, replace the switch.
5. Passenger 's door:
INSPECT DOOR UNLOCK DETECTION SWITCH CON-
TINUITY
Switch positionTester connectionSpecified condition
OFF (Door Lock set to
LOCK)±No continuity
ON (Door Lock set to
UNLOCK)3 ± 4Continuity
If continuity is not as specified, replace the switch.

I07301
LOCK
I07302
LOCK
I14313
UNLOCKLOCK
UNLOCK LOCK
22
11
± BODY ELECTRICALPOWER DOOR LOCK CONTROL SYSTEM
BE±63
2001 PRIUS (RM778U)

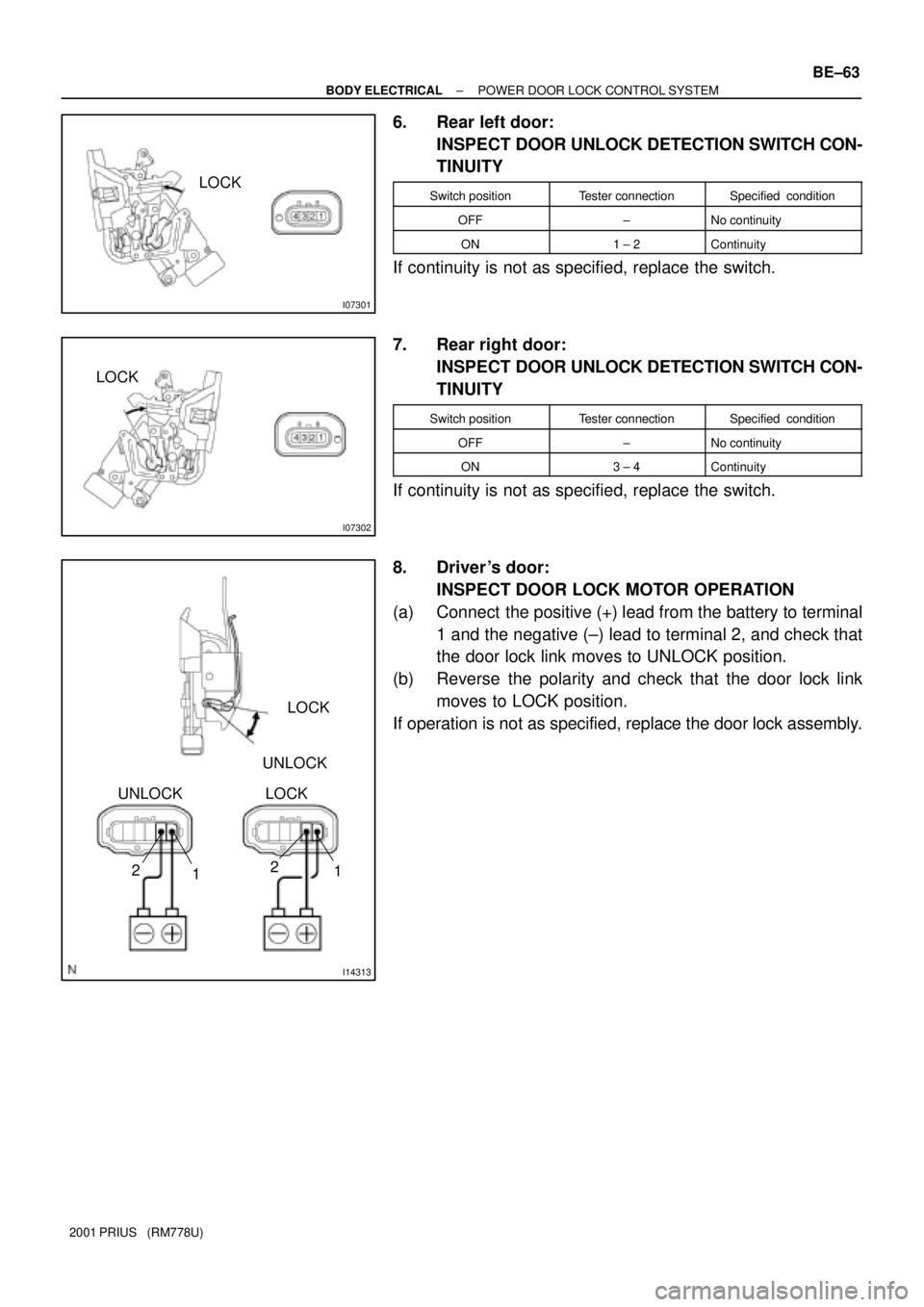

6. Rear left door:
INSPECT DOOR UNLOCK DETECTION SWITCH CON-
TINUITY
Switch positionTester connectionSpecified condition
OFF±No continuity
ON1 ± 2Continuity
If continuity is not as specified, replace the switch.
7. Rear right door:
INSPECT DOOR UNLOCK DETECTION SWITCH CON-
TINUITY
Switch positionTester connectionSpecified condition
OFF±No continuity
ON3 ± 4Continuity
If continuity is not as specified, replace the switch.

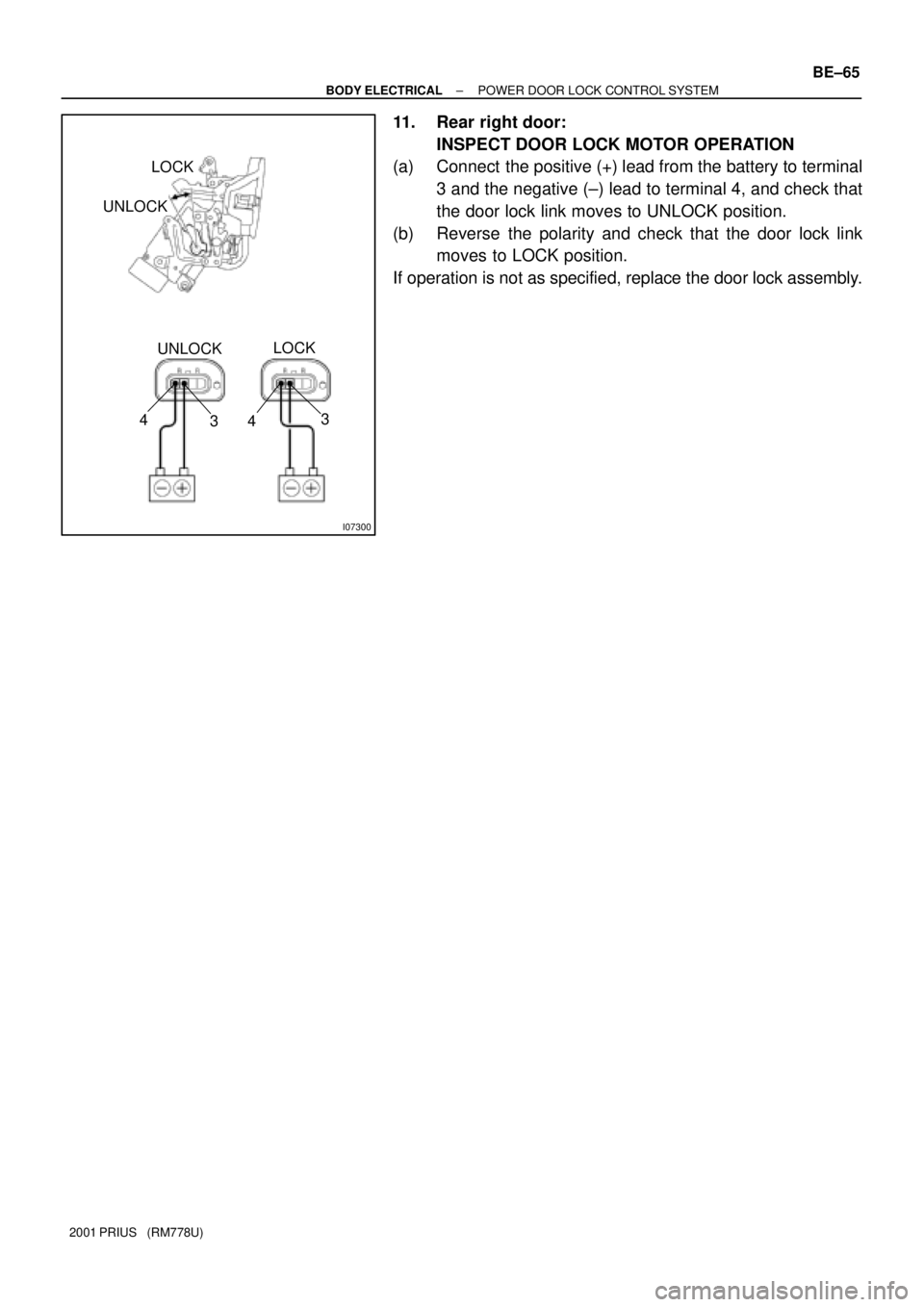

8. Driver 's door:
INSPECT DOOR LOCK MOTOR OPERATION
(a) Connect the positive (+) lead from the battery to terminal
1 and the negative (±) lead to terminal 2, and check that
the door lock link moves to UNLOCK position.
(b) Reverse the polarity and check that the door lock link
moves to LOCK position.
If operation is not as specified, replace the door lock assembly.

I14314
UNLOCKLOCK
UNLOCK LOCK
6565
I07299
LOCK
UNLOCK
UNLOCKLOCK
2
11
2 BE±64
± BODY ELECTRICALPOWER DOOR LOCK CONTROL SYSTEM
2001 PRIUS (RM778U)

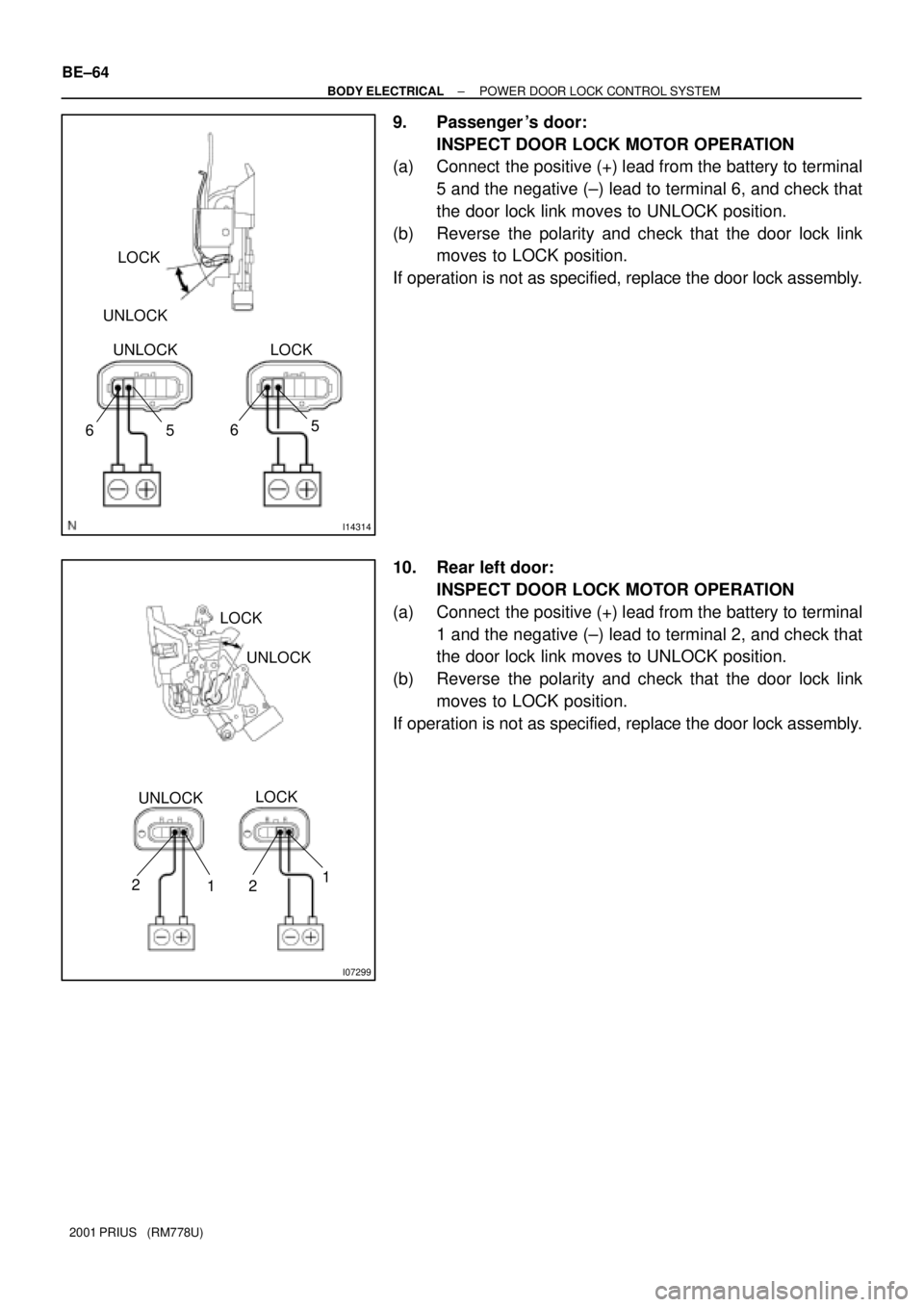

9. Passenger 's door:
INSPECT DOOR LOCK MOTOR OPERATION
(a) Connect the positive (+) lead from the battery to terminal
5 and the negative (±) lead to terminal 6, and check that
the door lock link moves to UNLOCK position.
(b) Reverse the polarity and check that the door lock link
moves to LOCK position.
If operation is not as specified, replace the door lock assembly.
10. Rear left door:
INSPECT DOOR LOCK MOTOR OPERATION
(a) Connect the positive (+) lead from the battery to terminal
1 and the negative (±) lead to terminal 2, and check that
the door lock link moves to UNLOCK position.
(b) Reverse the polarity and check that the door lock link
moves to LOCK position.
If operation is not as specified, replace the door lock assembly.
