H01024AB0119H01077
H10600H10612
"u
ON
DTC B0105/53 DLC3Airbag
Sensor
Assembly P Squib
Tc CG
± DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
DI±535
2001 PRIUS (RM778U)
4 Check P squib.
PREPARATION:
(a) Turn the ignition switch to LOCK.
(b) Disconnect negative (±) terminal cable from the battery,
and wait at least for 90 seconds.
(c) Connect the front passenger airbag assembly connector.
(d) Connect negative (±) terminal cable to the battery, and
wait at least for 2 seconds.
CHECK:
(a) Turn the ignition switch to LOOK, and wait at least for 20
seconds.
(b) Turn the ignition switch to ON, and wait at least for 20 se-
conds.
(c) Clear the DTC stored in memory (See page DI±497).
(d) Turn the ignition switch to LOCK, and wait at least for 20
seconds.
(e) Turn the ignition switch to ON, and wait at least for 20 se-
conds.
(f) Check the DTC (See page DI±497).
OK:
DTC B0105/53 is not output.
HINT:
Codes other than code B0105/53 may be output at this time, but
they are not relevant to this check.
NG Replace front passenger airbag assembly.
OK
From the results of the above inspection, the malfunctioning part can now be considered normal.
To make sure of this, use the simulation method to check.

R14286H02142H02251
P Squib
Airbag
Sensor
Assembly
P +
P±
(±)(+)
DI±536
± DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
2001 PRIUS (RM778U)

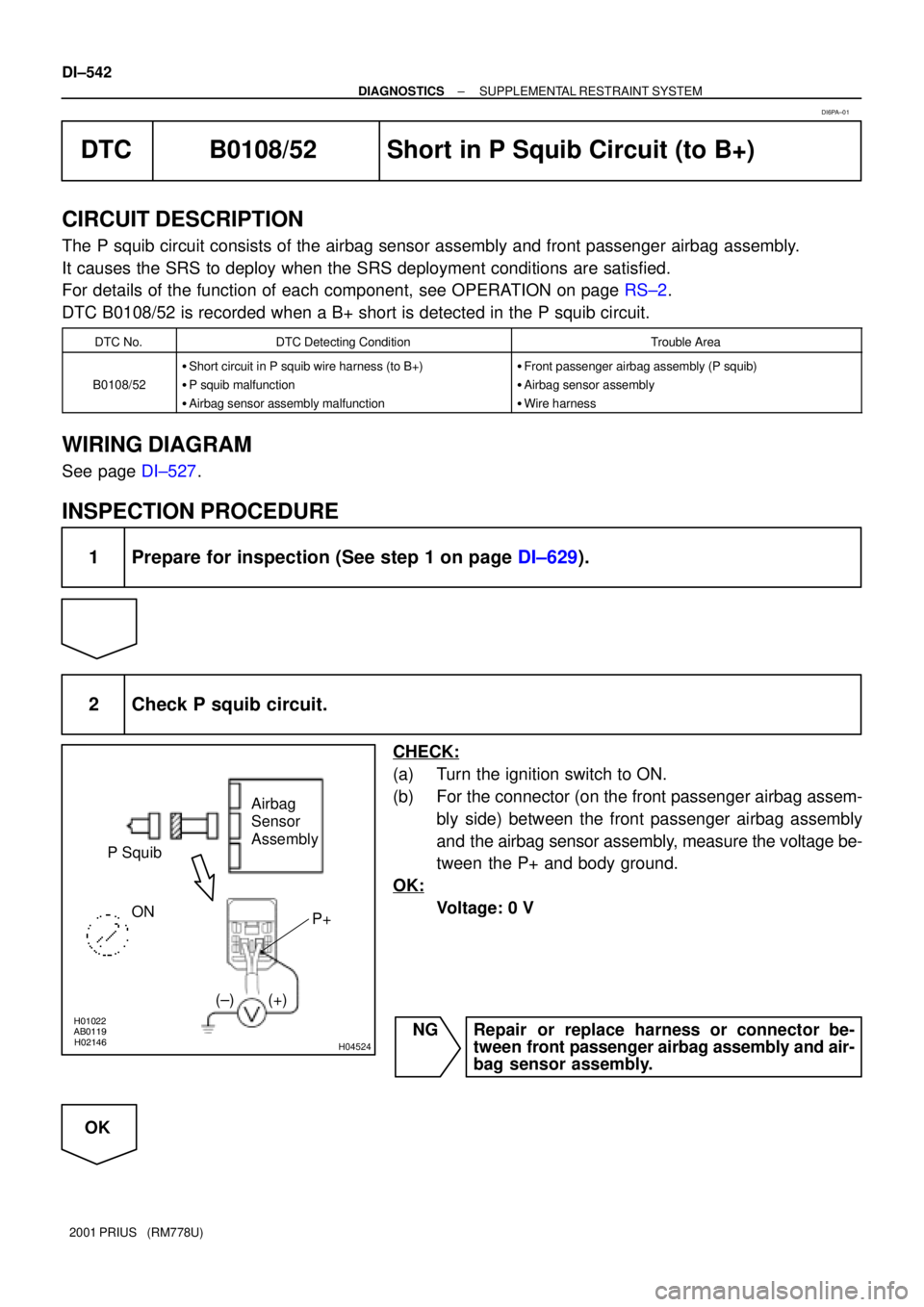

DTC B0106/54 Open in P Squib Circuit
CIRCUIT DESCRIPTION
The P squib circuit consists of the airbag sensor assembly and front passenger airbag assembly.
It causes the SRS to deploy when the SRS deployment conditions are satisfied.
For details of the function of each component, see OPERATION on page RS±2.
DTC B0106/54 is recorded when an open is detected in the P squib circuit.
DTC No.DTC Detecting ConditionTrouble Area
B0106/54

Open circuit in P+ wire harness or P± wire harness of
squib

P squib malfunction

Airbag sensor assembly malfunction
Front passenger airbag assembly (P squib)

Airbag sensor assembly

Wire harness
WIRING DIAGRAM
See page DI±527.
INSPECTION PROCEDURE
1 Prepare for inspection (See step 1 on page DI±629).

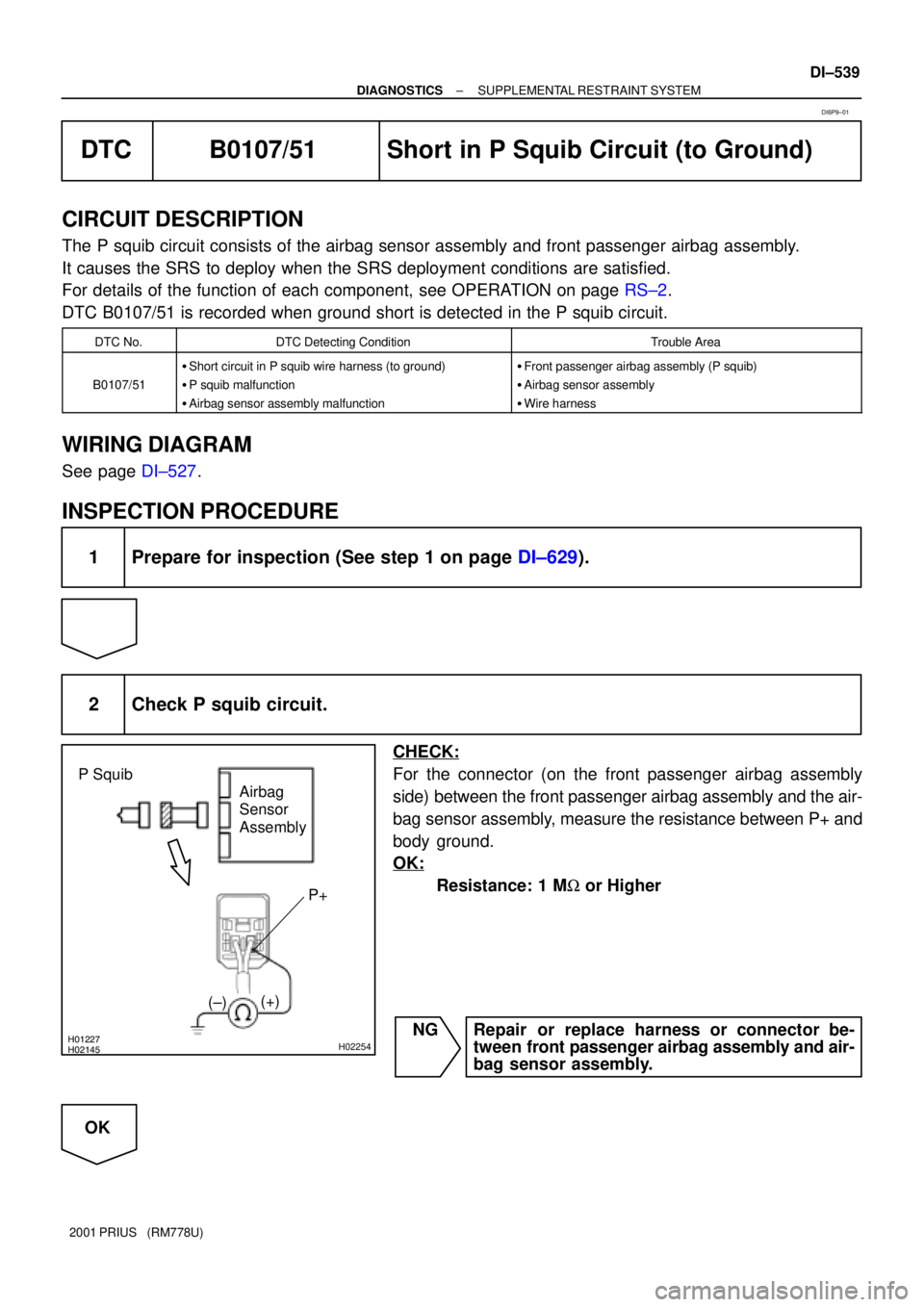

2 Check P squib circuit.
CHECK:
For the connector (on the front passenger airbag assembly
side) between the front passenger airbag assembly and the air-
bag sensor assembly, measure the resistance between P+ and
P±.
OK:
Resistance: Below 1 W
NG Repair or replace harness or connector be-
tween front passenger airbag assembly and air-
bag sensor assembly.
OK
DI6P8±01

H01023AB0119H01078 H02144H10600H10613
P Squib
Airbag
Sensor
Assembly
P +
P±
Code B0106/54 DLC3ON " u
Tc CG
± DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
DI±537
2001 PRIUS (RM778U)
3 Check airbag sensor assembly.
PREPARATION:
(a) Connect the connector to the airbag sensor assembly.
(b) Using a service wire, connect P+ and P± of the connector
(on the front passenger airbag assembly side) between
the front passenger airbag assembly and the airbag sen-
sor assembly.
(c) Connect negative (±) terminal cable to the battery, and
wait at least for 2 seconds.
CHECK:
(a) Turn the ignition switch to ON and wait at least for 20 se-
conds.
(b) Clear the DTC stored in memory (See page DI±497).
(c) Turn the ignition switch to LOCK, and wait at least for 20
seconds.
(d) Turn the ignition switch to ON, and wait at least for 20 se-
conds.
(e) Check the DTC (See page DI±497).
OK:
DTC B0106/54 is not output.
HINT:
Codes other than code B0106/54 may be output at this time, but
they are not relevant to this check.
NG Replace airbag sensor assembly.
OK

H01024AB0119H01078 H10600H10614
"u
ON
DTC B0106/54
DLC3Airbag
Sensor
Assembly P Squib
Tc CG
DI±538
± DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
2001 PRIUS (RM778U)
4 Check P squib.
PREPARATION:
(a) Turn the ignition switch to LOCK.
(b) Disconnect negative (±) terminal cable from the battery,
and wait at least for 90 seconds.
(c) Connect the front passenger airbag assembly connector.
(d) Connect negative (±) terminal cable to the battery, and
wait at least for 2 seconds.
CHECK:
(a) Turn the ignition switch to ON, and wait at least for 20 se-
conds.
(b) Clear the DTC stored in memory (See page DI±497).
(c) Turn the ignition switch to LOCK, and wait at least for 20
seconds.
(d) Turn the ignition switch to ON, and wait at least for 20 se-
conds.
(e) Check the DTC (See page DI±497).
OK:
DTC B0106/54 is not output.
HINT:
Codes other than code B0106/54 may be output at this time, but
they are not relevant to this check.
NG Replace front passenger airbag assembly.
OK
From the results of the above inspection, the malfunctioning part can now be considered normal.
To make sure of this, use the simulation method to check.
