Page 809 of 1943

DI±214
± DIAGNOSTICSHYBRID VEHICLE CONTROL SYSTEM
2001 PRIUS (RM778U)
INSPECTION PROCEDURE
1 Check for open, short and +B short in wire harness between HV ECU and accel-
erator pedal position sensor (See page IN±41).
Terminals for checking open and short:
Accelerator pedal position sensor
TerminalsHV ECU Terminals
VCP1VCP1
VPA1VPA1
EP1EP1
VCP2VCP2
VPA2VPA2
EP2EP2
HINT:
The acceleration pedal position sensor circuit has +B short if the voltage at the HV ECU VPA1 or VPA2 termi-
nal is more than 5V with the ignition ON.
NG Repair or replace wire harness.
OK
Check and replace accelerator pedal position sensor (See page SF±59).
DTC P1120 ± Information code 106, 109, 110, 111, 112, 113, 114
INF. code.Detecting ConditionTrouble Area
106Main sensor internal error
109Sub sensor internal error
11 0When difference between main sensor value and sub sensor
value is large
111When sub sensor value changes while main sensor value does
not
Accelerator pedal position sensor
11 2When main sensor value changes while sub sensor value does
not
Accelerator edal osition sensor
11 3When any of the information code 104 ± 112 continues to ap-
pear
11 4Accelerator pedal not smoothly returning to original position
INSPECTION PROCEDURE
If the information code 106 or 109 ± 114 is output,check and replace the accelerator pedal position sensor
(See page SF±59).
Page 810 of 1943
A14147
H14Hybrid Vehicle
Control ECU
H14
BatteryMAIN
B±G1 1
F1811 1
111
F13 2
3
2
2 Engine Room J/BSTP
ST1± G±W
J15 E
2 J14D J/C
G±W S3
Stop Light
SW
R±B
R±B4B±Y B±W B±W B
B
J24 J25 ID1J/C
B±W
I15
Ignition SW
W±RW±R
67
9
IG2AM2
Instrument Panel J/B
STOP 2C
2K2H 2G9
1J 1BAM2
B
W
F12 F11
DC/DC
Fusible Link Block No. 1 Fusible Link
Block No. 16
± DIAGNOSTICSHYBRID VEHICLE CONTROL SYSTEM
DI±215
2001 PRIUS (RM778U)
DTC P1520 Stop Light Switch (Cruise Control System)
Malfunction
CIRCUIT DESCRIPTION
The HV ECU detects the malfunction of the cruise control system and inhibits the operation of the cruise
control.
It detects faulty output of the STP and ST1± signals sent from the stop light switch or an error signal from
the brake ECU.
DTC P1520 ± Information code 115
INF. code.Detecting ConditionTrouble Area
11 5Open or short in stop light switch circuit
Stop light switch
Wire harness
Brake ECU

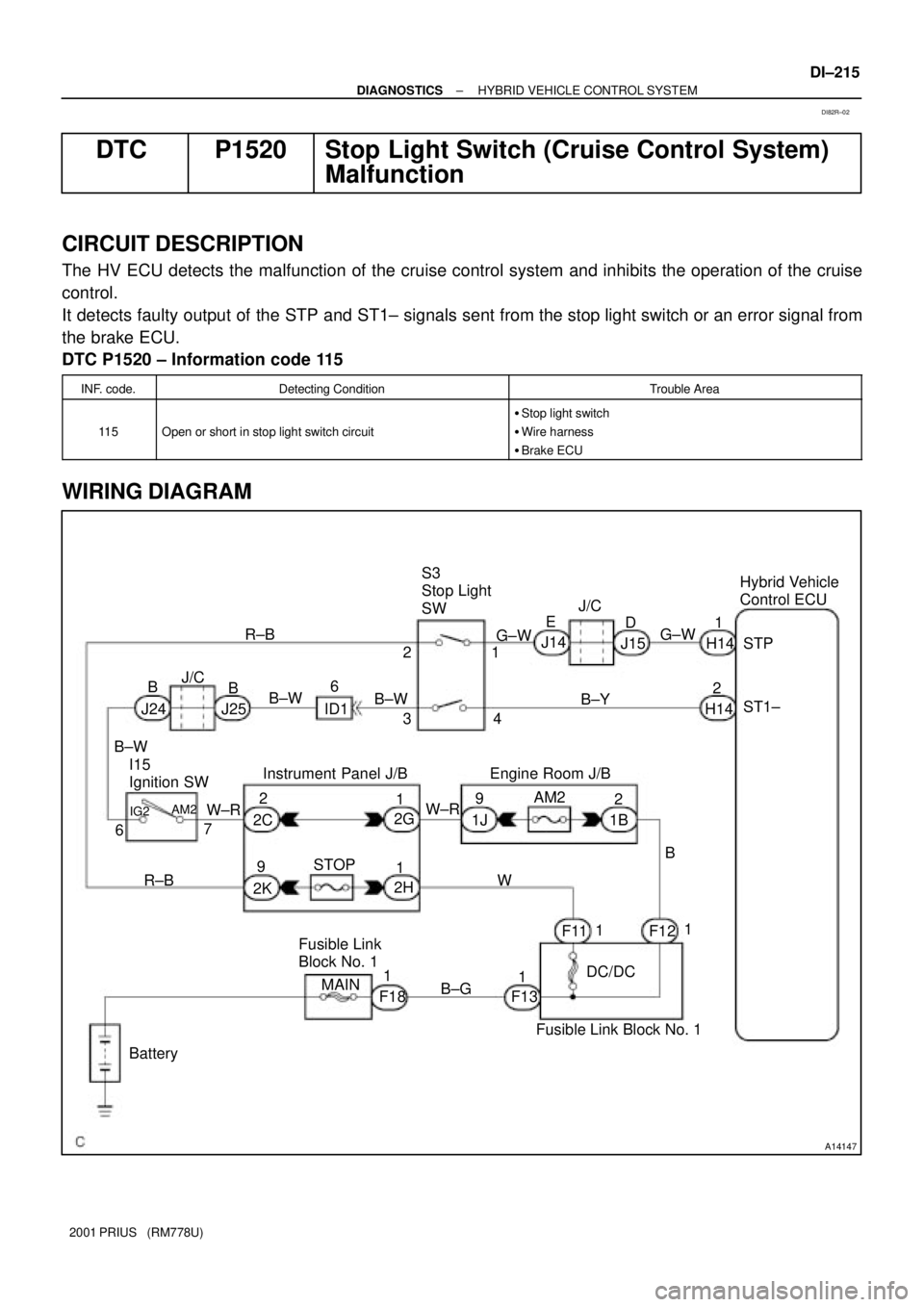

WIRING DIAGRAM
DI82R±02
Page 811 of 1943
DI±216
± DIAGNOSTICSHYBRID VEHICLE CONTROL SYSTEM
2001 PRIUS (RM778U)
INSPECTION PROCEDURE
1 Is DTC of brake ECU being output?
YES Check DTC of brake ECU (See page DI±358).
NO
2 Check voltage between terminal 2, 3 of stop light switch and body ground.
NG Repair or replace wire harness or connector.
OK
3 Check for open and short in wire harness between stop light switch and termi-
nals STP, ST1± of HV ECU (See page IN±41).
NG Repair or replace wire harness.
OK
Check and replace stop light switch (See page BE±32).
Page 812 of 1943

± DIAGNOSTICSHYBRID VEHICLE CONTROL SYSTEM
DI±217
2001 PRIUS (RM778U)
DTC P1566 Cruise Control System Malfunction
CIRCUIT DESCRIPTION
The HV ECU and the brake ECU monitor the same STP signal. If any difference is identified between both
received signals, the HV ECU outputs an error.
DTC P1566 ± Information code 116
INF. code.Detecting ConditionTrouble Area
11 6When STP signal of HV ECU is inconsistent with that of brake
ECU, with cruise control indicator ON.Brake ECU
Wire harness
Stop light switch
WIRING DIAGRAM
Refer to DI±215.
INSPECTION PROCEDURE
1 Is DTC of brake ECU being output (See page DI±351)?
YES Check DTC of brake ECU (See page DI±351).
NO
2 Check for +B short in wire harness between stop light switch and terminals STP,
ST1±of HV ECU (See page IN±41).
HINT:
Under the normal condition, the voltage of the HV ECU STP terminal is 0V when the brake pedal is released
with the ignition OFF. If there is any output of voltage at this time, the stop light switch circuit has +B short.
NG Repair or replace wire harness.
OK
DI82S±02
Page 813 of 1943
DI±218
± DIAGNOSTICSHYBRID VEHICLE CONTROL SYSTEM
2001 PRIUS (RM778U)
3 Check for open and short in wire harness between stop light switch and brake
ECU.
NG Repair or replace wire harness.
OK
Check and replace stop light switch (See page BE±32).
Page 814 of 1943
A14146
BatteryB±G 1 1
F18 F13
Fusible Link
Block No. 2Hybrid Vehicle
Control ECU
H14
Engine Room J/B B
B J/C
1BFusible Link
Block No. 1
F12 B
1
MAIN 1F11
1 HV G±YJ2
J3G±Y
G±Y
IA143
BATT
± DIAGNOSTICSHYBRID VEHICLE CONTROL SYSTEM
DI±219
2001 PRIUS (RM778U)
DTC P1600 BATT Malfunction
CIRCUIT DESCRIPTION
Since the ECU back±up power source is used for DTC and freeze frame data memory, the back±up power
source (BATT) continues to be supplied to the HV ECU even though the ignition switch is turned OFF.
DTC P1600 ± Information code 117
INF. code.Detecting ConditionTrouble Area
11 7HV ECU back±up power source circuit malfunctionHV Fuse
Wire harness

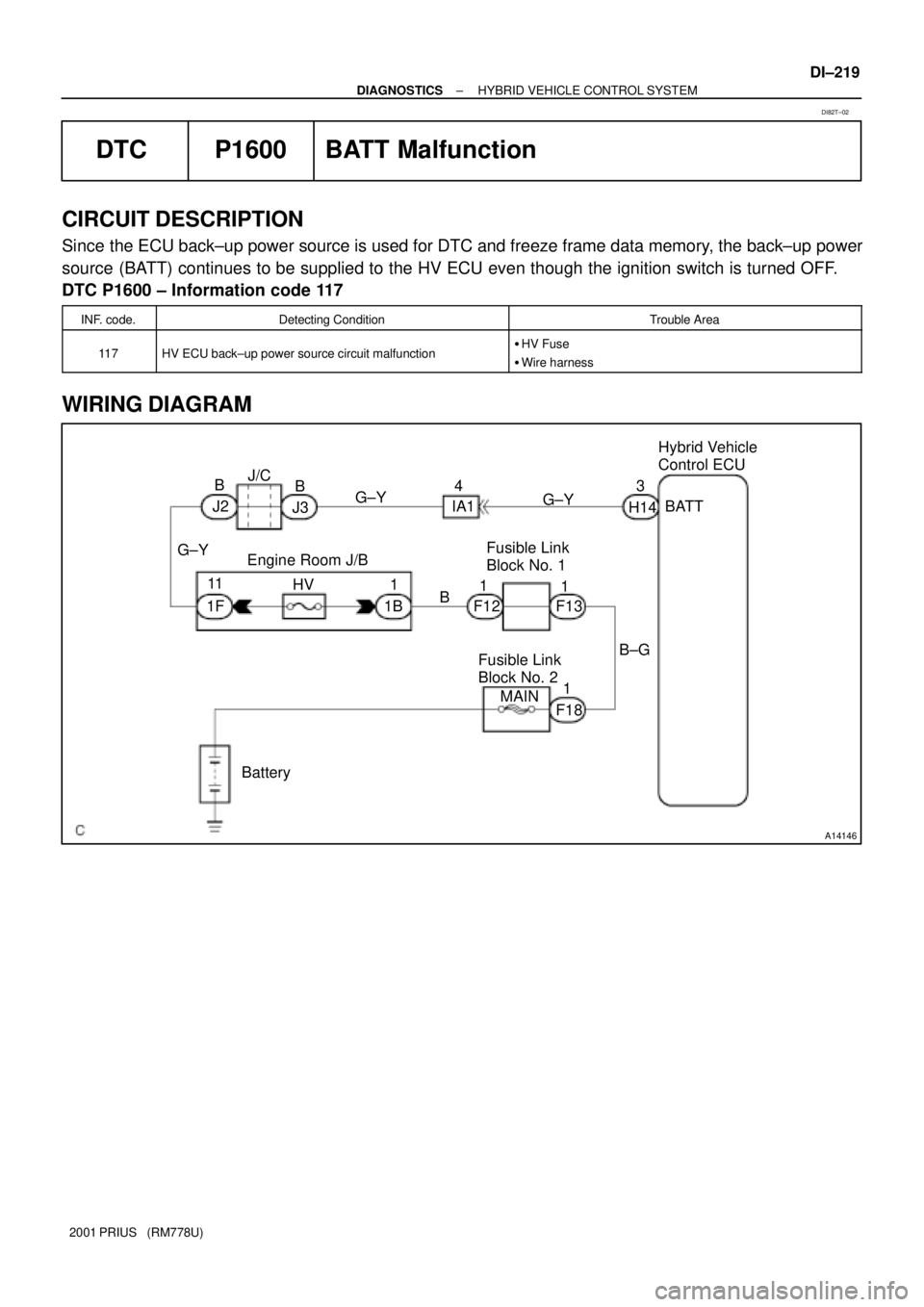

WIRING DIAGRAM
DI82T±02
Page 815 of 1943
DI±220
± DIAGNOSTICSHYBRID VEHICLE CONTROL SYSTEM
2001 PRIUS (RM778U)
INSPECTION PROCEDURE
1 Check continuity of HV fuse of engine room J/B.
OK:
Continuity
NG Check for short in all harness and parts con-
nected to HV fuse.
OK
Repair or replace wire harness.
Page 816 of 1943

A14130
H13Hybrid Vehicle
Control ECU P1
Park/neutral Position SW
P
65
3 42
8VSFT
SFT
FSFT L±R
L±W
L±BN
D
B
R 14
11 1223 15
22 H13
H13
H13
H13
H13
H13
H1313
21 97LG±R
R±B
W
B
R
± DIAGNOSTICSHYBRID VEHICLE CONTROL SYSTEM
DI±221
2001 PRIUS (RM778U)
DTC P1780 Park/neutral Position Switch System Mal-
function
CIRCUIT DESCRIPTION
The park/neutral position switch sends both main sensor signal (switch signal) and sub sensor signal (ana-
logue value) to the HV ECU. The HV ECU uses those signals to detect the shift lever position (P, R, N, D
or B) and to control the forward and backward movement of the vehicle.
HINT:
When using an OBD scan tool other than TOYOTA hand±held tester, check all the steps.
When using TOYOTA hand±held tester, confirm the information code and check it.
DTC P1780 ± Information code 118, 119, 120, 121
INF. code.Detecting ConditionTrouble Area
11 8When more than 2 main signals are ON
11 9When main signal is not turned ON even though sub signal has
been input
Park/neutral position switch
120Open or short in sub sensor circuit
Park/neutral osition switch
Wire harness
121When shift position detected by main signal is different from
that detected by sub signal

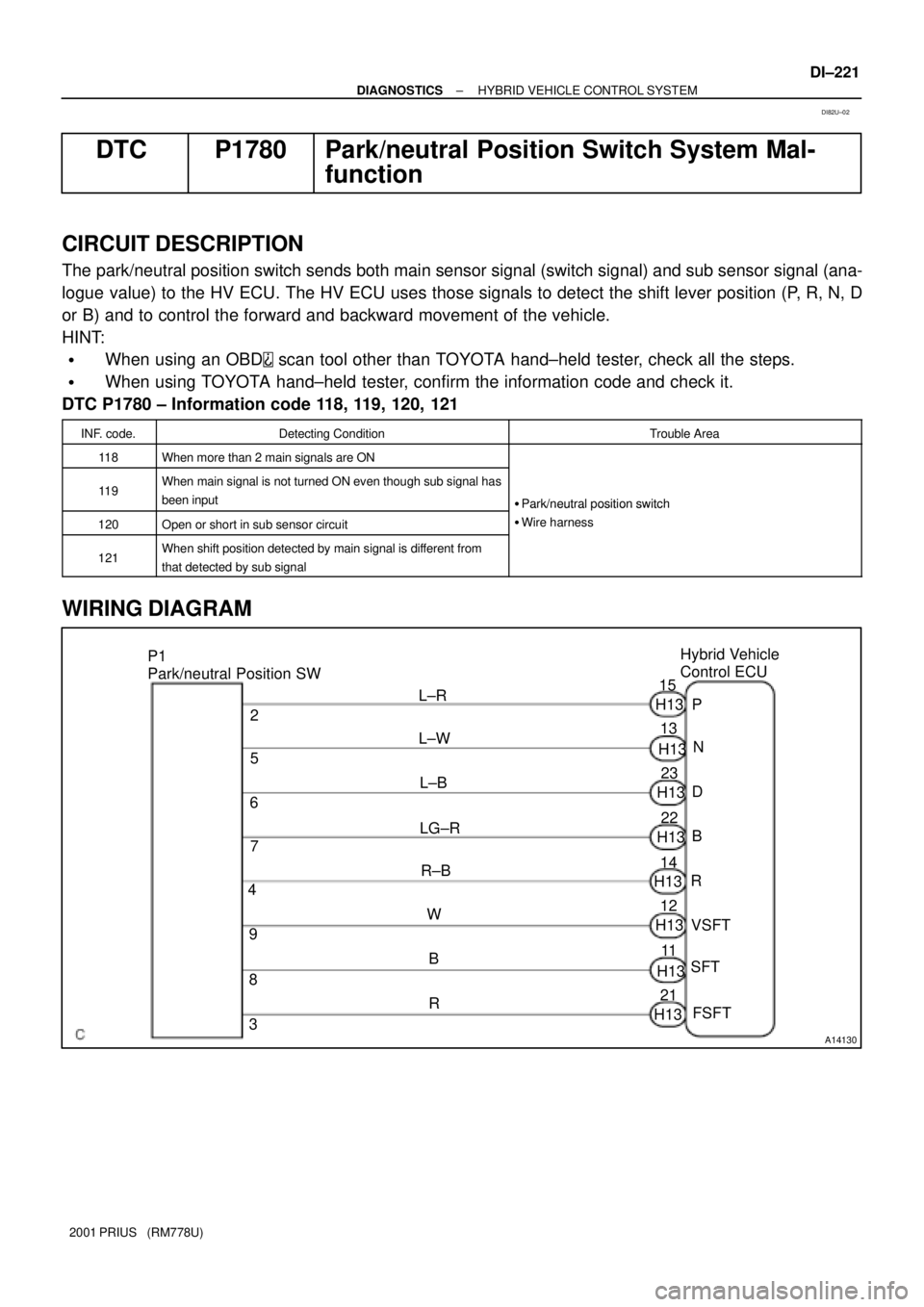

WIRING DIAGRAM
DI82U±02
