2001 TOYOTA PRIUS Service Repair Manual

CAUTION:
HIGH VOLTAGE. DO
NOT TOUCH DURING
OPERATION.
CAUTION:
HIGH VOLTAGE. DO
NOT TOUCH DURING
OPERATION.
Person in charge:
Person in charge:
Copy this page and put it after folding on the roof of the vehicle in service.B12120
IN±12
± INTRODUCTIONFOR ALL OF VEHICLES
12 Author: Date:
2001 PRIUS (RM778U)

B04748
B04749
1. +Terminal
2. +Terminal3. ±Terminal
4. ±Terminal
B04750
± INTRODUCTIONFOR ALL OF VEHICLES
IN±13
13 Author: Date:
2001 PRIUS (RM778U)
2. PRECAUTIONS TO BE OBSERVED WHEN INSPECT-
ING OR SERVICING ENGINE COMPARTMENT

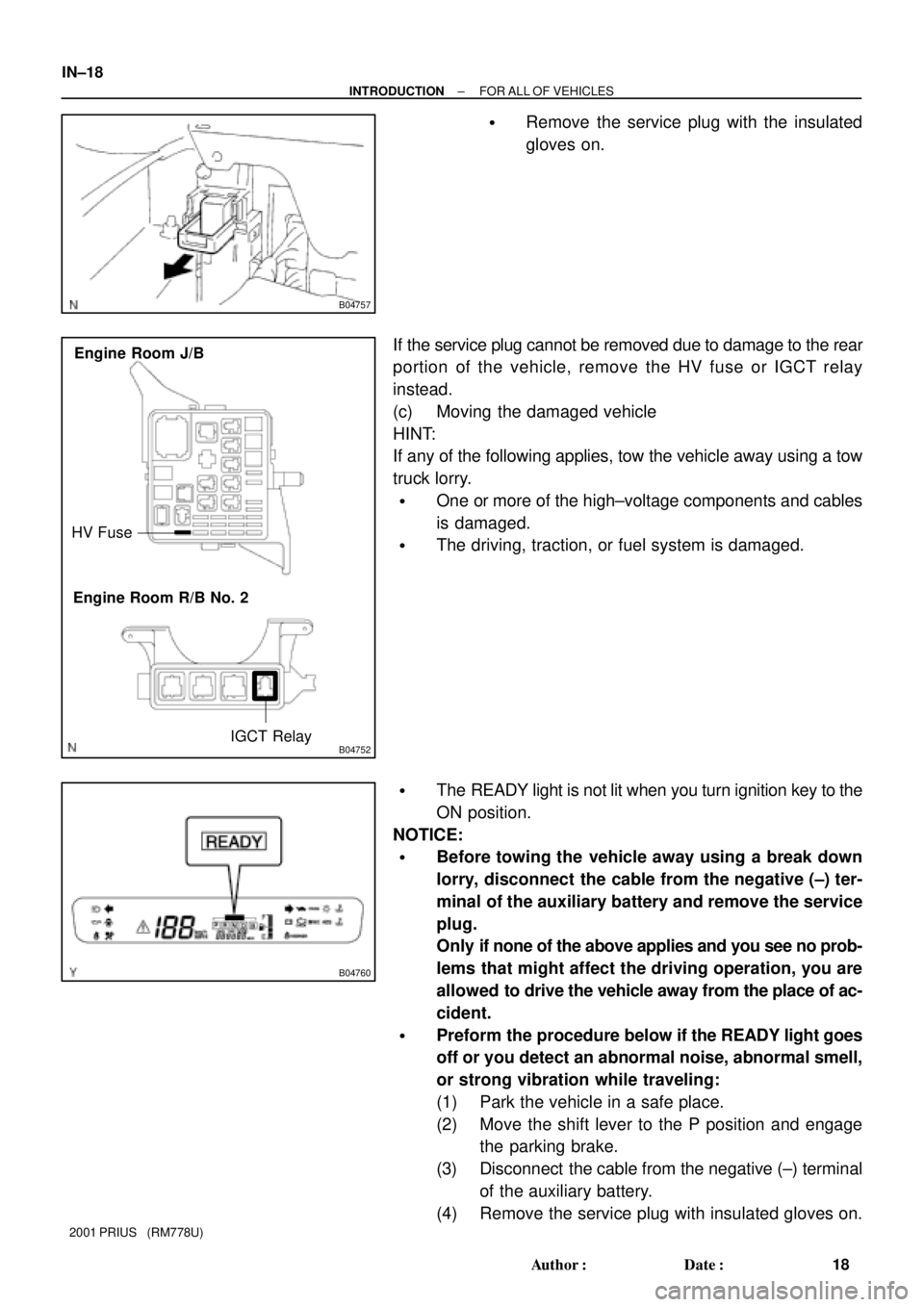

The PRIUS, automatically turns the engine ON and OFF when
the ignition switch is set to the ON position provided that the
READY light on the instrument panel is it.
Before inspecting or servicing the engine compartment, there-
fore, remove the ignition switch key.
3. ACTIONS TO BE TAKEN WHEN BATTERIES ARE DE-
PLETED
(a) Actions to be taken when the auxiliary battery is depleted
HINT:
The following phenomena indicate that the auxiliary battery is
depleted:

No display appears on the instrument panel when you
turn the ignition switch to the ON position.

The hybrid system does not start.

The headlights are dark.

The sound from the horn is weak.
NOTICE:
Never use a quick charger.
(1) Move the shift lever to the P position, and engage
the parking brake.
(2) Remove the ignition key plate from the ignition
switch.
(3) Using a booster cable, connect the 12 V battery of
the rescue vehicle and auxiliary battery of the
stalled vehicle, as shown in the illustration.
(4) Start the engine of the rescue vehicle and run the
engine at a speed slightly higher than the idling
speed for 5 minutes to charge the auxiliary battery
of the stalled vehicle.
(5) Turn the ignition switch of the stalled vehicle to the
START position to start the hybrid system.
If the hybrid system fails to start and the master and HV battery
warning lights come on, the HV battery may have been dis-
charged.
(6) Disconnect the booster cable in the reverse way of
the connection procedure.
NOTICE:
If the auxiliary battery needs to be replaced, replace it only
with a 12 V battery specially designed for the use of the
PRIUS.

B04762
IN±14
± INTRODUCTIONFOR ALL OF VEHICLES
14 Author: Date:
2001 PRIUS (RM778U)
(b) Actions to be taken when HV battery is depleted
NOTICE:
Leaving a vehicle alone for 2 ± 3 months may cause electric
discharge from HV battery.
When this happens, replace the HV battery.
4. INSPECTION MODE
HINT:

The PRIUS automatically stops the engine while the ve-
hicle is stopped with the engine warmed up and battery
well charged if the A/C compressor operation is not re-
quired. Therefore, even if the vehicle stops for any reason
such as a check of ignition timing, the inspection mode
should be activated when continuous operation of the en-
gine is required.

The PRIUS has a skid control as traction control function.
When the wheel speed of the front wheels exceeds that
of the rear wheels, this function restrains the wheel speed
of the front wheels. It is necessary to activate the inspec-
tion mode and reset the skid control when turning only the
front wheels using a speedometer tester.
Activation inspection mode (Without using a hand±held tester)
(1) Perform the following (2) through (6) within 60 sec.
(2) Turn the ignition switch ON from OFF.
(3) With the shift lever in P position, fully depress the
accelerator pedal 2 times.
(4) With the shift lever in N position, fully depress the
accelerator pedal 2 times.
(5) With the shift lever in P position, fully depress the
accelerator pedal 2 times.
(6) Activate the inspecting mode and check that the hy-
brid system error warning light on the multi±center
display flashes.
(7) Turning the ignition switch to START starts the en-
gine's continuous operation.
NOTICE:

The idling speed in the inspection mode is approx.
1,000 rpm. The number of revolutions will increase up
to 1,500 rpm if the accelerator pedal is depressed to
a degree of less than 60%, and up to 2,250 rpm in a
case of 60% or more.

If a diagnosis code is recorded when entering the in-
spection mode, the master warning light and the error
warning light on the multi±center display is lit.

± INTRODUCTIONFOR ALL OF VEHICLES
IN±15
15 Author: Date:
2001 PRIUS (RM778U)

When the master warning light is lit during operation
in the inspection mode, deactivate the inspection
mode and inspect the diagnosed area.
HINT:
When continuous operation of the engine is required for such
as an exhaust leakage inspection, it is advisable as an easier
way to turn ON the FULL switch of the air conditioner.
5. SPECIAL NOTES FOR VEHICLE INSPECTION
(a) Vehicle conditions
(1) Before activating the service mode, turn the air con-
ditioner off, start the engine with the shift lever at P
position, and check that the engine stops within
several seconds after starting. (Engine warm up
check)
(2) Activate the service mode and inspect the vehicle.
The shift position for each test is as follows:
Test itemShift lever position
1. Vehicle straight traveling test (side
slip inspection)D
2. Braking force testN
3. Speedometer testD
4. Exhaust gas test (idling)P
5. Headlight testP
(3) Reset the service mode immediately after comple-
tion of inspection.
NOTICE:
Traveling on a road without resetting the service mode may
damage the transaxle.
(b) Special notes for speedometer test
NOTICE:
Rapid starting or quick acceleration/deceleration based on
the speedometer tester without load setting may damage
the transaxle.
(1) Depress the accelerator pedal slowly and gradually
accelerate at the time of measurement.
(2) After the measurement, use the brake to decelerate
gradually and stop.
(c) Special note for using the chassis dynamometer
Always set an appropriate load before starting the test.
NOTICE:
Rapid starting or quick acceleration/deceleration with in-
sufficient load may damage the transaxle.
