± DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
DI±509
2001 PRIUS (RM778U)DTC No.
(See Page)
Detection ItemTrouble AreaSRS
Warning Light
B0117/45
(DI±560)
Short in side squib (LH) circuit
(to ground)
Side airbag assembly LH (squib)

Airbag sensor assembly

Wire harness
Blink
B0118/46
(DI±563)
Short in side squib (LH) circuit
(to B+)
Side airbag assembly LH (squib)

Airbag sensor assembly

Wire harness
Blink
B0130/63
(DI±566)
Short in P/T squib (RH) circuit
Seat belt pretensioner RH (squib)

Airbag sensor assembly

Wire harness
Blink
B0131/64
(DI±570)
Open in P/T squib (RH) circuit
Seat belt pretensioner RH (squib)

Airbag sensor assembly

Wire harness
Blink
B0132/61
(DI±573)
Short in P/T squib (RH) circuit
(to ground)
Seat belt pretensioner RH (squib)

Airbag sensor assembly

Wire harness
Blink
B0133/62
(DI±576)
Short in P/T squib (RH) circuit
(to B+)
Seat belt pretensioner RH (squib)

Airbag sensor assembly

Wire harness
Blink
B0135/73
(DI±579)
Short in P/T squib (LH) circuit
Seat belt pretensioner LH (squib)

Airbag sensor assembly

Wire harness
Blink
B0136/74
(DI±583)
Open in P/T squib (LH) circuit
Seat belt pretensioner LH (squib)

Airbag sensor assembly

Wire harness
Blink
B0137/71
(DI±586)
Short in P/T squib (LH) circuit
(to ground)
Seat belt pretensioner LH (squib)

Airbag sensor assembly

Wire harness
Blink
B0138/72
(DI±589)
Short in P/T squib (LH) circuit
(to B+)
Seat belt pretensioner LH (squib)

Airbag sensor assembly

Wire harness
Blink
B1100/31
(DI±592)
Airbag sensor assembly malfunction
Airbag sensor assemblyON
B1135/24
(DI±594)
Harf connection in airbag sensor
assembly connector
Airbag sensor assembly

Wire harnessBlink
B1140/32
(DI±597)
Side airbag sensor assembly (RH)
malfunction
Side airbag sensor assembly (RH)

Airbag sensor assembly

Wire harness
Blink
B1141/33
(DI±605)
Side airbag sensor assembly (LH)
malfunction
Side airbag sensor assembly (LH)

Airbag sensor assembly

Wire harness
Blink
B1156/B1157/
15
(DI±613)
Front airbag sensor (RH) malfunction
Front airbag sensor (RH)

Airbag sensor assembly

Instrument panel wire harness

Engine room No. 2 wire harness
ON
B1158/B1159/
16
(DI±621)
Front airbag sensor (LH) malfunction
Front airbag sensor (LH)

Airbag sensor assembly

Instrument panel wire harness

Engine room main wire harness
ON
Nl
System normal±OFFNormal
(DI±629)
Voltage source drop
Battery

Airbag sensor assemblyON

DI±510
± DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
2001 PRIUS (RM778U)
HINT:

When the SRS warning light remains lit up and the DTC is the normal code, this means a voltage source
drops.
This malfunction is not stored in memory by the airbag sensor assembly and if the power source volt-
age returns to normal, the SRS warning light will automatically go out.

When 2 or more codes are indicated, the codes will be displayed in numeral order starting from the
lowest numbered code.

If a code not listed on the chart is displayed, the airbag sensor assembly is faulty.

DI6P1±07

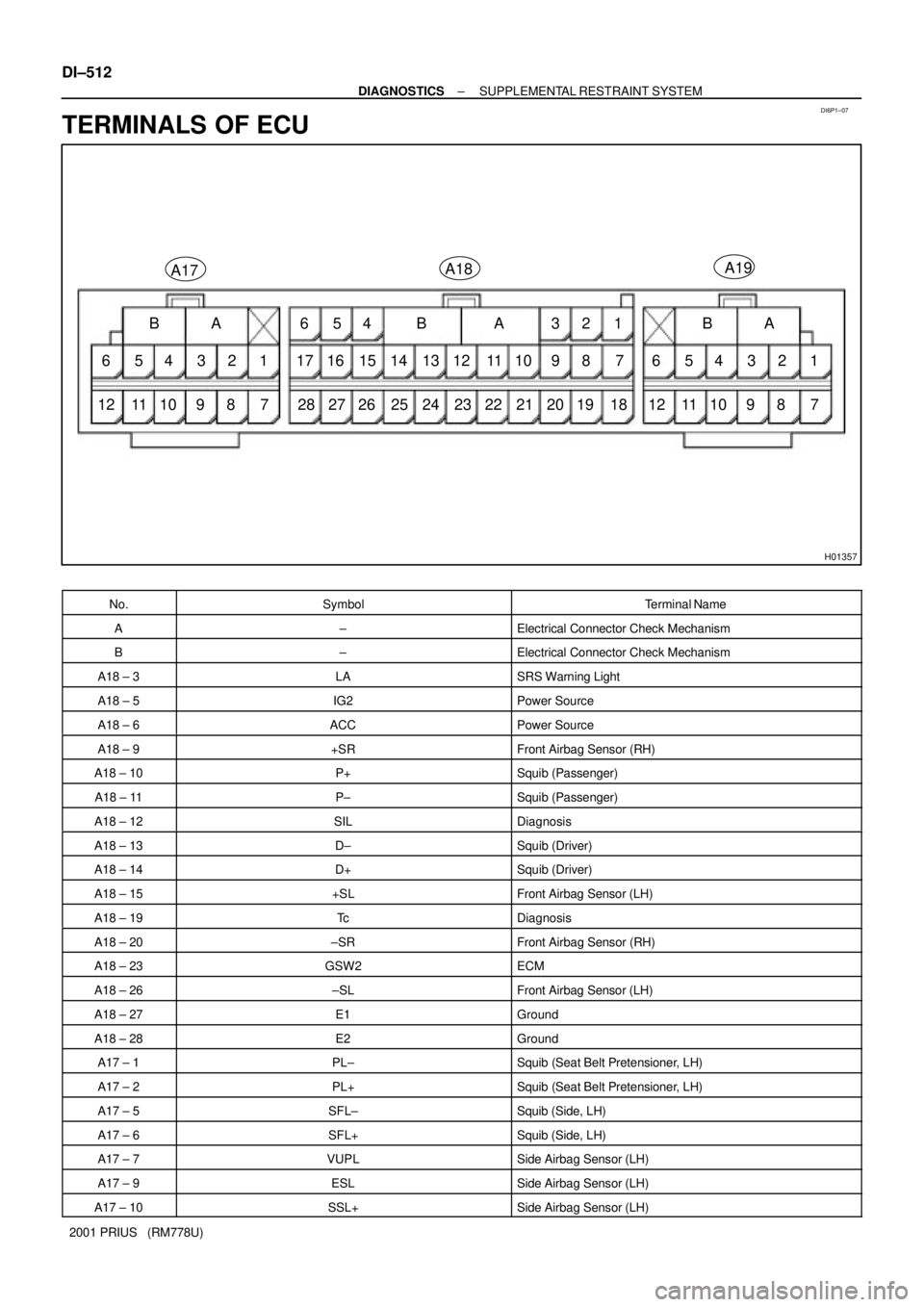

H01357
A18
A17A19
287 8 9 10 16 17
18A B12 3 4 5 6
11 12 15 14 13
AABB
19 20 21 22 23 24 25 26 27 1 2 3 4 5 6
7 8 9 10 11 121 2 3 4 5 6
7 8 9 10 11 12 DI±512
± DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
2001 PRIUS (RM778U)
TERMINALS OF ECU
No.SymbolTerminal Name
A±Electrical Connector Check Mechanism
B±Electrical Connector Check Mechanism
A18 ± 3LASRS Warning Light
A18 ± 5IG2Power Source
A18 ± 6ACCPower Source
A18 ± 9+SRFront Airbag Sensor (RH)
A18 ± 10P+Squib (Passenger)
A18 ± 11P±Squib (Passenger)
A18 ± 12SILDiagnosis

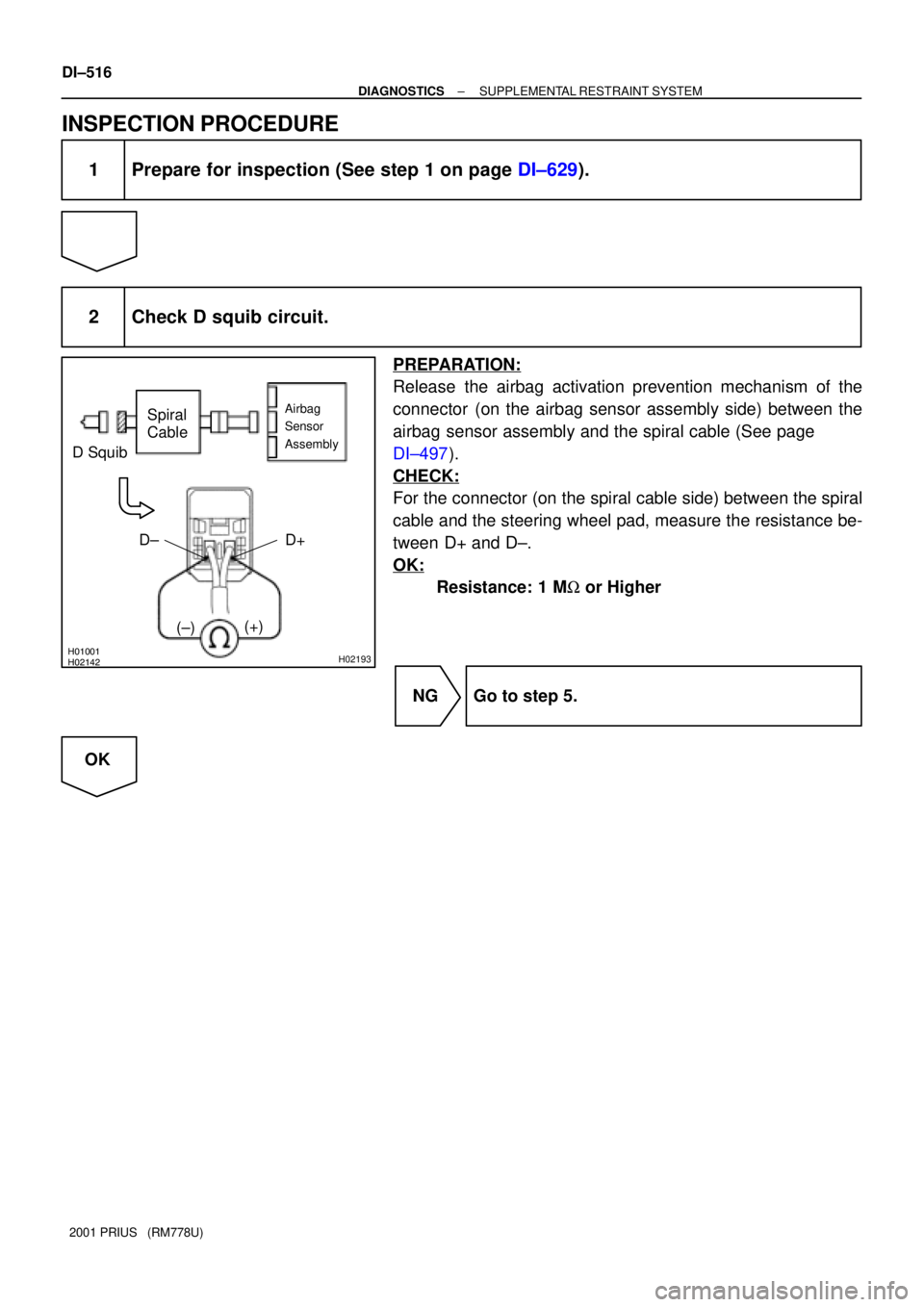

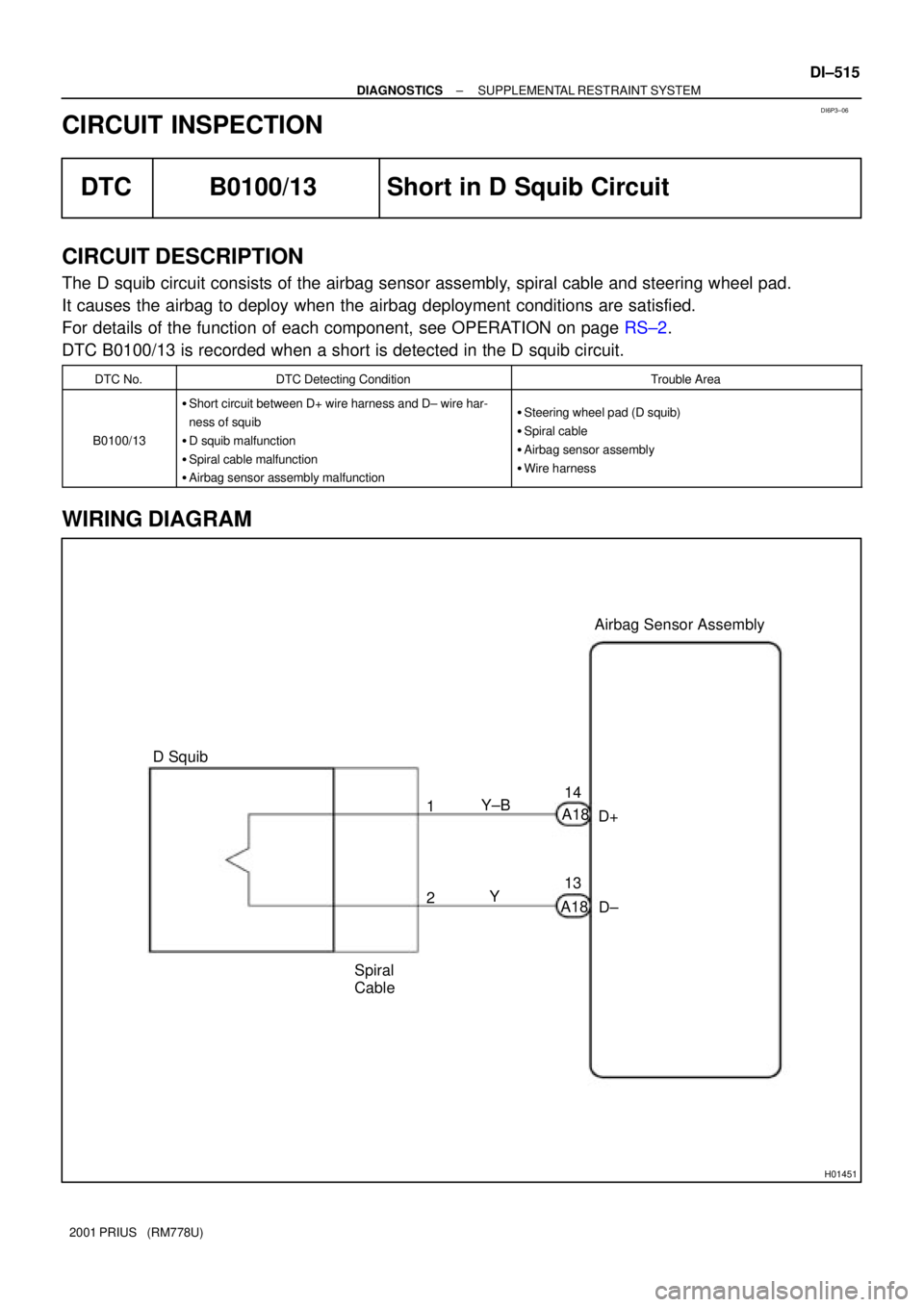

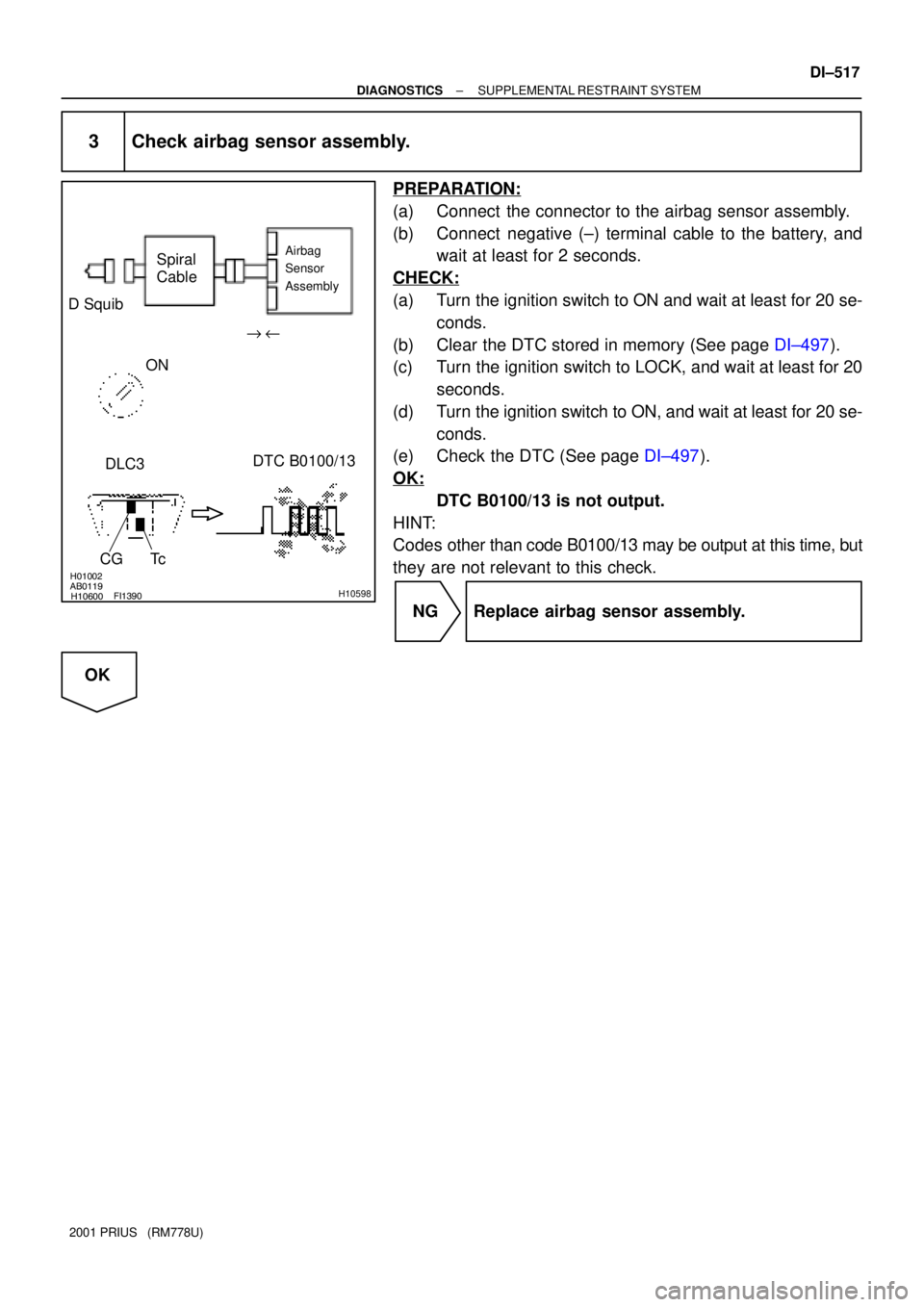

A18 ± 13D±Squib (Driver)
A18 ± 14D+Squib (Driver)
A18 ± 15+SLFront Airbag Sensor (LH)
A18 ± 19TcDiagnosis
A18 ± 20±SRFront Airbag Sensor (RH)
A18 ± 23GSW2ECM
A18 ± 26±SLFront Airbag Sensor (LH)
A18 ± 27E1Ground
A18 ± 28E2Ground
A17 ± 1PL±Squib (Seat Belt Pretensioner, LH)
A17 ± 2PL+Squib (Seat Belt Pretensioner, LH)
A17 ± 5SFL±Squib (Side, LH)
A17 ± 6SFL+Squib (Side, LH)
A17 ± 7VUPLSide Airbag Sensor (LH)
A17 ± 9ESLSide Airbag Sensor (LH)
A17 ± 10SSL+Side Airbag Sensor (LH)

± DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
DI±513
2001 PRIUS (RM778U)No.
SymbolTerminal Name
A17 ± 11LBE+Body ECU
A17 ± 12SSL±Side Airbag Sensor (LH)
A19 ± 1SFR+Squib (Side, RH)
A19 ± 2SFR±Squib (Side, RH)
A19 ± 5PR+Squib (Pretensioner, RH)
A19 ± 6PR±Squib (Pretensioner, RH)
A19 ± 7SSR±Side Airbag Sensor (RH)
A19 ± 9SSR+Side Airbag Sensor (RH)
A19 ± 10ESRSide Airbag Sensor (RH)
A19 ± 12VUPRSide Airbag Sensor (RH)
