Page 457 of 1943

FI1066
IN0CO±17
Z11554
Seal Lock Adhesive
IN±4
± INTRODUCTIONREPAIR INSTRUCTIONS
4 Author: Date:
2001 PRIUS (RM778U)
REPAIR INSTRUCTIONS
GENERAL INFORMATION
BASIC REPAIR HINT
(a) Use fender, seat and floor covers to keep the vehicle
clean and prevent damage.
(b) During disassembly, keep parts in the appropriate order
to facilitate reassembly.
(c) Installation and removal of battery terminal:
(1) Before performing electrical work, disconnect the
negative (±) terminal cable from the battery.
(2) If it is necessary to disconnect the battery for in-
spection or repair, first disconnect the negative (±)
terminal cable.
(3) When disconnecting the terminal cable, to prevent
damage to battery terminal, loosen the cable nut
and raise the cable straight up without twisting or
prying it.
(4) Clean the battery terminals and cable ends with a
clean shop rag. Do not scrape them with a file or oth-
er abrasive objects.
(5) Install the cable ends to the battery terminals after
loosening the nut, and tighten the nut after installa-
tion. Do not use a hammer to tap the cable ends
onto the terminals.
(6) Be sure the cover for the positive (+) terminal is
properly in place.
(d) Check hose and wiring connectors to make sure that they
are connected securely and correctly.
(e) Non±reusable parts
(1) Always replace cotter pins, gaskets, O±rings, oil
seals, etc. with new ones.
(2) Non±reusable parts are indicated in the component
illustrations by the ºº symbol.
(f) Precoated parts
Precoated parts are bolts, nuts, etc. that are coated with
a seal lock adhesive at the factory.
(1) If a precoated part is retightened, loosened or
caused to move in any way, it must be recoated with
the specified adhesive.
(2) When reusing precoated parts, clean off the old
adhesive and dry with compressed air. Then apply
the specified seal lock adhesive to the bolt, nut or
threads.
Page 458 of 1943
BE1367
Medium Current Fuse and High Current Fuse
Equal Amperage Rating
V00076
Abbreviation Part Name Symbol Illustration
FUSE
MEDIUM CURRENT FUSE
HIGH CURRENT FUSE
FUSIBLE LINK
CIRCUIT BREAKERFUSE
M±FUSE
H±FUSE
FL
CB
± INTRODUCTIONREPAIR INSTRUCTIONS
IN±5
5 Author: Date:
2001 PRIUS (RM778U)
(3) Precoated parts are indicated in the component il-
lustrations by the ºº symbol.
(g) When necessary, use a sealer on gaskets to prevent
leaks.
(h) Carefully observe all specifications for bolt tightening
torques. Always use a torque wrench.
(i) Use of special service tools (SST) and special service ma-
terials (SSM) may be required, depending on the nature
of the repair. Be sure to use SST and SSM where speci-
fied and follow the proper work procedure. A list of SST
and SSM can be found in Preparation section in this
manual.
(j) When replacing fuses, be sure the new fuse has the cor-
rect amperage rating. DO NOT exceed the rating or use
one with a lower rating.
Page 459 of 1943

IN0253
WRONG CORRECT
IN0252
WRONG CORRECT IN±6
± INTRODUCTIONREPAIR INSTRUCTIONS
6 Author: Date:
2001 PRIUS (RM778U)
(k) Care must be taken when jacking up and supporting the
vehicle. Be sure to lift and support the vehicle at the prop-
er locations (See page IN±8).
Cancel the parking brake on the pedal place and
shift the transmission in N position.
When jacking up the front wheels of the vehicle at
first place stoppers behind the rear wheels.
When jacking up the rear wheels of the vehicle at
first place stoppers before the front wheels.
When either the front or rear wheels only should be
jacked up, set rigid racks and place stoppers in front
and behind the other wheels on the ground.
After the vehicle is jacked up, be sure to support it
on rigid racks . It is extremely dangerous to do any
work on a vehicle raised on a jack alone, even for
a small job that can be finished quickly.
(l) Observe the following precautions to avoid damage to the
following parts:
(1) Do not open the cover or case of the ECU unless
absolutely necessary. (If the IC terminals are
touched, the IC may be destroyed by static electric-
ity.)
(2) To disconnect vacuum hoses, pull off the end, not
the middle of the hose.
(3) To pull apart electrical connectors, pull on the con-
nector itself, not the wires.
(4) Be careful not to drop electrical components, such
as sensors or relays. If they are dropped on a hard
floor, they should be replaced and not reused.
(5) When steam cleaning an engine, protect the elec-
tronic components, air filter and emission±related
components from water.
(6) Never use an impact wrench to remove or install
temperature switches or temperature sensors.
(7) When checking continuity at the wire connector, in-
sert the tester probe carefully to prevent terminals
from bending.
(8) When using a vacuum gauge, never force the hose
onto a connector that is too large. Use a step±down
adapter for adjustment. Once the hose has been
stretched, it may leak air.
Page 460 of 1943
IN0002
Example
± INTRODUCTIONREPAIR INSTRUCTIONS
IN±7
7 Author: Date:
2001 PRIUS (RM778U)
(m) Installation and removal of vacuum hose:
(1) When disconnecting vacuum hoses, use tags to
identify how they should be reconnected to.
(2) After completing a job, double check that the vacu-
um hoses are properly connected. A label under the
hood shows the proper layout.
(n) Bleeding of hydraulic brake booster system:
When repairing the hydraulic brake booster or ABS,
bleeding the air out of the hydraulic brake booster (See
page BR±4).
(o) Unless otherwise stated, all resistance is measured at an
ambient temperature of 20°C (68°F). Because the resis-
tance may be outside specifications if measured at high
temperatures immediately after the vehicle has been run-
ning, measurement should be made when the engine has
cooled down.
Page 461 of 1943
IN0CP±15
B04744
Front

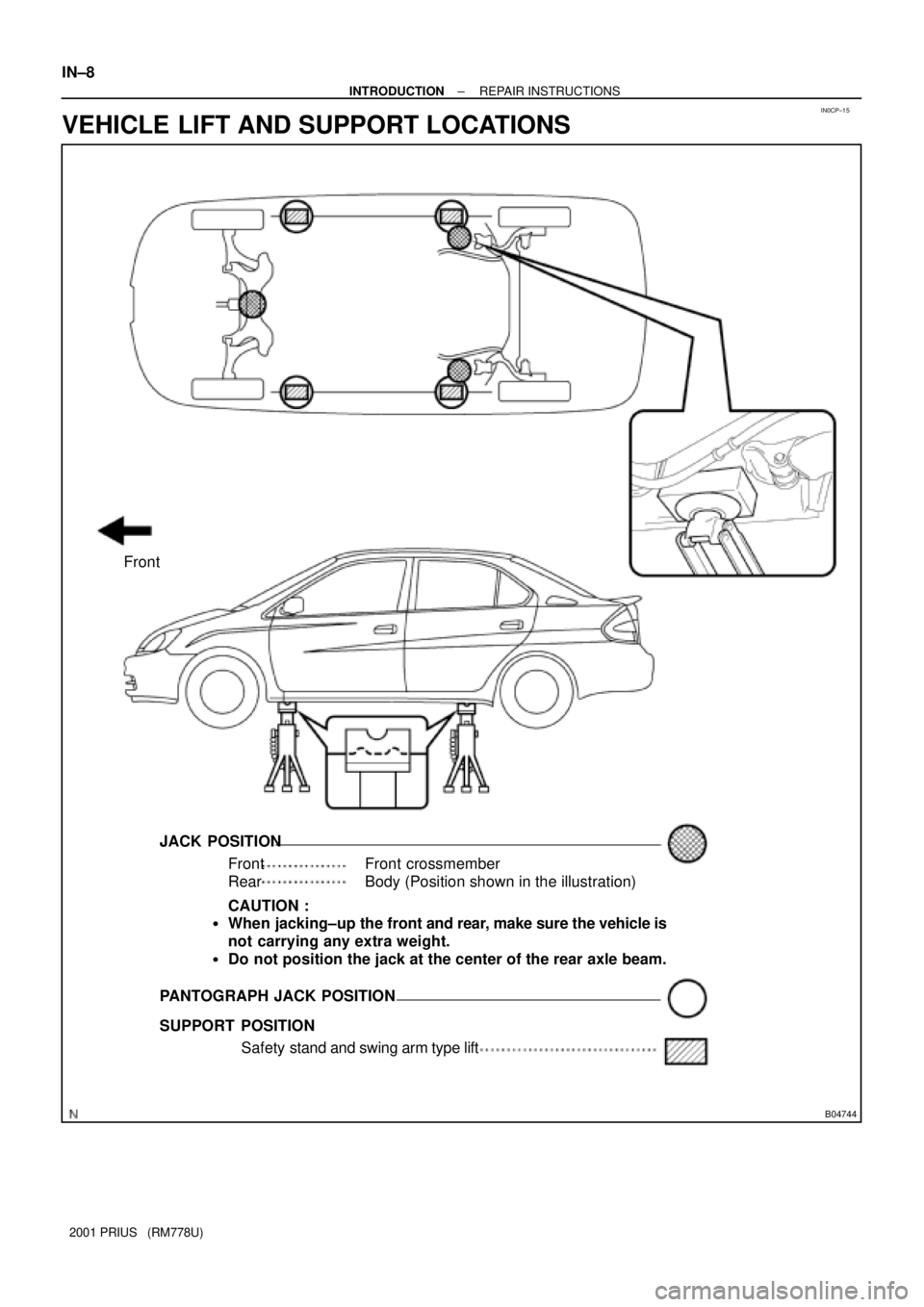

JACK POSITION
Front crossmember
Body (Position shown in the illustration)
CAUTION :
When jacking±up the front and rear, make sure the vehicle is
not carrying any extra weight.
Do not position the jack at the center of the rear axle beam.
PANTOGRAPH JACK POSITION
SUPPORT POSITION
Safety stand and swing arm type lift Front
Rear
IN±8
± INTRODUCTIONREPAIR INSTRUCTIONS
2001 PRIUS (RM778U)
VEHICLE LIFT AND SUPPORT LOCATIONS
Page 462 of 1943
B04755
PLATE TYPE LIFT
L
B
AAttachment
C
HINT :
Left and right set position
Front and rear set positionPlace the vehicle over the center of the lift.
Align the cushion gum ends of the plate
with the attachment lower ends (A, C).
Align the attachment upper end (B) with the
front jack supporting point (L).
Attachment dimensions
85 mm (3.35 in.)
100 mm (3.94 in.)70 mm (2.76 in.)
200 mm (7.87 in.)
± INTRODUCTIONREPAIR INSTRUCTIONS
IN±9
2001 PRIUS (RM778U)
Page 463 of 1943

IN0HO±01
B04757
B04746
IN±10
± INTRODUCTIONFOR ALL OF VEHICLES
10 Author: Date:
2001 PRIUS (RM778U)
FOR ALL OF VEHICLES
PRECAUTION
1. PRECAUTIONS FOR HIGH±VOLTAGE CIRCUIT IN-
SPECTION AND SERVICE
(a) Engineers to be engaged in inspection and servicing re-
lated to high±voltage systems should undergo special
training.
(b) All the high±voltage wire harness connectors are colored
orange: the HV battery and other high±voltage compo-
nents are identified by the ºHigh Voltageº caution labels.
Do not carelessly touch these wires and components.
(c) Before inspecting or servicing the high±voltage system,
be sure to take measures such as wearing insulated
gloves and removing the service plug to prevent electro-
cution. Carry the removed service plug in your pocket to
prevent other technicians from reinstalling it while you are
servicing the vehicle.
(d) After removing the service plug, wait 5 minutes before
touching any of the high±voltage connectors and termi-
nals.
HINT:
The 5 minutes are required to discharge the high±voltage con-
denser inside the inverter.
(e) Before wearing insulated gloves, make sure that they are
not cracked, reptured, torn, or damaged in any other way.
Do not wear wet insulated gloves.
(f) When servicing the vehicle, do not wear a metal object
like a mechanical pencil or scale that may drop acciden-
tally and cause a short circuit.
(g) Before touching a bare high±voltage terminal, wear insu-
lated gloves and ensure that the terminal is not charged
with electricity (approx. 0 V) using an electrical tester.
Page 464 of 1943
B04747
± INTRODUCTIONFOR ALL OF VEHICLES
IN±11
11 Author: Date:
2001 PRIUS (RM778U)
(h) After disconnecting or exposing a high±voltage connec-
tor or terminal, insulate it immediately using insulation
tape.
(i) The screw of a high±voltage terminal should be tightened
firmly to the specified torque. Both insufficient and exces-
sive tightening torque can cause failure.
(j) Call other engineers' attention to the vehicle which high±
voltage system is being inspected or repaired by hanging
a ºHigh Voltage Operation in Progress. Do Not Touchº
sign (See the next page).
(k) After servicing the high±voltage system and before rein-
stalling the service plug, check again that you have not
left a part or tool inside, that the high±voltage terminal
screws are firmly tightened, and that the connectors are
correctly engaged.
