Page 1841 of 2053

SSANGYONG KORANDO 1997 Service Repair Manual SSANGYONG MY2002 9R-6 BODY FRONT END HOOD HINGES Removal and Installation Procedure 1. Remove the hood. Refer to “Hood” in this section. 2. Remove the cowl vent grille. Refer to “Cowl Vent Gri

Page 1842 of 2053

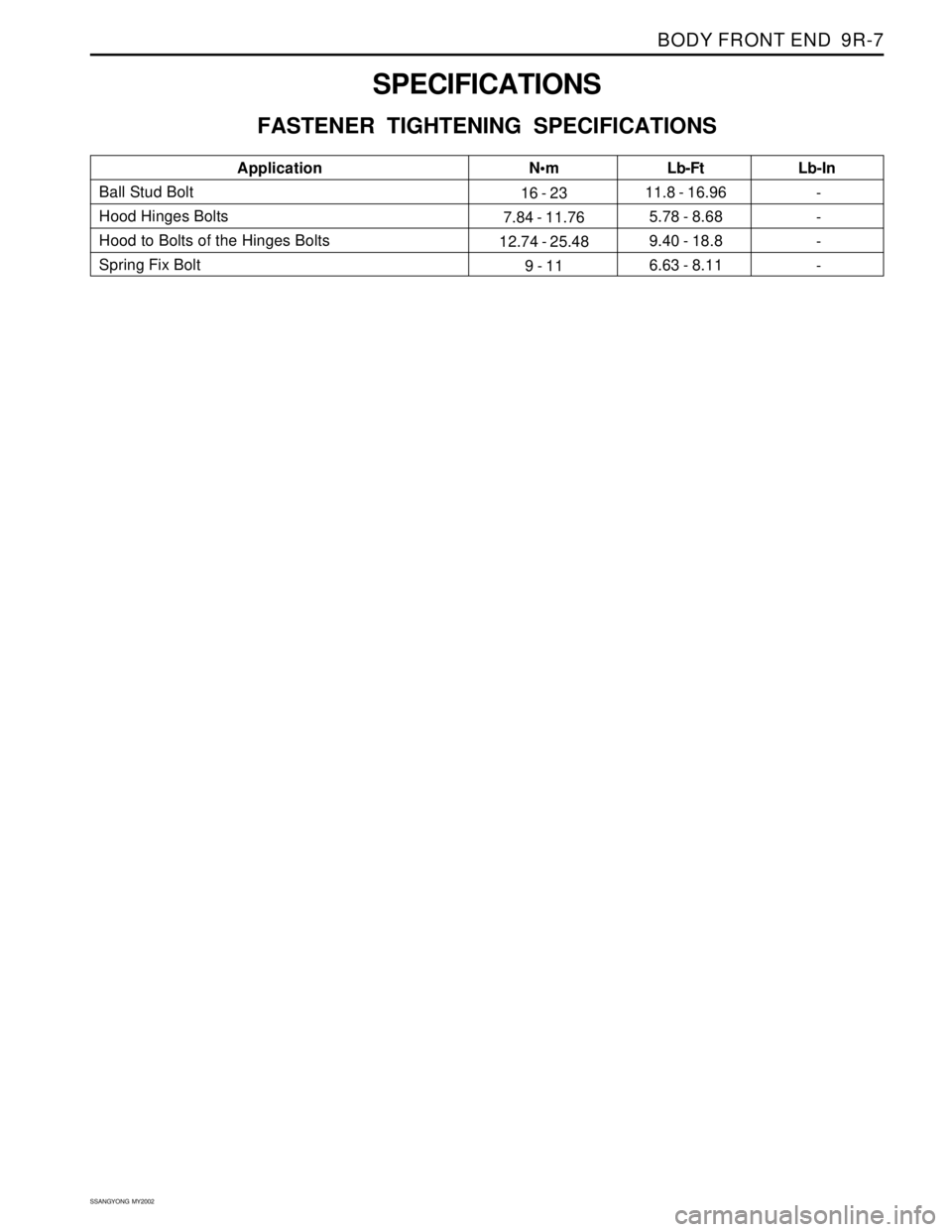

SSANGYONG KORANDO 1997 Service Repair Manual BODY FRONT END 9R-7 SSANGYONG MY2002 11.8 - 16.96 5.78 - 8.68 9.40 - 18.8 6.63 - 8.11 16 - 23 7.84 - 11.76 12.74 - 25.48 9 - 11 SPECIFICATIONS FASTENER TIGHTENING SPECIFICATIONS Ball Stud Bolt Hood

Page 1843 of 2053

SSANGYONG KORANDO 1997 Service Repair Manual SECTION 9S BODY REAR END CAUTION: Disconnect the negative battery cable before removing or installing any electrical unit or when a tool or equipment could easily come in contact with exposed electric

Page 1844 of 2053

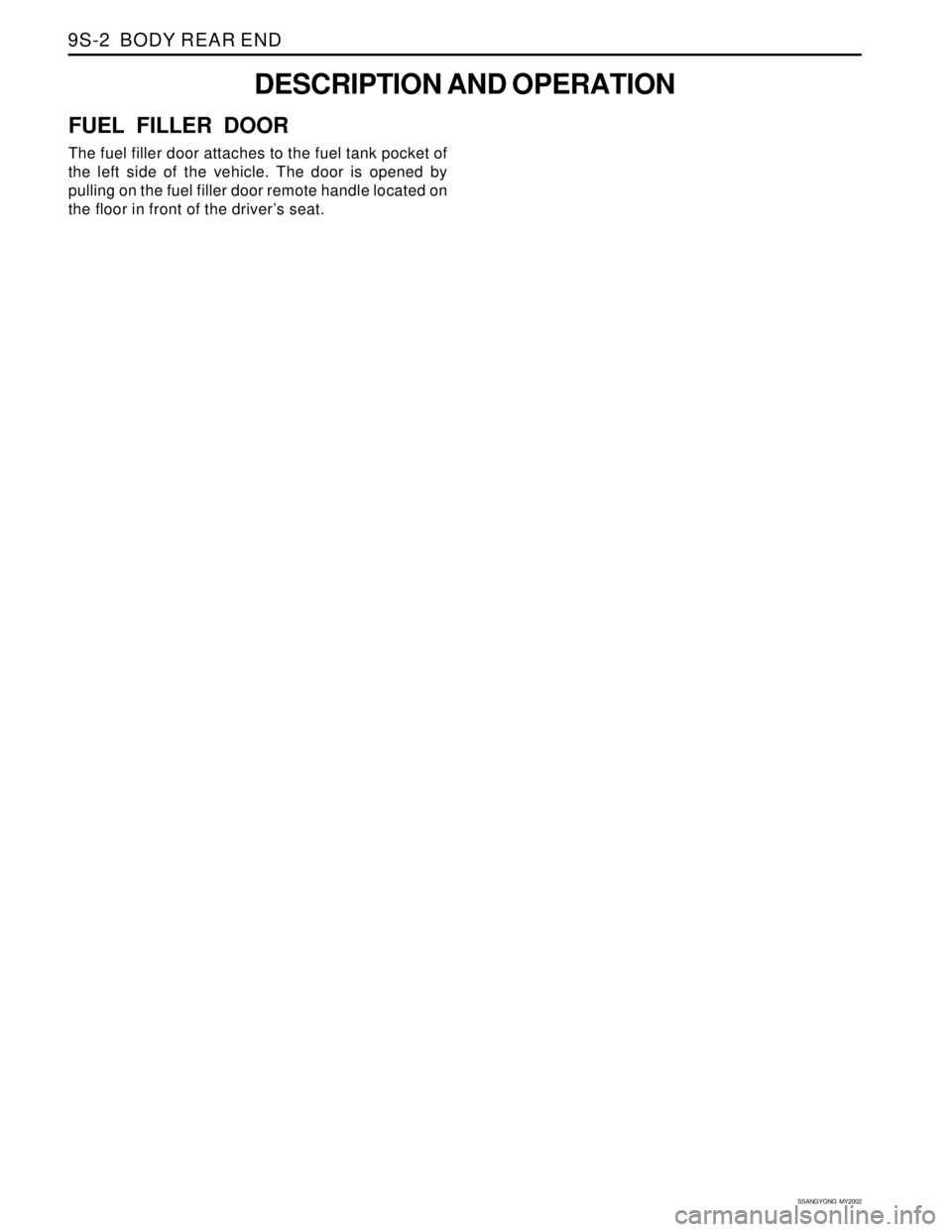

SSANGYONG KORANDO 1997 Service Repair Manual SSANGYONG MY2002 9S-2 BODY REAR END DESCRIPTION AND OPERATION FUEL FILLER DOOR The fuel filler door attaches to the fuel tank pocket of the left side of the vehicle. The door is opened by pulling on

Page 1845 of 2053

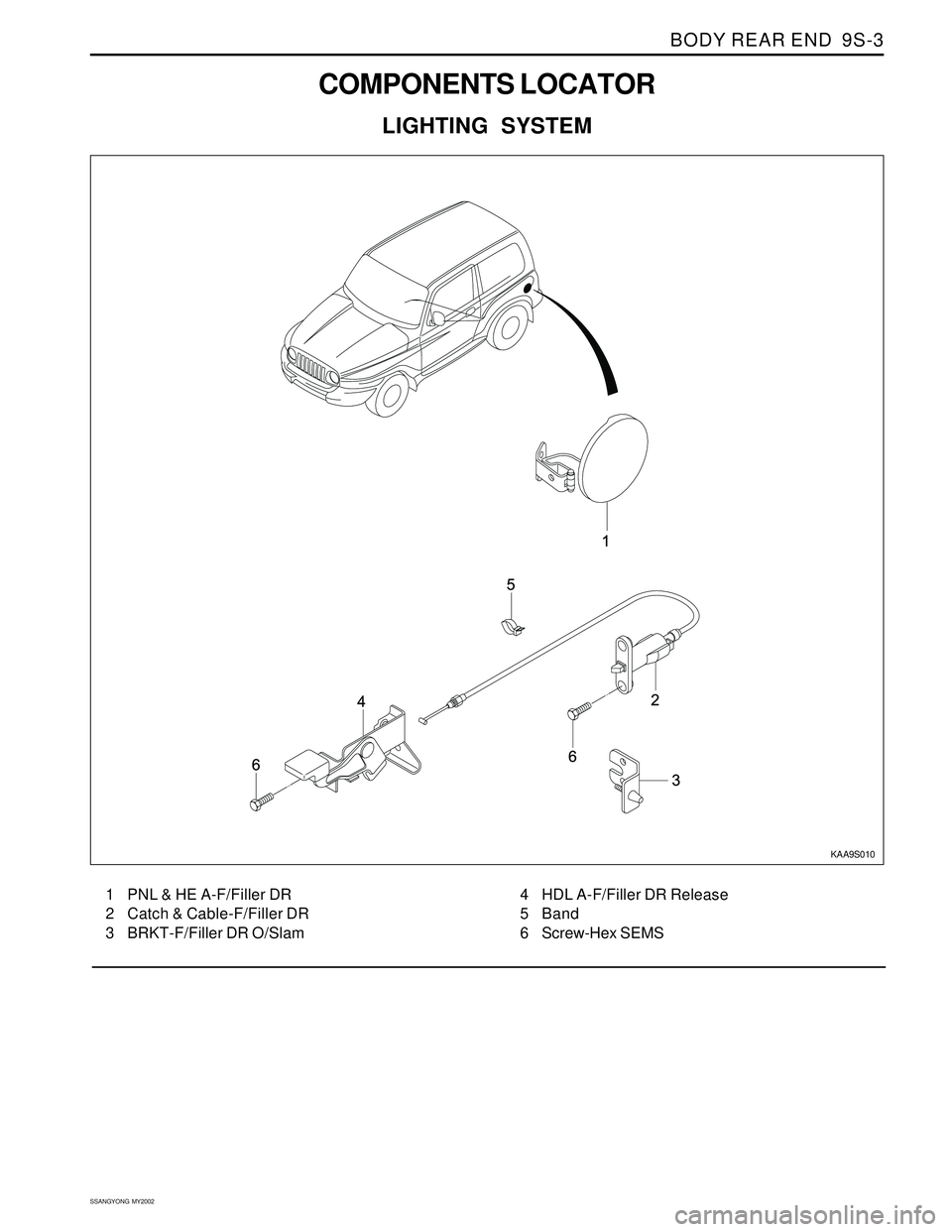

SSANGYONG KORANDO 1997 Service Repair Manual BODY REAR END 9S-3 SSANGYONG MY2002 COMPONENTS LOCATOR LIGHTING SYSTEM KAA9S010 1 PNL & HE A-F/Filler DR 2 Catch & Cable-F/Filler DR 3 BRKT-F/Filler DR O/Slam4 HDL A-F/Filler DR Release 5 Band 6 Scr

Page 1846 of 2053

SSANGYONG KORANDO 1997 Service Repair Manual SSANGYONG MY2002 9S-4 BODY REAR END ON-VEHICLE SERVICE UNIT REPAIR FUEL FILLER DOOR Removal and Installation Procedure 1. Remove the bolts and the fuel filler door. Installation Notice Dissimilar m

Page 1847 of 2053

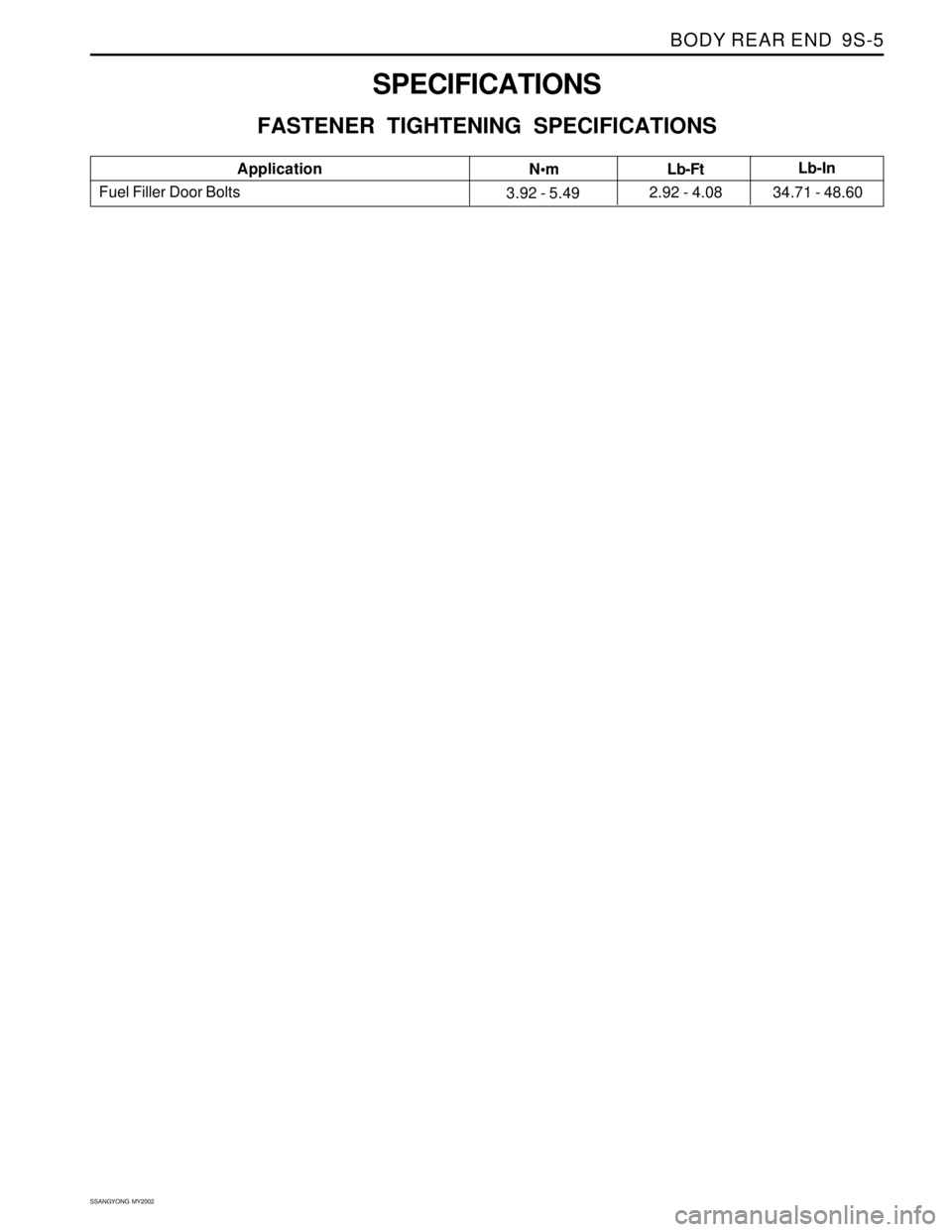

SSANGYONG KORANDO 1997 Service Repair Manual BODY REAR END 9S-5 SSANGYONG MY2002 SPECIFICATIONS FASTENER TIGHTENING SPECIFICATIONS Fuel Filler Door BoltsApplication N•m3.92 - 5.492.92 - 4.08 34.71 - 48.60Lb-FtLb-In

Page 1848 of 2053

SSANGYONG KORANDO 1997 Service Repair Manual SECTION 9T1 REMOTE KEYLESS ENTRY AND ANTI-THEFT SYSTEM CAUTION: Disconnect the negative battery cable before removing or installing any electrical unit or when a tool or equipment could easily come in
