1B2 -- 44 M161 ENGINE MECHANICAL
D AEW OO M Y_2000

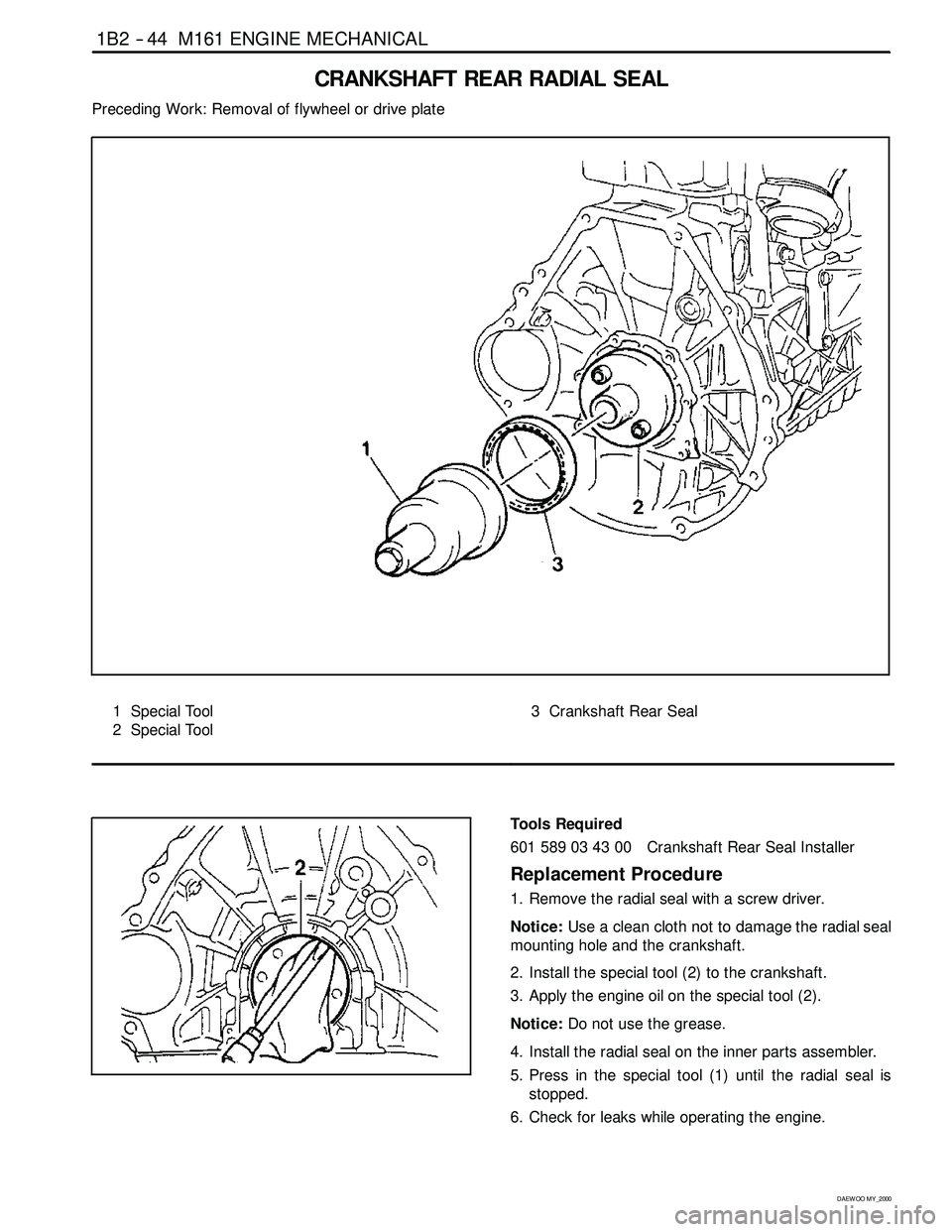

CRANKSHAFT REAR RADIAL SEAL
Preceding Work: Removal of flywheel or drive plate
1 Special Tool
2 Special Tool3 Crankshaft Rear Seal
Tools Required
601 589 03 43 00 Crankshaft Rear Seal Installer
Replacement Procedure
1. Remove the radial seal with a screw driver.
Notice:Use a clean cloth not to damage the radial seal
mounting hole and the crankshaft.
2. Install the special tool (2) to the crankshaft.
3. Apply the engine oil on the special tool (2).
Notice:Do not use the grease.
4. Install the radial seal on the inner parts assembler.
5. Press in the special tool (1) until the radial seal is
stopped.
6. Check for leaks while operating the engine.
Page 338 of 2053
M161 ENGINE MECHANICAL 1B2 -- 45
D AEW OO M Y_2000
CRANKSHAFT
Preceding Work: Removal of engine
Removal of cylinder head
Removal of timing gear case cover
Removal of crankcase sealing rear cover
Removal of oil pan
Removal of baffle plate
Removal of oil pump
1 Bearing Cap Bolt (M8 X 55 -- 10 pieces)
1ststep55NSm (41 lb-ft) .................
2nd step 90°rotation added
2 Bearing Cap
3 Upper Main Bearing4 Lower Main Bearing
5 Upper Thrust Bearing
6 Lower Thrust Bearing
8 Crankshaft
Page 339 of 2053
1B2 -- 46 M161 ENGINE MECHANICAL
D AEW OO M Y_2000
Arrangement of the Thrust Bearing and the Main Bearing
1 Upper Main Bearing
2 Upper Thrust Bearing
3 Crankshaft
4 Lower Main Bearing
5 Lower Thrust BearingA Crankcase Side
B Bearing Cap Side (Oil Pan Side)
(1) -- (8) Weight Balance/Color Marking Point
j1 -- j5 Journal Main Bearing #1 -- #5
DColor Dot Marking
The color dot marking are put on the (1), (2), (4), (6), (8),
and it indicates the diameter of crankshaft journal by col-
or as below.
Page 340 of 2053

M161 ENGINE MECHANICAL 1B2 -- 47
D AEW OO M Y_2000
Color Dot
MarkingCrankshaft Journal Diameter
(mm)
Blue57.960 -- 57.965
Yellow57.955 -- 57.960
Red57.950 -- 57.955
White57.945 -- 57.950
Violet57.940 -- 57.945
Selection of Crankshaft Main Bearing
1. Crankcase Side
There are seven punching marks on the mating sur-
face to oil pan. This mark is correspondent to the
bearing distinguished by color. Select the relevant
bearing according to the punching mark when re-
paired.
Punching
Mark
Bearing Color Selected
FBlue
FFYellow
FFFRed
2. Crankshaft Bearing Cap Side
Select the crankshaft main bearing according to the
marking letter on the crankshaft main journal when
repaired.
Marking
Letter
Bearing Color Selected
BBlue
YYellow
RRed
WWhite
VViolet
Service DataUnit: mm
Crankshaft Stan-
dard and Repair
SizeCrankshaft
Bearing Jour-
nal DiameterCrankshaft
Bearing
DiameterCrankshaft
Journal Width
at fit bearingConnecting Rod
Bearing Journal
DiameterConnecting Rod
Bearing Journal
Width
Standard size57.940-- 57.9655824.50-- 24.53347.935-- 47.96527.958-- 28.042
1st repair size57.705-- 57.71547.700-- 47.715
2nd repair size57.450-- 57.46547.450-- 47.465
3rd repair size57.205-- 57.215----47.200-- 47.215--
4th repair size56.955-- 56.96546.950-- 46.965
Page 341 of 2053

1B2 -- 48 M161 ENGINE MECHANICAL
D AEW OO M Y_2000
Removal & Installation Procedure
1. Unscrew the connecting rod bearing cap bolt and re-
move the bearing cap.
Installation Notice
Tightening Torque
40 NSm (30 lb-ft) + 90°
DMake sure that the upper and lower bearing shells
do not change each other.
DCoat the bearing shell with engine oil.
DInstall the bearing cap according to the consecu-
tive number.
Part No. : 601 030 00 62 2.15 mm
Part No. : 601 030 01 62 2.20 mm
Part No. : 601 030 02 62 2.25 mm
Part No. : 601 030 03 62 2.30 mm
Part No. : 601 030 04 62 2.40 mm
2. Unscrew the crankshaft bearing cap bolts and sepa-
rate the upper and lower bearing shells and thrust
washers.
Installation Notice
Tightening Torque
55 NSm (41 lb-ft) + 90°
DRemove the bearing cap from front (pulley side) to
rear.
DMake sure that the upper and lower bearing shells
do not change each other and coat with engine oil.
DThe oil grooves (arrows) in the thrust washers
must face outward and insert the thrust bearing
into the bearing cap.
DThere are five kinds of thrust washers by thick-
ness. Select the proper washer when repaired.
3. Remove the crankshaft.
4. Installation should follow the removal procedure in
the reverse order.
5. After completion of the installation, check for the ro-
tating condition of the crankshaft.
Installation Notice
DMake sure the crankshaft bearing cap properly
seated in place in the crankcase side. When perfectly
installed, the projected part (arrow) locates in the left
side (intake manifold side).
DAssemble so that the projected part of the cap and
crankcase face the same direction.
Page 342 of 2053
M161 ENGINE MECHANICAL 1B2 -- 49
D AEW OO M Y_2000
Inspection
1. If the length ‘L’ of the crankshaft bearing cap bolt ex-
ceeds 63.8mm, replace it.
2. Make sure the crankshaft bearing cap is properly
seated on the cylinder block (arrows).
3. Measure and record the inner diameter of the crank-
shaft bearing.
Notice
DMeasure at 2 points (1, 2).
DMeasure ‘A’, ‘B’ and ‘C’ as shown. If average value of
‘B’ and ‘C’ is less than value ‘A’, then the average val-
ue of ‘B’ and ‘C’ is actual average value. If average
value of ‘B’ and ‘C’ is more than value ‘A’ is actual av-
erage value.
4. Measure and record the diameter of the crankshaft
bearing journal.
Notice
DRecord the mean value when measured at 3 points
(A,B,C).
DMeasure the inner diameter of bearing and the diam-
eter of journal and if it is out of the standard data, re-
place the bearing shell.
Page 343 of 2053
1B2 -- 50 M161 ENGINE MECHANICAL
D AEW OO M Y_2000
Service Data Standard (Crankshaft Main Bearing Gap)
ItemMeasuring PositionGap (mm)
Main Bearing Journal
(NO.1,5,7)
Radial
Static condition : 0.015 -- 0.039
Dynamic condition: 0.031 -- 0.051
(Consider the expansion 0.011 -- 0.016)
(NO.1,5,7)
Axial0.010 -- 0.254
(Connecting Rod Bearing Gap)
ItemMeasuring PositionGap (mm)
Connecting Rod BearingRadial0.020 -- 0.065
Page 344 of 2053
M161 ENGINE MECHANICAL 1B2 -- 51
D AEW OO M Y_2000
FLYWHEEL / DRIVEN PLATE
Preceding Work: Removal of manual or automatic transmission
1 Flywheel Mounting Bolt (M10 x 22, 8 pieces)
1st step 45+5 NSm (33+3.7 lb-ft) ............
2nd step 90°+10°
2Plate3 Driven Plate (A/T)
4 Dowel Pin
5 Flywheel (M/T)
Service Data Standard (Stretch Bolt)
Nominal SizeD--Mx1.5
Stretch Side DiameterdWhen New8.5 -- 0.2 mm
Min. Diameter8.0 mm
Bolt LengthLWhen New21.8 -- 22.2 mm
Tightening Torque1ststep45+5NSm (33 + 3.7 lb-ft), 2nd step 90°+10°
