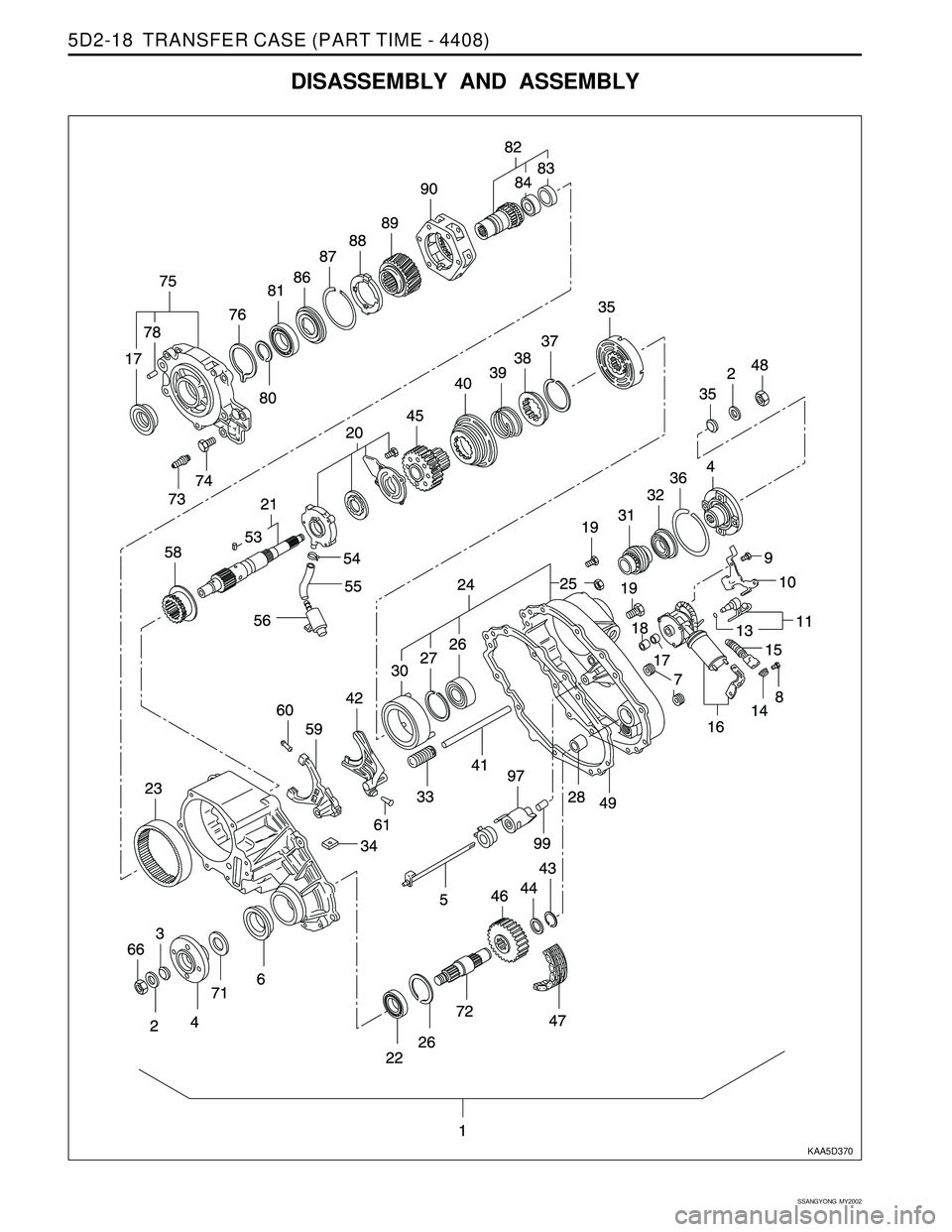

SSANGYONG KORANDO 1997 Service Repair Manual SSANGYONG MY2002 5D2-18 TRANSFER CASE (PART TIME - 4408) DISASSEMBLY AND ASSEMBLY KAA5D370

Page 1418 of 2053

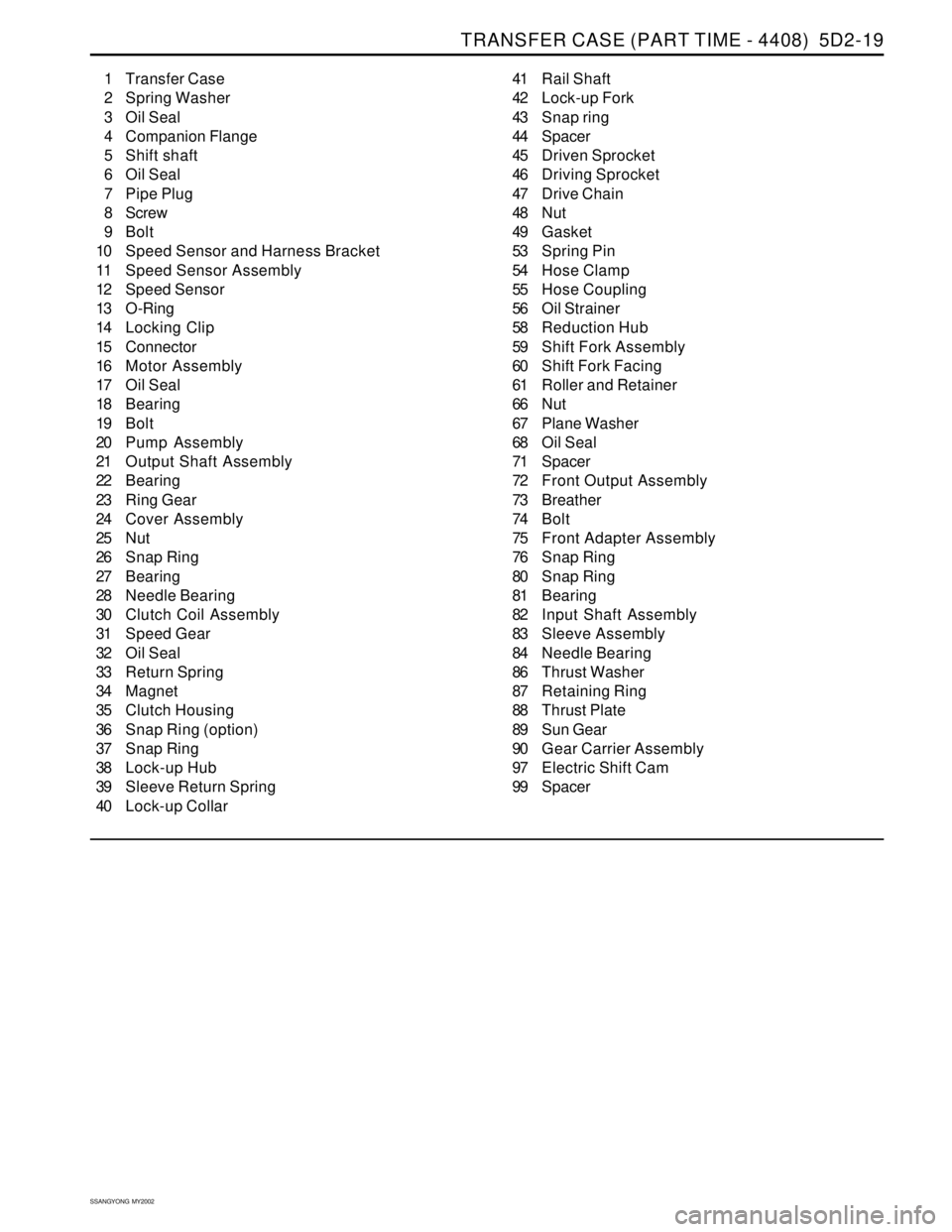

SSANGYONG KORANDO 1997 Service Repair Manual TRANSFER CASE (PART TIME - 4408) 5D2-19 SSANGYONG MY2002 1 Transfer Case 2 Spring Washer 3 Oil Seal 4 Companion Flange 5 Shift shaft 6 Oil Seal 7 Pipe Plug 8 Screw 9 Bolt 10 Speed Sensor and Harness

Page 1419 of 2053

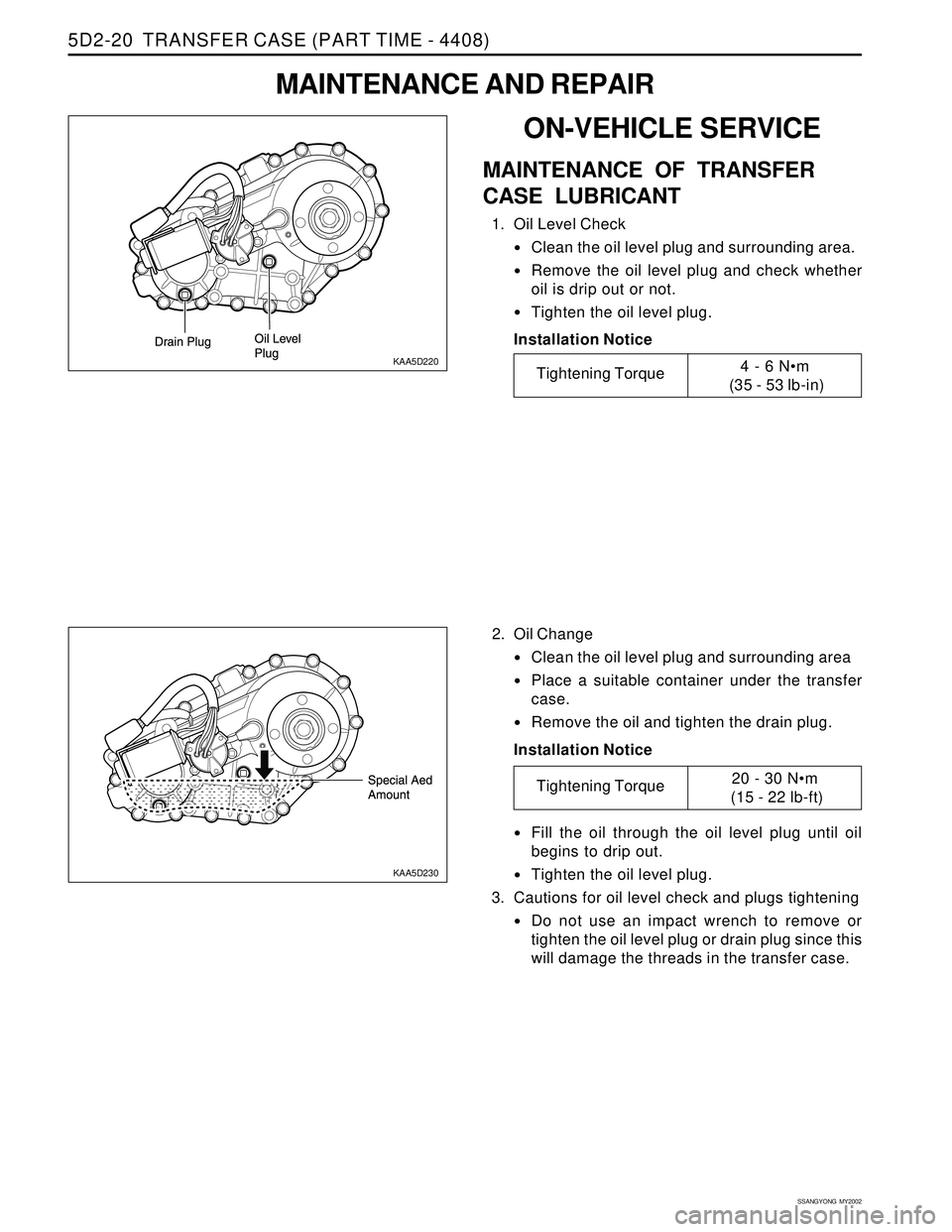

SSANGYONG KORANDO 1997 Service Repair Manual SSANGYONG MY2002 5D2-20 TRANSFER CASE (PART TIME - 4408) ������ KAA5D220 ON-VEHICLE SERVICE MAINTENANCE OF TRANSFER CASE LUBRICANT 1. Oil Level Check Clean the oil level plug and surrounding area.

Page 1420 of 2053

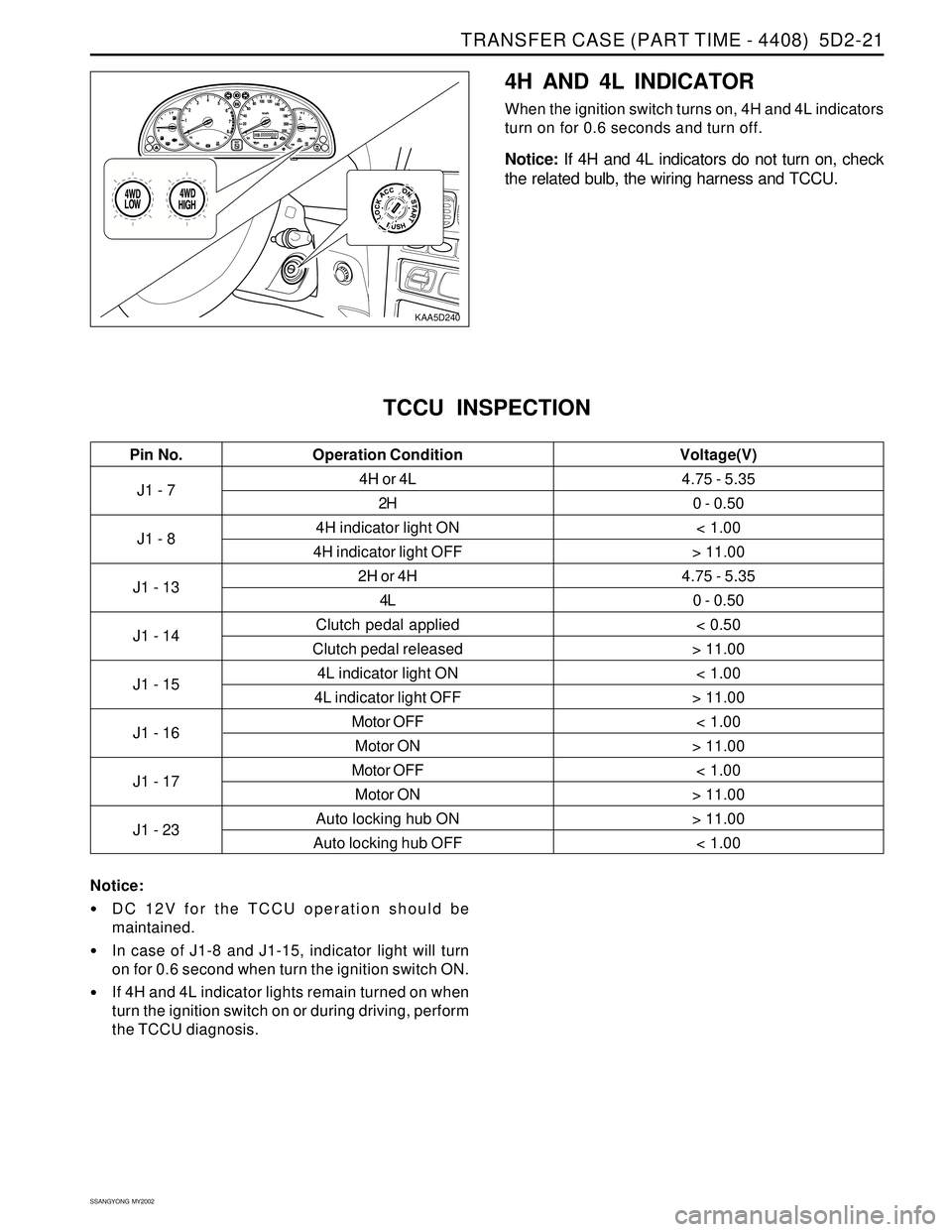

SSANGYONG KORANDO 1997 Service Repair Manual TRANSFER CASE (PART TIME - 4408) 5D2-21 SSANGYONG MY2002 KAA5D240 4H AND 4L INDICATOR When the ignition switch turns on, 4H and 4L indicators turn on for 0.6 seconds and turn off. Notice: If 4H and

Page 1421 of 2053

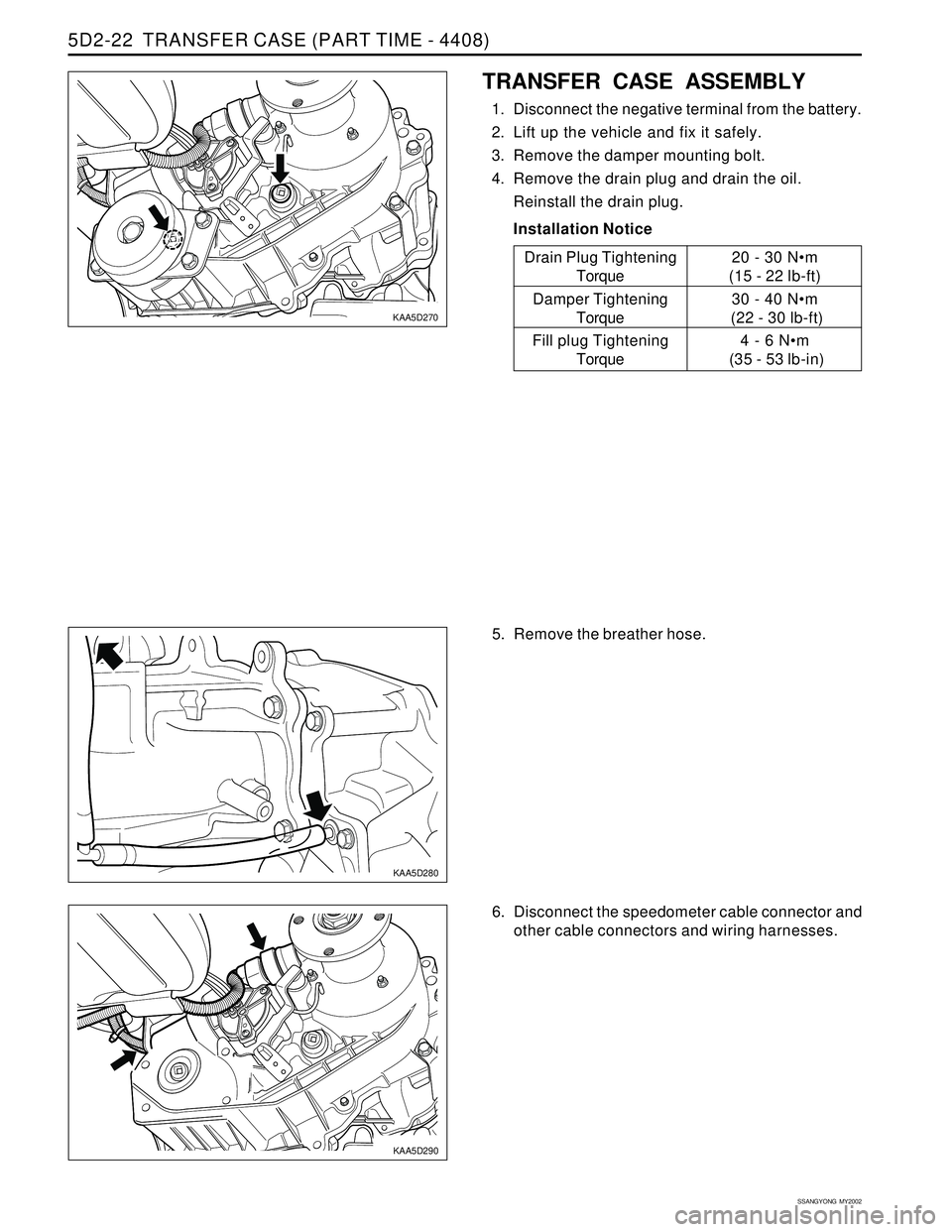

SSANGYONG KORANDO 1997 Service Repair Manual SSANGYONG MY2002 5D2-22 TRANSFER CASE (PART TIME - 4408) KAA5D270 KAA5D280 TRANSFER CASE ASSEMBLY 1. Disconnect the negative terminal from the battery. 2. Lift up the vehicle and fix it safely. 3. R

Page 1422 of 2053

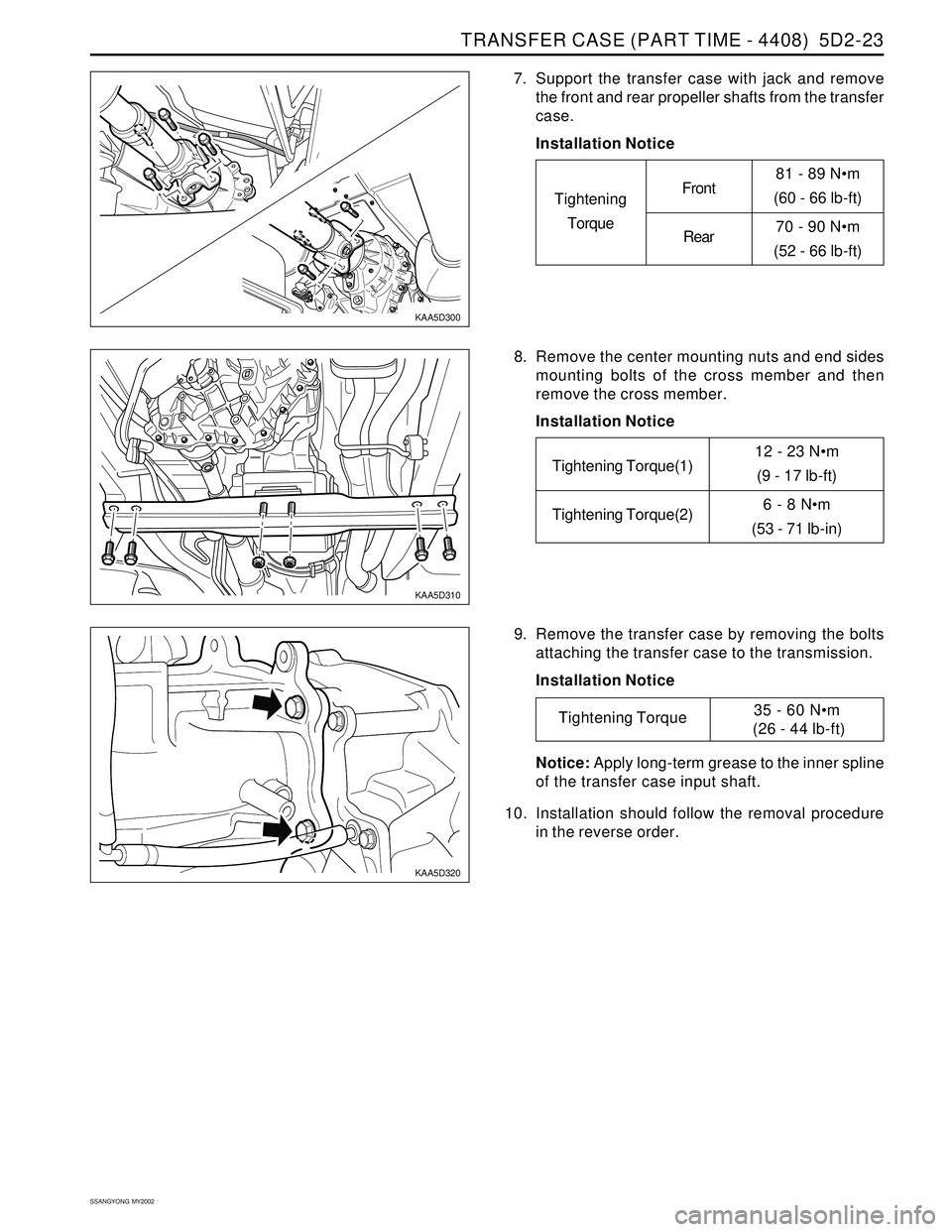

SSANGYONG KORANDO 1997 Service Repair Manual TRANSFER CASE (PART TIME - 4408) 5D2-23 SSANGYONG MY2002 KAA5D300 KAA5D310 KAA5D320 7. Support the transfer case with jack and remove the front and rear propeller shafts from the transfer case. Inst

Page 1423 of 2053

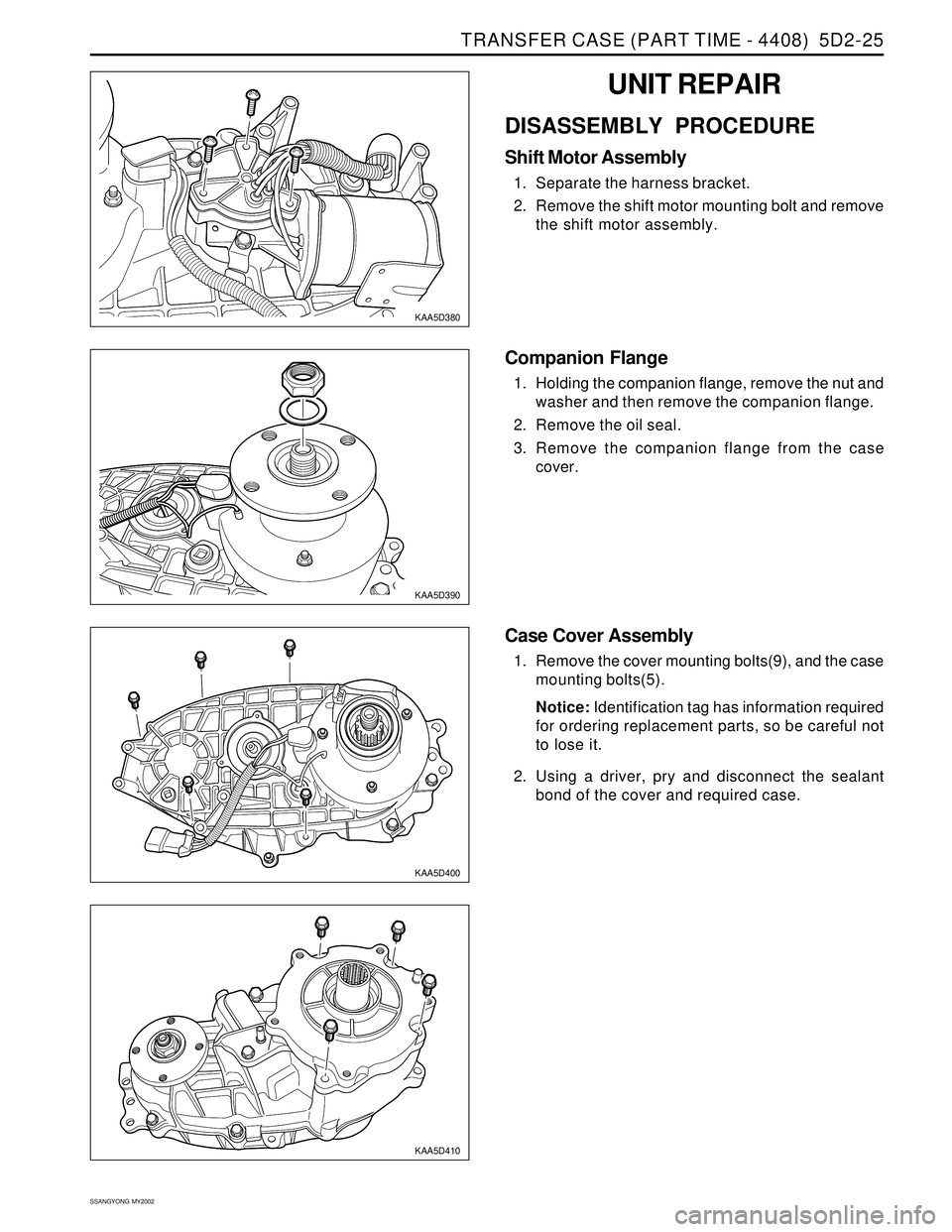

SSANGYONG KORANDO 1997 Service Repair Manual TRANSFER CASE (PART TIME - 4408) 5D2-25 SSANGYONG MY2002 KAA5D380 KAA5D390 UNIT REPAIR DISASSEMBLY PROCEDURE Shift Motor Assembly 1. Separate the harness bracket. 2. Remove the shift motor mounting

Page 1424 of 2053

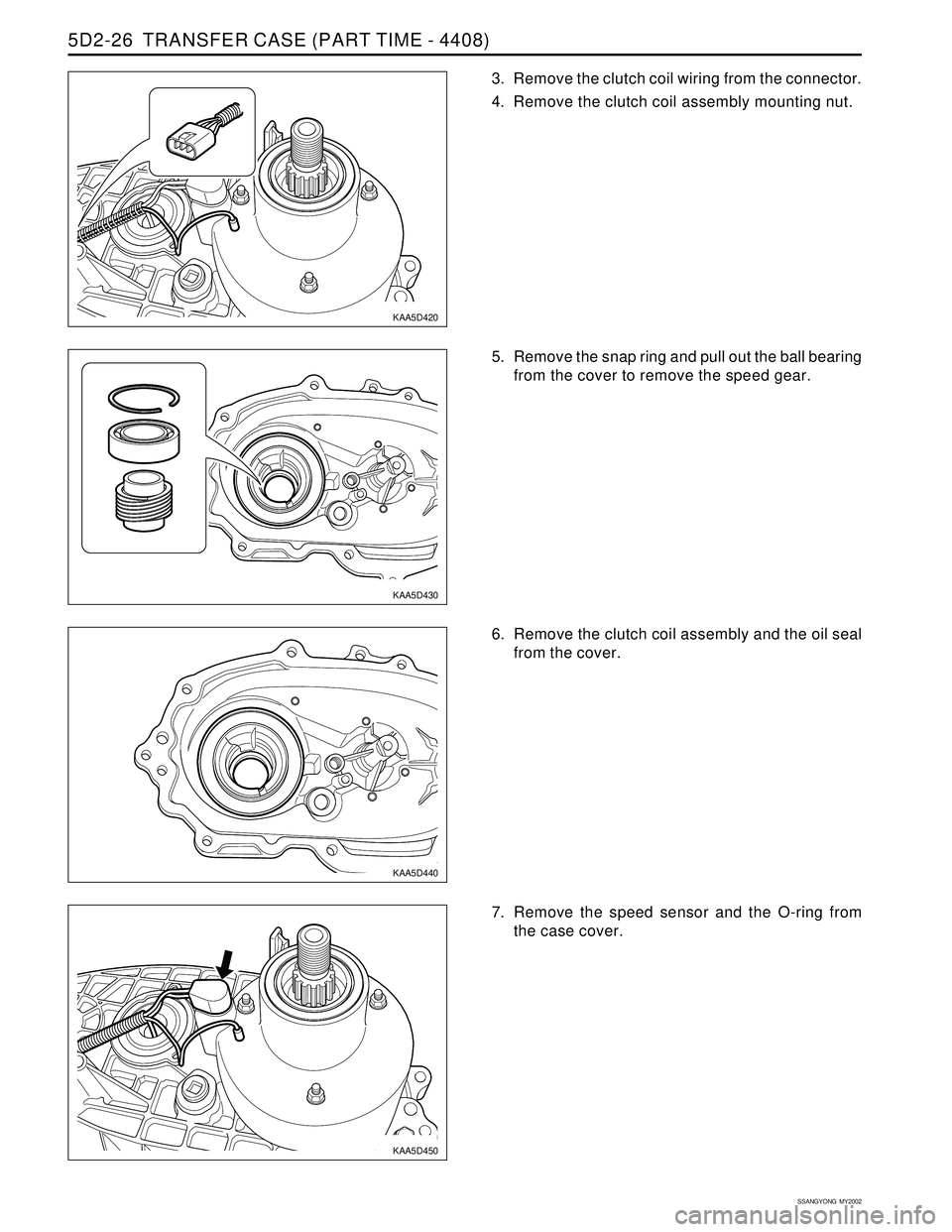

SSANGYONG KORANDO 1997 Service Repair Manual SSANGYONG MY2002 5D2-26 TRANSFER CASE (PART TIME - 4408) KAA5D420 KAA5D430 3. Remove the clutch coil wiring from the connector. 4. Remove the clutch coil assembly mounting nut. KAA5D440 KAA5D450 5.
