Page 1569 of 2053

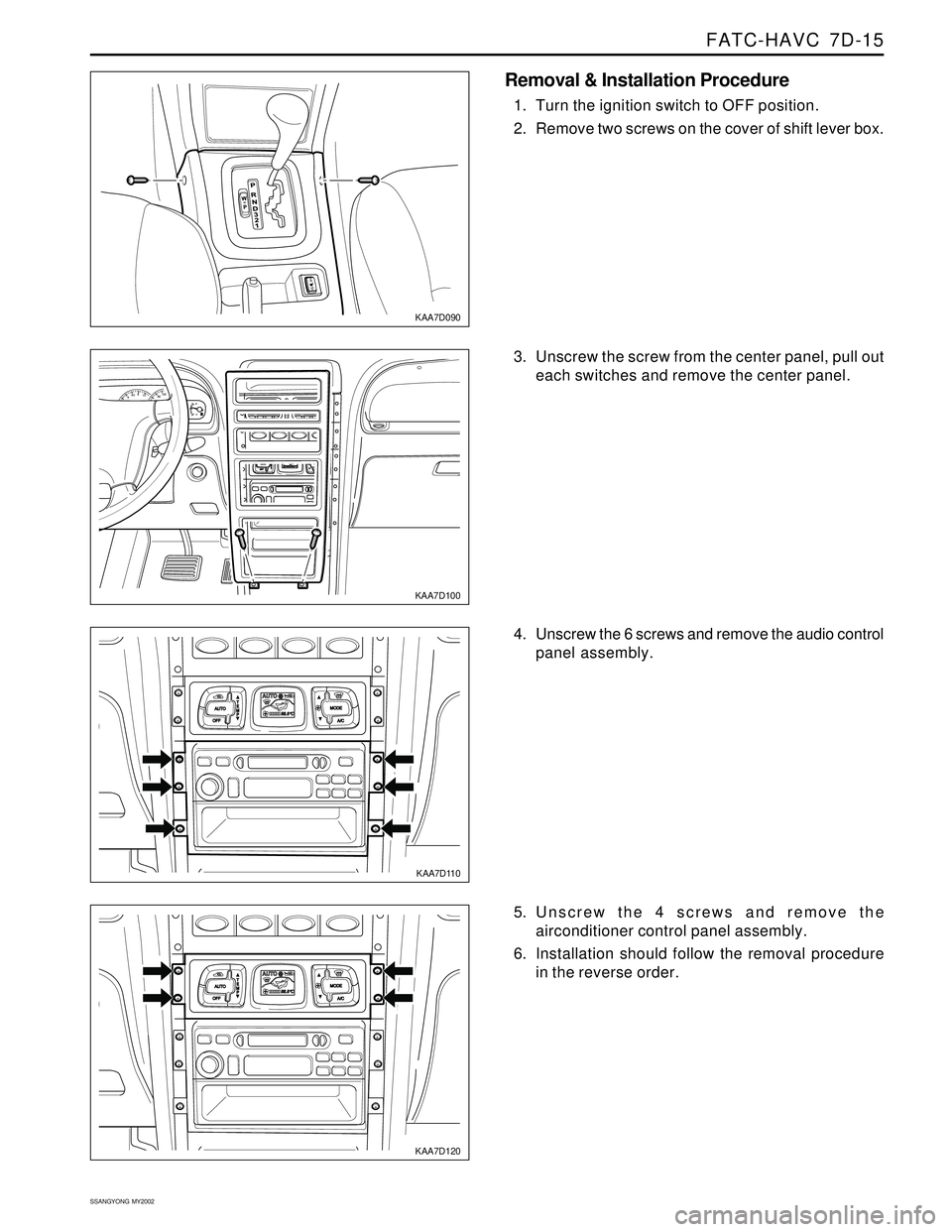

SSANGYONG KORANDO 1997 Service Repair Manual FATC-HAVC 7D-15 SSANGYONG MY2002 EF 80100460810 KAA7D090 KAA7D100 KAA7D110 KAA7D120 Removal & Installation Procedure 1. Turn the ignition switch to OFF position. 2. Remove two screws on the cover of

Page 1570 of 2053

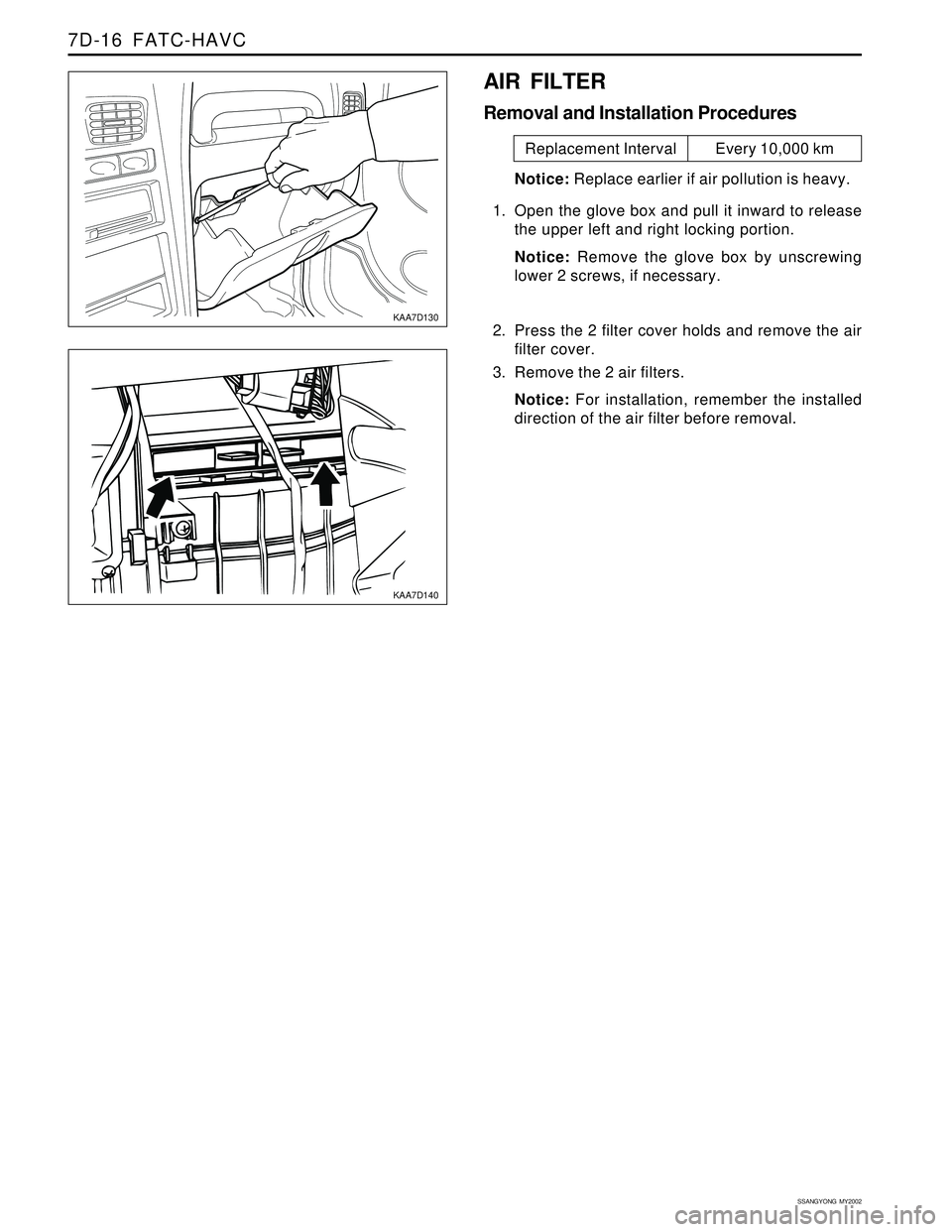

SSANGYONG KORANDO 1997 Service Repair Manual SSANGYONG MY2002 7D-16 FATC-HAVC KAA7D130 KAA7D140 AIR FILTER Removal and Installation Procedures Notice: Replace earlier if air pollution is heavy. 1. Open the glove box and pull it inward to relea

Page 1571 of 2053

SSANGYONG KORANDO 1997 Service Repair Manual FATC-HAVC 7D-17 SSANGYONG MY2002 KAA7D150 KAA7D160 KAA7D170 KAA7D180 TROUBLESHOOTING Check and Service Incar sensor is a sensor that detects interior air temperature and a thermistor that decreases

Page 1572 of 2053

SSANGYONG KORANDO 1997 Service Repair Manual SSANGYONG MY2002 7D-18 FATC-HAVC KAA7D190 KAA7D200 KAA7D210 KAA7D220 Ambient Sensor Ambient sensor is a sensor that detects ambient temperature and a thermistor that decreases its resistance when te

Page 1573 of 2053

SSANGYONG KORANDO 1997 Service Repair Manual FATC-HAVC 7D-19 SSANGYONG MY2002 KAA7D230 KAA7D240 KAA7D250 KAA7D260 Water Sensor Water sensor is a thermistor that detects engine coolant temperature to operate the blower speed to LO when water te

Page 1574 of 2053

SSANGYONG KORANDO 1997 Service Repair Manual SSANGYONG MY2002 7D-20 FATC-HAVC KAA7D270 KAA7D280 KAA7D290 KAA7D300 Sun load Sensor Sun load sensor is a photo diode that detects lights. Resistance of diode can be measured as current by using mul

Page 1575 of 2053

SSANGYONG KORANDO 1997 Service Repair Manual FATC-HAVC 7D-21 SSANGYONG MY2002 KAA7D310 Fault : intake (recirculation/fresh air) door inoperative Remove the glove box. Check No. 24 fuse (15A) in the box. YesNo Check that it operates toward each

Page 1576 of 2053

SSANGYONG KORANDO 1997 Service Repair Manual SSANGYONG MY2002 7D-22 FATC-HAVC Fault : air flow does not change toward panel side. Remove the center panel of the instrument panel. Measure voltage between 8I terminal positive pole (+) and body (
