Page 1049 of 2053

SSANGYONG KORANDO 1997 Service Repair Manual SSANGYONG MY2002 4F-66 ABS AND TCS DIAGNOSTIC TROUBLE CODE (DTC) 17/18 LEFT REAR INLET AND OUTLET VALVE SOLENOID FAULT KAA4F200 Circuit Description The solenoid valve coil circuits are supplied with

Page 1050 of 2053

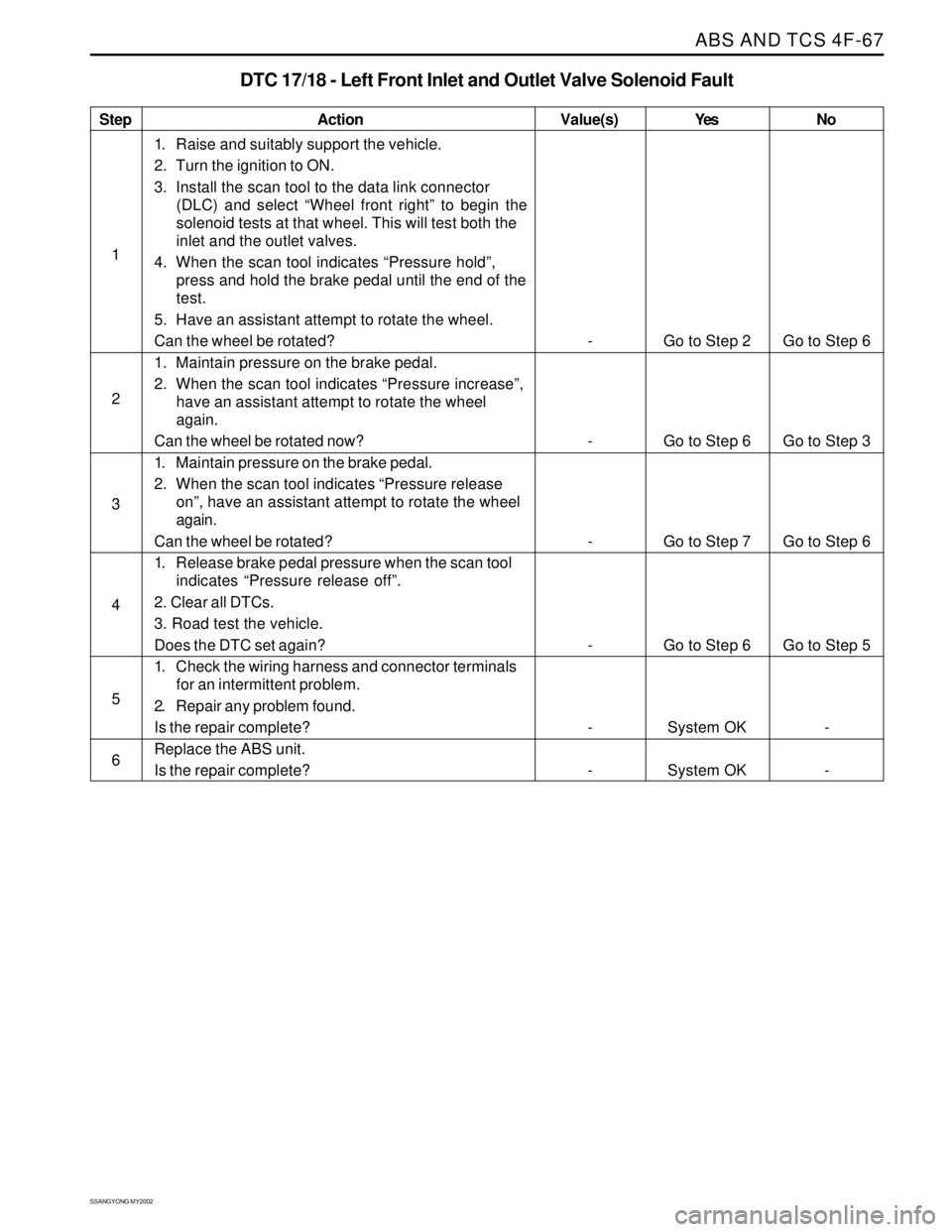

SSANGYONG KORANDO 1997 Service Repair Manual ABS AND TCS 4F-67 SSANGYONG MY2002 Step 1 2 3 4 5 6Action Go to Step 2 Go to Step 6 Go to Step 7 Go to Step 6 System OK System OKGo to Step 6 Go to Step 3 Go to Step 6 Go to Step 5 - - - - - - - - 1.

Page 1051 of 2053

SSANGYONG KORANDO 1997 Service Repair Manual SSANGYONG MY2002 4F-68 ABS AND TCS DIAGNOSTIC TROUBLE COED (DTC) 19/20 - RIGHT REAR INLET AND OUTLET VALVE SOLENOID FAULT Circuit Description The solenoid valve coil circuits are supplied with power

Page 1052 of 2053

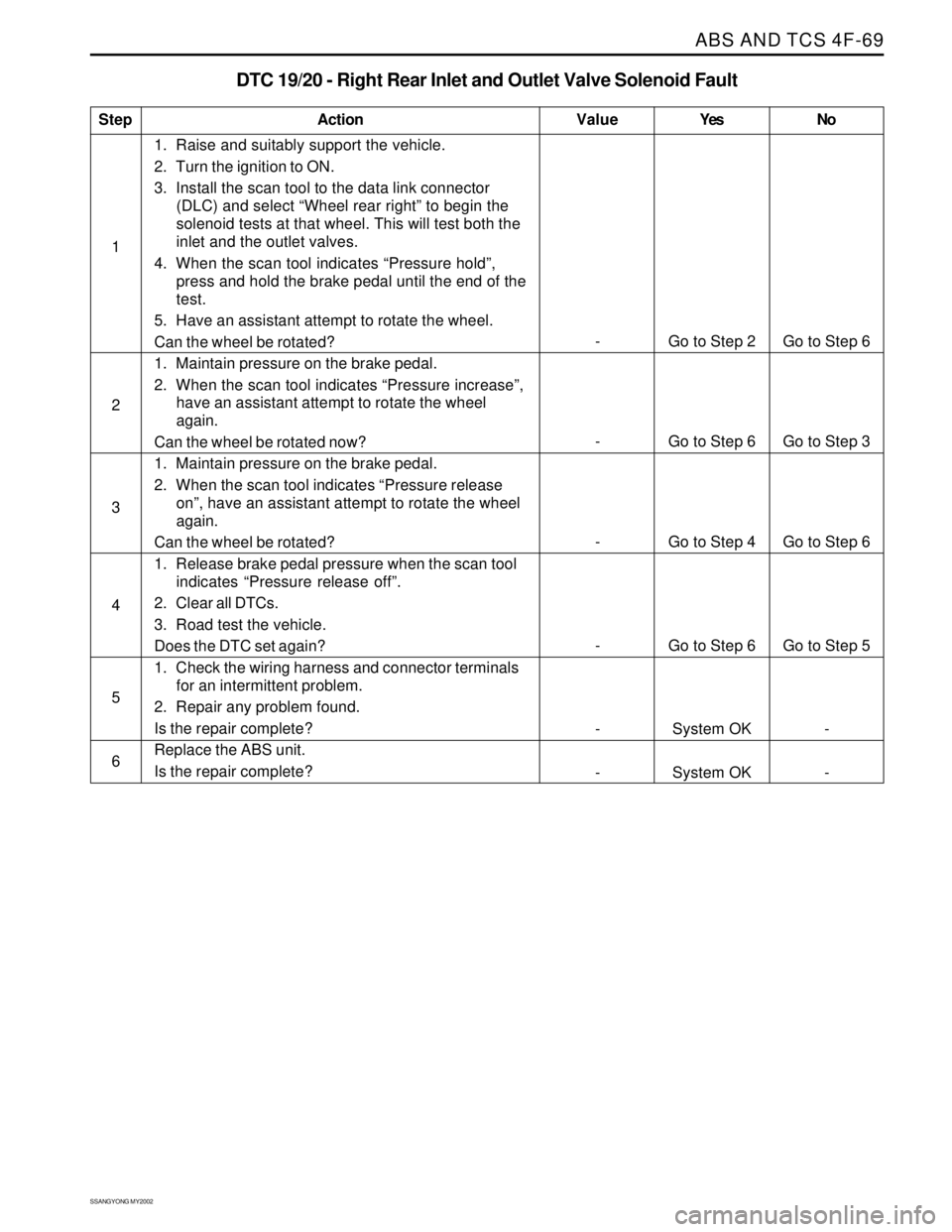

SSANGYONG KORANDO 1997 Service Repair Manual ABS AND TCS 4F-69 SSANGYONG MY2002 Step 1. Raise and suitably support the vehicle. 2. Turn the ignition to ON. 3. Install the scan tool to the data link connector (DLC) and select “Wheel rear right

Page 1053 of 2053

SSANGYONG KORANDO 1997 Service Repair Manual SSANGYONG MY2002 4F-70 ABS AND TCS DIAGNOSTIC TROUBLE CODE (DTC) 21/22 LEFT REAR PRIME LINE AND TRACTION CONTROL SYSTEM (TCS) PILOT VALVE FAULT KAA4F200 Circuit Description The solenoid valve coil ci

Page 1054 of 2053

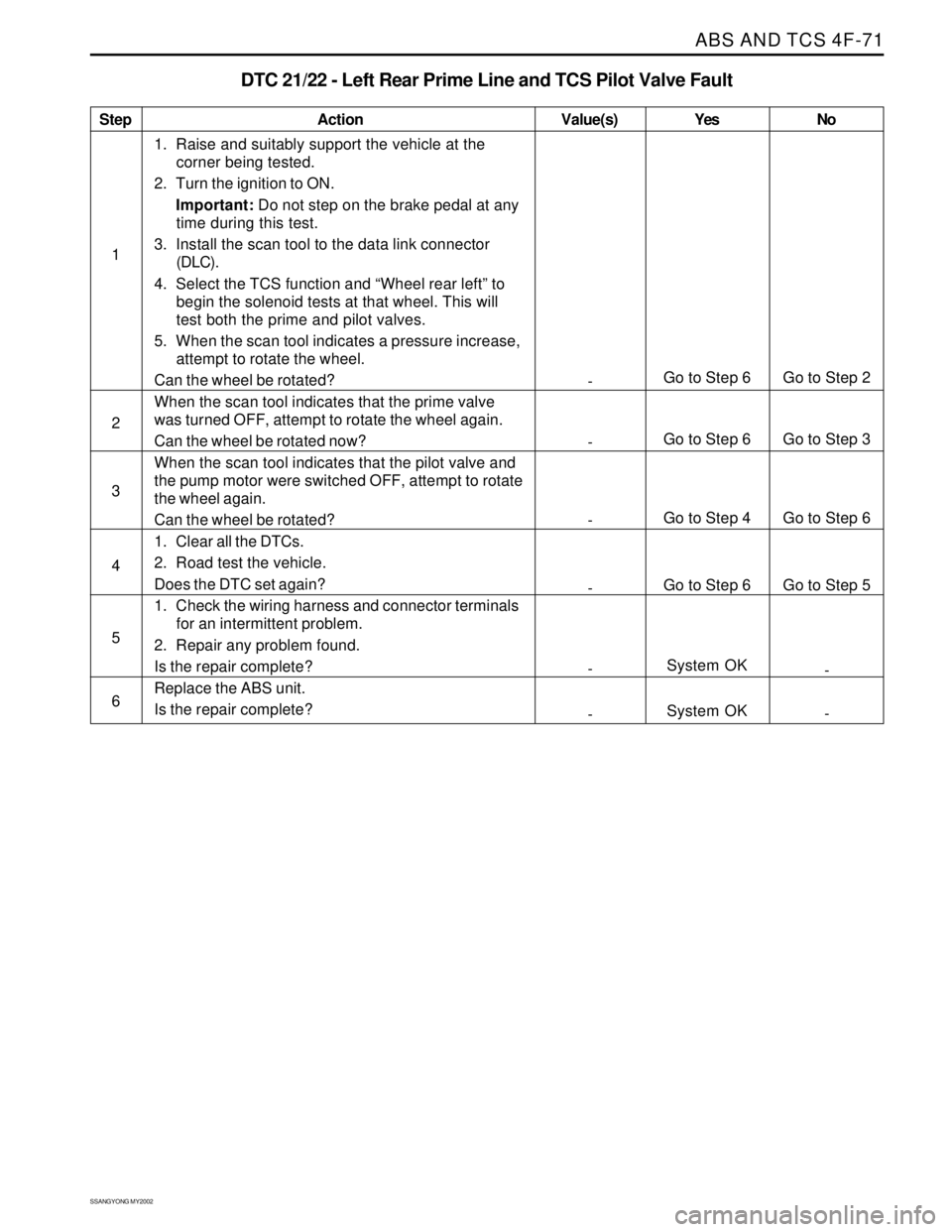

SSANGYONG KORANDO 1997 Service Repair Manual ABS AND TCS 4F-71 SSANGYONG MY2002 Step 1 2 3 4 5 6Action Yes Go to Step 6 Go to Step 6 Go to Step 4 Go to Step 6 System OK System OKNo Go to Step 2 Go to Step 3 Go to Step 6 Go to Step 5 - - Value(s)

Page 1055 of 2053

SSANGYONG KORANDO 1997 Service Repair Manual SSANGYONG MY2002 4F-72 ABS AND TCS DIAGNOSTIC TROUBLE CODE (DTC) 23/24 RIGHT REAR PRIME LINE AND TRACTION CONTROL SYSTEM (TCS) PILOT VALVE FAULT KAA4F200 Circuit Description The solenoid valve coil c

Page 1056 of 2053

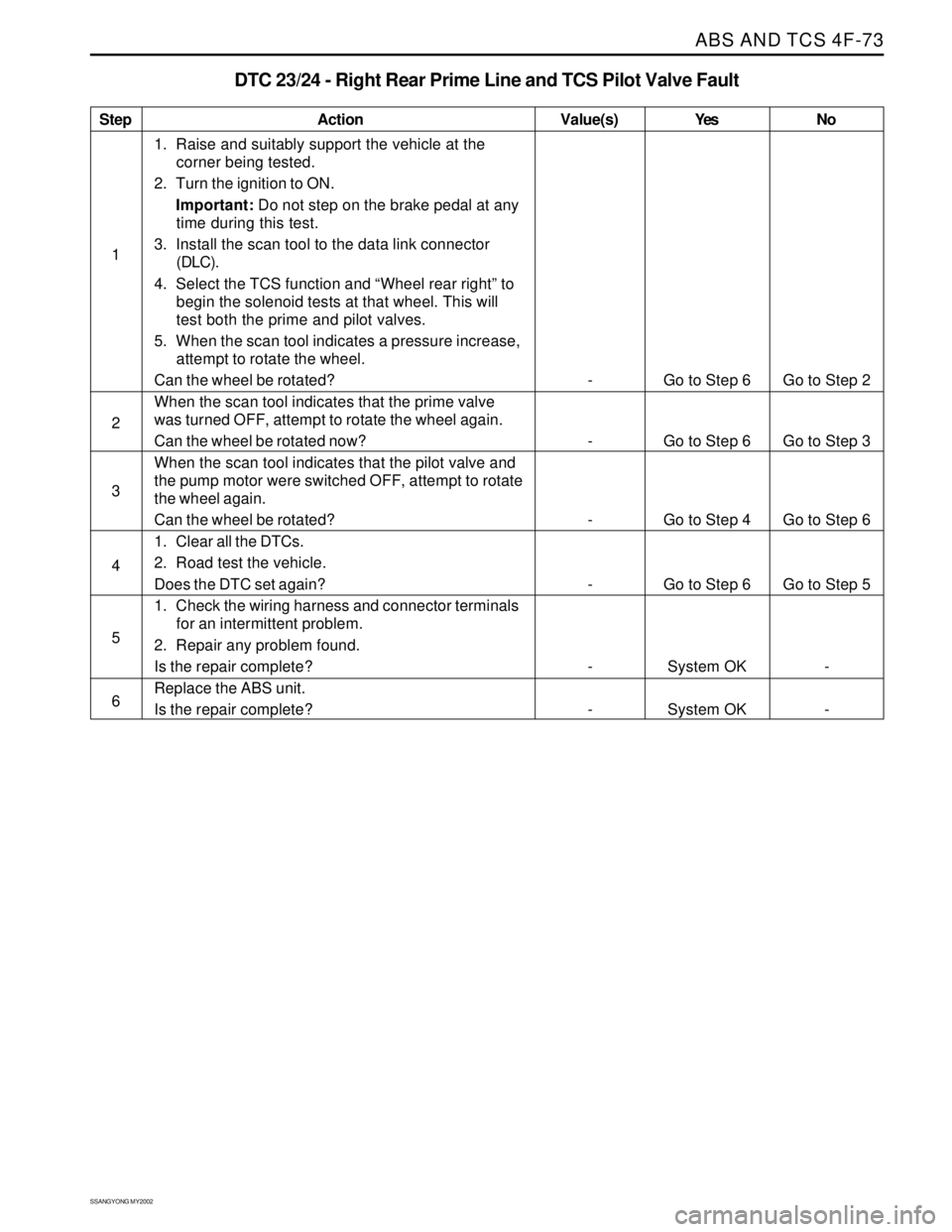

SSANGYONG KORANDO 1997 Service Repair Manual ABS AND TCS 4F-73 SSANGYONG MY2002 Step 1 2 3 4 5 6Action Go to Step 6 Go to Step 6 Go to Step 4 Go to Step 6 System OK System OKGo to Step 2 Go to Step 3 Go to Step 6 Go to Step 5 - - - - - - - - 1.
