1997 SSANGYONG KORANDO Service Repair Manual

Page 1489 of 2053

SSANGYONG KORANDO 1997  Service Repair Manual POWER STEERING AND COLUMN  6E-3
SSANGYONG MY2002
COMPONENT  LOCATOR
KAA6E010
1 Driver Airbag Module
2 Steering Wheel Nut
3 Steering Wheel
4 Lower Steering Column Cover
5 Lower Steering Column Cover Sc

Page 1490 of 2053

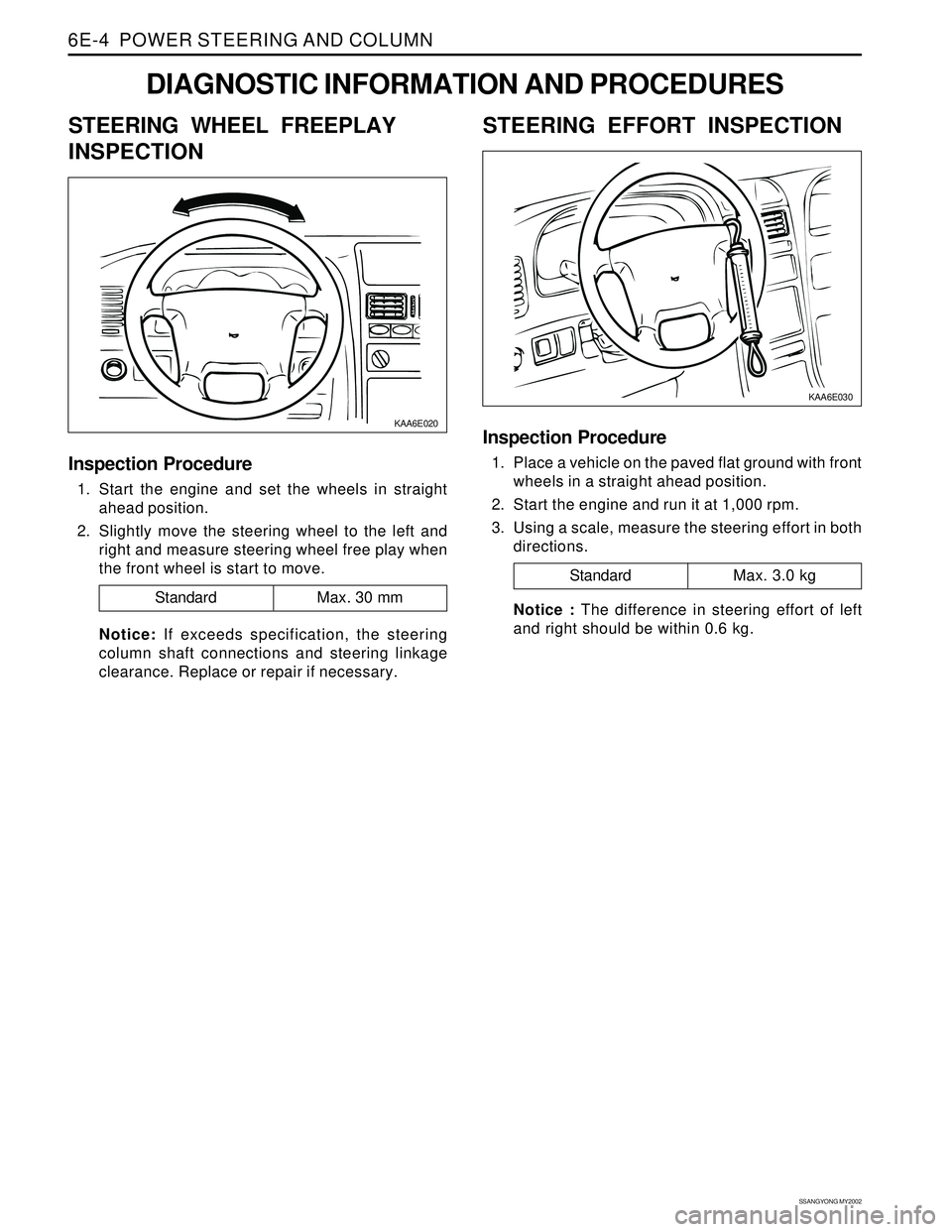

SSANGYONG KORANDO 1997  Service Repair Manual SSANGYONG MY2002
6E-4  POWER STEERING AND COLUMN
DIAGNOSTIC INFORMATION AND PROCEDURES
STEERING WHEEL FREEPLAY
INSPECTION
KAA6E020
Inspection Procedure
1. Start the engine and set the wheels in straig

Page 1491 of 2053

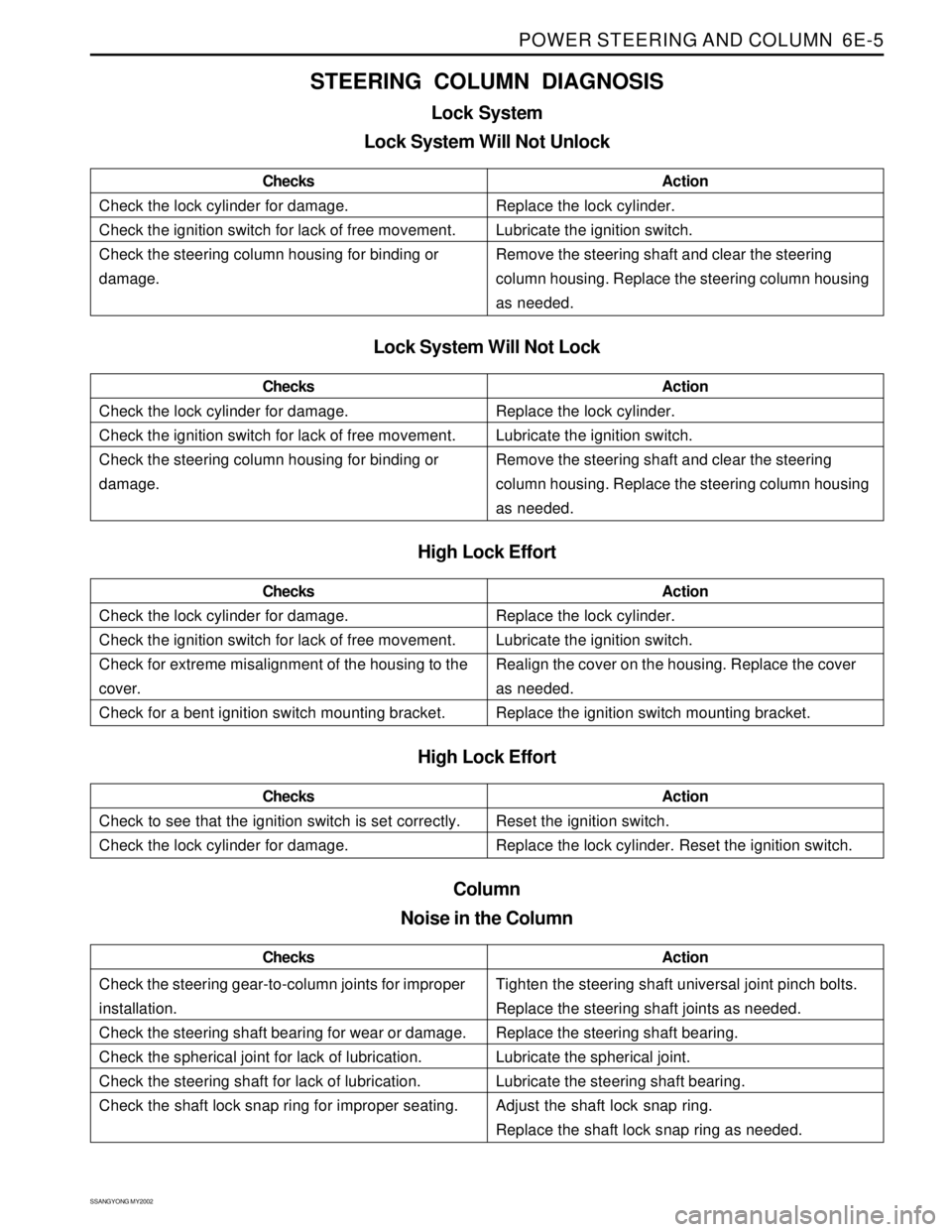

SSANGYONG KORANDO 1997  Service Repair Manual POWER STEERING AND COLUMN  6E-5
SSANGYONG MY2002
Check the lock cylinder for damage.
Check the ignition switch for lack of free movement.
Check the steering column housing for binding or
damage.Checks

Page 1492 of 2053

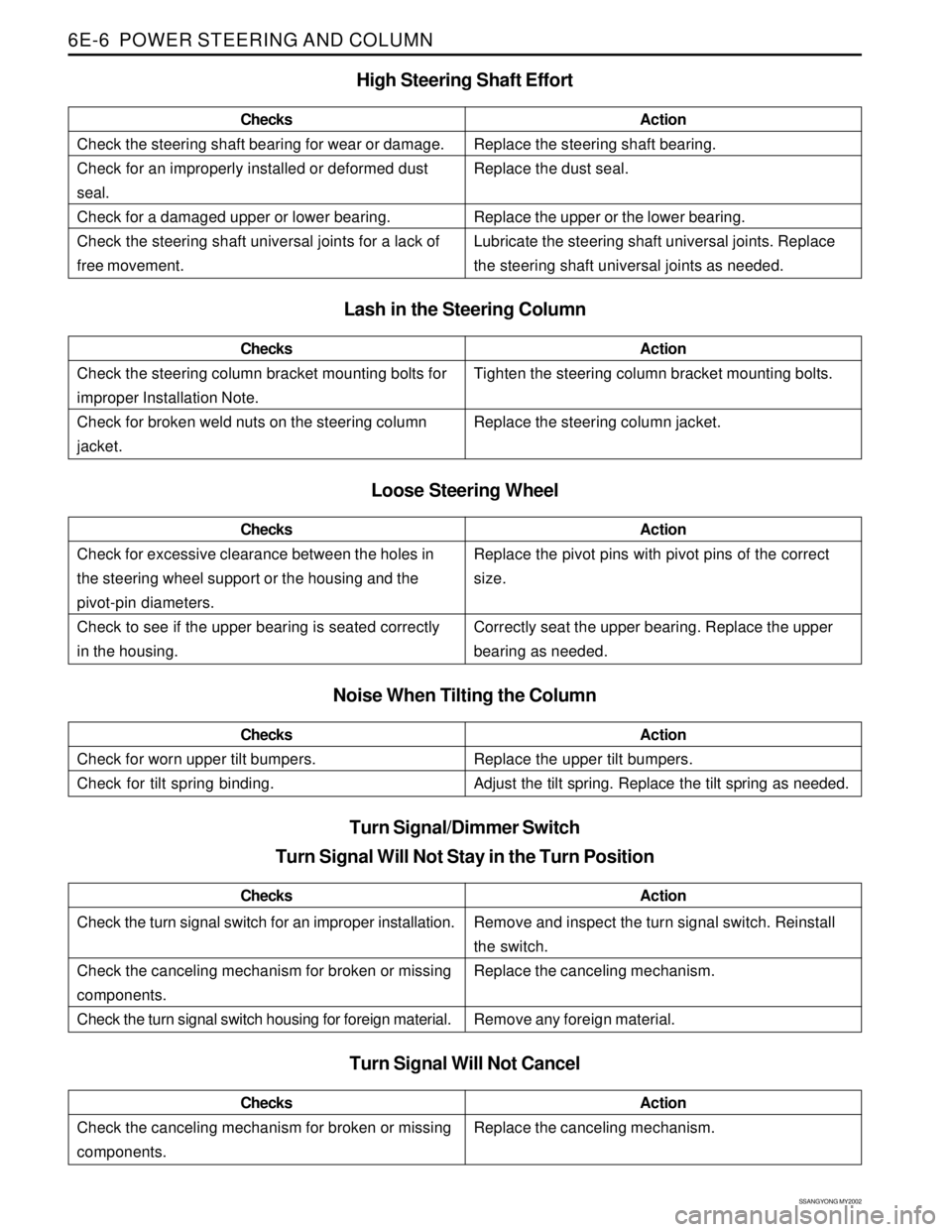

SSANGYONG KORANDO 1997  Service Repair Manual SSANGYONG MY2002
6E-6  POWER STEERING AND COLUMN
Check the steering shaft bearing for wear or damage.
Check for an improperly installed or deformed dust
seal.
Check for a damaged upper or lower bearin

Page 1493 of 2053

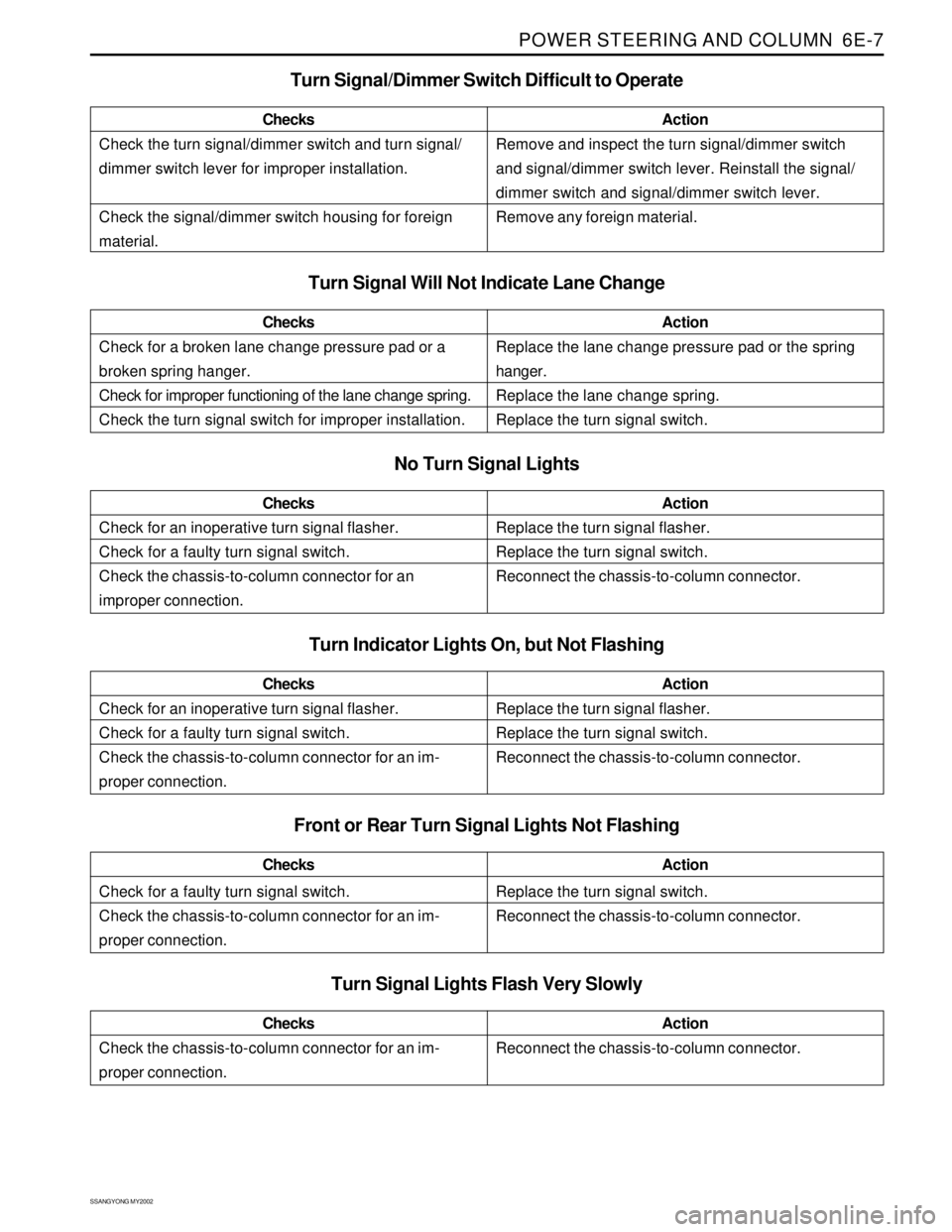

SSANGYONG KORANDO 1997  Service Repair Manual POWER STEERING AND COLUMN  6E-7
SSANGYONG MY2002
Check the turn signal/dimmer switch and turn signal/
dimmer switch lever for improper installation.
Check the signal/dimmer switch housing for foreign

Page 1494 of 2053

SSANGYONG KORANDO 1997  Service Repair Manual SSANGYONG MY2002
6E-8  POWER STEERING AND COLUMN
Check the ignition switch for damage.
Check the ignition switch for improper installation.
Check the ignition switch electrical connector for
improper

Page 1495 of 2053

SSANGYONG KORANDO 1997  Service Repair Manual POWER STEERING AND COLUMN  6E-9
SSANGYONG MY2002
KAA6E060
KAA6E040
ON-VEHICLE SERVICE
HEADLAMP/TURN SIGNAL
SWITCH AND LEVER
Removal and Installation Procedure
1. Disconnect the negative battery cable.

Page 1496 of 2053

SSANGYONG KORANDO 1997  Service Repair Manual SSANGYONG MY2002
6E-10  POWER STEERING AND COLUMN
KAA6E060
KAA6E080
KAA6E070
WIPER SWITCH AND LEVER
Removal and Installation Procedure
1. Disconnect the negative battery cable.
2. Remove the upper and
