FRONT DOOR ASSEMBLY
Removal and Installation Procedure
1. Disconnect the negative battery cable.
2. Remove the door hold open link. Refer to “Door
Hold Open Link” in this section.
3. Disconnect the body to door rubber grommet and
the electrical connector.
4. With the aid of another technician, remove the bolts
and the door.
5. Installation should follow the removal procedure
in the reverse order.
TAIL GATE ASSEMBLY
Removal and Installation Procedure
1. Disconnect the negative battery cable.
2. Remove the door hold open link with the bolt.
3. Disconnect the body to tailgate rubber grommet
and the electrical connector.
4. With the aid of another technician, remove the bolts
and the door.
5. Installation should follow the removal procedure
in the reverse order.
KAA9P090
POWER WINDOW REGULATOR
Removal and Installation Procedure
1. Disconnect the battery cable.
2. Remove the door glass. Refer to Section 9L, Glass
and Mirrors.
3. Remove the nuts and the regulator.
Installation Notice
Dissimilar metals in direct contact with each
other may corrode rapidly. Make sure to use
the correct fasteners to prevent premature
corrosion.
4. Disconnect the electrical connector.
5. Installation should follow the removal procedure
in the reverse order.
Tightening Torque3.92 - 5.49 Nm
(2.92 - 4.08 lb-in)
Page 1826 of 2053

DOORS 9P-9
SSANGYONG MY2002
KAA9P120
KAA9P130
DOOR HOLD OPEN LINK
Removal and Installation Procedure
1. Remove the door trim panel. Refer to Section 9G.
Interior Trim.
2. Remove the bolts on the door and on the body.
3. Remove the door hold open link.
4. Installation should follow the removal procedure
in the reverse order.
DOOR HINGE
Removal and Installation Procedure
1. With the aid of another technician, remove the bolts
and the hinge from the door and the body.
2. Installation should follow the removal procedure
in the reverse order.
OUTSIDE CHANNEL MOLDING
Removal and Installation Procedure
1. Lower the window completely.
2. Remove the outside rearview mirror. Refer to
Section 9L, Glass and Mirror.
3. Remove the screws and the outside channel
molding.
4. Installation should follow the removal procedure
in the reverse order.
KAA9P140
KAA9P150
DOOR WEATHERSTRIP
Removal and Installation Procedure
1. Remove the door weatherstrip.
2. Installation should follow the removal procedure
in the reverse order.
Page 1827 of 2053
SSANGYONG MY2002
9P-10 DOORS
KAA9P160
DOOR SEAL TRIM
Removal and Installation Procedure
1. Remove the door trim panel. Refer to Section 9G,
Interior Trim.
2. Remove the screws and the door pull bracket.
3. Remove the inside door handle. Refer to “inside
door handle” in this section.
4. Remove the door seal trim.
5. Installation should follow the removal procedure
in the reverse order.
Page 1828 of 2053
DOORS 9P-11
SSANGYONG MY2002
SPECIFICATIONS
FASTENER TIGHTENING SPECIFICATIONS
Power Window Regulator Nuts
Door Lock Striker Bolts
Front Door Lock Screw
Outside Door Handle Nuts
Door Hinge Bolts
Door Hold Open LinkApplication
N•m
Lb-FtLb-In
3.92 - 5.49
9.8 - 18.62
6.89 - 9.8
3.92 - 5.49
35.28 - 47.04
13.72 - 25.482.92 - 4.08
7.23 - 13.74
5.06 - 7.23
2.92 - 4.08
26.03 - 34.71
10.12 - 18.0834.71 - 48.60
86.79 - 164.09
60.75 - 86.79
34.71 - 48.60
312.46 - 416.61
121.51 - 225.66
Page 1829 of 2053
SSANGYONG MY2002
9P-12 DOORS
SCHEMATIC AND ROUTING DIAGRAMS
CENTER DOOR LOCK SYSTEM
KAA9P170
Page 1830 of 2053
DOORS 9P-13
SSANGYONG MY2002
POWER WINDOW
KAA9P180
Page 1831 of 2053
DOORS 9P-3
SSANGYONG MY2002

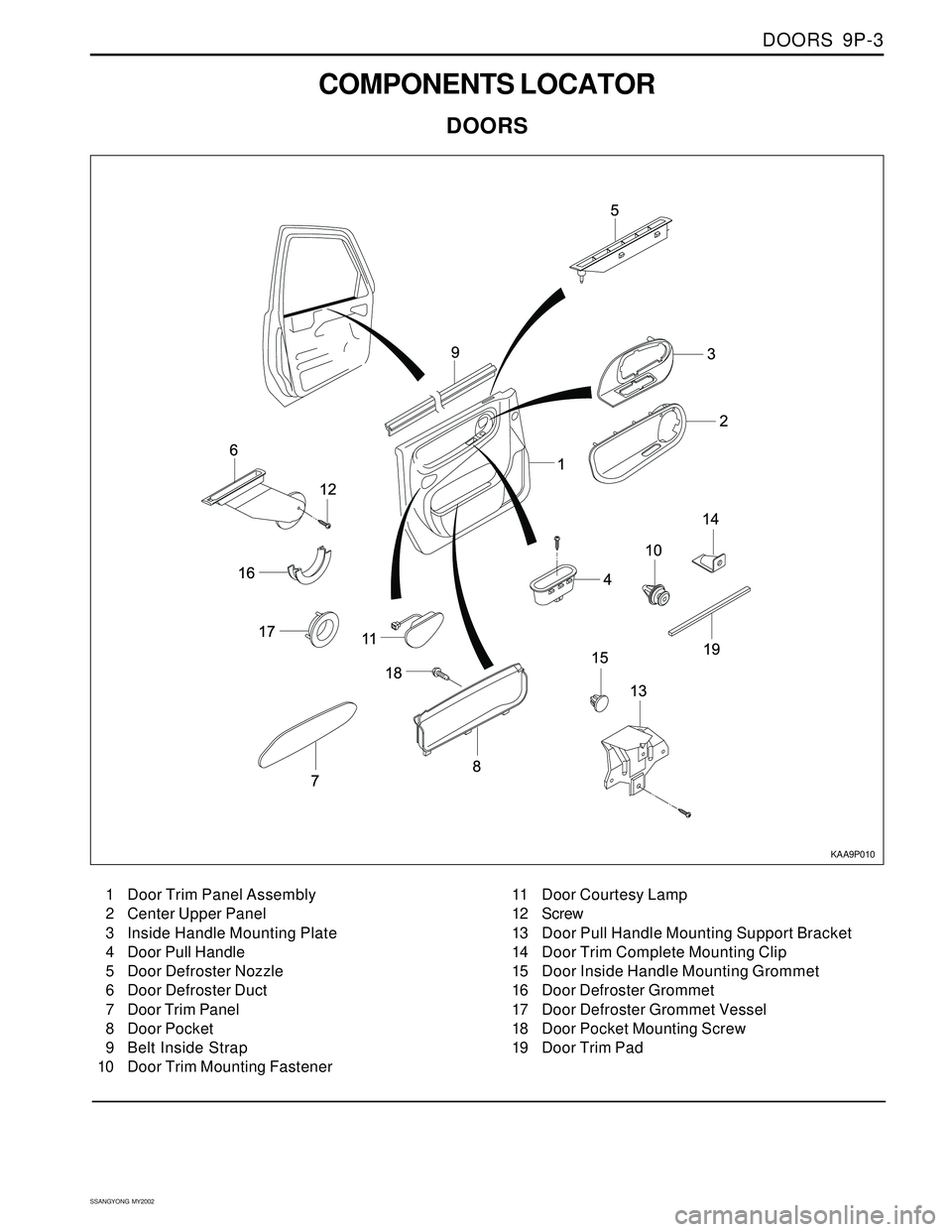

COMPONENTS LOCATOR
DOORS
KAA9P010
1 Door Trim Panel Assembly
2 Center Upper Panel
3 Inside Handle Mounting Plate
4 Door Pull Handle
5 Door Defroster Nozzle
6 Door Defroster Duct
7 Door Trim Panel
8 Door Pocket
9 Belt Inside Strap
10 Door Trim Mounting Fastener11 Door Courtesy Lamp
12 Screw
13 Door Pull Handle Mounting Support Bracket
14 Door Trim Complete Mounting Clip
15 Door Inside Handle Mounting Grommet
16 Door Defroster Grommet
17 Door Defroster Grommet Vessel
18 Door Pocket Mounting Screw
19 Door Trim Pad
Page 1832 of 2053
SECTION 9Q
ROOF
CAUTION: Disconnect the negative battery cable before removing or installing any electrical unit or when a
tool or equipment could easily come in contact with exposed electrical terminals. Disconnecting this cable
will help prevent personal injury and damage to the vehicle. The ignition must also be in LOCK unless
otherwise noted.
TABLE OF CONTENTS
Description and Operation..................................9Q-2
Sunvisors ...........................................................9Q-2
Cat Hook............................................................9Q-2
Components Locator ...........................................9Q-3
Roof...................................................................9Q-3Unit Repair...........................................................9Q-4
Formed Headliner...............................................9Q-4
Sun Visors..........................................................9Q-4
