SSANGYONG KORANDO 1997 Service Repair Manual SSANGYONG MY2002 7A-20 HEATING AND VENTILATION SYSTEM MODE CONTROL DOOR ACTUATOR Removal and installation Procedure 1. Disconnect the negative battery cable. 2. Remove the driver knee bolster. Refer

Page 1522 of 2053

SSANGYONG KORANDO 1997 Service Repair Manual HEATING AND VENTILATION SYSTEM 7A-21 SSANGYONG MY2002 8. Remove one bolt, one nut and two screws that se- curing the heater/air distributor case-to-blower unit duct. 9. Remove the heater/air distrib

Page 1523 of 2053

SSANGYONG KORANDO 1997 Service Repair Manual SSANGYONG MY2002 7A-22 HEATING AND VENTILATION SYSTEM 7. Installation should follow the removal procedure in the reverse order. Installation Notice: After install the blower motor confirm that the b

Page 1524 of 2053

SSANGYONG KORANDO 1997 Service Repair Manual HEATING AND VENTILATION SYSTEM 7A-23 SSANGYONG MY2002 HEATER INLET HOSE Removal and Installation Procedures 1. Partially drain the cooling system. Refer to Section 1D, Engine Cooling. 2. Remove the

Page 1525 of 2053

SSANGYONG KORANDO 1997 Service Repair Manual SSANGYONG MY2002 7A-24 HEATING AND VENTILATION SYSTEM HEATER CORE Removal and Installation Procedures 1. Disconnect the negative battery cable. 2. Remove the heater/air distribution case from the ve

Page 1526 of 2053

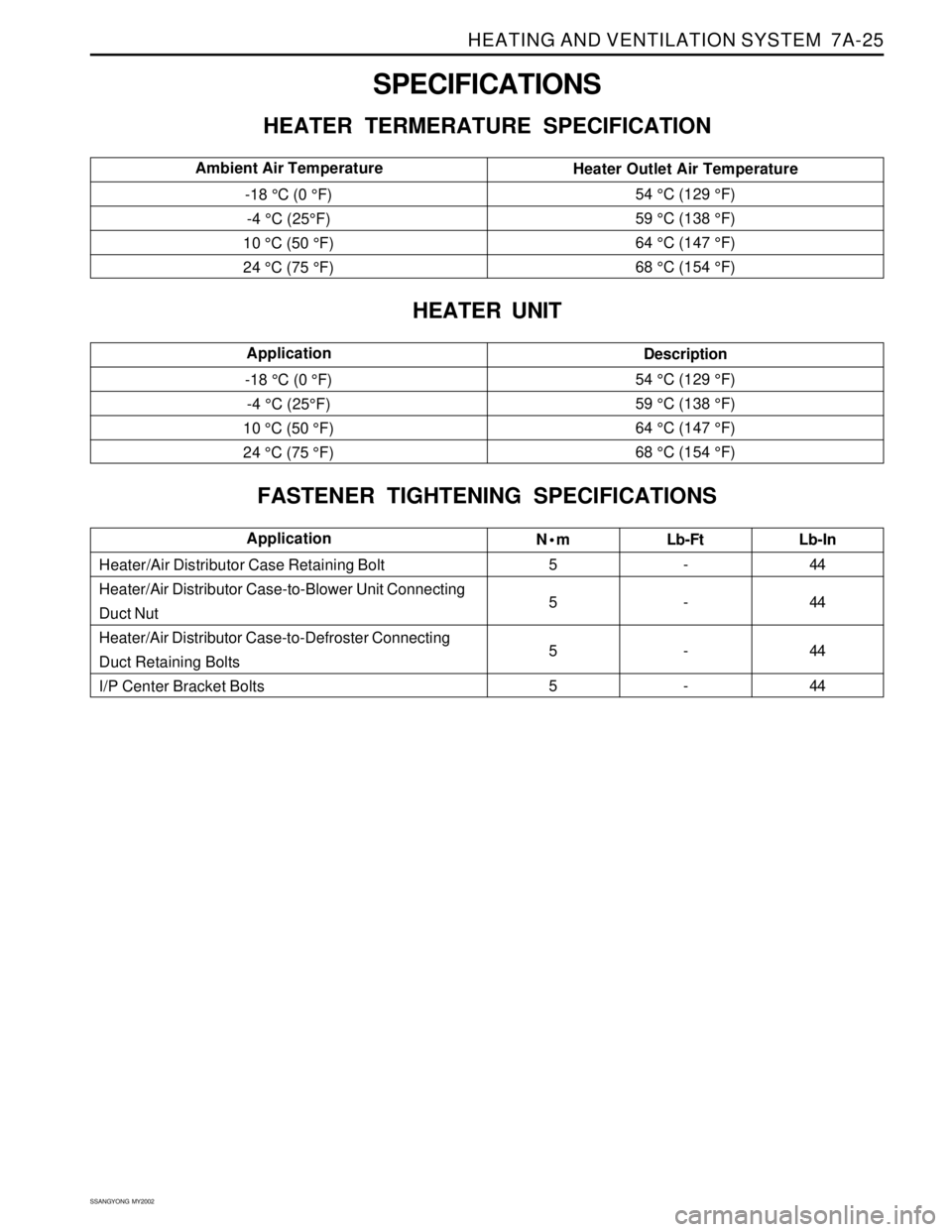

SSANGYONG KORANDO 1997 Service Repair Manual HEATING AND VENTILATION SYSTEM 7A-25 SSANGYONG MY2002 SPECIFICATIONS HEATER TERMERATURE SPECIFICATION Nm 5 5 5 5Lb-Ft - - - - Heater/Air Distributor Case Retaining Bolt Heater/Air Distributor Case-

Page 1527 of 2053

SSANGYONG KORANDO 1997 Service Repair Manual SSANGYONG MY2002 7A-26 HEATING AND VENTILATION SYSTEM NON-A/C WIRING DIAGRAMS (1 OF 2) SCHEMATIC AND ROUTING DIAGRAMS KAA7A200

Page 1528 of 2053

SSANGYONG KORANDO 1997 Service Repair Manual HEATING AND VENTILATION SYSTEM 7A-27 SSANGYONG MY2002 NON-A/C WIRING DIAGRAMS (2 OF 2) KAA7A210
