Page 1353 of 2053

SSANGYONG KORANDO 1997 Service Repair Manual MANUAL TRANSMISSION 5B-45 SSANGYONG MY2002 YAD5B1C0 INSPECTION OF COMPONENTS Inspection Procedure 1. Clean all parts with solvent and dry them with compressed air. Check the following parts for crac

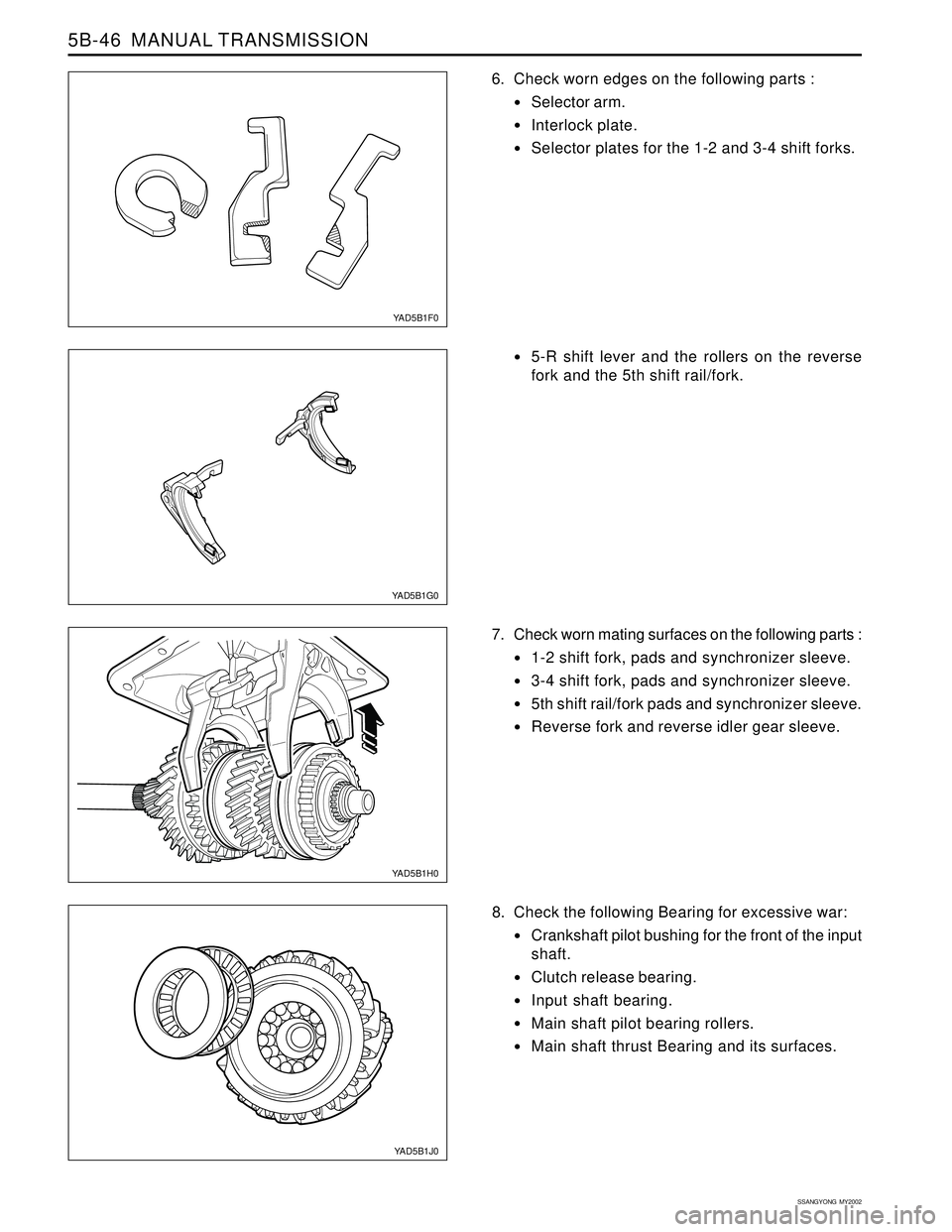

Page 1354 of 2053

SSANGYONG KORANDO 1997 Service Repair Manual SSANGYONG MY2002 5B-46 MANUAL TRANSMISSION 8. Check the following Bearing for excessive war: Crankshaft pilot bushing for the front of the input shaft. Clutch release bearing. Input shaft bearing

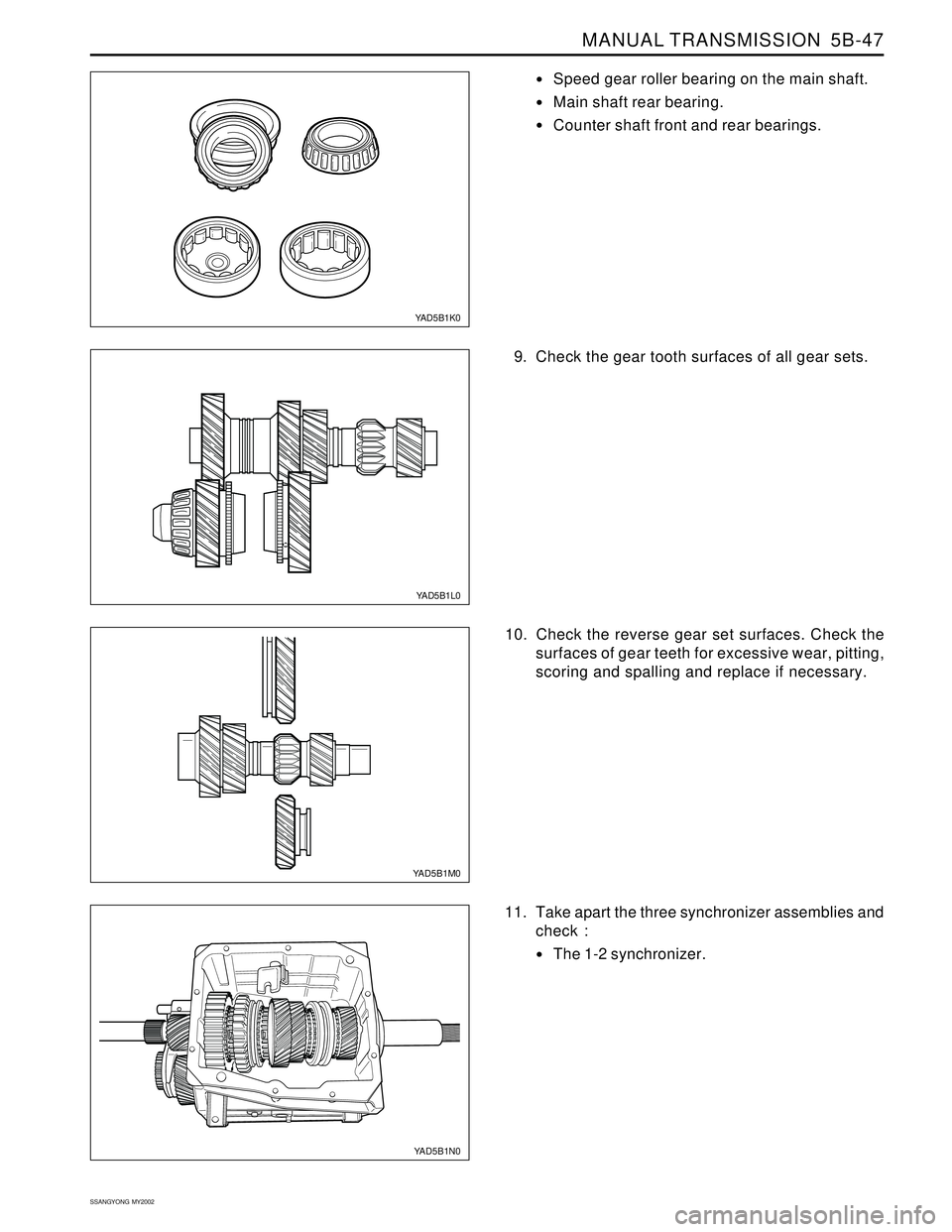

Page 1355 of 2053

SSANGYONG KORANDO 1997 Service Repair Manual MANUAL TRANSMISSION 5B-47 SSANGYONG MY2002 YAD5B1K0 YAD5B1M0 Speed gear roller bearing on the main shaft. Main shaft rear bearing. Counter shaft front and rear bearings. YAD5B1L0 9. Check the gea

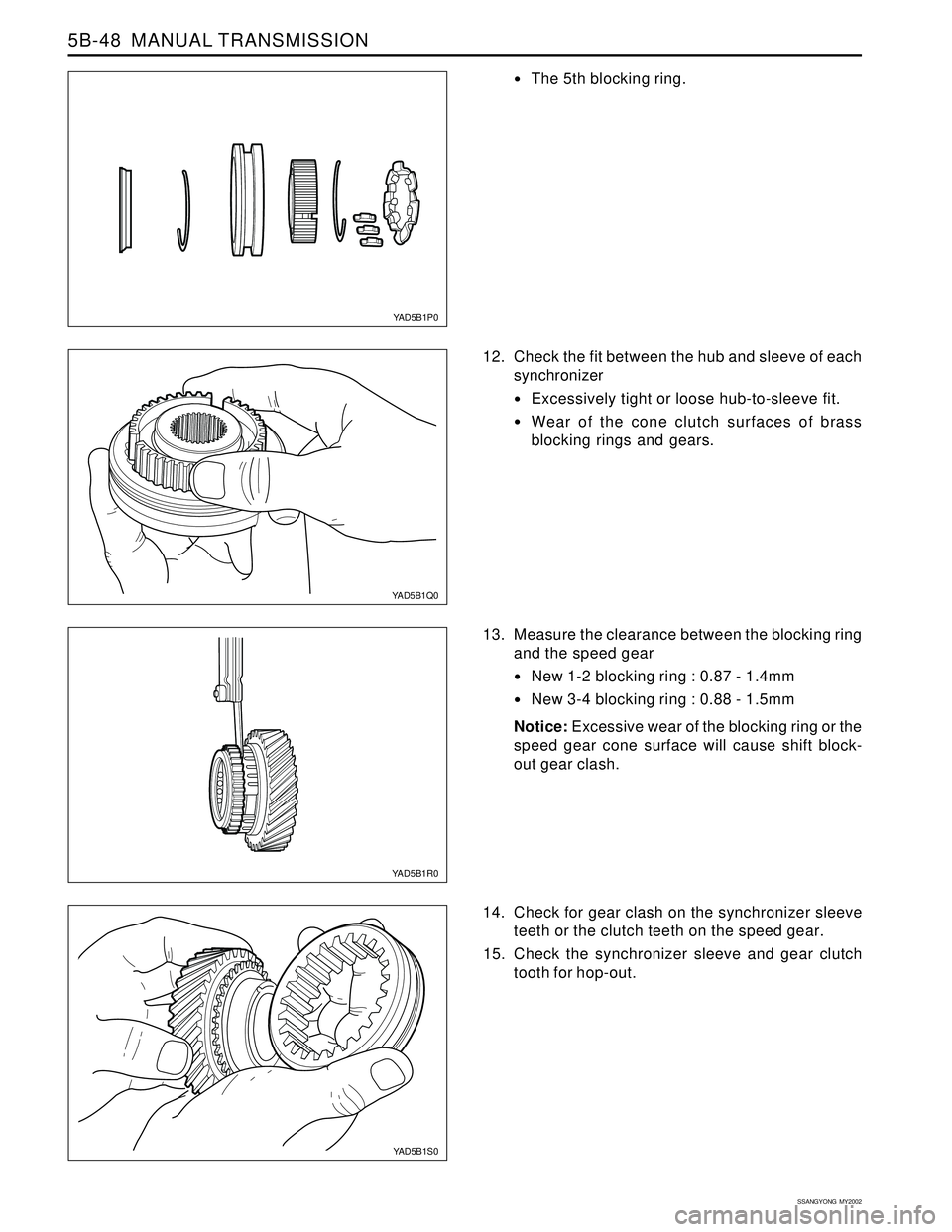

Page 1356 of 2053

SSANGYONG KORANDO 1997 Service Repair Manual SSANGYONG MY2002 5B-48 MANUAL TRANSMISSION 14. Check for gear clash on the synchronizer sleeve teeth or the clutch teeth on the speed gear. 15. Check the synchronizer sleeve and gear clutch tooth fo

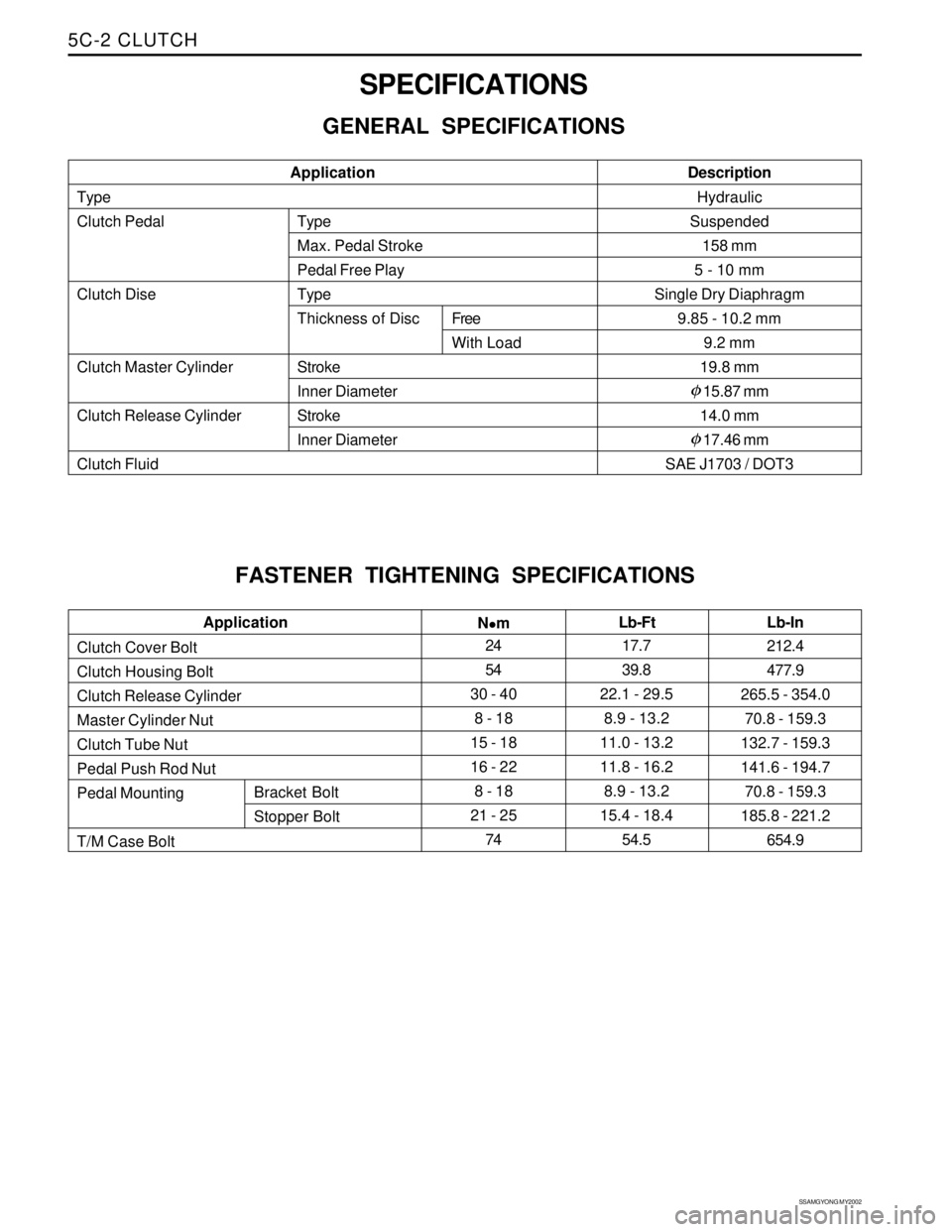

Page 1357 of 2053

SSANGYONG KORANDO 1997 Service Repair Manual Specifications.......................................................5C-2 General Specifications.........................................5C-2 Fastener Tightening Specifications.......................5

Page 1358 of 2053

SSANGYONG KORANDO 1997 Service Repair Manual SSAMGYONG MY2002 5C-2 CLUTCH Clutch Cover Bolt Clutch Housing Bolt Clutch Release Cylinder Master Cylinder Nut Clutch Tube Nut Pedal Push Rod Nut Pedal Mounting T/M Case BoltBracket Bolt Stopper Bolt2

Page 1359 of 2053

SSANGYONG KORANDO 1997 Service Repair Manual CLUTCH 5C-3 SSANGYONG MY2002 1 Clutch Disc 2 Clutch Cover 3 Clutch Housing 4 Release Bearing 5 Release Fork Pivot 6 Release Cylinder 7 Release Fork Boot COMPONENT LOCATOR CLUTCH ASSEMBLY 8 Bolt 9 Rele

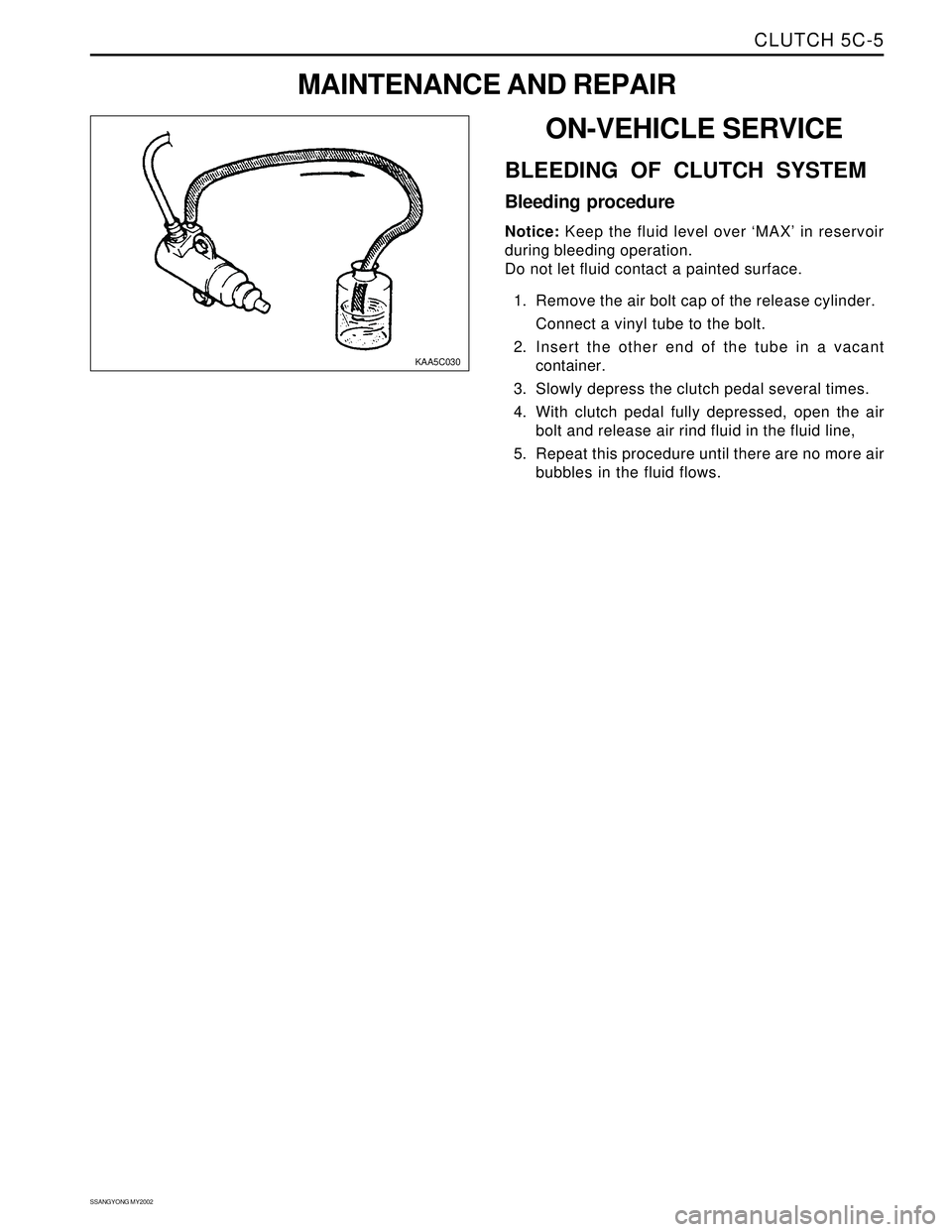

Page 1360 of 2053

SSANGYONG KORANDO 1997 Service Repair Manual CLUTCH 5C-5 SSANGYONG MY2002 ON-VEHICLE SERVICE BLEEDING OF CLUTCH SYSTEM Bleeding procedure Notice: Keep the fluid level over ‘MAX’ in reservoir during bleeding operation. Do not let fluid contac
