SSANGYONG KORANDO 1997 Service Repair Manual SSANGYONG MY2002
7C-24 MANUAL & SEMIAUTO-HVAC
KAA7C290
1 Blower Switch
2 Recirculation Switch
3 Mode Switch4 A/C Switch
5 Temperature Control Lever
6 In-vehicle Sensor
HEATER AND AIR CONDITIONER CON

Page 1554 of 2053

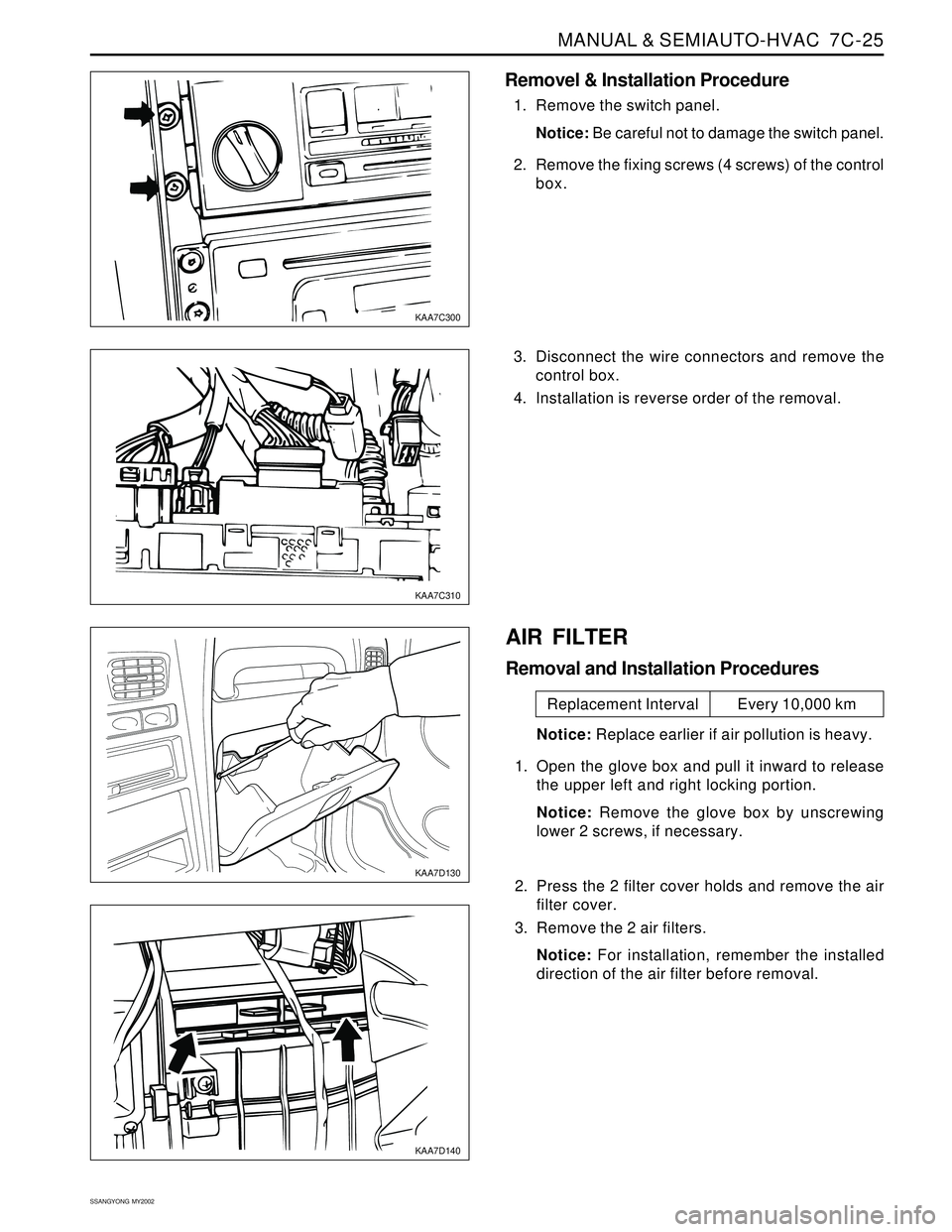

SSANGYONG KORANDO 1997 Service Repair Manual MANUAL & SEMIAUTO-HVAC 7C-25
SSANGYONG MY2002
KAA7C300
KAA7C310
Removel & Installation Procedure
1. Remove the switch panel.
Notice: Be careful not to damage the switch panel.
2. Remove the fixing s

Page 1555 of 2053

SSANGYONG KORANDO 1997 Service Repair Manual SECTION 7D
FULL AUTOMATIC TEMPERATURE
CONTROL HEATING, VENTILATION AND
AIR CONDITIONING SYSTEM
FATC (Full Automatic Temperature Control) is full automatic heater and airconditioning system that d

SECTION 7D
FULL AUTOMATIC TEMPERATURE
CONTROL HEATING, VENTILATION AND
AIR CONDITIONING SYSTEM
FATC (Full Automatic Temperature Control) is full automatic heater and airconditioning system that detects
incar temperature, ambient temperature, sun load and coolant temperature and controls airconditioner
system blowing capacity, outlet temperature and intaking/outlet mode to maintain interior comfort.
TABLE OF CONTENTS
Specifications.......................................................7D-2
Refrigerant..........................................................7D-2
Evaporator Unit....................................................7D-2
Blower Unit..........................................................7D-2
Compressor.........................................................7D-2
Condenser...........................................................7D-2
Receiver Drier......................................................7D-2
Pressure Switch...................................................7D-3
Air Filter...............................................................7D-3
Heater Unit..........................................................7D-3
Service Specifications ..........................................7D-4
Fastener Tightening Specifications.......................7D-4Schematic and Routing Diagrams.......................7D-5
Circuit Diagram....................................................7D-5
FATC Block Diagram...........................................7D-6
Component Locator.............................................7D-7
Ventilation System...............................................7D-7
Function Description............................................7D-8
Diagnosis..............................................................7D-9
Diagnosis Test.....................................................7D-9
Maintenance and Repair................................... 7D-13
FATC Control Panel............................................ 7D-13
Air Filter............................................................. 7D-16
Troubleshooting................................................. 7D-17

Page 1556 of 2053

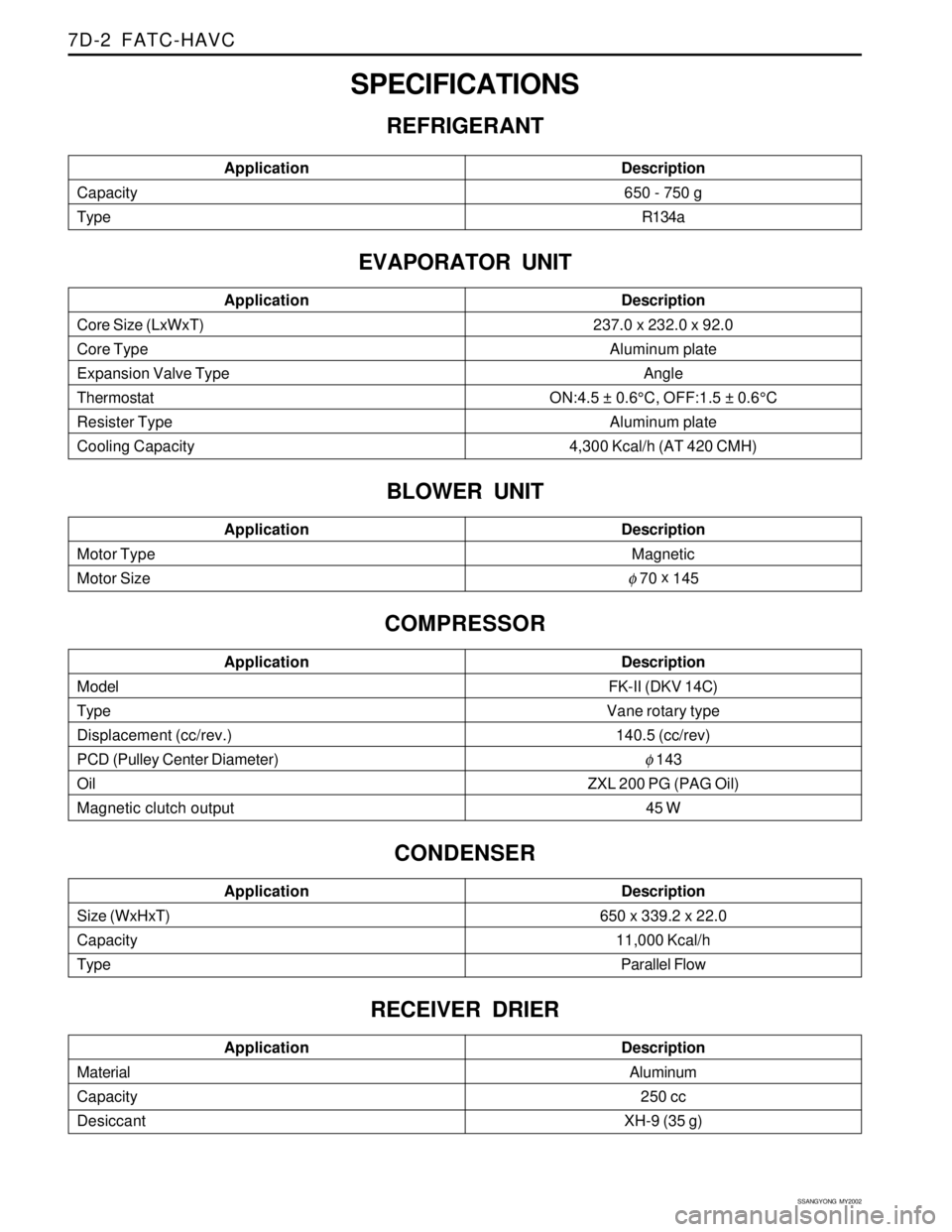

SSANGYONG KORANDO 1997 Service Repair Manual SSANGYONG MY2002
7D-2 FATC-HAVC
SPECIFICATIONS
REFRIGERANT
Core Size (LxWxT)
Core Type
Expansion Valve Type
Thermostat
Resister Type
Cooling CapacityApplicationDescription237.0 x 232.0 x 92.0
Alumin

Page 1557 of 2053

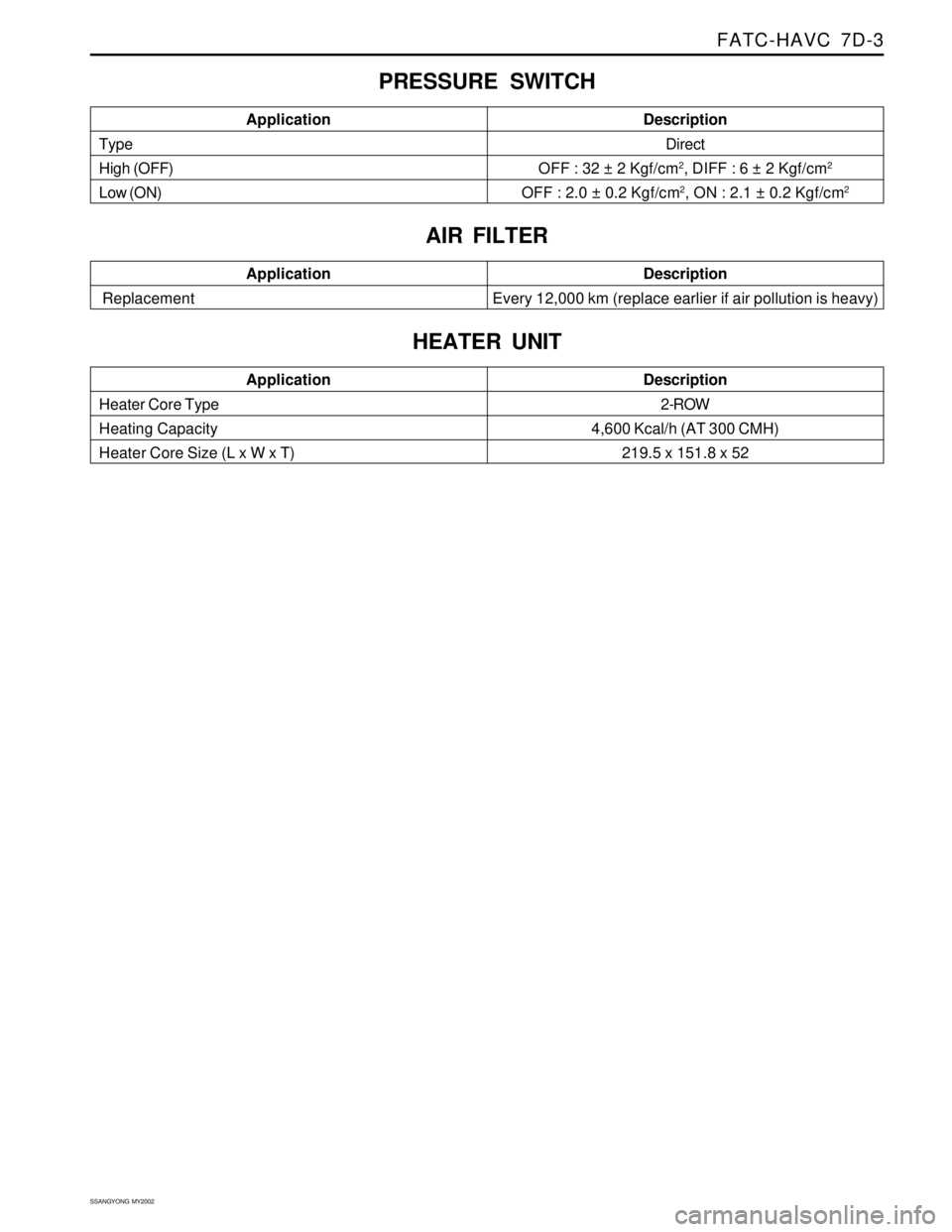

SSANGYONG KORANDO 1997 Service Repair Manual FATC-HAVC 7D-3
SSANGYONG MY2002
PRESSURE SWITCH
Type
High (OFF)
Low (ON)ApplicationDescriptionDirect
OFF : 32 ± 2 Kgf/cm
2, DIFF : 6 ± 2 Kgf/cm2
OFF : 2.0 ± 0.2 Kgf/cm2, ON : 2.1 ± 0.2 Kgf/cm2
A

Page 1558 of 2053

SSANGYONG KORANDO 1997 Service Repair Manual SSANGYONG MY2002
7D-4 FATC-HAVC
SERVICE SPECIFICATIONS
Input Section
Incar Sensor
Ambient Sensor
Coolant Temperature SensorApplicationDescriptionResistance (25°C)
Voltage Rating
Current Rating
Resi

Page 1559 of 2053

SSANGYONG KORANDO 1997 Service Repair Manual FATC-HAVC 7D-5
SSANGYONG MY2002
SCHEMATIC AND ROUTING DIAGRAMS
CIRCUIT DIAGRAM
KAA7D010

Page 1560 of 2053

SSANGYONG KORANDO 1997 Service Repair Manual SSANGYONG MY2002
7D-6 FATC-HAVC
FATC BLOCK DIAGRAM
INCAR SENSOR
AMBIENT SENSOR
WATER TEMPERATURE SENSOR
SUN LOAD SENSOR
TEMPERATURE SWITCH
BLOWER SWITCH
MODE SWITCH
DEFROSTER SWITCH
INTAKE SWITCH
AU
