Page 969 of 2053

SSANGYONG KORANDO 1997 Service Repair Manual REAR BRAKES 4E-9 SSANGYONG MY2002 YAD4C050 DISC BRAKE 1 Backing Plate 2 Parking Cable 3 Parking Cable Lever 4 Caliper Assembly5 Disc 6 Wheel 7 Air Bleeder Nipple 9 Shaft Assembly

Page 970 of 2053

SSANGYONG KORANDO 1997 Service Repair Manual SSANGYONG MY2002 4E-10 REAR BRAKES YAD4C280 COMPONENT LOCATOR DRUM BRAKE 1 Bleeder Screw 2 Bleeder Screw Cap 3 Rear Brake Assembly 4 Rear Brake Plate 5 Wheel Cylinder 6 Strut Assembly (Clearance Auto

Page 971 of 2053

SSANGYONG KORANDO 1997 Service Repair Manual REAR BRAKES 4E-11 SSANGYONG MY2002 YAD4C110 DISC BRAKE 1 Rear brake disc assembly 2 Brake pad 3 Brake caliper 4 Gasket...................................................Replace 5 Bolt................

Page 972 of 2053

SSANGYONG KORANDO 1997 Service Repair Manual SSANGYONG MY2002 4E-12 REAR BRAKES ON-VEHICLE SERVICE DISC BRAKE ASSEMBLY Removal Procedure 1. Remove the rear wheel. Notice: Park the vehicle on the flat ground and fix the vehicle not to move it.

Page 973 of 2053

SSANGYONG KORANDO 1997 Service Repair Manual REAR BRAKES 4E-13 SSANGYONG MY2002 5. Disconnect the parking brake cable from the parking brake lever. 6. Remove the brake disc. 7. Using the rubber hammer, hit to separate the parking brake lining l

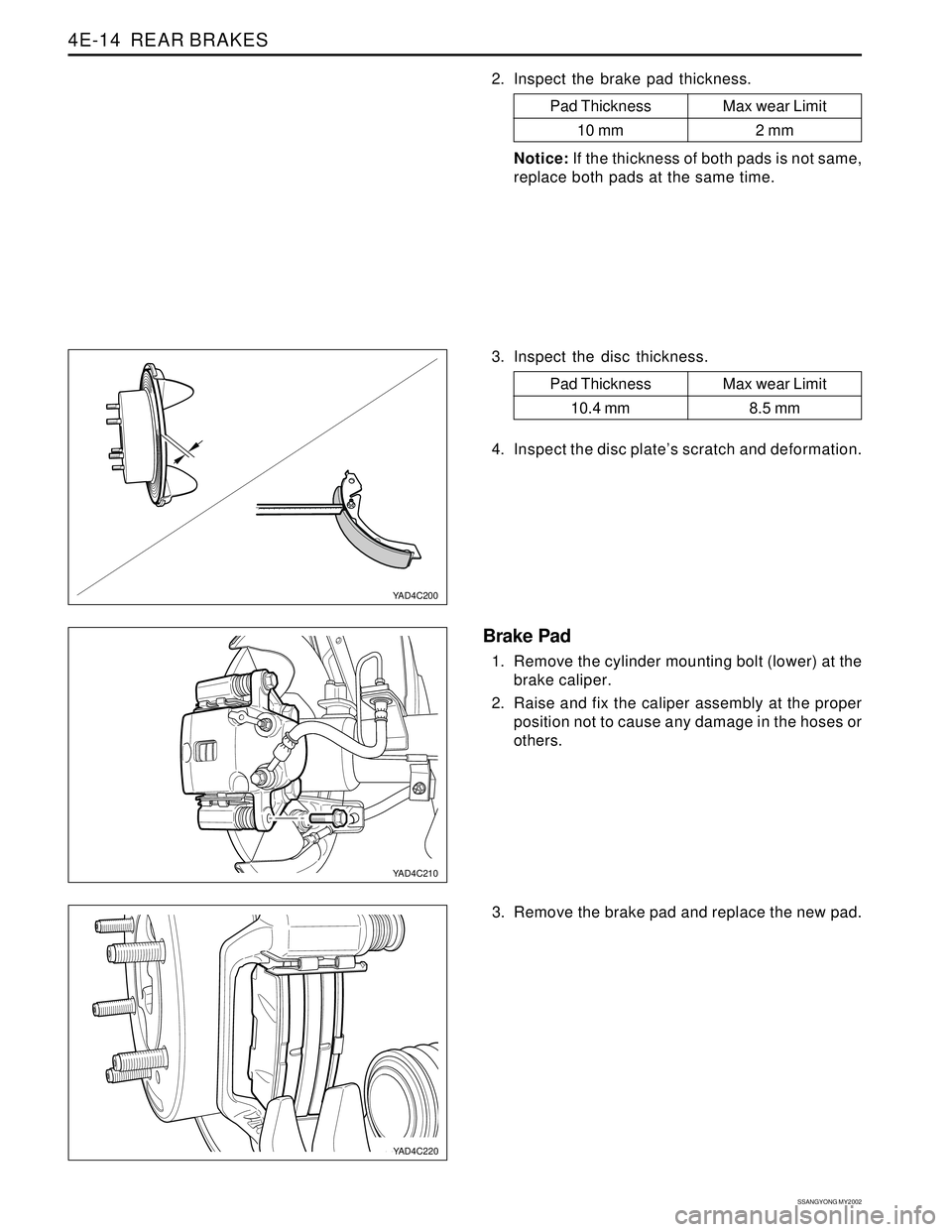

Page 974 of 2053

SSANGYONG KORANDO 1997 Service Repair Manual SSANGYONG MY2002 4E-14 REAR BRAKES 2. Inspect the brake pad thickness. Pad Thickness 10 mmMax wear Limit 2 mm Notice: If the thickness of both pads is not same, replace both pads at the same time. 3.

Page 975 of 2053

SSANGYONG KORANDO 1997 Service Repair Manual REAR BRAKES 4E-15 SSANGYONG MY2002 4. Install the caliper cylinder assembly and tighten the retaining bolt. Installation Procedure 1. Install the brake lining between the backing plate and the flange

Page 976 of 2053

SSANGYONG KORANDO 1997 Service Repair Manual SSANGYONG MY2002 4E-16 REAR BRAKES 4. Install the brake hose. Notice: The washer should be replaced new part. 5. Tighten the air bleeder screw. Installation Notice Tightening Torque7 - 13 Nm (62 - 1
