Page 1753 of 2053

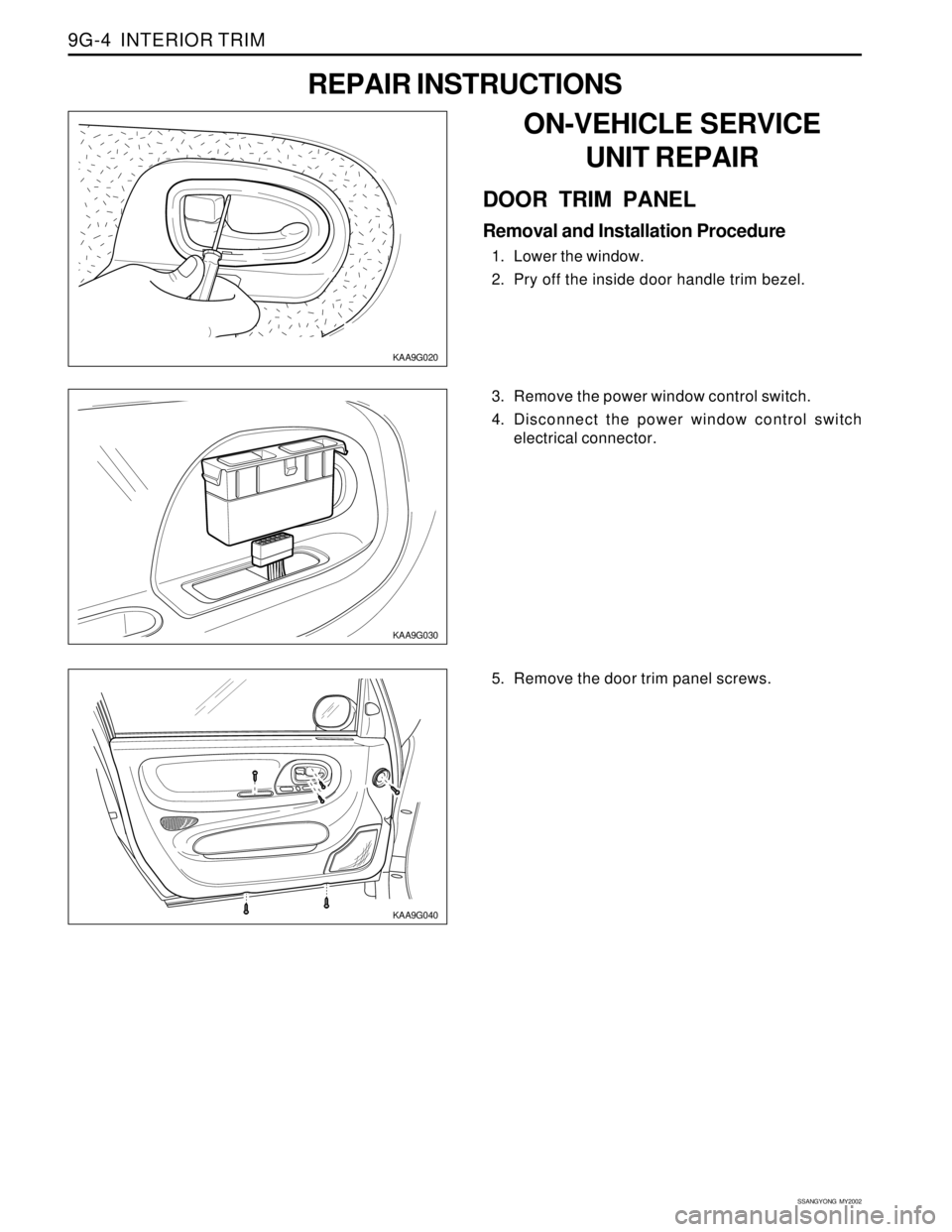

SSANGYONG KORANDO 1997 Service Repair Manual SSANGYONG MY2002 9G-4 INTERIOR TRIM ���� ���� ���� ���� yyyy yyyy yyyy yyyy KAA9G030 KAA9G040 3. Remove the power window control switch. 4. Disconnect the power window control switch electrical conn

Page 1754 of 2053

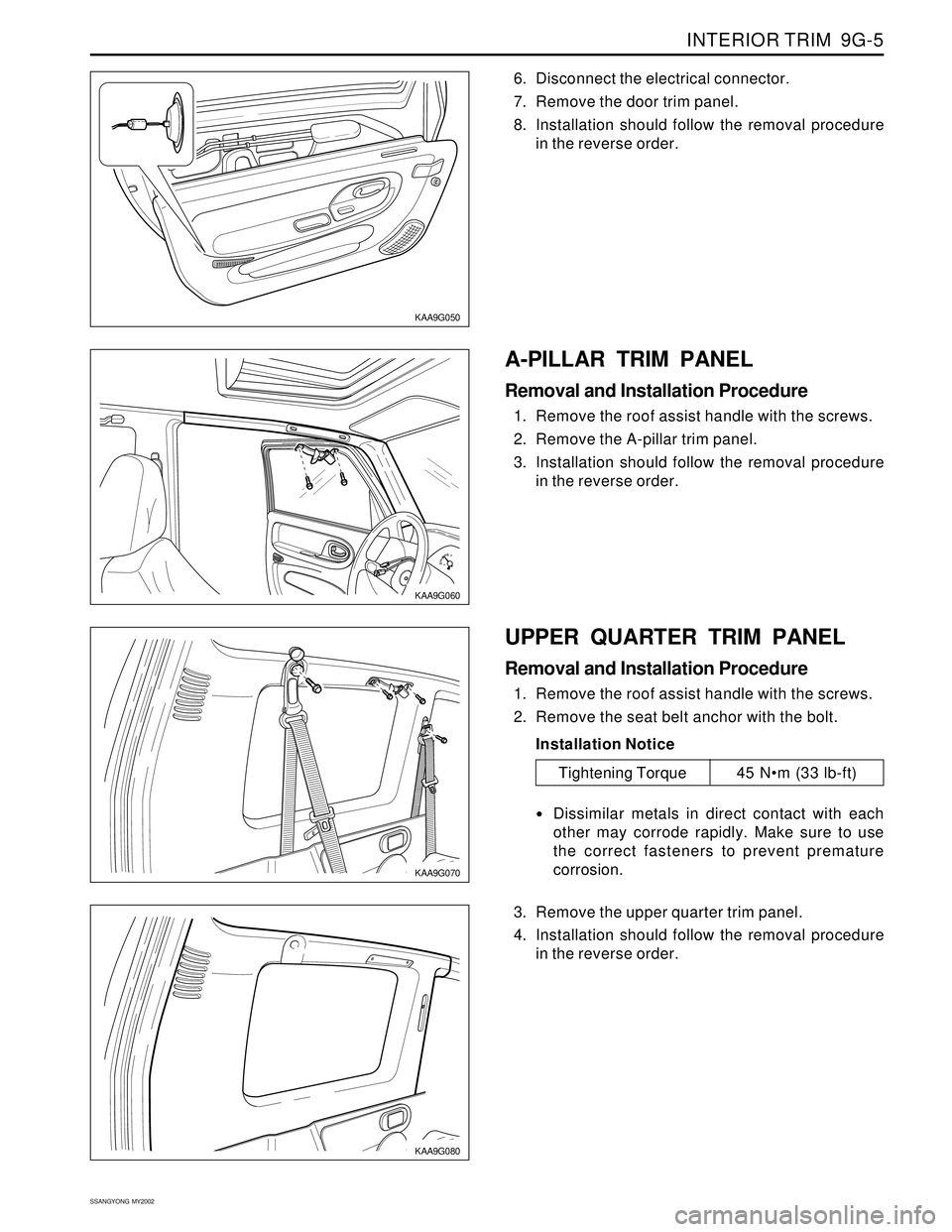

SSANGYONG KORANDO 1997 Service Repair Manual INTERIOR TRIM 9G-5 SSANGYONG MY2002 EF KAA9G060 KAA9G050 A-PILLAR TRIM PANEL Removal and Installation Procedure 1. Remove the roof assist handle with the screws. 2. Remove the A-pillar trim panel. 3

Page 1755 of 2053

SSANGYONG KORANDO 1997 Service Repair Manual SSANGYONG MY2002 9G-6 INTERIOR TRIM � � � y y y KAA9G100 KAA9G090 2. Remove the armrest. Refer to Section 9H “SEATS”. 3. Remove the ashtray and compartment lamp from lower quarter trim panel. 4.

Page 1756 of 2053

SSANGYONG KORANDO 1997 Service Repair Manual INTERIOR TRIM 9G-7 SSANGYONG MY2002 KAA9G140 KAA9G130 FLOOR CONSOLE Removal and Installation Procedure 1. Remove the screws. 2. Remove the floor console. 3. Disconnect the electrical connector. 4. I

Page 1757 of 2053

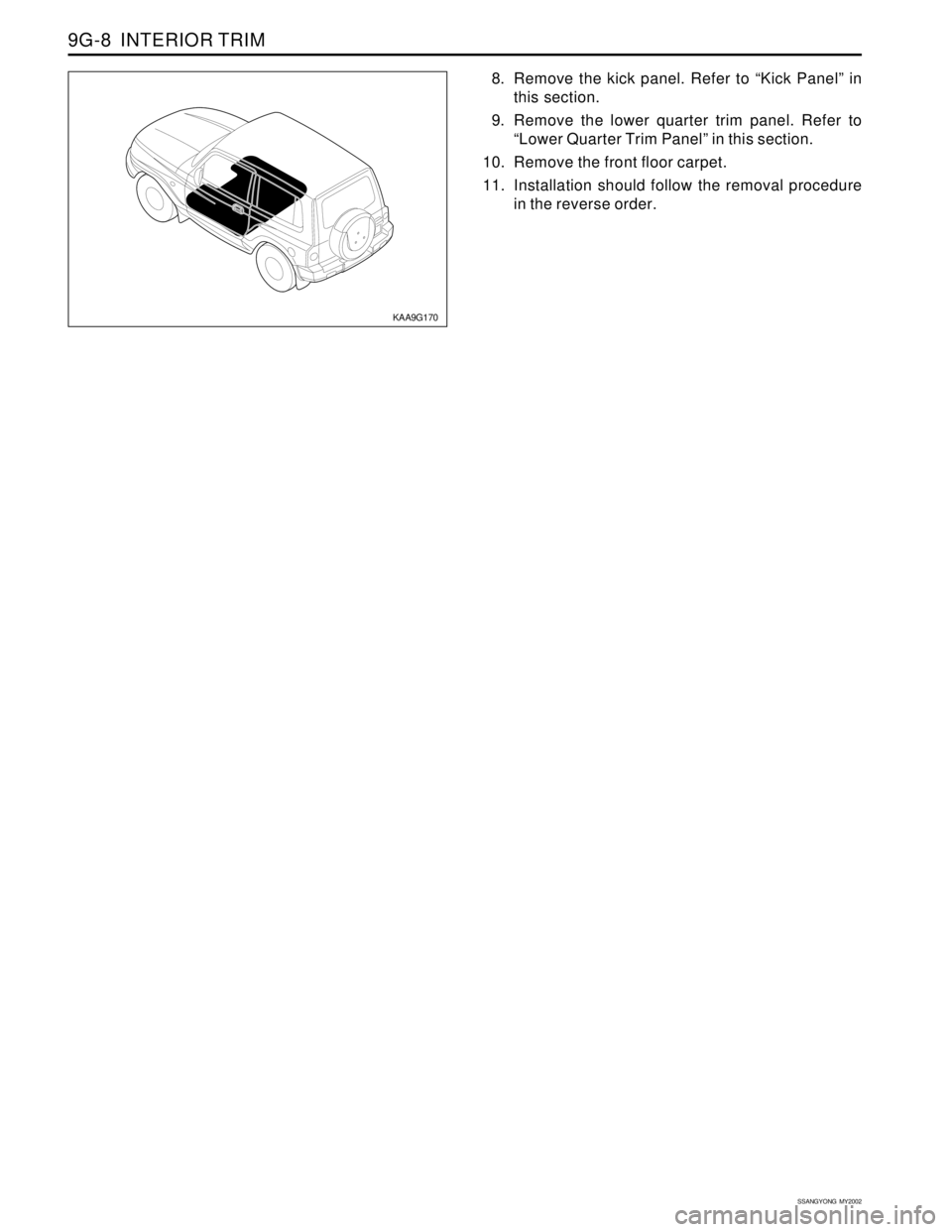

SSANGYONG KORANDO 1997 Service Repair Manual SSANGYONG MY2002 9G-8 INTERIOR TRIM KAA9G170 8. Remove the kick panel. Refer to “Kick Panel” in this section. 9. Remove the lower quarter trim panel. Refer to “Lower Quarter Trim Panel” in t

Page 1758 of 2053

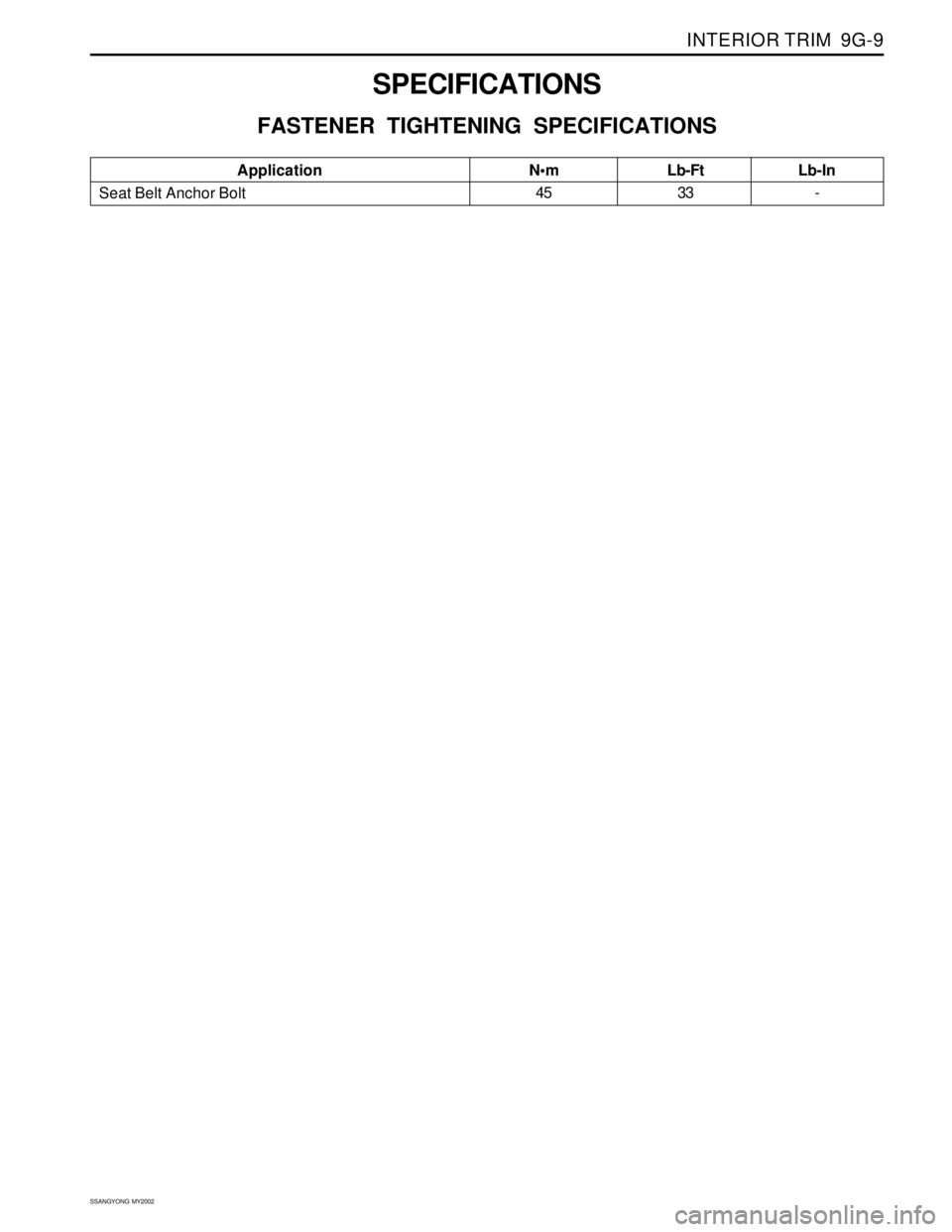

SSANGYONG KORANDO 1997 Service Repair Manual INTERIOR TRIM 9G-9 SSANGYONG MY2002 Seat Belt Anchor BoltApplication N•m Lb-FtLb-In SPECIFICATIONS FASTENER TIGHTENING SPECIFICATIONS 45 33 -

Page 1759 of 2053

SSANGYONG KORANDO 1997 Service Repair Manual SECTION 9H SEATS TABLE OF CONTENTS Components Locator............................................9H-2 Seats ...................................................................9H-2 Repair Instructions.

Page 1760 of 2053

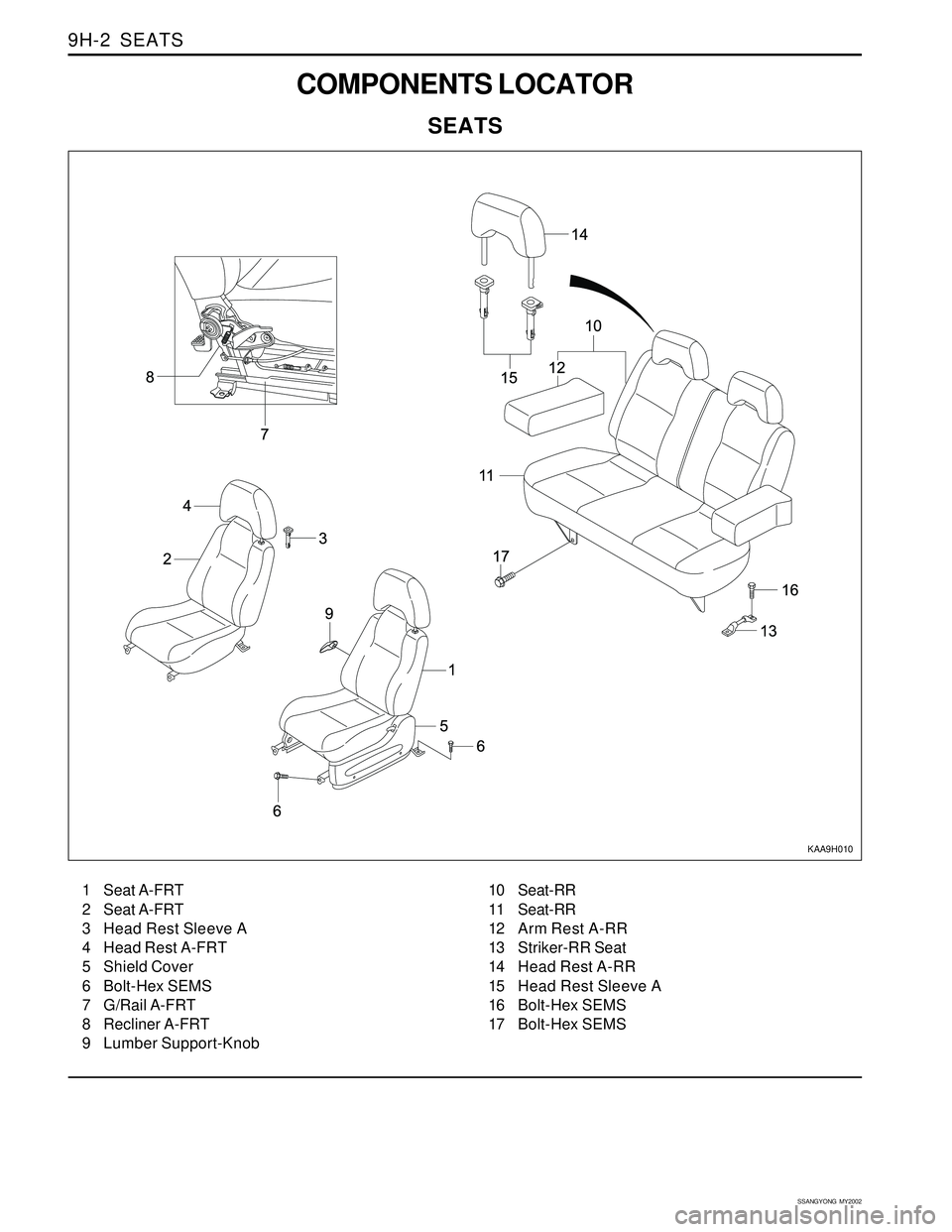

SSANGYONG KORANDO 1997 Service Repair Manual SSANGYONG MY2002 9H-2 SEATS COMPONENTS LOCATOR SEATS 1 Seat A-FRT 2 Seat A-FRT 3 Head Rest Sleeve A 4 Head Rest A-FRT 5 Shield Cover 6 Bolt-Hex SEMS 7 G/Rail A-FRT 8 Recliner A-FRT 9 Lumber Support-
