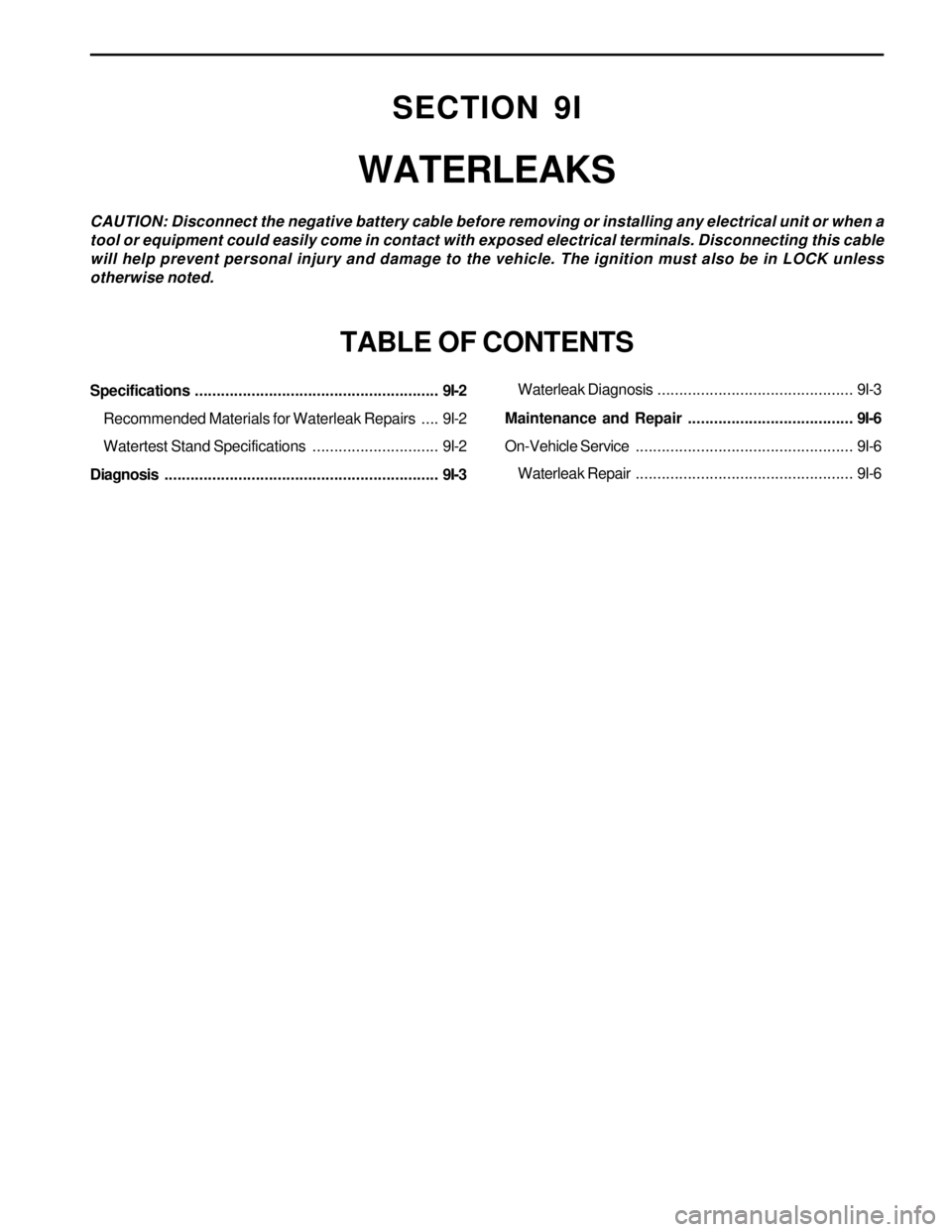

Page 1769 of 2053

SSANGYONG KORANDO 1997 Service Repair Manual SECTION 9I WATERLEAKS CAUTION: Disconnect the negative battery cable before removing or installing any electrical unit or when a tool or equipment could easily come in contact with exposed electrical

Page 1770 of 2053

SSANGYONG KORANDO 1997 Service Repair Manual SSANGYONG MY2002 9I-2 WATERLEAKS Description SPECIFICATIONS RECOMMENDED MATERIALS FOR WATERLEAK REPAIRS WATERTEST STAND SPECIFICATIONS Windshield, back window Metal joints Ventilation ducts Small cr

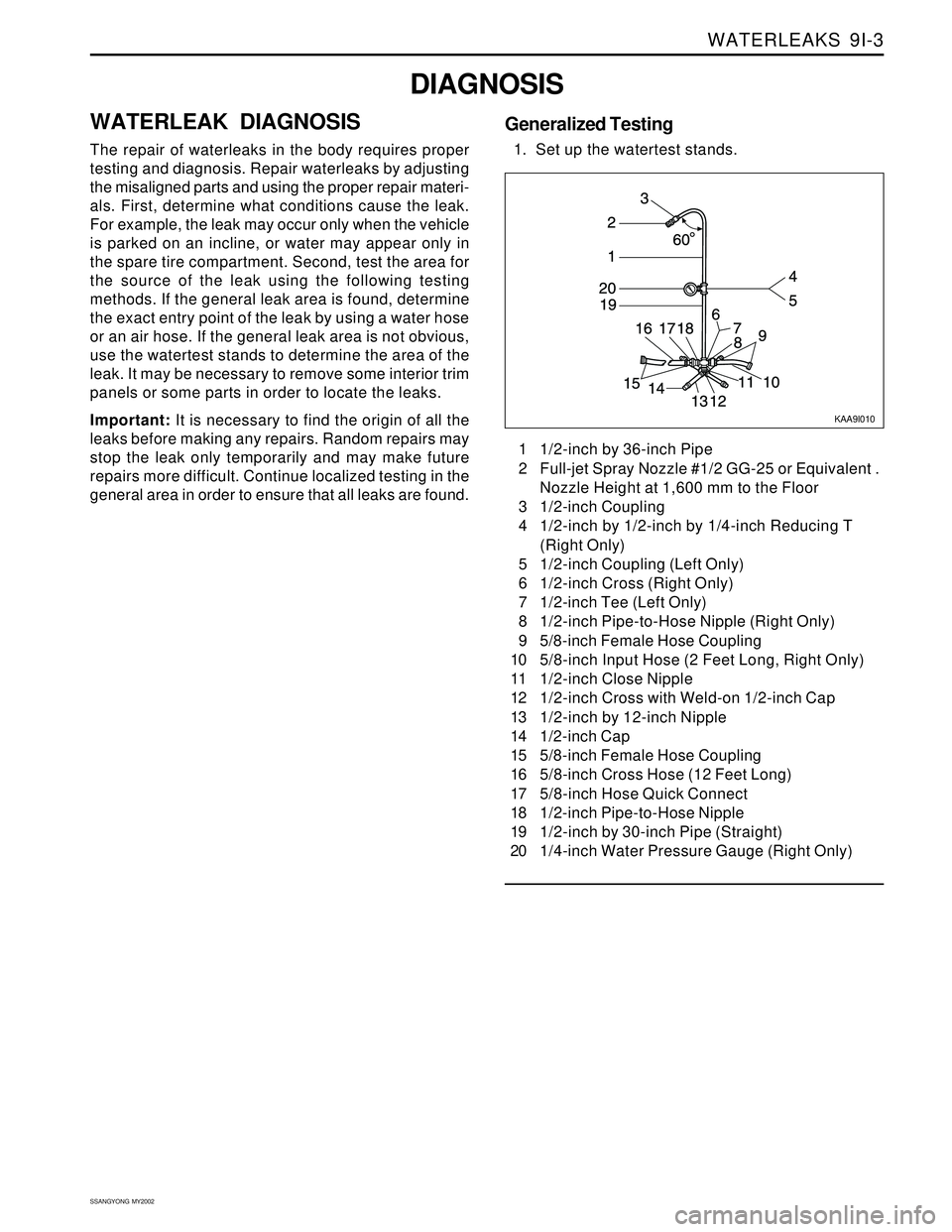

Page 1771 of 2053

SSANGYONG KORANDO 1997 Service Repair Manual WATERLEAKS 9I-3 SSANGYONG MY2002 DIAGNOSIS WATERLEAK DIAGNOSIS The repair of waterleaks in the body requires proper testing and diagnosis. Repair waterleaks by adjusting the misaligned parts and usi

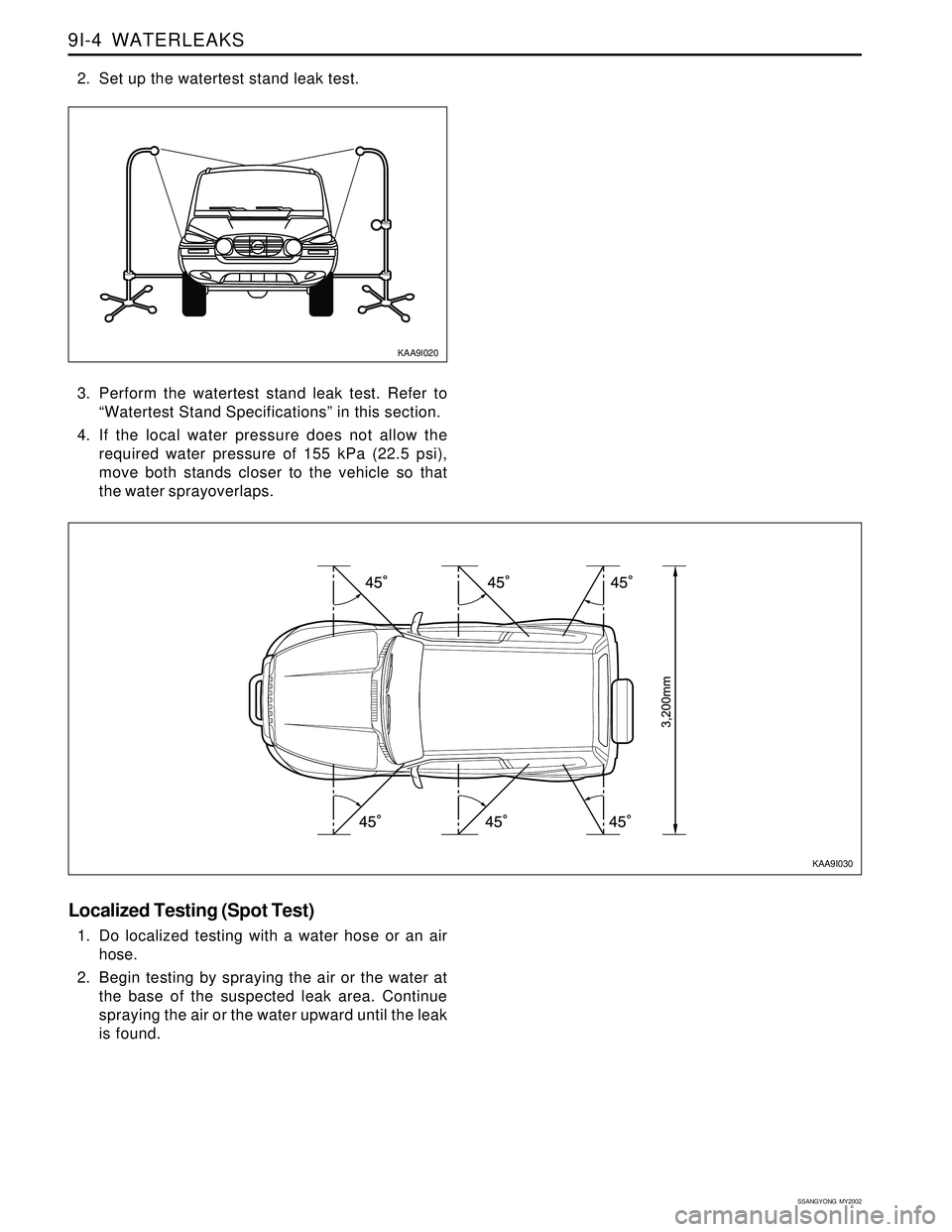

Page 1772 of 2053

SSANGYONG KORANDO 1997 Service Repair Manual SSANGYONG MY2002 9I-4 WATERLEAKS 3. Perform the watertest stand leak test. Refer to “Watertest Stand Specifications” in this section. 4. If the local water pressure does not allow the required w

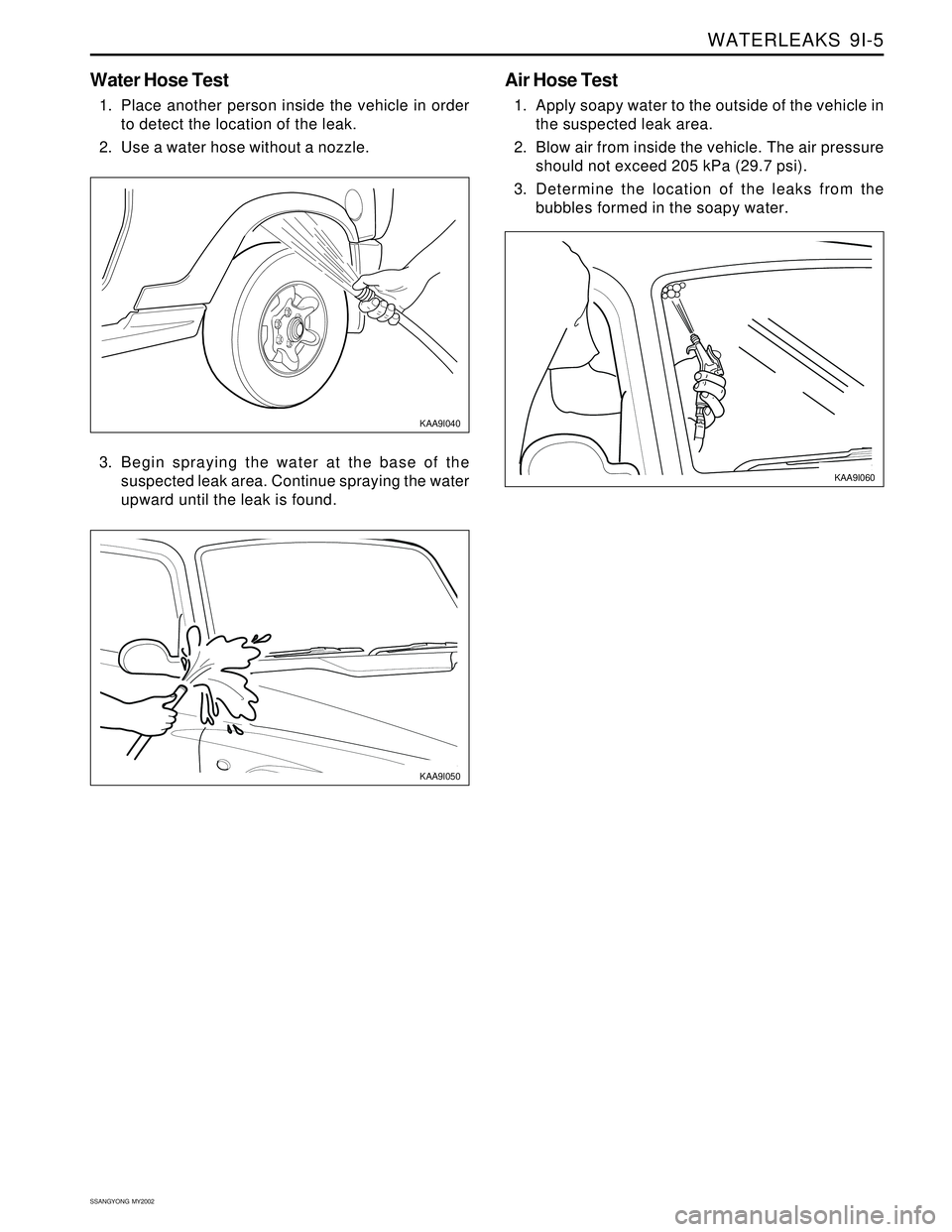

Page 1773 of 2053

SSANGYONG KORANDO 1997 Service Repair Manual WATERLEAKS 9I-5 SSANGYONG MY2002 Water Hose Test 1. Place another person inside the vehicle in order to detect the location of the leak. 2. Use a water hose without a nozzle. KAA9I040 KAA9I050 KAA9I

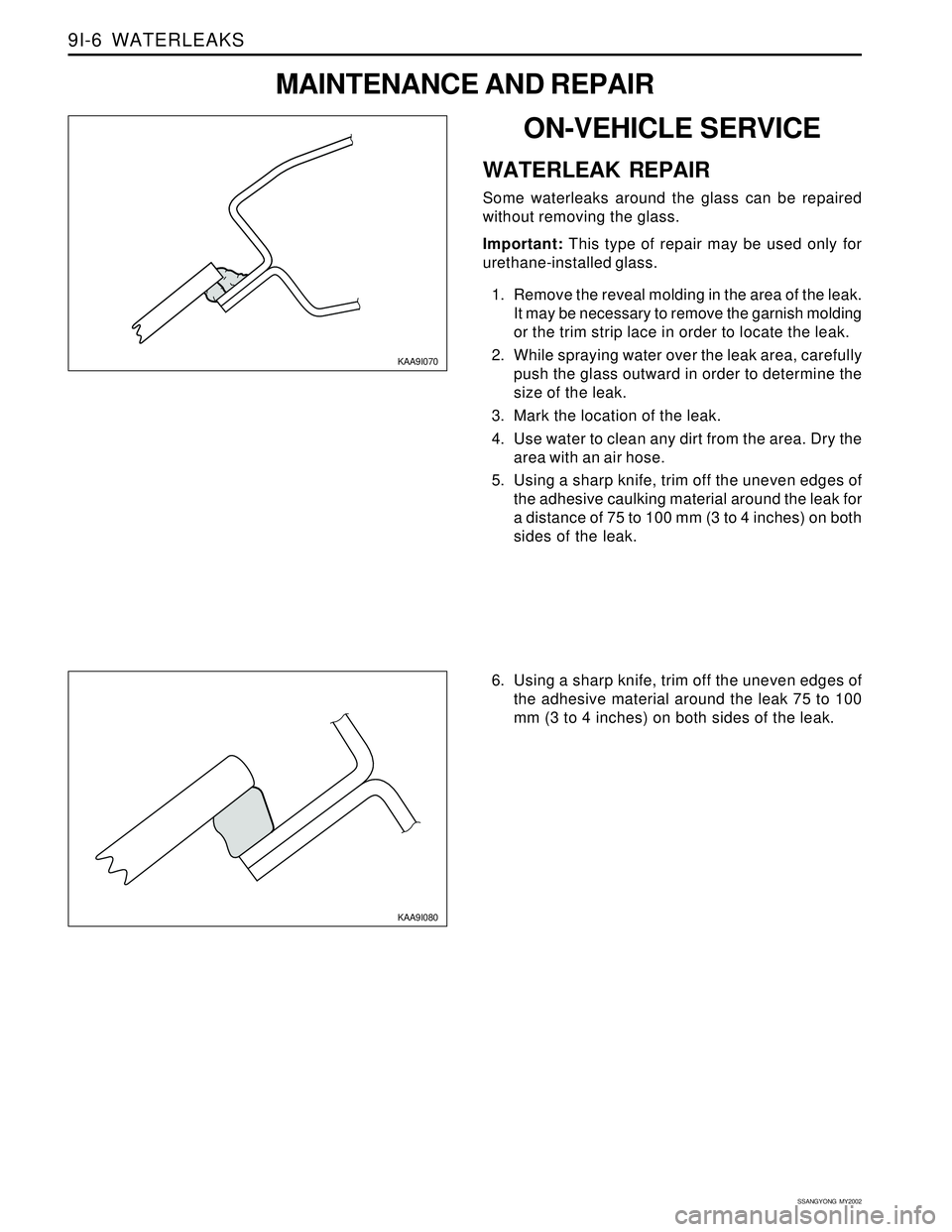

Page 1774 of 2053

SSANGYONG KORANDO 1997 Service Repair Manual SSANGYONG MY2002 9I-6 WATERLEAKS KAA9I080 6. Using a sharp knife, trim off the uneven edges of the adhesive material around the leak 75 to 100 mm (3 to 4 inches) on both sides of the leak. KAA9I070

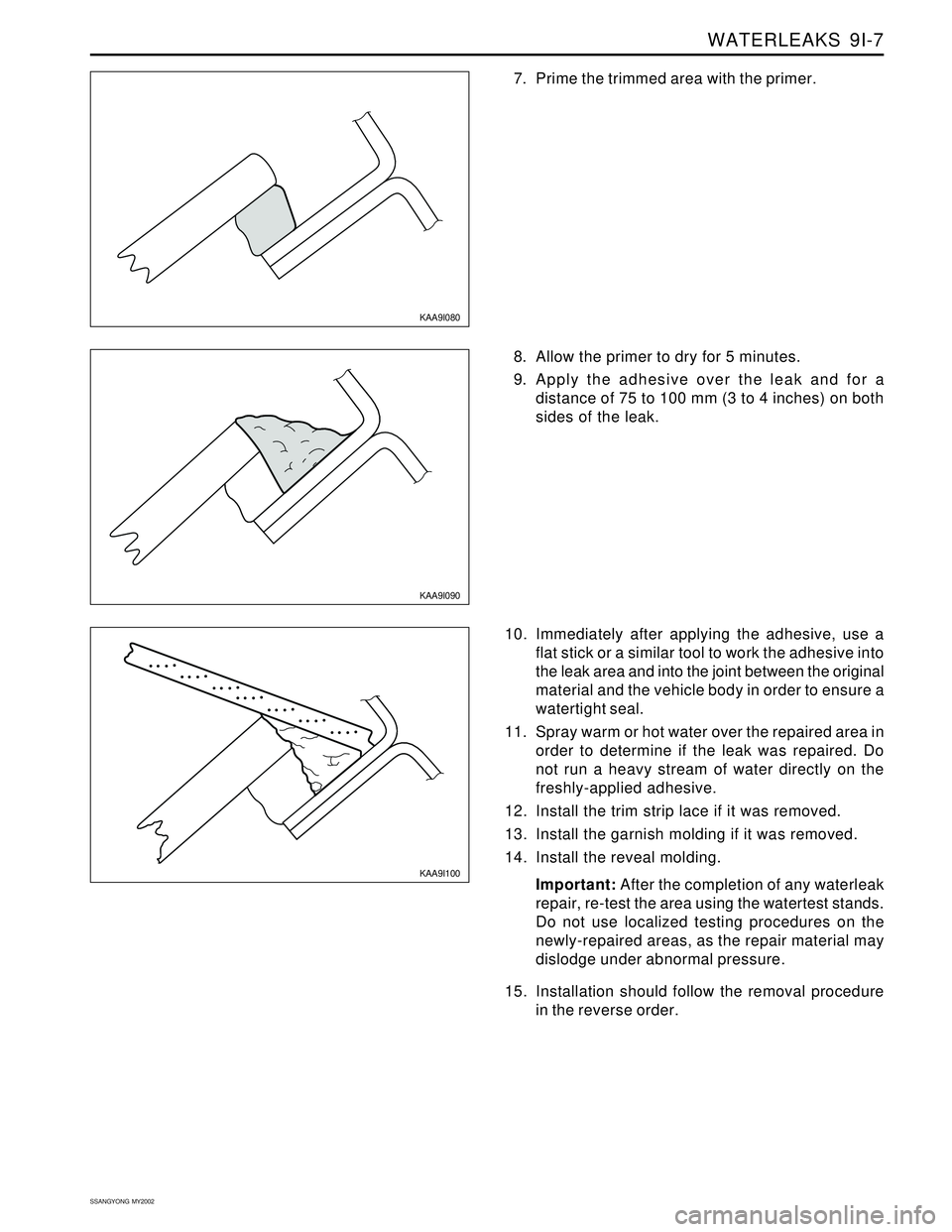

Page 1775 of 2053

SSANGYONG KORANDO 1997 Service Repair Manual WATERLEAKS 9I-7 SSANGYONG MY2002 KAA9I090 KAA9I100 8. Allow the primer to dry for 5 minutes. 9. Apply the adhesive over the leak and for a distance of 75 to 100 mm (3 to 4 inches) on both sides of t

Page 1776 of 2053

SSANGYONG KORANDO 1997 Service Repair Manual SECTION 9J WINDNOISE TABLE OF CONTENTS Diagnosis..............................................................9J-2 Windnoise Diagnosis ...........................................9J-2Maintenance and Re
