Page 1321 of 2053

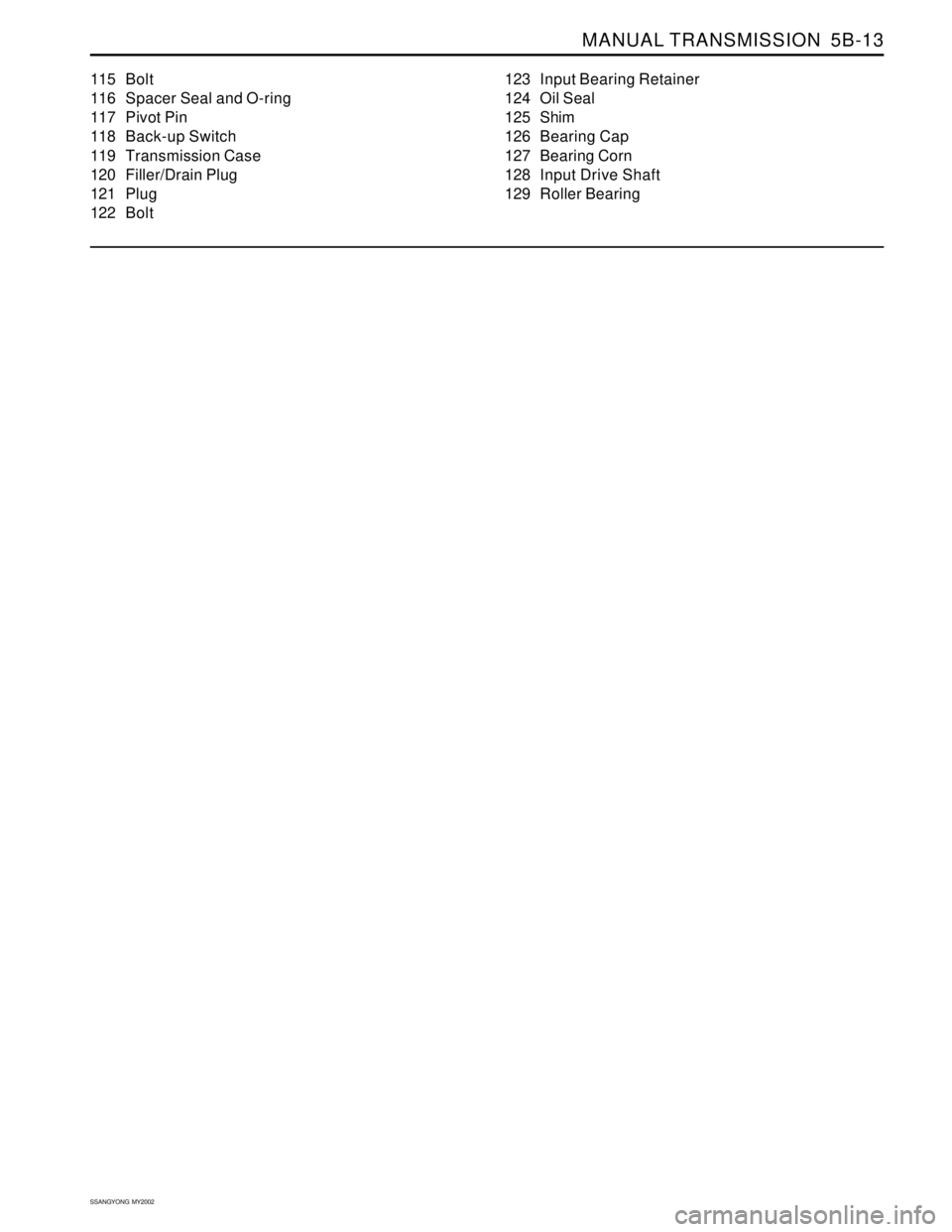

SSANGYONG KORANDO 1997 Service Repair Manual MANUAL TRANSMISSION 5B-13 SSANGYONG MY2002 115 Bolt 116 Spacer Seal and O-ring 117 Pivot Pin 118 Back-up Switch 119 Transmission Case 120 Filler/Drain Plug 121 Plug 122 Bolt123 Input Bearing Retaine

Page 1322 of 2053

SSANGYONG KORANDO 1997 Service Repair Manual SSANGYONG MY2002 5B-14 MANUAL TRANSMISSION ON-VEHICLE SERVICE SEMI-REMOTE KIT Removal Procedure 1. Remove the control housing arm insulator from the semi-remote kit. YAD5B120 YAD5B140 YAD5B130 2. Re

Page 1323 of 2053

SSANGYONG KORANDO 1997 Service Repair Manual MANUAL TRANSMISSION 5B-15 SSANGYONG MY2002 6. Push down the socket lining’s wing from the control housing arm and disconnect the socket lining and shift lever from the semi-remote kit. YAD5B160 YA

Page 1324 of 2053

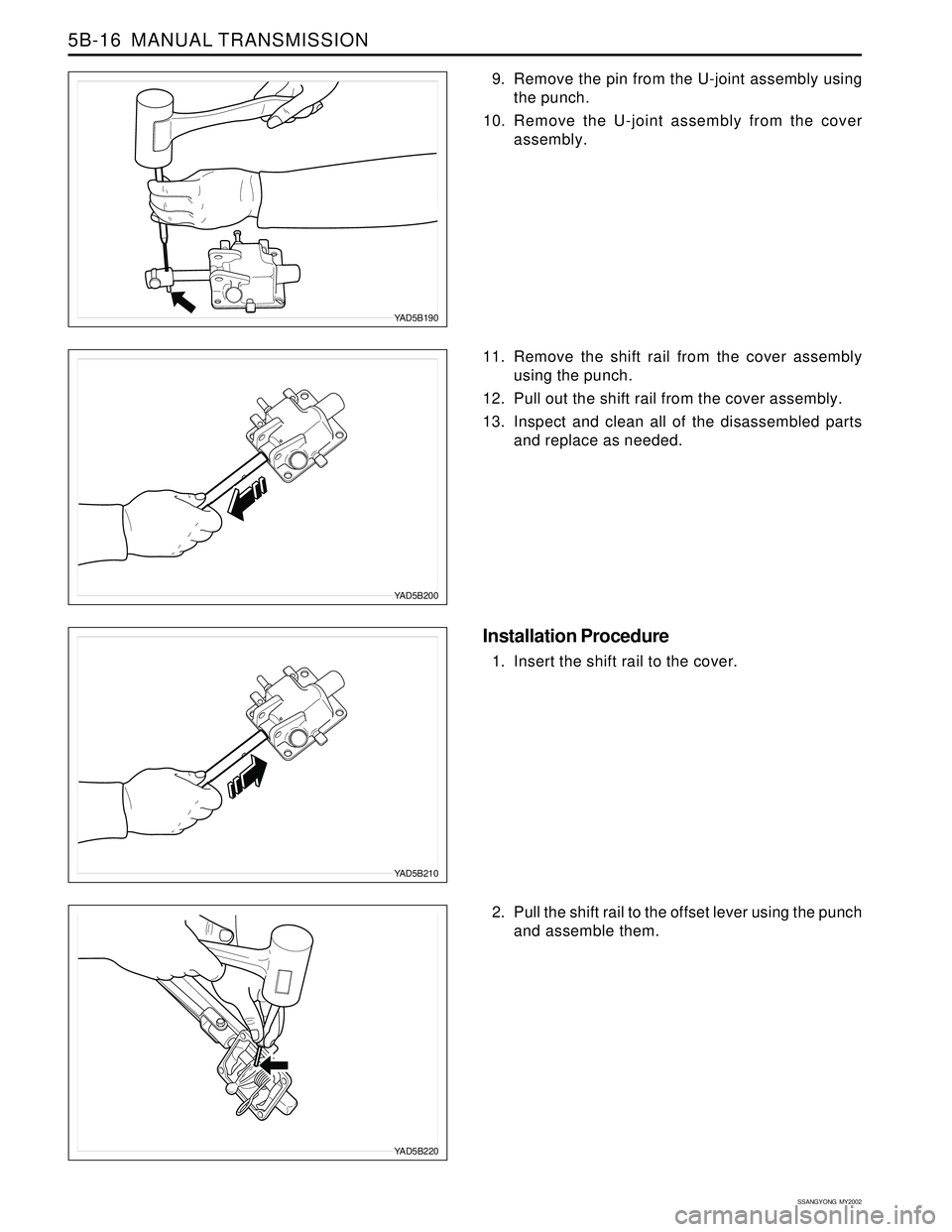

SSANGYONG KORANDO 1997 Service Repair Manual SSANGYONG MY2002 5B-16 MANUAL TRANSMISSION 11. Remove the shift rail from the cover assembly using the punch. 12. Pull out the shift rail from the cover assembly. 13. Inspect and clean all of the di

Page 1325 of 2053

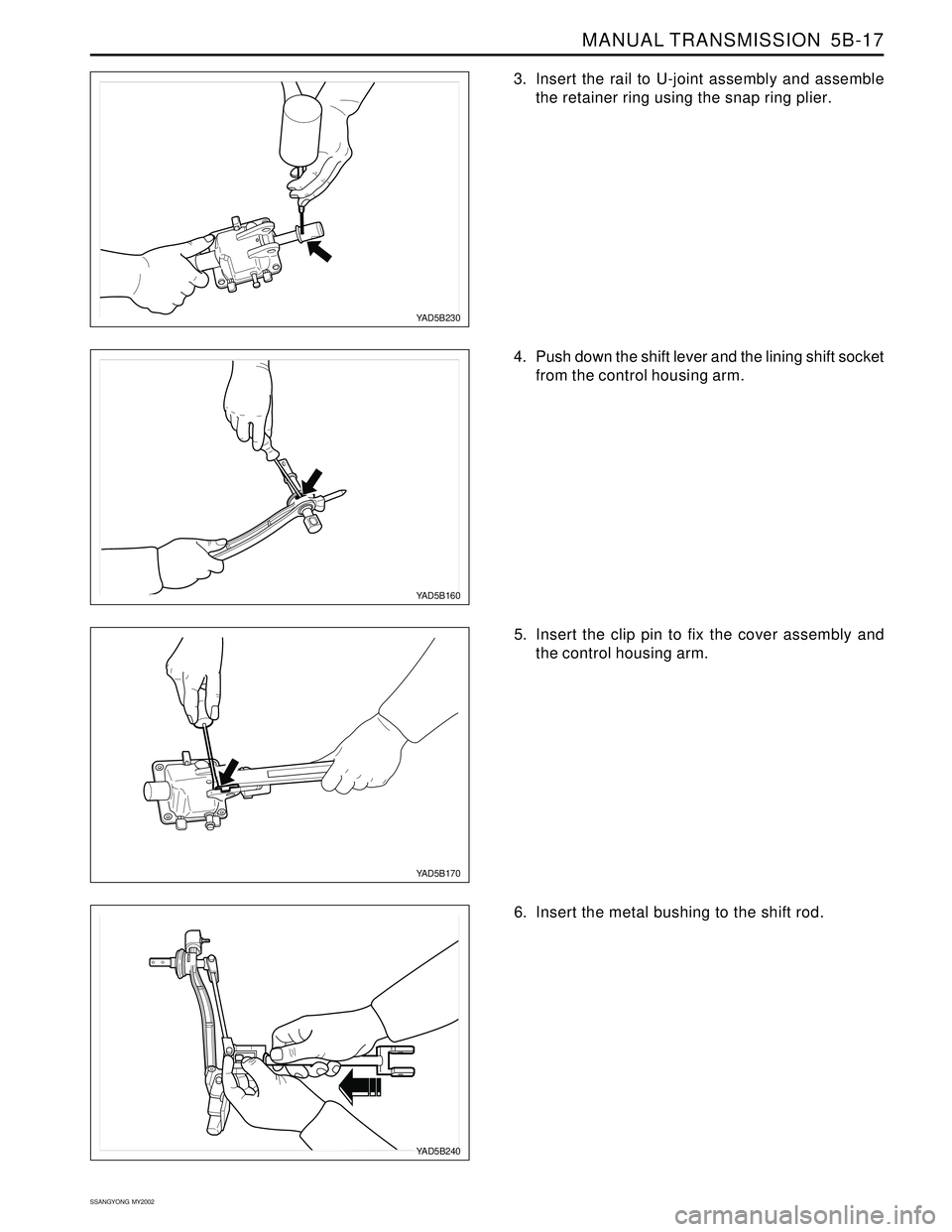

SSANGYONG KORANDO 1997 Service Repair Manual MANUAL TRANSMISSION 5B-17 SSANGYONG MY2002 4. Push down the shift lever and the lining shift socket from the control housing arm. YAD5B160 YAD5B170 YAD5B240 5. Insert the clip pin to fix the cover a

Page 1326 of 2053

SSANGYONG KORANDO 1997 Service Repair Manual SSANGYONG MY2002 5B-18 MANUAL TRANSMISSION 8. Insert the washer and assemble the snap ring. YAD5B130 YAD5B260 9. Insert the control housing arm insulator to the semi- remote kit. YAD5B250 7. Assembl

Page 1327 of 2053

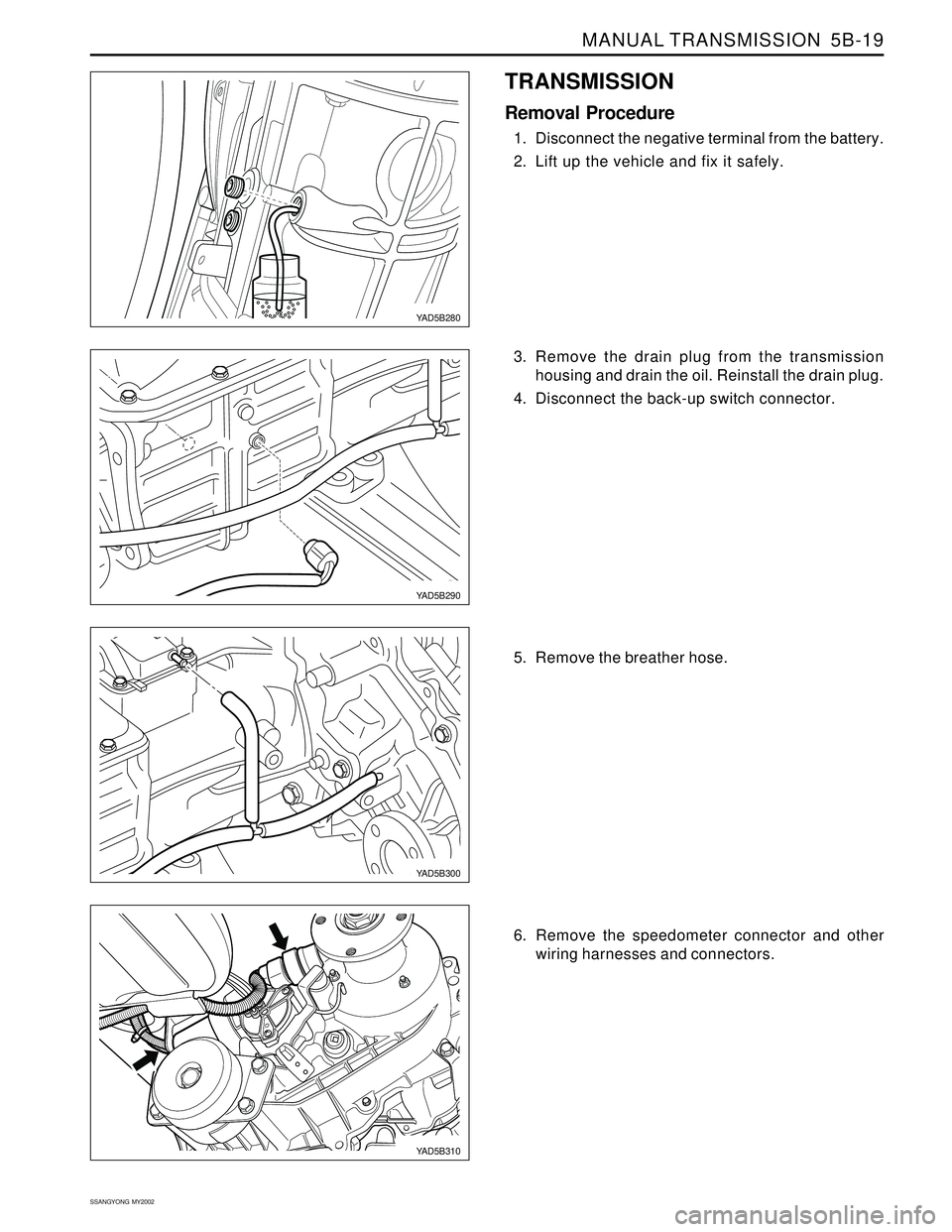

SSANGYONG KORANDO 1997 Service Repair Manual MANUAL TRANSMISSION 5B-19 SSANGYONG MY2002 TRANSMISSION Removal Procedure 1. Disconnect the negative terminal from the battery. 2. Lift up the vehicle and fix it safely. 3. Remove the drain plug fro

Page 1328 of 2053

SSANGYONG KORANDO 1997 Service Repair Manual SSANGYONG MY2002 5B-20 MANUAL TRANSMISSION 7. Remove the front and rear propeller shafts from the transfercase. 8. Support the transmission on an suitable jack. Unscrew the center mounting nuts and
