Page 1113 of 2053

SSANGYONG KORANDO 1997 Service Repair Manual AUTOMATIC TRANSMISSION 5A-19 SSANGYONG MY2002 BLANK

Page 1114 of 2053

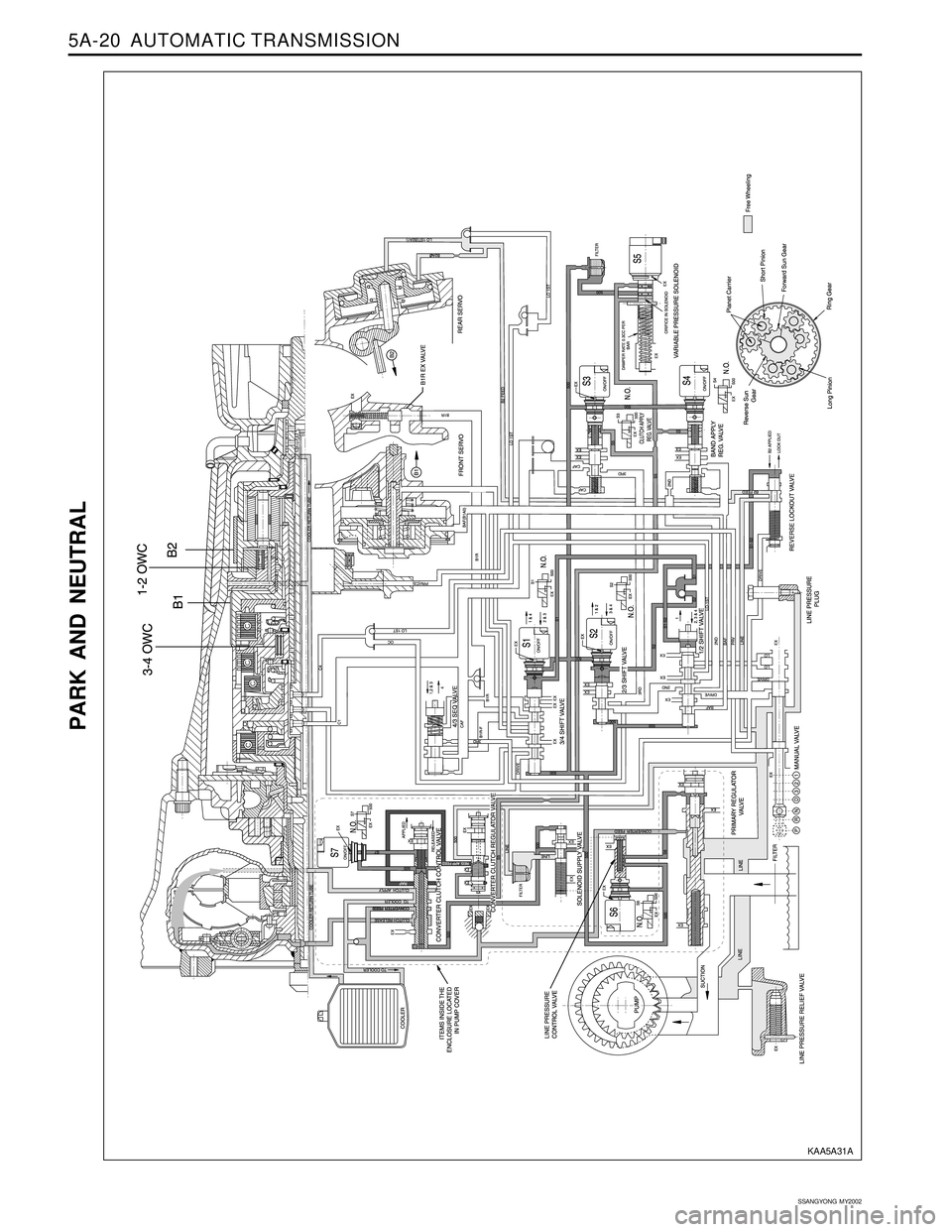

SSANGYONG KORANDO 1997 Service Repair Manual 5A-20 AUTOMATIC TRANSMISSION SSANGYONG MY2002 PARK AND NEUTRAL KAA5A31A

Page 1115 of 2053

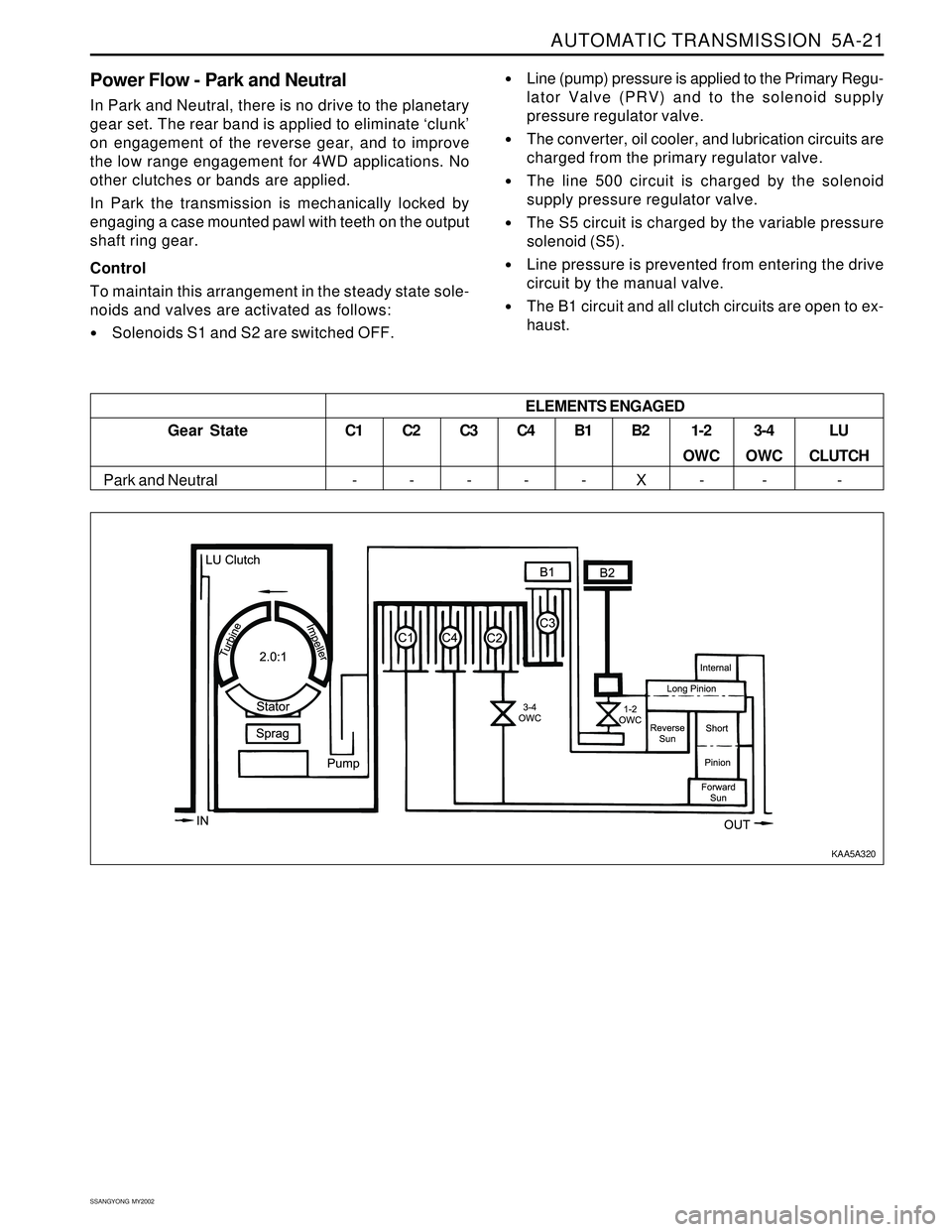

SSANGYONG KORANDO 1997 Service Repair Manual AUTOMATIC TRANSMISSION 5A-21 SSANGYONG MY2002 Power Flow - Park and Neutral In Park and Neutral, there is no drive to the planetary gear set. The rear band is applied to eliminate ‘clunk’ on eng

Page 1116 of 2053

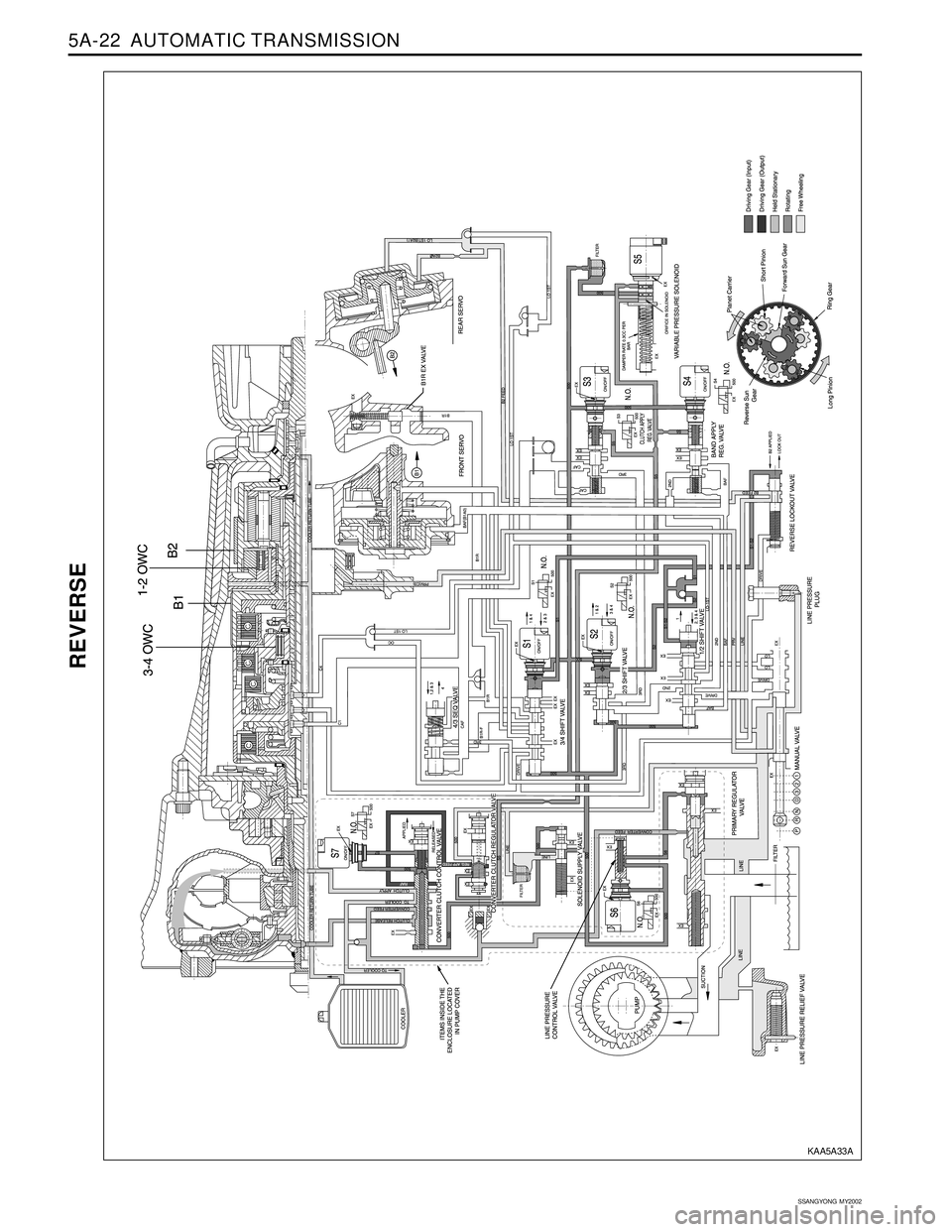

SSANGYONG KORANDO 1997 Service Repair Manual 5A-22 AUTOMATIC TRANSMISSION SSANGYONG MY2002 REVERSE KAA5A33A

Page 1117 of 2053

SSANGYONG KORANDO 1997 Service Repair Manual AUTOMATIC TRANSMISSION 5A-23 SSANGYONG MY2002 Power Flow - Reverse In Reverse, transmission drive is via the input shaft and the forward clutch cylinder to the hub of the C3 clutch. The elements of

Page 1118 of 2053

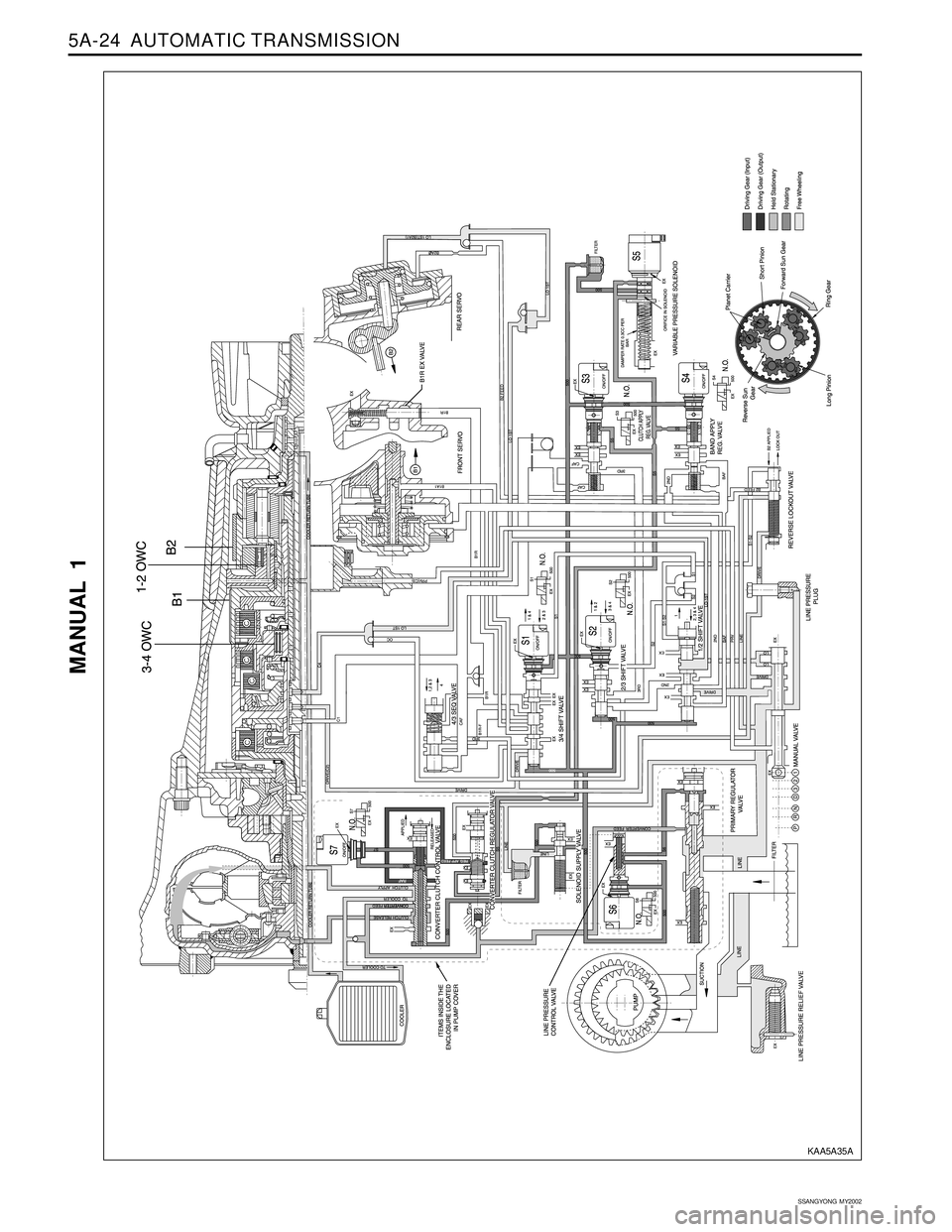

SSANGYONG KORANDO 1997 Service Repair Manual 5A-24 AUTOMATIC TRANSMISSION SSANGYONG MY2002 MANUAL 1 KAA5A35A

Page 1119 of 2053

SSANGYONG KORANDO 1997 Service Repair Manual AUTOMATIC TRANSMISSION 5A-25 SSANGYONG MY2002 Power Flow - Manual 1 In Manual 1, transmission drive is via the input shaft to the forward clutch cylinder. The elements of the trans-mission function

Page 1120 of 2053

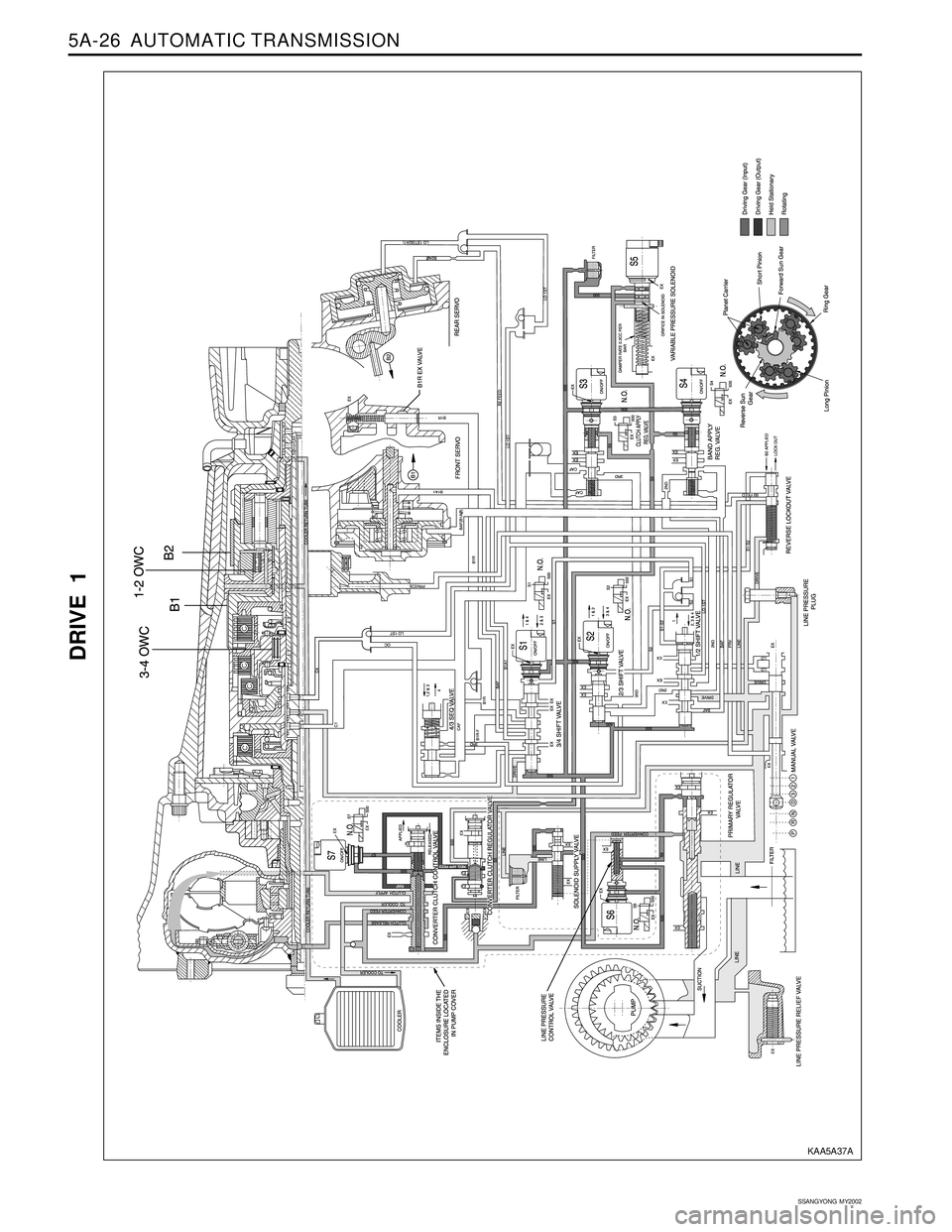

SSANGYONG KORANDO 1997 Service Repair Manual 5A-26 AUTOMATIC TRANSMISSION SSANGYONG MY2002 DRIVE 1 KAA5A37A
