Page 1705 of 2053

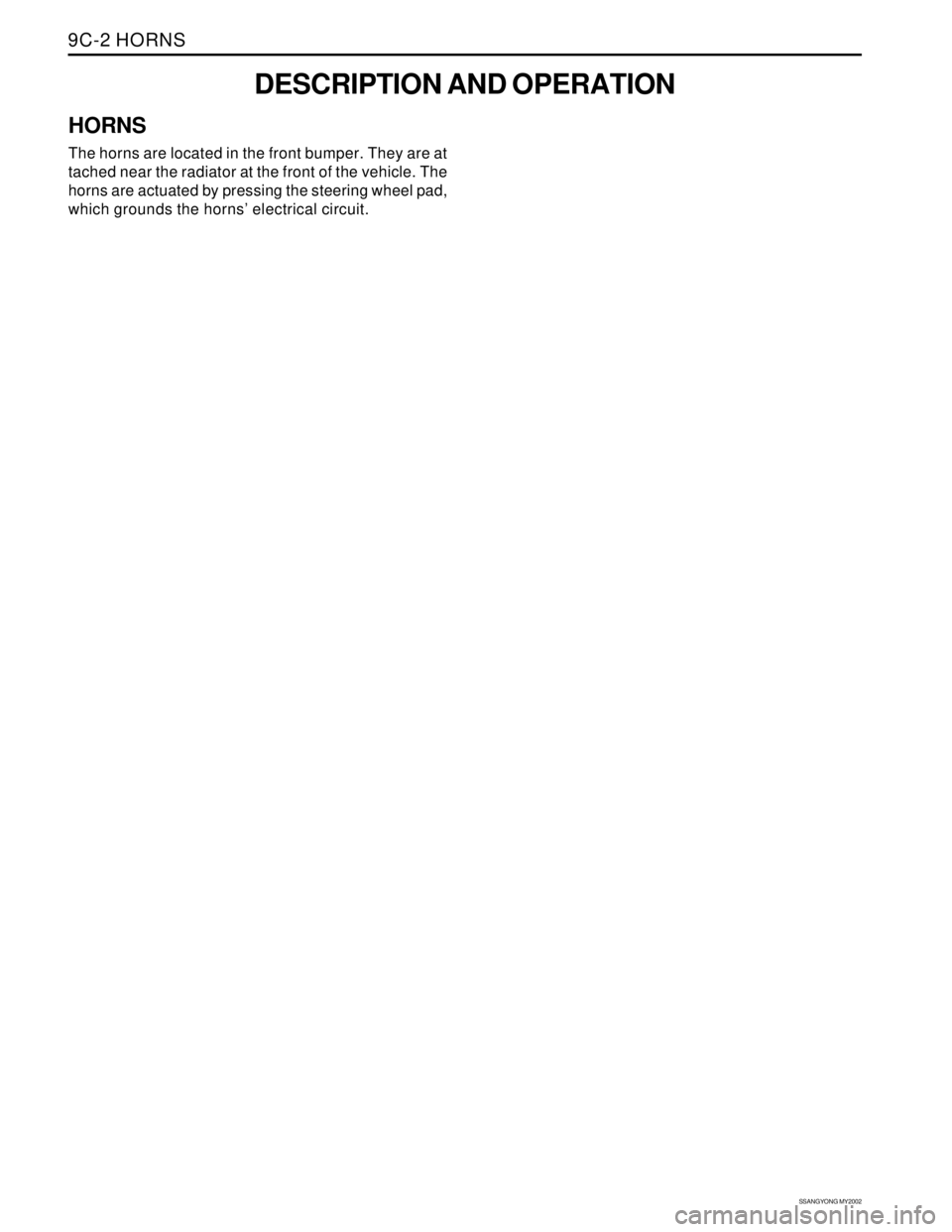

SSANGYONG KORANDO 1997 Service Repair Manual SSANGYONG MY2002 9C-2 HORNS DESCRIPTION AND OPERATION HORNS The horns are located in the front bumper. They are at tached near the radiator at the front of the vehicle. The horns are actuated by press

Page 1706 of 2053

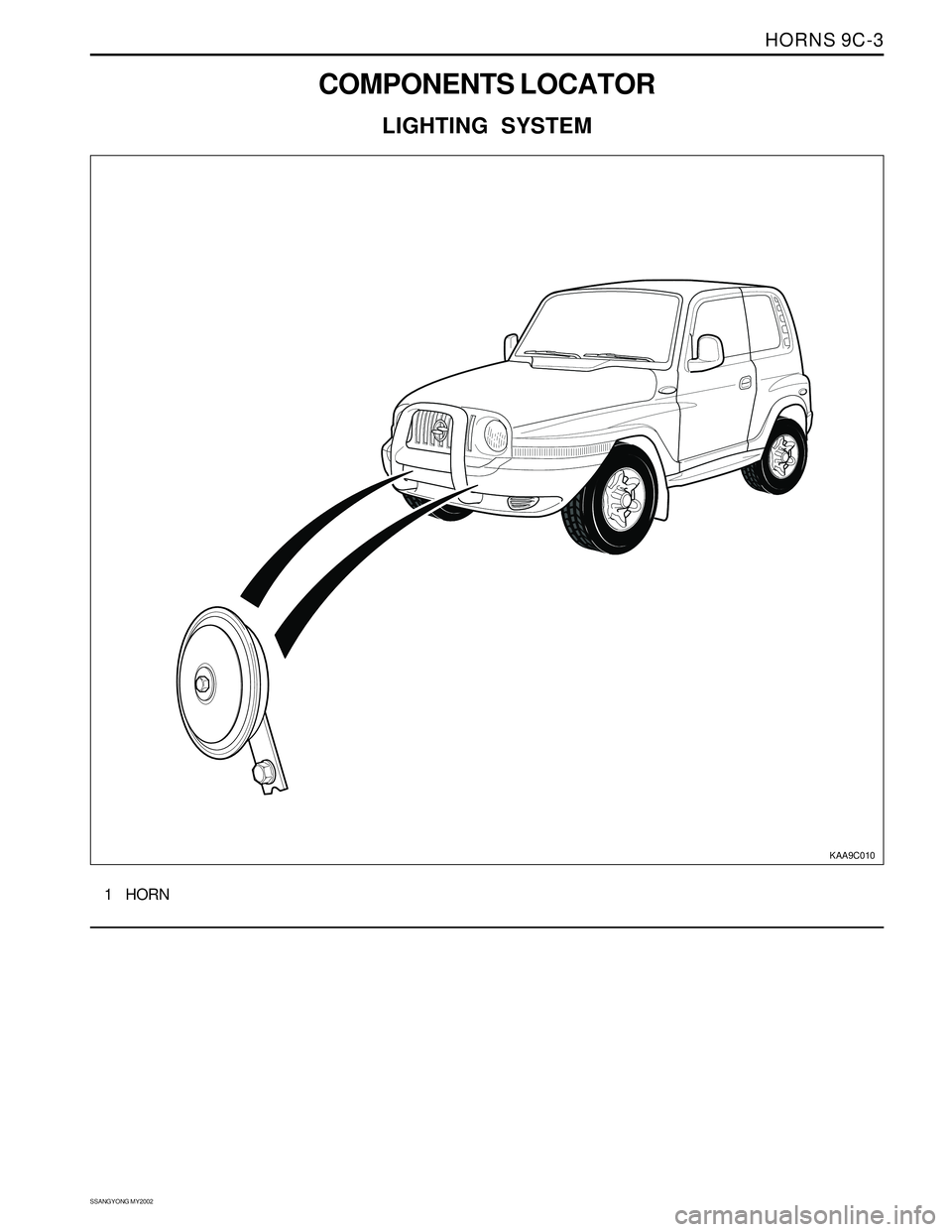

SSANGYONG KORANDO 1997 Service Repair Manual HORNS 9C-3 SSANGYONG MY2002 COMPONENTS LOCATOR LIGHTING SYSTEM 1 HORN KAA9C010

Page 1707 of 2053

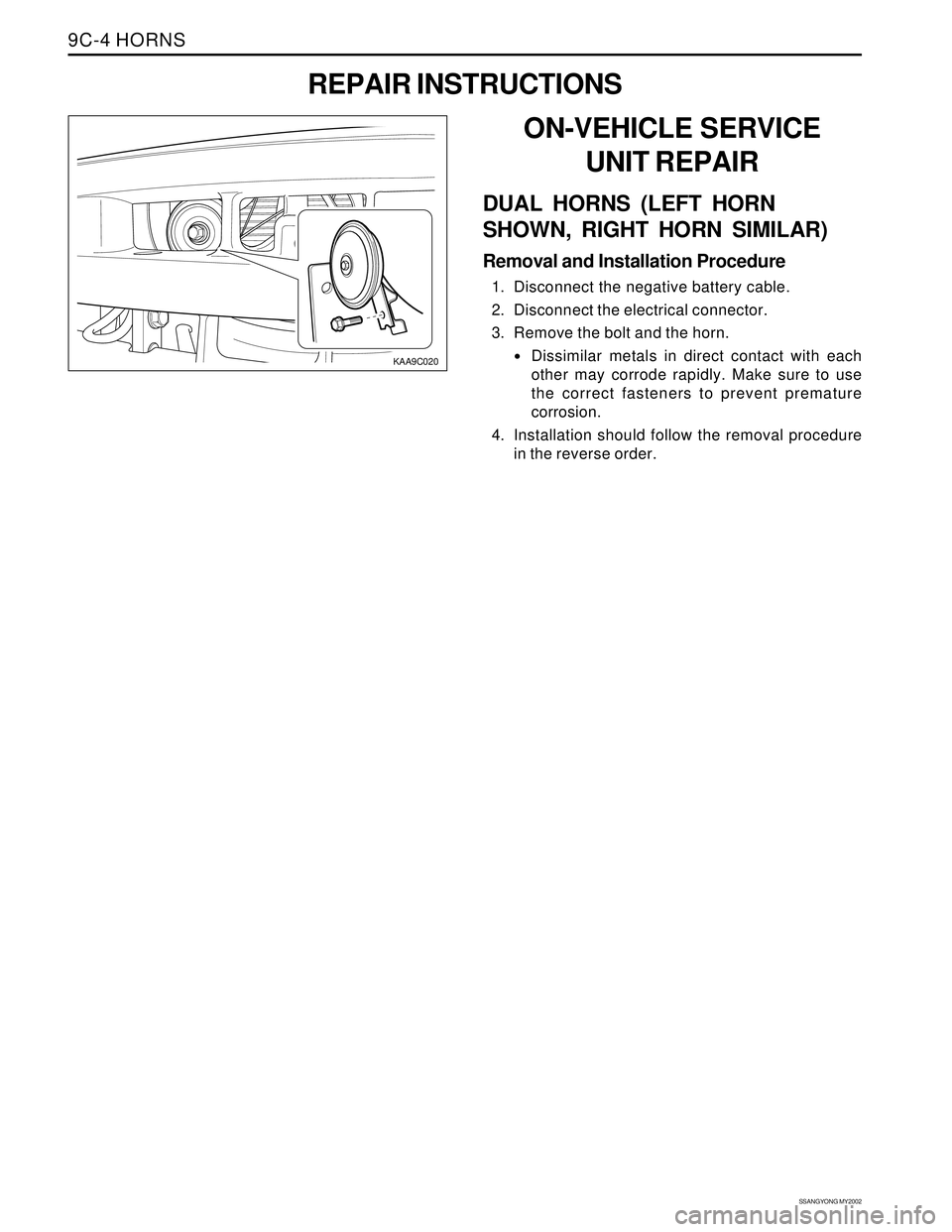

SSANGYONG KORANDO 1997 Service Repair Manual SSANGYONG MY2002 9C-4 HORNS REPAIR INSTRUCTIONS KAA9C020 ON-VEHICLE SERVICE UNIT REPAIR DUAL HORNS (LEFT HORN SHOWN, RIGHT HORN SIMILAR) Removal and Installation Procedure 1. Disconnect the negative b

Page 1708 of 2053

SSANGYONG KORANDO 1997 Service Repair Manual HORNS 9C-5 SSANGYONG MY2002 SCHEMATIC AND ROUTING DIAGRAMS HORN WIRING SYSTEM KAA9C030

Page 1709 of 2053

SSANGYONG KORANDO 1997 Service Repair Manual Description and Operation.................................. 9D-2 Windshield Wiper System................................... 9D-2 Windshield Washer System................................ 9D-2 Compon

Page 1710 of 2053

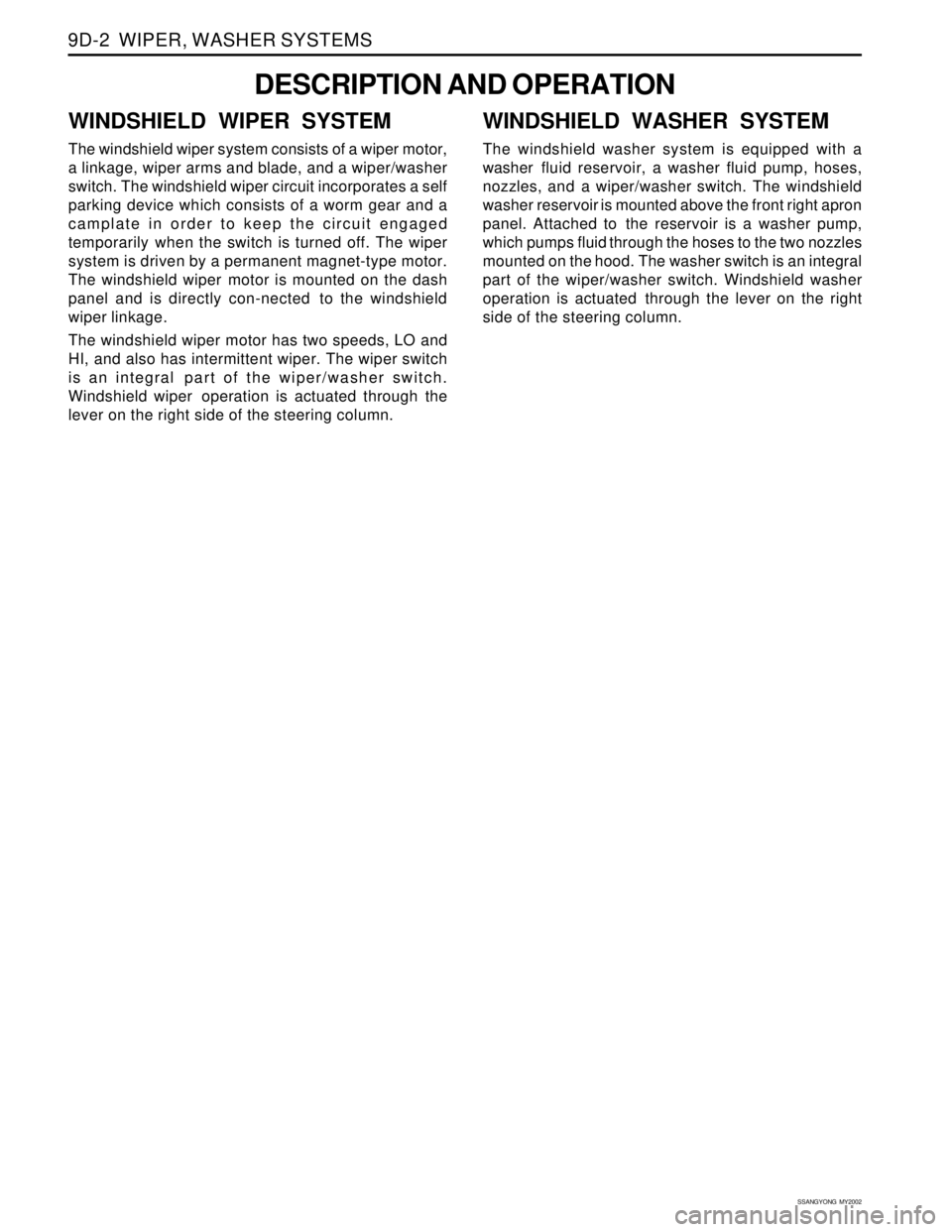

SSANGYONG KORANDO 1997 Service Repair Manual SSANGYONG MY2002 9D-2 WIPER, WASHER SYSTEMS DESCRIPTION AND OPERATION WINDSHIELD WIPER SYSTEM The windshield wiper system consists of a wiper motor, a linkage, wiper arms and blade, and a wiper/wash

Page 1711 of 2053

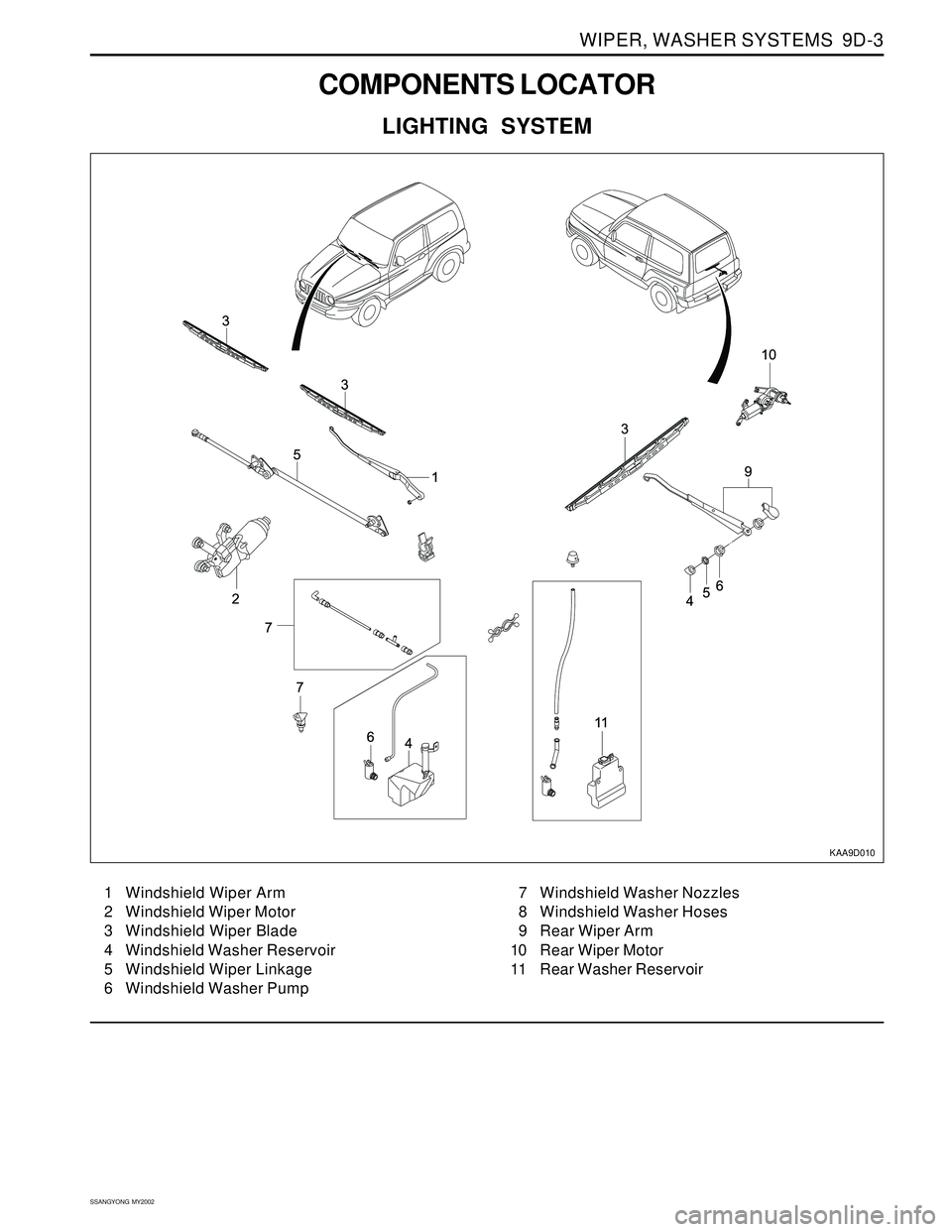

SSANGYONG KORANDO 1997 Service Repair Manual WIPER, WASHER SYSTEMS 9D-3 SSANGYONG MY2002 COMPONENTS LOCATOR LIGHTING SYSTEM 1 Windshield Wiper Arm 2 Windshield Wiper Motor 3 Windshield Wiper Blade 4 Windshield Washer Reservoir 5 Windshield Wip

Page 1712 of 2053

SSANGYONG KORANDO 1997 Service Repair Manual SSANGYONG MY2002 9D-4 WIPER, WASHER SYSTEMS KAA9D030 KAA9D040 3. Remove the nut and the wiper arm. •Dissimilar metals in direct contact with each other may corrode rapidly. Make sure to use the co
