SSANGYONG KORANDO 1997 Service Repair Manual FATC-HAVC 7D-7
SSANGYONG MY2002
KAA7D020

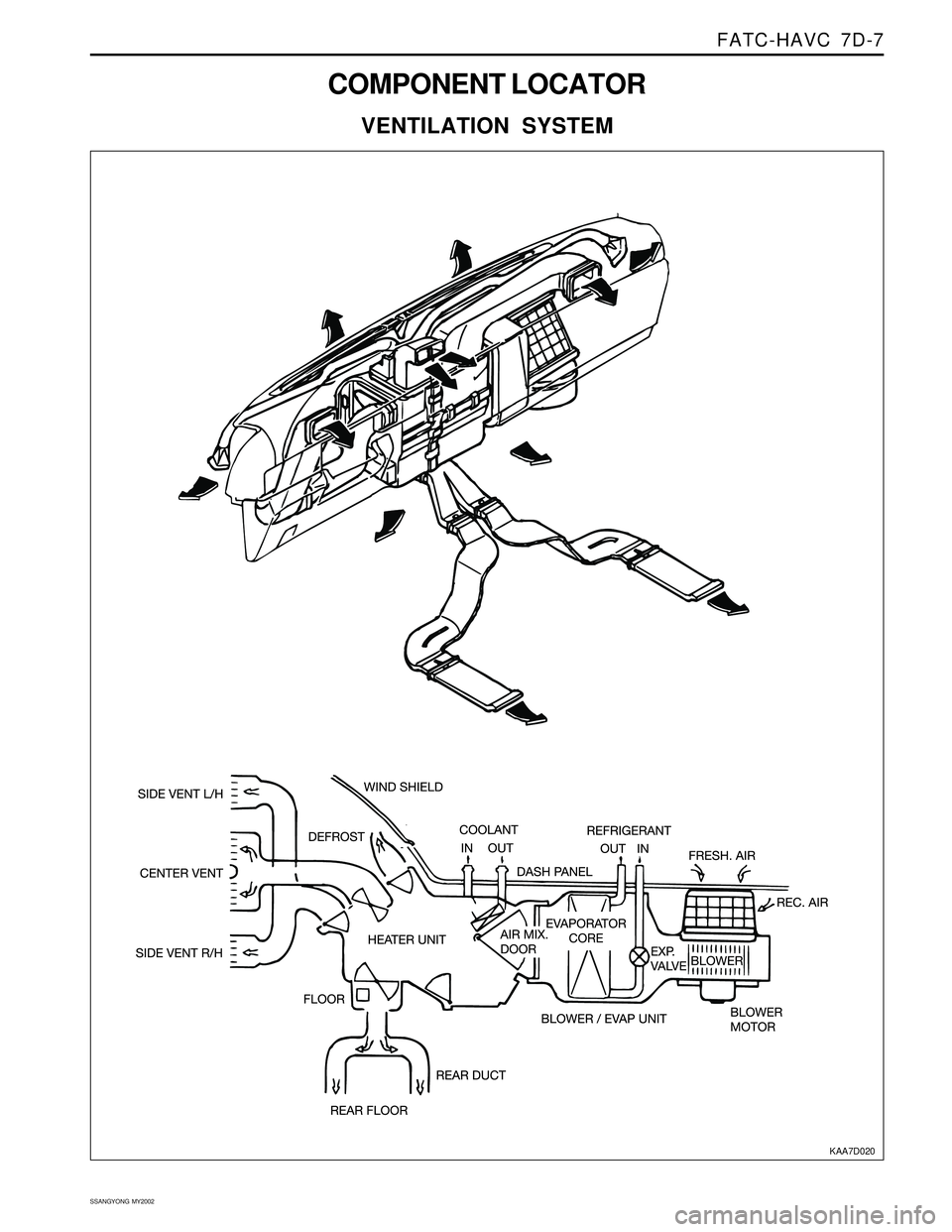

COMPONENT LOCATOR
VENTILATION SYSTEM

Page 1562 of 2053

SSANGYONG KORANDO 1997 Service Repair Manual SSANGYONG MY2002
7D-8 FATC-HAVC
FUNCTION DESCRIPTION
1. AUTO switch
By pressing the AUTO switch, set temperature,
AUTO, fan speed, air source, air flow mode will
be appeared on the VFD display.
Fo

SSANGYONG MY2002
7D-8 FATC-HAVC
FUNCTION DESCRIPTION
1. AUTO switch
By pressing the AUTO switch, set temperature,
AUTO, fan speed, air source, air flow mode will
be appeared on the VFD display.
Following items will be controlled automatically
according to set temperature.
- Mode and intake door
- Temperature door
- Blower fan speed
- Compressor ON/OFF control
When AUTO switch is released, other functions
will be controlled automatically except for manually
selected switches.
2. MODE switch
By pressing the MODE switch while the AUTO
switch is turned ON, AUTO indicator light will go
off and air flow mode will be controlled manually
in the order of VENT → B/L → FLR → MIX → VENT.
3. OFF switch
Press this switch and the airconditioner system
will be turned OFF.
4. Temperature UP/DOWN switch
This switch is a switch increasing or decreasing
set temperature and position of the temperature
door will be automatically controlled according to
set temperature and outlet temperature will be
controlled by adjusting blending ratio of cold and
hot air.
By operating the switch, set temperature will be
increased/decreased by 0.5°C.
Set temperature range is 17 - 32°C.
Max. cold function will be performed at set
temperature of 17°C and max. hot function will be
performed at set temperature of 32°C.
When pressed more than 1 second, it will be
automatically UP/DOWN by interval of 0.28 sec.
after 1 second.
When it changed 17.5°C → 17°C, 31.5°C → 32°C
and DOWN switch is pressed after 17°C or UP
switch is pressed after 32°C, there will be
operating sounds 3 times during 0.1 sec.
5. DEFROST switch
By pressing this switch, DEF will turn on and mode
door will be fixed at DEF.
Recirculation/fresh air switch will be fixed as
FRESH.
When airconditioner is turned ON and ambient
temperature is less than 1.5°C, the airconditioner
will be turned off.
Selection of airconditioner OFF is possible by
manual.
6. A/C switch
The airconditioner system will be turned ON or OFF
by pressing this switch.
7. Recirculationfresh air switch
Air intake will be automatically switched to
recirculation or fresh air (REC → FRE) by pressing
this switch.
8. Blower switch (UP/DOWN)
Blower speed can be controlled by manual and if
fan UP/DOWN switch is pressed when AUTO mode
is selected, fan speed will UP/DOWN based on
current fan level.
When 6 segments are turned on, it is max. HI
operation.
When pressed more than 1 second, it will be
automatically UP/DOWN by interval of 0.28 sec.
after 1 second.
When segment is changed stage 2 → stage 1
(LO), stage 5 → stage 6 (HI) and HI switch is
pressed in HI status or DOWN switch is pressed
in LO status, there will be operating sounds 3
times during 0.1 sec.
When switch is operated in OFF status, it will be
operated as stage 1 (1 segment display).

Page 1563 of 2053

SSANGYONG KORANDO 1997 Service Repair Manual FATC-HAVC 7D-9
SSANGYONG MY2002
KAA7D030
DIAGNOSIS
DIAGNOSIS TEST
FATC airconditioner system has self-diagnosis
function. Turn the ignition switch ON and press intake
switch more than 4 times within

Page 1564 of 2053

SSANGYONG KORANDO 1997 Service Repair Manual SSANGYONG MY2002
7D-10 FATC-HAVC
Self-diagnosis Method
Ignition switch “ON”
Press the intake switch more than 4 times within
2 seconds while pressing the AUTO switch
Self-diagnosis will start af

Page 1565 of 2053

SSANGYONG KORANDO 1997 Service Repair Manual FATC-HAVC 7D-11
SSANGYONG MY2002
Self-diagnosis Display
1. Data will be displayed at the set temperature
display as 2-digit number during self-diagnosis
function and other set temperature displays w

Page 1566 of 2053

SSANGYONG KORANDO 1997 Service Repair Manual SSANGYONG MY2002
7D-12 FATC-HAVC
1
2
3
4
Fault Safety Function
FATC airconditioner system not only performs self-
diagnosis but also has safety function against faults if
there is open or short in t

Page 1567 of 2053

SSANGYONG KORANDO 1997 Service Repair Manual FATC-HAVC 7D-13
SSANGYONG MY2002

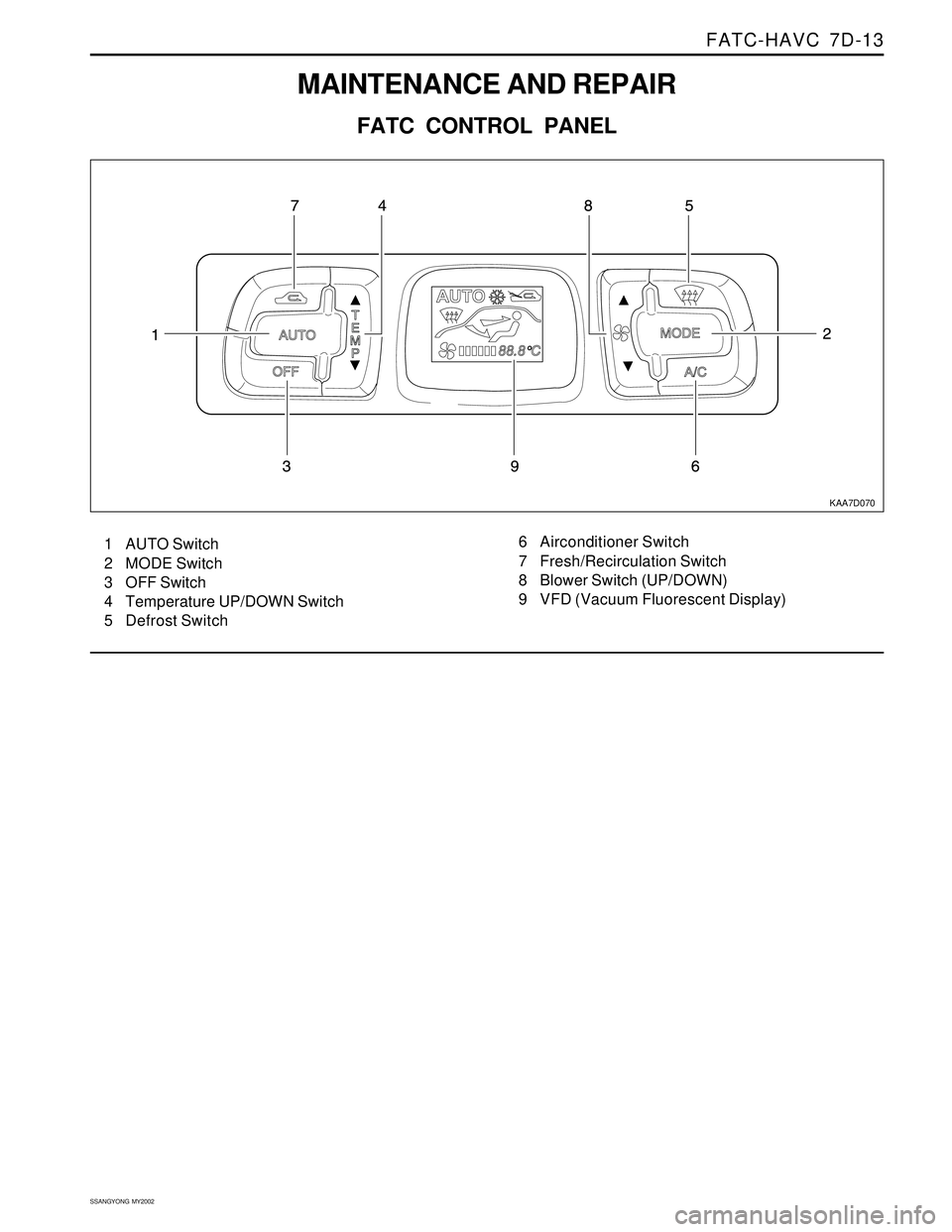

MAINTENANCE AND REPAIR
FATC CONTROL PANEL
KAA7D070
1 AUTO Switch
2 MODE Switch
3 OFF Switch
4 Temperature UP/DOWN Switch
5 Defrost Switch6 Airconditioner Switch
7 Fr

Page 1568 of 2053

SSANGYONG KORANDO 1997 Service Repair Manual SSANGYONG MY2002
7D-14 FATC-HAVC
Rheostat
Tail lamp
Battery (+)
Power TR (B)
Power TR (C)
Temperature actuator (CCW)
IG2
Ground
Airconditioner switch ground
HI speed relay
Photo sensor (+)
Photo sen
