SSANGYONG KORANDO 1997 Service Repair Manual SSANGYONG MY2002 9A-14 BODY WIRING SYSTEM W/H MAIN (FLOOR) 1 Rear combination lamp (RH) 2 Tail gate contact sw 3 Rear speaker (RH) 4 Door contact sw (FRT RH) 5 Damper solenoid (RR RH) 6 Passenger pre

Page 1666 of 2053

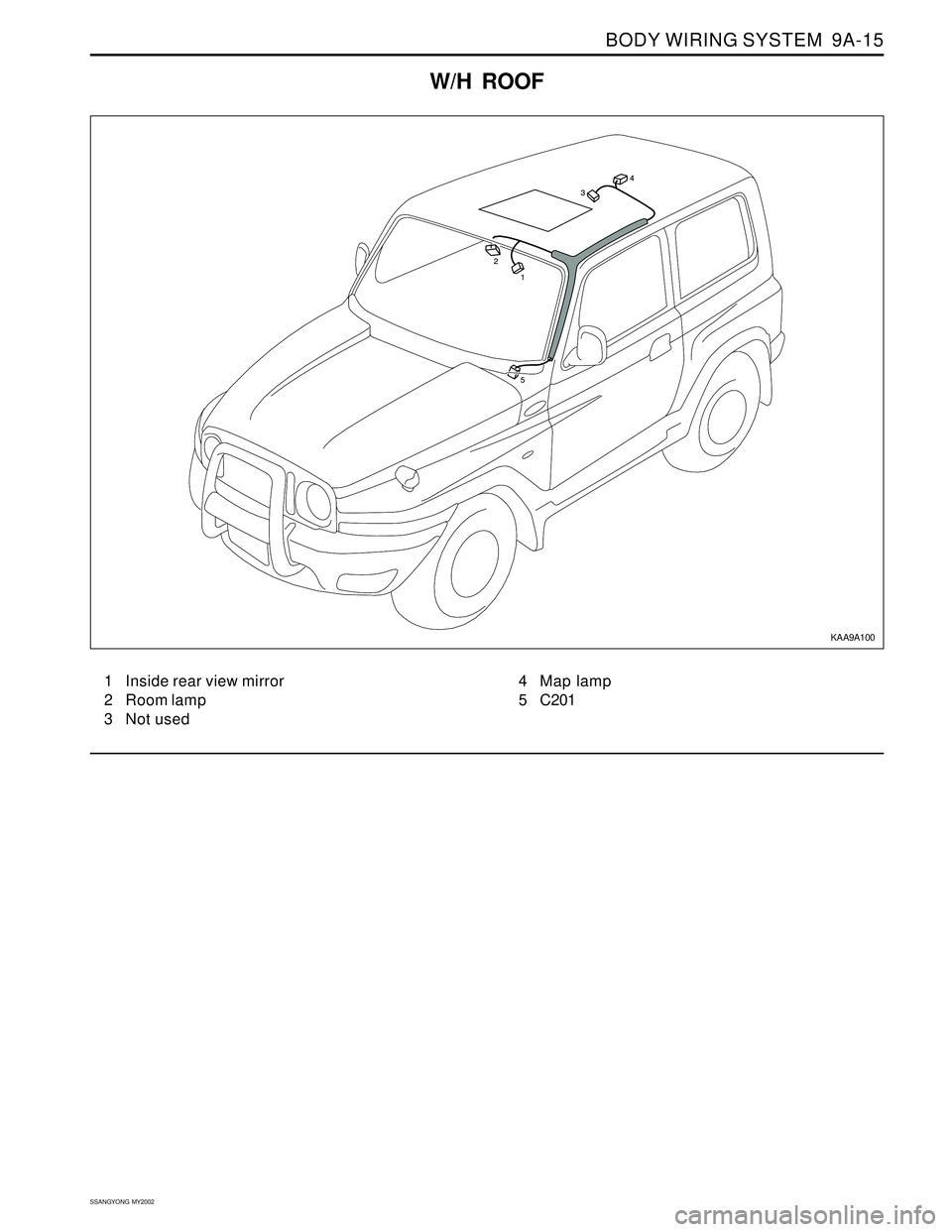

SSANGYONG KORANDO 1997 Service Repair Manual BODY WIRING SYSTEM 9A-15 SSANGYONG MY2002 W/H ROOF 1 Inside rear view mirror 2 Room lamp 3 Not used4 Map lamp 5 C201 KAA9A100

Page 1667 of 2053

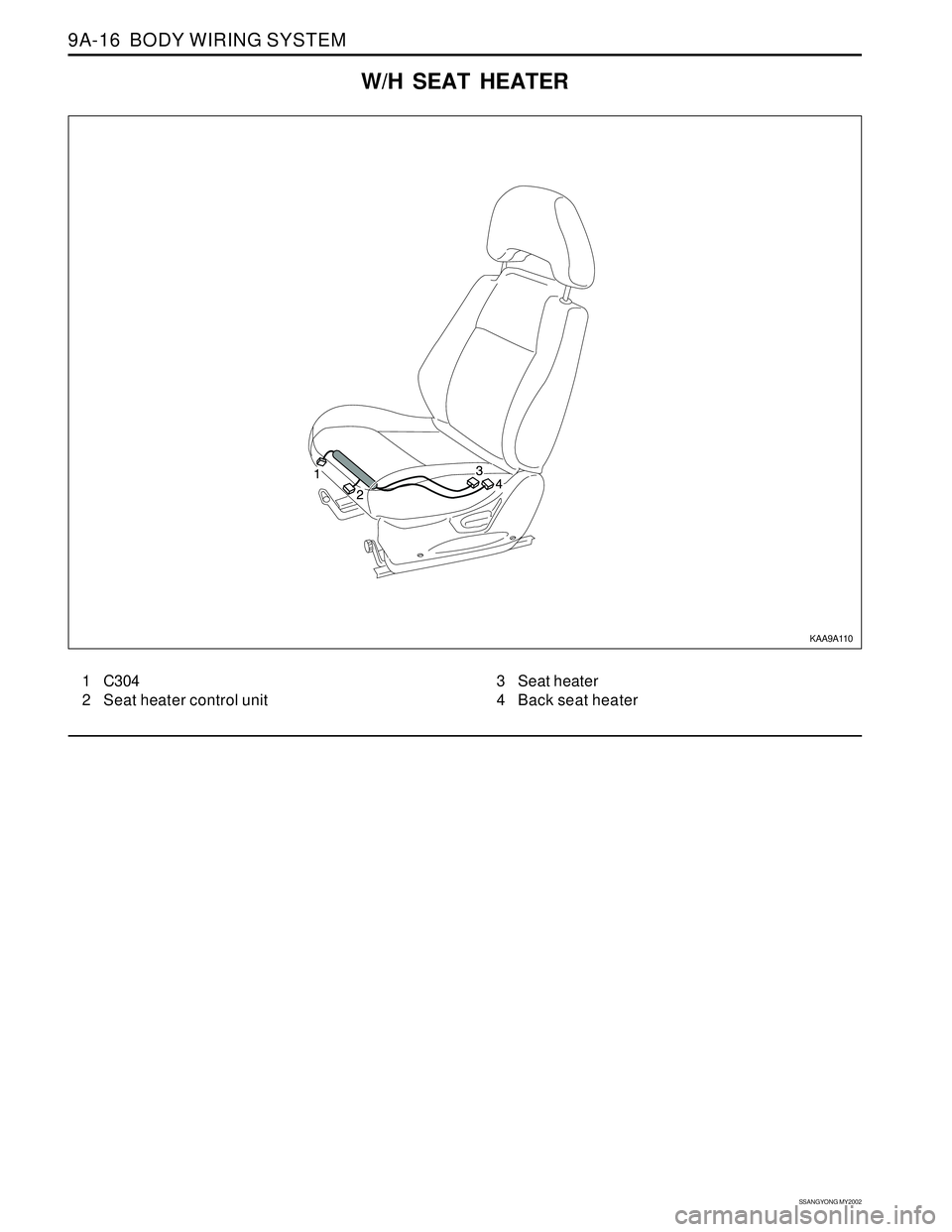

SSANGYONG KORANDO 1997 Service Repair Manual SSANGYONG MY2002 9A-16 BODY WIRING SYSTEM W/H SEAT HEATER 1 C304 2 Seat heater control unit3 Seat heater 4 Back seat heater KAA9A110

Page 1668 of 2053

SSANGYONG KORANDO 1997 Service Repair Manual BODY WIRING SYSTEM 9A-17 SSANGYONG MY2002 W/H DOOR 1 Door actuator 2 Door key cylinder switch 3 Power window switch 4 OSRV mirror motor5 Power window motor 8 Speaker 9 Courtesy lamp KAA9A120

Page 1669 of 2053

SSANGYONG KORANDO 1997 Service Repair Manual SSANGYONG MY2002 9A-18 BODY WIRING SYSTEM W/H TAIL GATE 1 Rear washer motor 2 Tail gate door lock actuator 3 C403 (soft top) 4 Tail gate key cylinder sw5 Rear heated glass 6 Rear wiper motor 7 Rear h

Page 1670 of 2053

SSANGYONG KORANDO 1997 Service Repair Manual BODY WIRING SYSTEM 9A-19 SSANGYONG MY2002 W/H AIR - CONDITIONER 1 Mode actuator 3 Intake actuator 4 Blower motor 5 Resistor6 Blower relay 7 A/CON switch 8 Control pannel 9 Blower switch KAA9A140

Page 1671 of 2053

SSANGYONG KORANDO 1997 Service Repair Manual SSANGYONG MY2002 9A-20 BODY WIRING SYSTEM W/H ENGINE CONTROL (GASOLINE) 6 Crankshaft position sensor 7 Oil pressure switch 8 Knock sensor 2 9 Air flow sensor 10 Ignition coil 3 11 Ignition coil 2 12

Page 1672 of 2053

SSANGYONG KORANDO 1997 Service Repair Manual BODY WIRING SYSTEM 9A-21 SSANGYONG MY2002 W/H PRE - HEATING (DIESEL) 1 Preheating time control relay 3 Glow plug 1 4 Glow plug 2 5 Glow plug 36 Glow plug 4 7 Glow plug 5 (662 LA only) 8 Engine coola
