SSANGYONG KORANDO 1997 Service Repair Manual POWER STEERING SYSTEM 6A-7
SSANGYONG MY2002
KAA6A050
KAA6A060
4. Disconnect the return line pipe from the power
steering gear outlet.
Installation Notice
KAA6A070
5. Disconnect the pressure line pipe

Page 1450 of 2053

SSANGYONG KORANDO 1997 Service Repair Manual SSANGYONG MY2002
6A-8 POWER STEERING SYSTEM
KAA6A080
6. Remove the return line support clip from the front
frame.
Installation Notice
Tightening Torque 9 Nm (80 lb-in)
After installing the power st

Page 1451 of 2053

SSANGYONG KORANDO 1997 Service Repair Manual POWER STEERING SYSTEM 6A-9
SSANGYONG MY2002

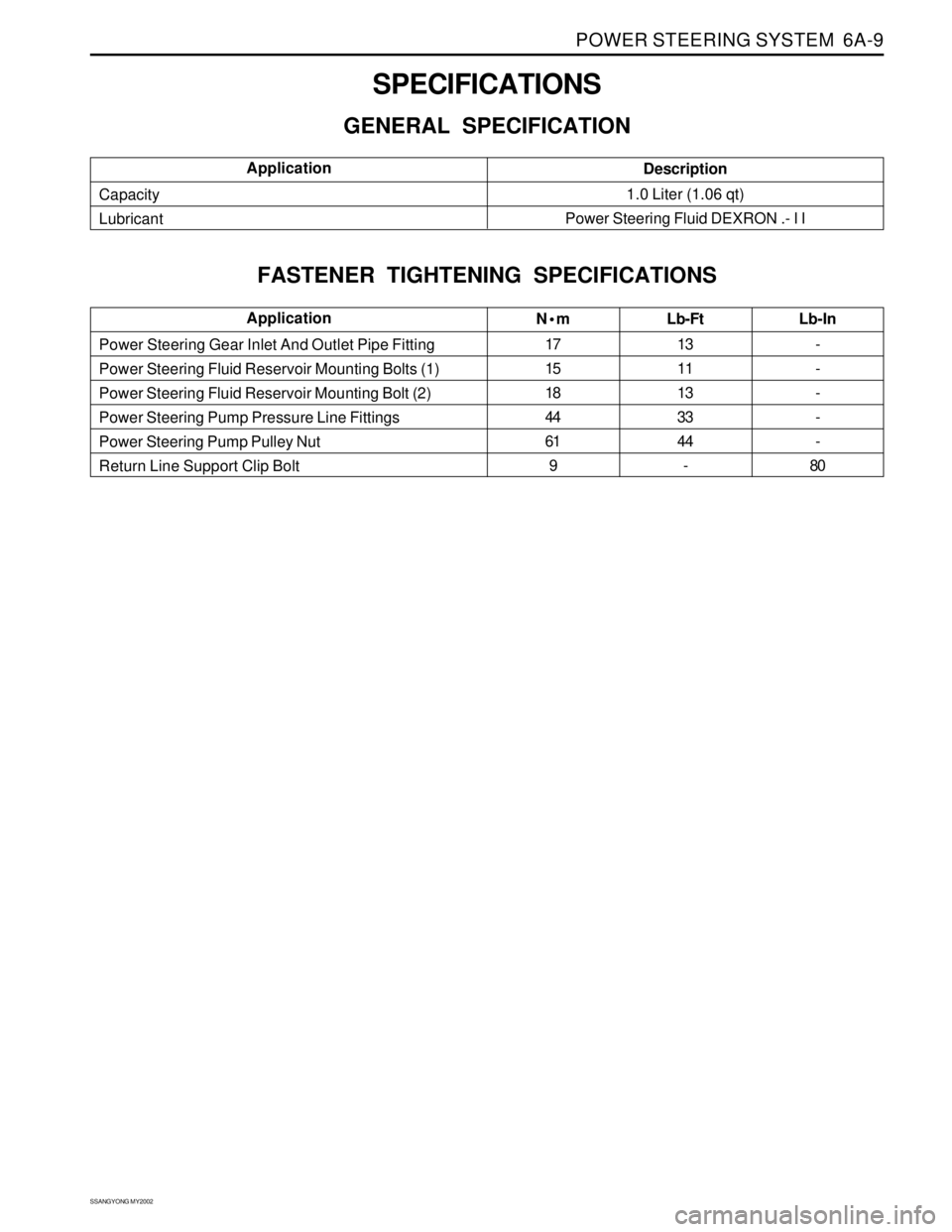

SPECIFICATIONS
GENERAL SPECIFICATION
N•m
17
15
18
44
61
9Lb-Ft
13
11
13
33
44
- Power Steering Gear Inlet And Outlet Pipe Fitting
Power Steering Fluid Re

Page 1452 of 2053

SSANGYONG KORANDO 1997 Service Repair Manual SSANGYONG MY2002
6A-10 POWER STEERING SYSTEM

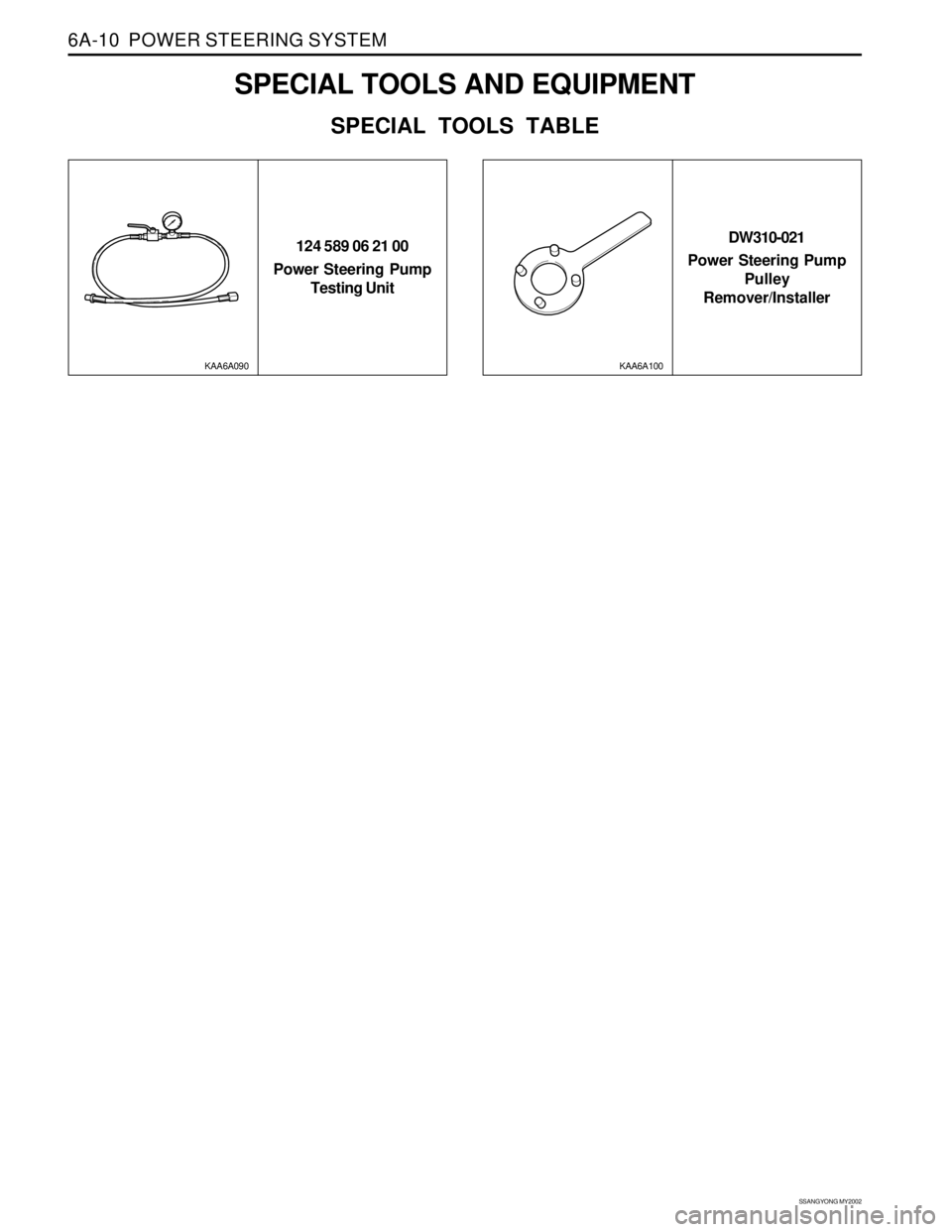

SPECIAL TOOLS AND EQUIPMENT
SPECIAL TOOLS TABLE
124 589 06 21 00
Power Steering Pump
Testing Unit
KAA6A090
DW310-021
Power Steering Pump
Pulley
Remover/In

Page 1453 of 2053

SSANGYONG KORANDO 1997 Service Repair Manual SSANGYONG MY2002
6A-2 POWER STEERING SYSTEM
DESCRIPTION AND OPERATION
GENERAL DESCRIPTION
The power steering system consists of three compo
nents: the power steering pump, the power steering
fluid re

Page 1454 of 2053

SSANGYONG KORANDO 1997 Service Repair Manual POWER STEERING SYSTEM 6A-3
SSANGYONG MY2002

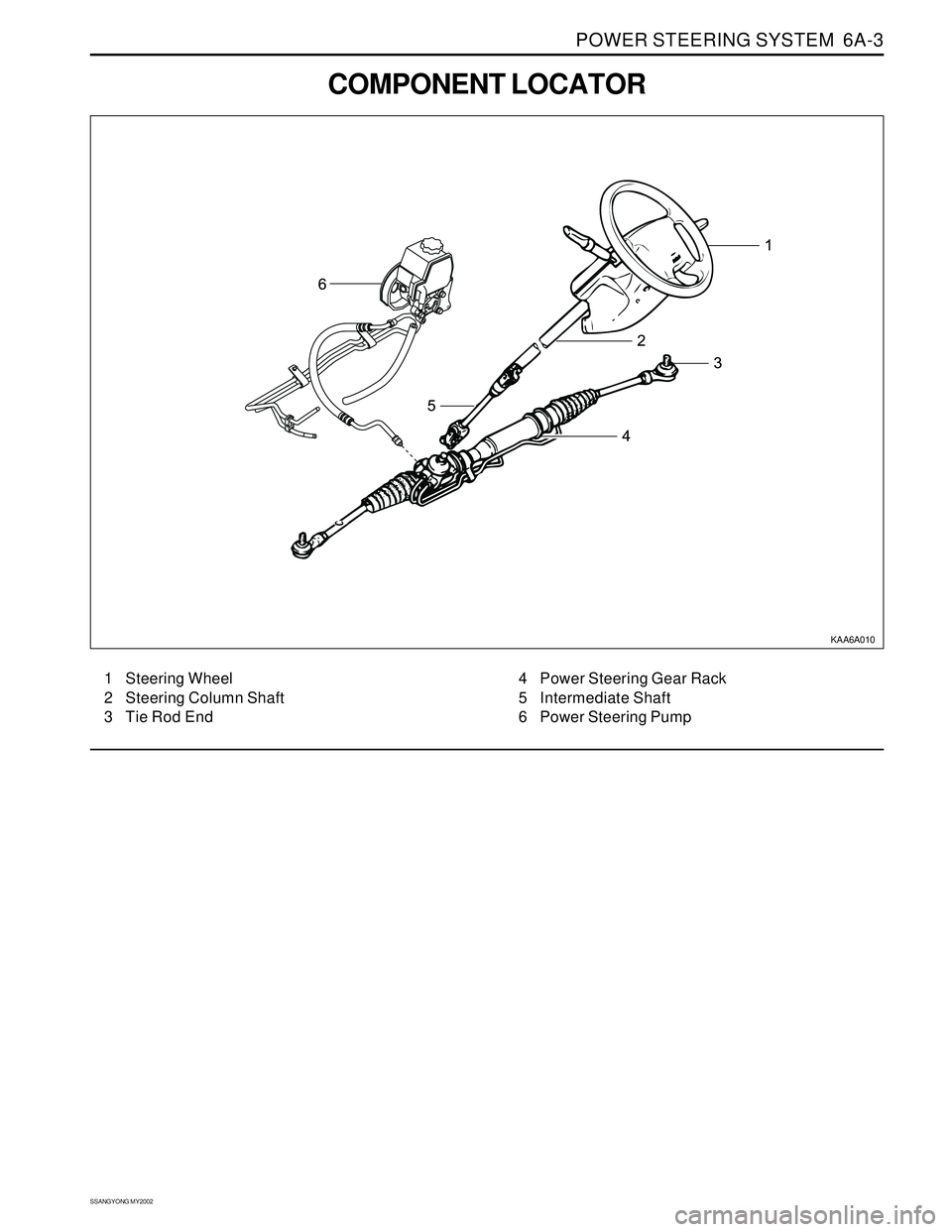

COMPONENT LOCATOR
KAA6A010
1 Steering Wheel
2 Steering Column Shaft
3 Tie Rod End4 Power Steering Gear Rack
5 Intermediate Shaft
6 Power Steering Pump

Page 1455 of 2053

SSANGYONG KORANDO 1997 Service Repair Manual SSANGYONG MY2002
6A-4 POWER STEERING SYSTEM
KAA6A020
DIAGNOSTIC INFORMATION AND PROCEDURES
POWER STEERING SYSTEM
PRESSURE TEST
Tools Required
124 589 06 21 00 Power Steering Pump Testing Unit
Check t

SSANGYONG MY2002
6A-4 POWER STEERING SYSTEM
KAA6A020
DIAGNOSTIC INFORMATION AND PROCEDURES
POWER STEERING SYSTEM
PRESSURE TEST
Tools Required
124 589 06 21 00 Power Steering Pump Testing Unit
Check the fluid pressure as follow to trouble is in the
pump or gear unit.
Test Procedure
1. Disconnect the pressure hose from the oil pump
and connect a pressure gauge between the oil
pump and pressure hose.
2. Bleed the system. Start the engine and turn the
steering wheel form lock several times until oil
temperature is up to 50 °C.
3. Run the engine at 1,000 rpm.
4. Close the gauge valve fully, and read pressure.
The pump pressure with the valve closed should
be between 7,355 kPa to 8,041 kPa (1,067 psi to
1,166 psi).
Notice: Do not keep the valve closed for more
than 10 seconds.
5. Remove the pressure gauge and connect the pres-
sure hose.
6. Do bleeding procedure.
POWER STEERING SYSTEM
LEAK TEST
General Procedure
Inspect the following :
The power steering fluid reservoir for overfill.
Fluid for aeration and overflow.
The hoses for loose connections.
The torsion bar, stub shaft and adjuster seals for
leaks.
The component sealing surfaces for damage.
Important: Verify the exact point of the leak. The point
from which the fluid is dripping is not necessarily the
point at which the system is leaking. When service is
required, clean the leak area upon disassembly,
replace the leaking seal, check the component sealing
surfaces for damage and reset the torque bolt to
specifications required.
External Leak Check
The purpose of this procedure is to pinpoint the location
of the leak. In some cases, the leak can be easily lo-
cated, but seepage-type leaks may be harder to find.
To locate seepage leaks, use the following method:
1. With the engine off, wipe dry the complete power
steering system.
2. Check the power steering fluid level in the pump’s
reservoir. Adjust the fluid level as necessary.
Refer to “Checking and Adding Fluid” in this
section.
Notice: Do not hold the steering wheel at a stop
for any length of time as this can damage the
power steering pump.
3. Start the engine. Turn the steering wheel counter-
clockwise and clockwise from stop to stop several
times.
4. Find the exact area of the leak and repair it.

Page 1456 of 2053

SSANGYONG KORANDO 1997 Service Repair Manual POWER STEERING SYSTEM 6A-5
SSANGYONG MY2002
BLEEDING THE POWER
STEERING SYSTEM
1. Disconnect the fuel line. Using a starter motor,
crank the engine and turn the steering wheel from
lock to start 5 or
