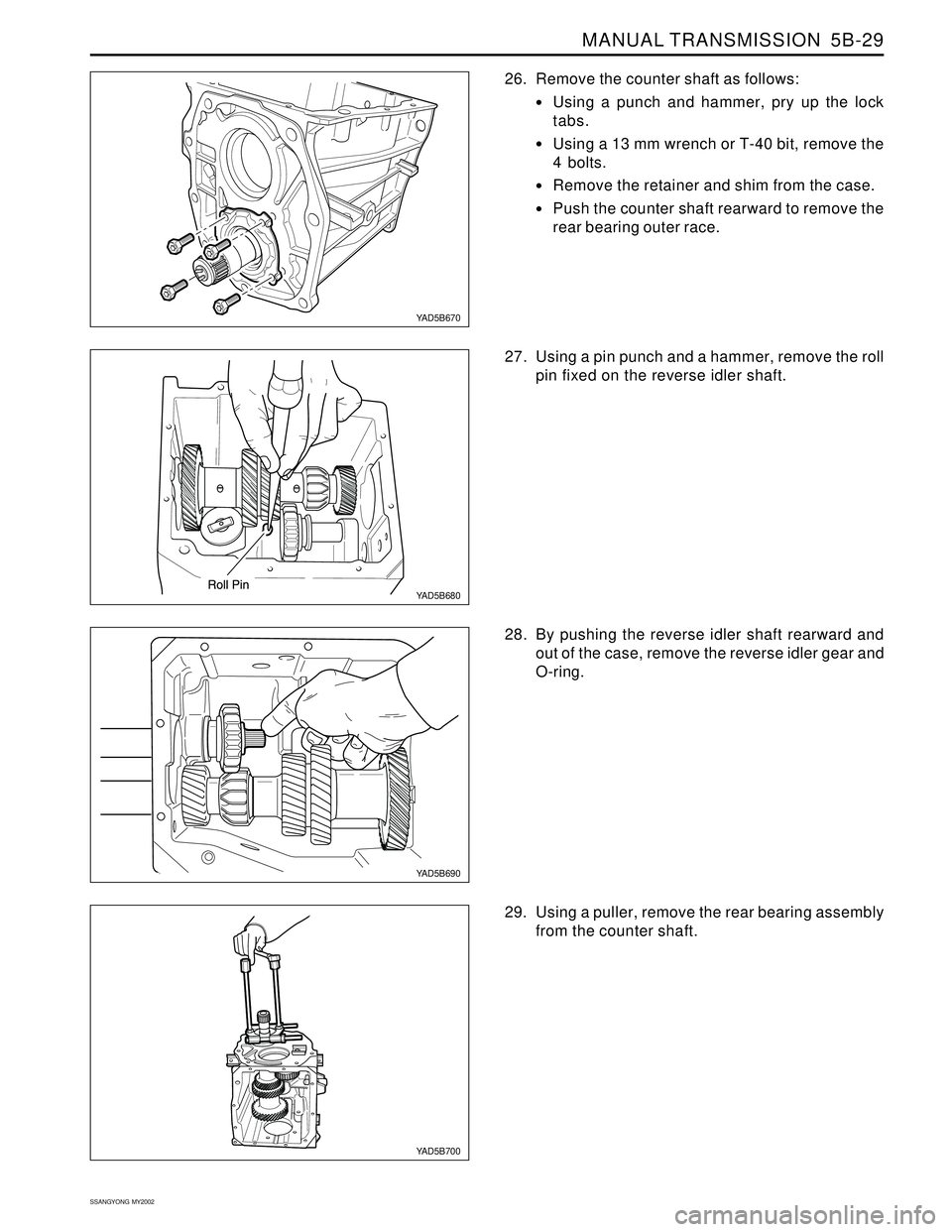

SSANGYONG KORANDO 1997 Service Repair Manual MANUAL TRANSMISSION 5B-29 SSANGYONG MY2002 26. Remove the counter shaft as follows: Using a punch and hammer, pry up the lock tabs. Using a 13 mm wrench or T-40 bit, remove the 4 bolts. Remove th

Page 1338 of 2053

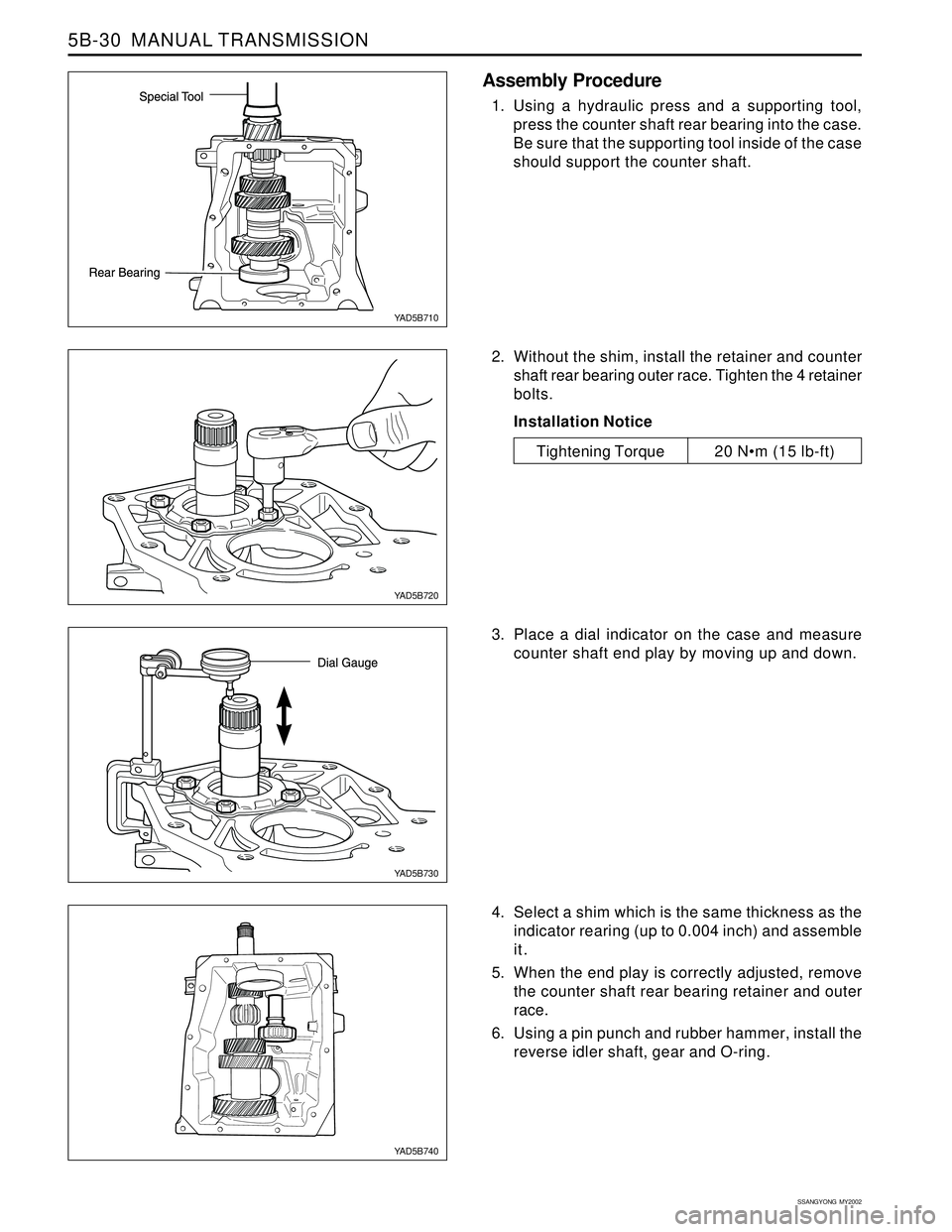

SSANGYONG KORANDO 1997 Service Repair Manual SSANGYONG MY2002 5B-30 MANUAL TRANSMISSION Assembly Procedure 1. Using a hydraulic press and a supporting tool, press the counter shaft rear bearing into the case. Be sure that the supporting tool i

Page 1339 of 2053

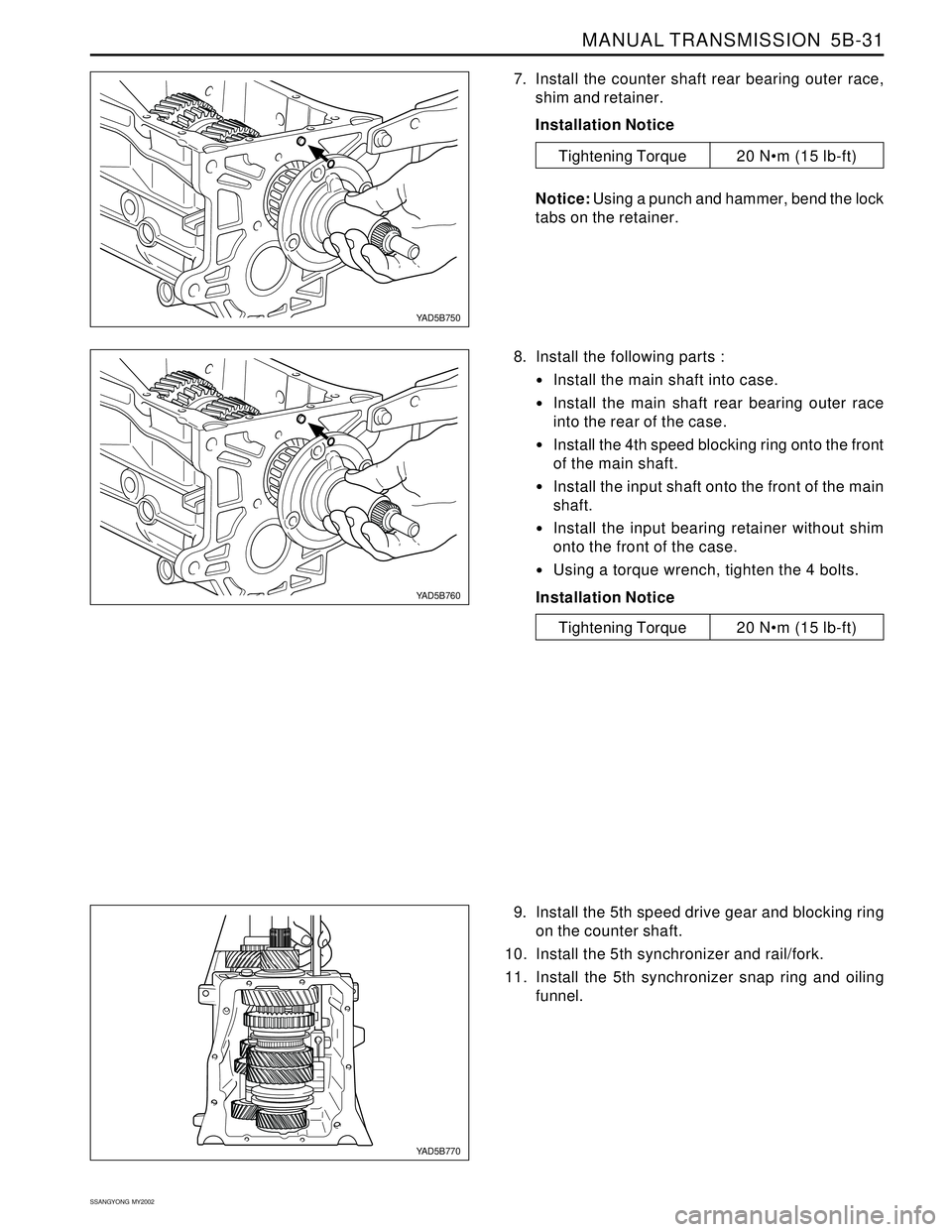

SSANGYONG KORANDO 1997 Service Repair Manual MANUAL TRANSMISSION 5B-31 SSANGYONG MY2002 7. Install the counter shaft rear bearing outer race, shim and retainer. Installation Notice Notice: Using a punch and hammer, bend the lock tabs on the re

Page 1340 of 2053

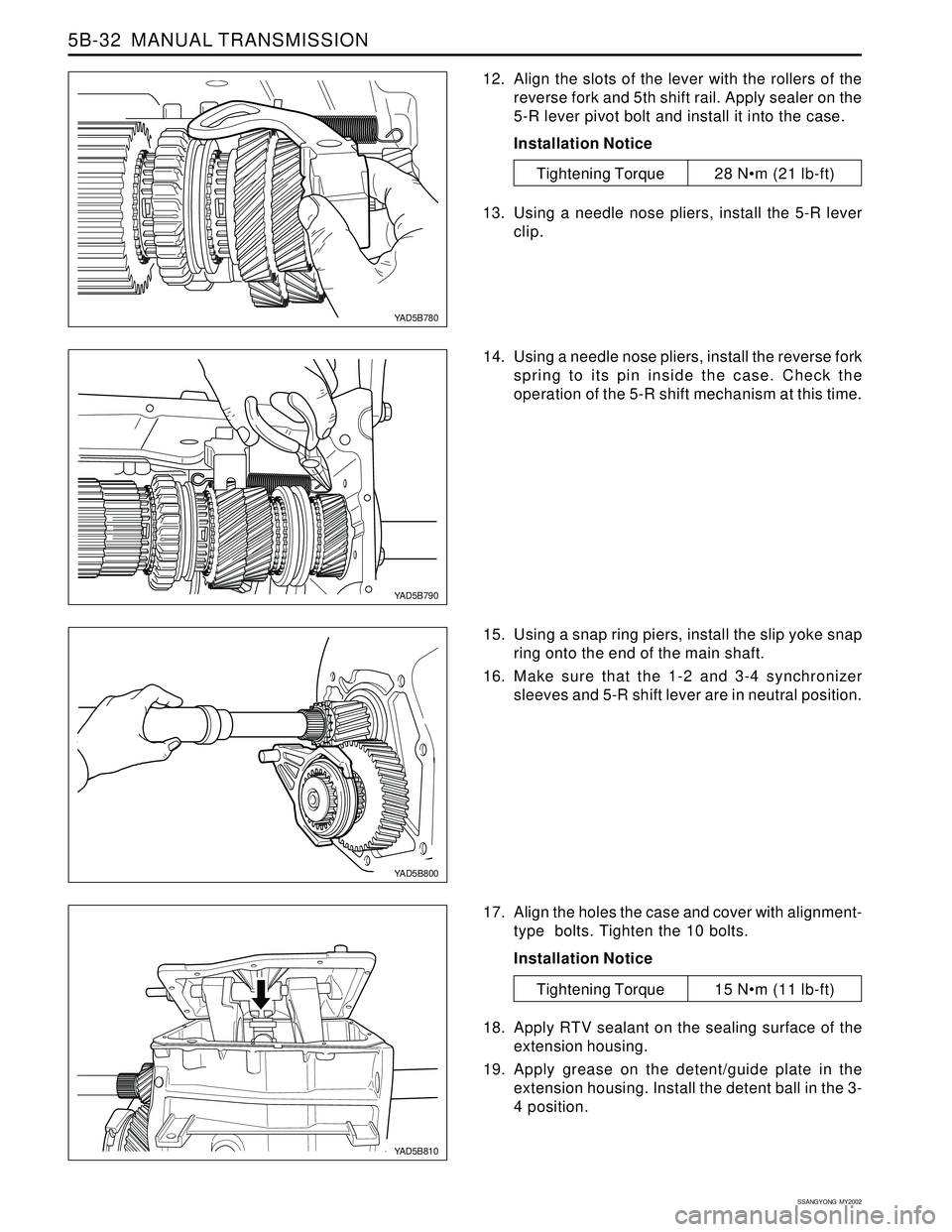

SSANGYONG KORANDO 1997 Service Repair Manual SSANGYONG MY2002 5B-32 MANUAL TRANSMISSION 12. Align the slots of the lever with the rollers of the reverse fork and 5th shift rail. Apply sealer on the 5-R lever pivot bolt and install it into the

Page 1341 of 2053

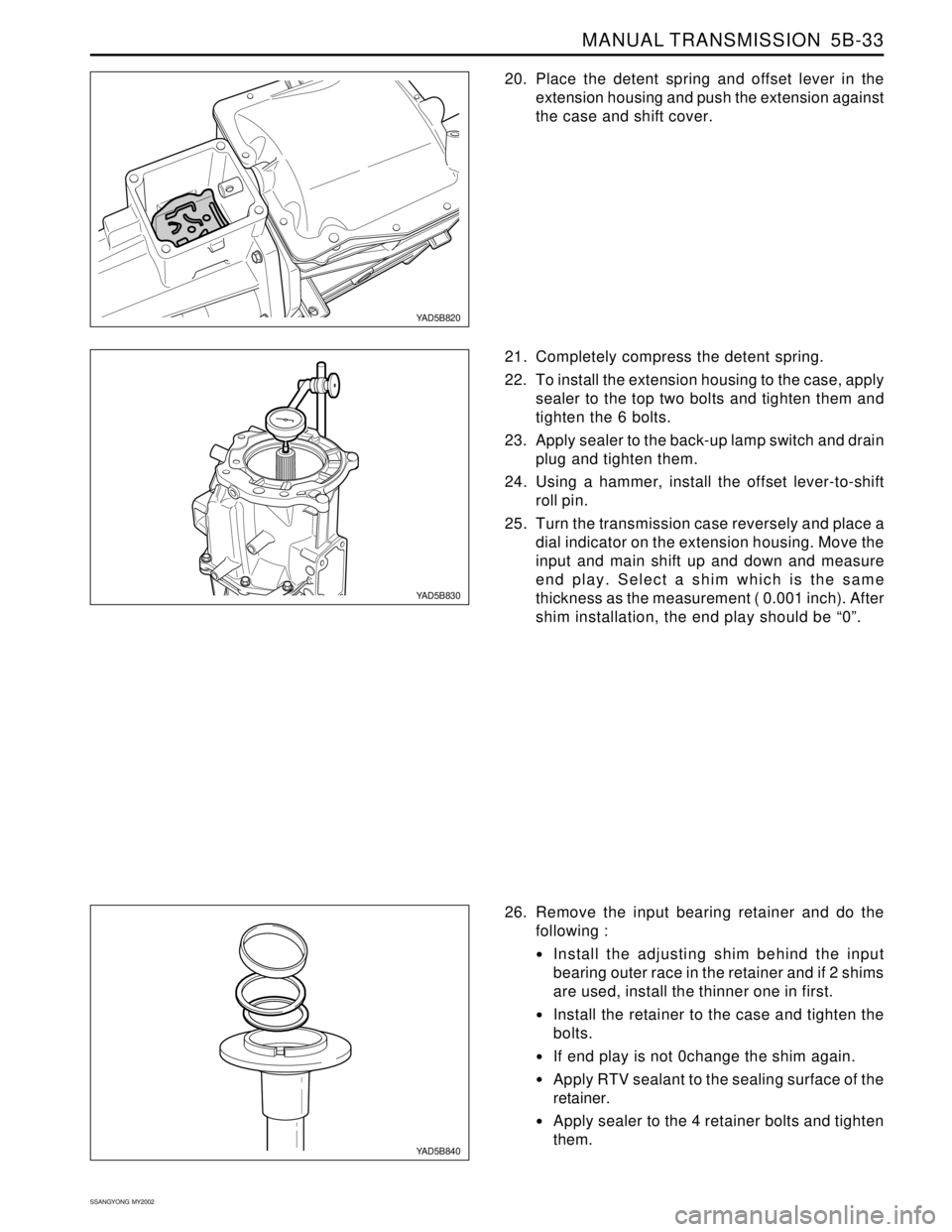

SSANGYONG KORANDO 1997 Service Repair Manual MANUAL TRANSMISSION 5B-33 SSANGYONG MY2002 YAD5B820 YAD5B830 YAD5B840 20. Place the detent spring and offset lever in the extension housing and push the extension against the case and shift cover. 2

Page 1342 of 2053

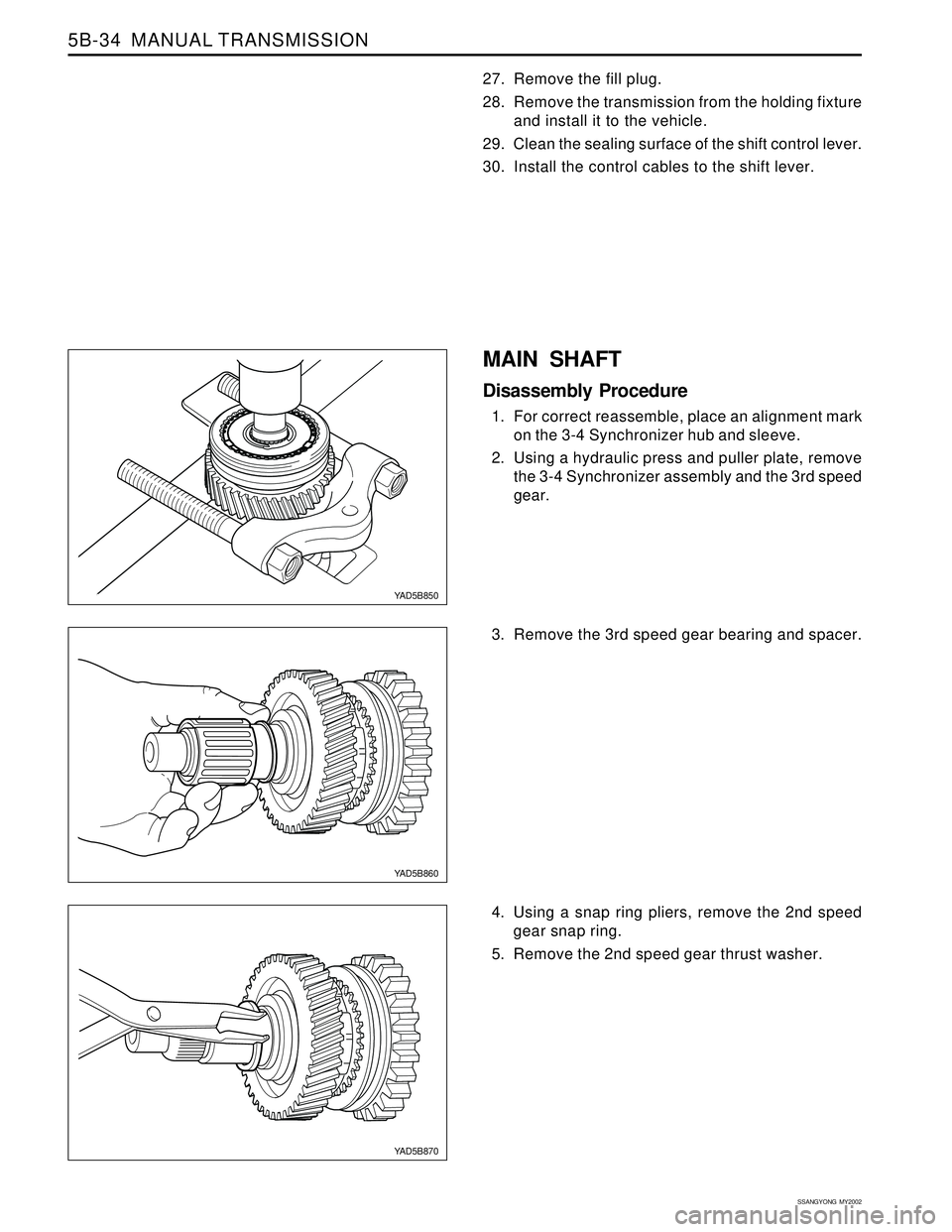

SSANGYONG KORANDO 1997 Service Repair Manual SSANGYONG MY2002 5B-34 MANUAL TRANSMISSION 27. Remove the fill plug. 28. Remove the transmission from the holding fixture and install it to the vehicle. 29. Clean the sealing surface of the shift co

Page 1343 of 2053

SSANGYONG KORANDO 1997 Service Repair Manual MANUAL TRANSMISSION 5B-35 SSANGYONG MY2002 6. Remove the 2nd speed gear, bearing and spacer. YAD5B880 YAD5B890 YAD5B910 YAD5B900 7. Using a screwdriver, remove the spiral retaining ring. 8. Remove t

Page 1344 of 2053

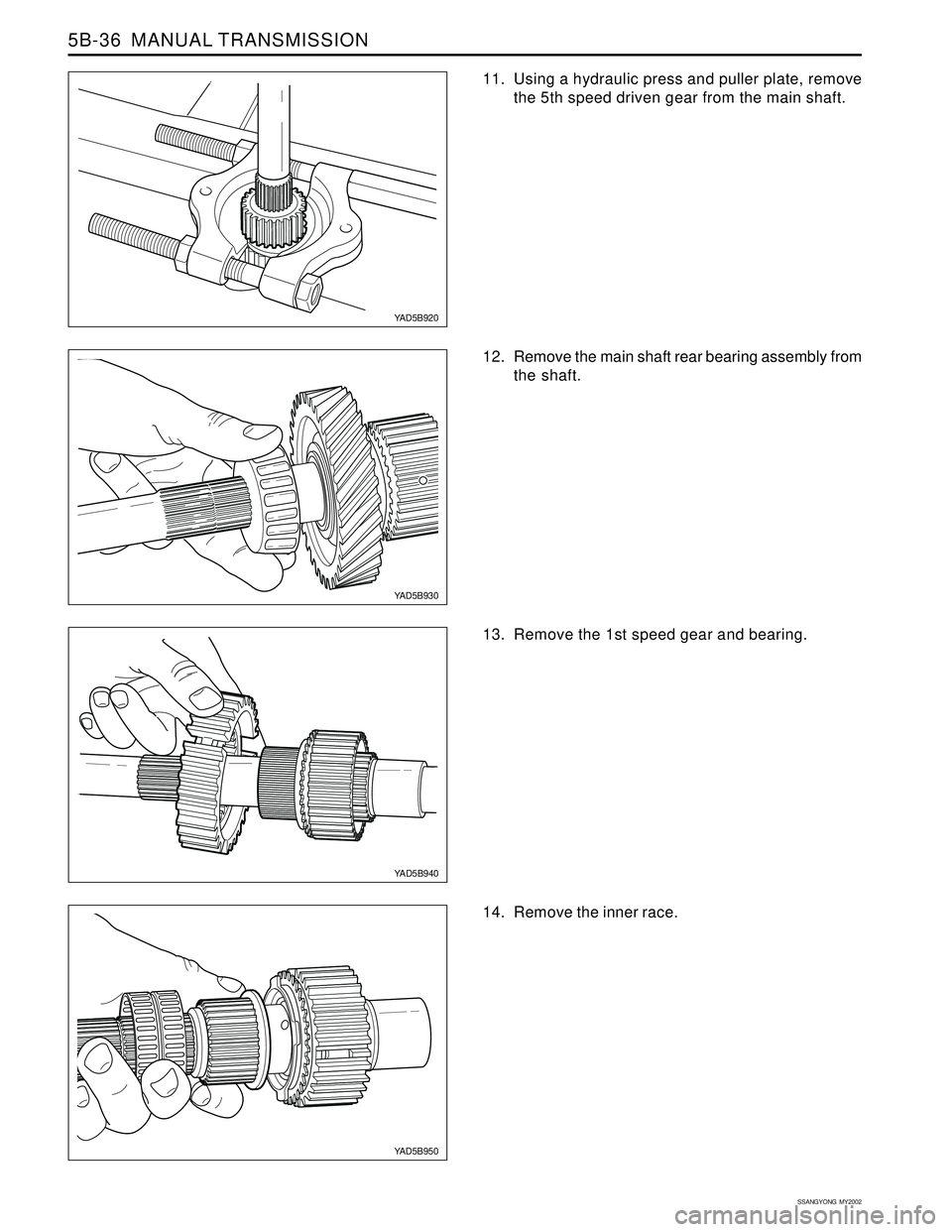

SSANGYONG KORANDO 1997 Service Repair Manual SSANGYONG MY2002 5B-36 MANUAL TRANSMISSION 11. Using a hydraulic press and puller plate, remove the 5th speed driven gear from the main shaft. YAD5B920 YAD5B930 YAD5B950 YAD5B940 12. Remove the main
