SSANGYONG KORANDO 1997 Service Repair Manual REAR BRAKES 4E-17 SSANGYONG MY2002 ������� ������� ������� ������� ������� ������� ������� ������� ������� ������� ������� yyyyyyy yyyyyyy yyyyyyy yyyyyyy yyyyyyy yyyyyyy yyyyyyy yyyyyyy yyyyyyy yyyy

Page 978 of 2053

SSANGYONG KORANDO 1997 Service Repair Manual SSANGYONG MY2002 4E-18 REAR BRAKES 6. Rotate the lining shoe hold down-washer in the plug hole of the axle shaft flange and disconnect the pin and the spring. 7. Disconnect the parking cable from the

Page 979 of 2053

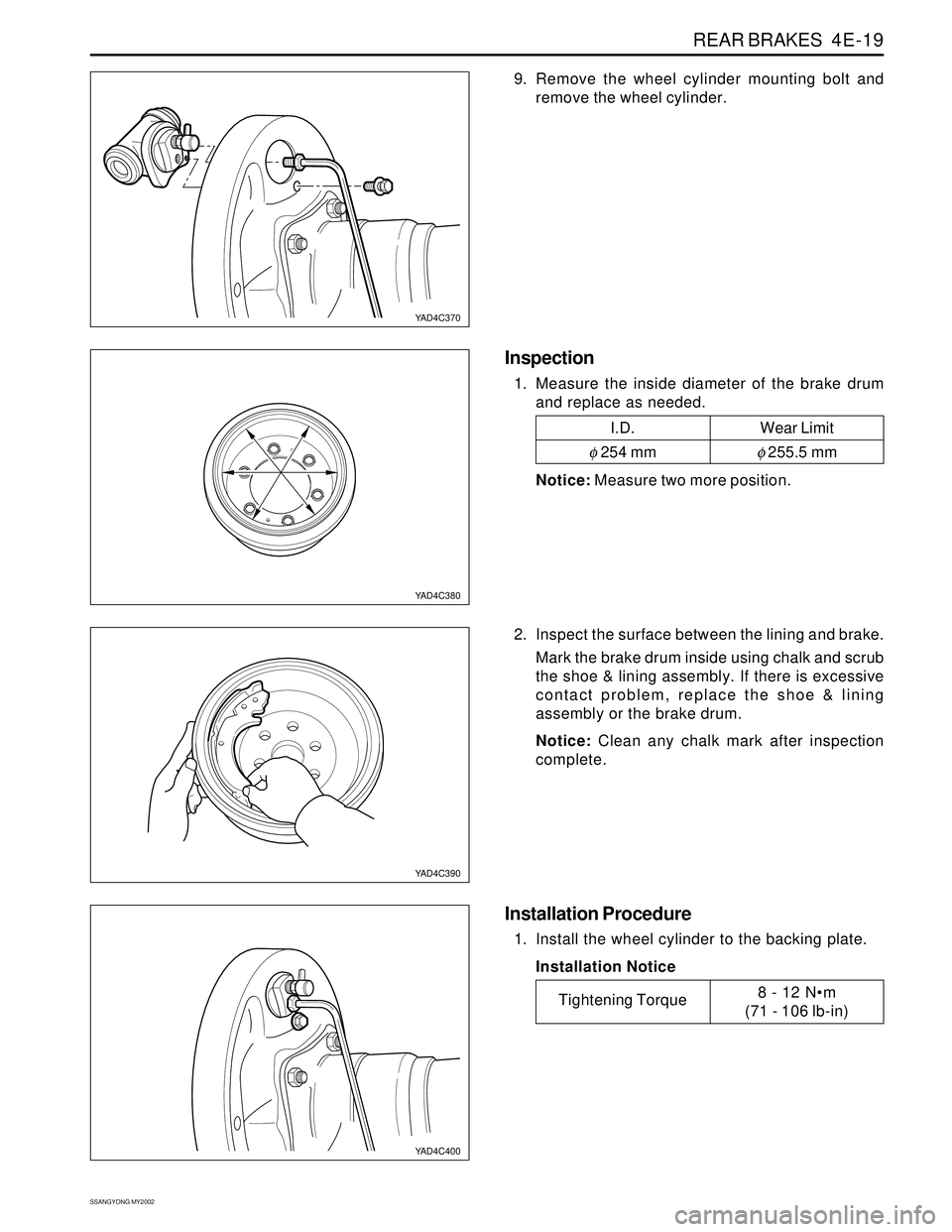

SSANGYONG KORANDO 1997 Service Repair Manual REAR BRAKES 4E-19 SSANGYONG MY2002 9. Remove the wheel cylinder mounting bolt and remove the wheel cylinder. Inspection 1. Measure the inside diameter of the brake drum and replace as needed. I.D. φ

Page 980 of 2053

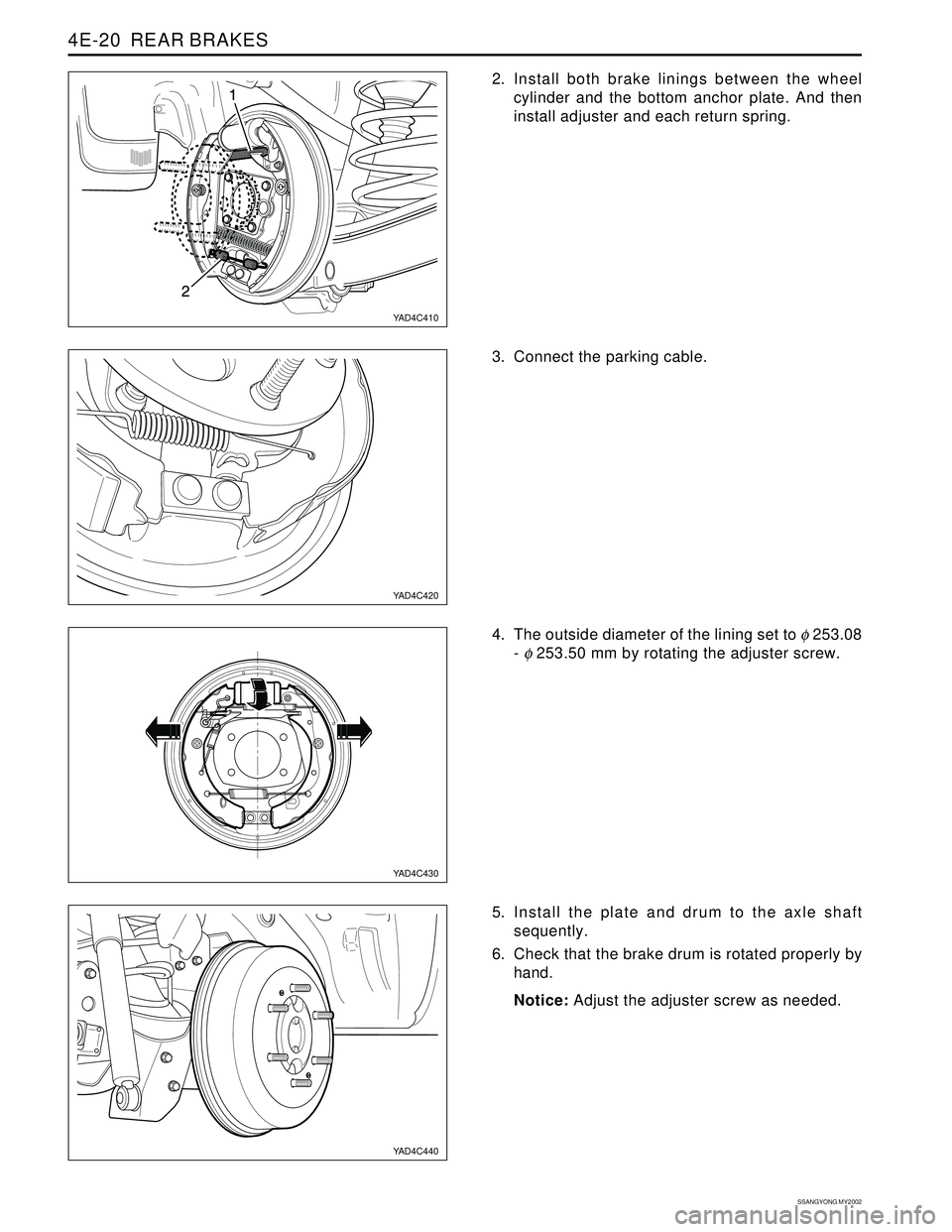

SSANGYONG KORANDO 1997 Service Repair Manual SSANGYONG MY2002 4E-20 REAR BRAKES 2. Install both brake linings between the wheel cylinder and the bottom anchor plate. And then install adjuster and each return spring. 3. Connect the parking cable

Page 981 of 2053

SSANGYONG KORANDO 1997 Service Repair Manual REAR BRAKES 4E-21 SSANGYONG MY2002 7. Connect the brake pipe to the wheel cylinder. Installation Notice Tightening Torque15 - 19 Nm (11 - 14 lb-ft) 8. Bleed the brake system and verify the parking b

Page 982 of 2053

SSANGYONG KORANDO 1997 Service Repair Manual SSANGYONG MY2002 4E-22 REAR BRAKES UNIT REPAIR WHEEL CYLINDER Disassembly Procedure 1. Remove the upper brake return spring and remove the wheel cylinder with pulling the upper lining outside. 2. Dis

Page 983 of 2053

SSANGYONG KORANDO 1997 Service Repair Manual REAR BRAKES 4E-23 SSANGYONG MY2002 2. Pull out the lever pin (arrow) and Disconnect the the parking brake lever and the adjuster lever. 3. Installation should follow the removal procedure in the reve

Page 984 of 2053

SSANGYONG KORANDO 1997 Service Repair Manual SSANGYONG MY2002 4E-24 REAR BRAKES 14 20 70 - Brake Hose Bolt Caliper Guide Bolt Caliper Mounting Bolts Splash Shield-to-Knuckle BoltsN•m Application Lb-In SPECIFICATIONS FASTENER TIGHTENING SPECIF
