Page 1457 of 2053

SSANGYONG KORANDO 1997 Service Repair Manual SSANGYONG MY2002 6A-6 POWER STEERING SYSTEM KAA6A040 3. Remove the power steering fluid reservoir mounting bolts (1). Removal Notice: One power steering fluid reservoir mounting bolt (2) is located

Page 1458 of 2053

SSANGYONG KORANDO 1997 Service Repair Manual POWER STEERING SYSTEM 6A-7 SSANGYONG MY2002 KAA6A050 KAA6A060 4. Disconnect the return line pipe from the power steering gear outlet. Installation Notice KAA6A070 5. Disconnect the pressure line pipe

Page 1459 of 2053

SSANGYONG KORANDO 1997 Service Repair Manual SSANGYONG MY2002 6A-8 POWER STEERING SYSTEM KAA6A080 6. Remove the return line support clip from the front frame. Installation Notice Tightening Torque 9 Nm (80 lb-in) After installing the power st

Page 1460 of 2053

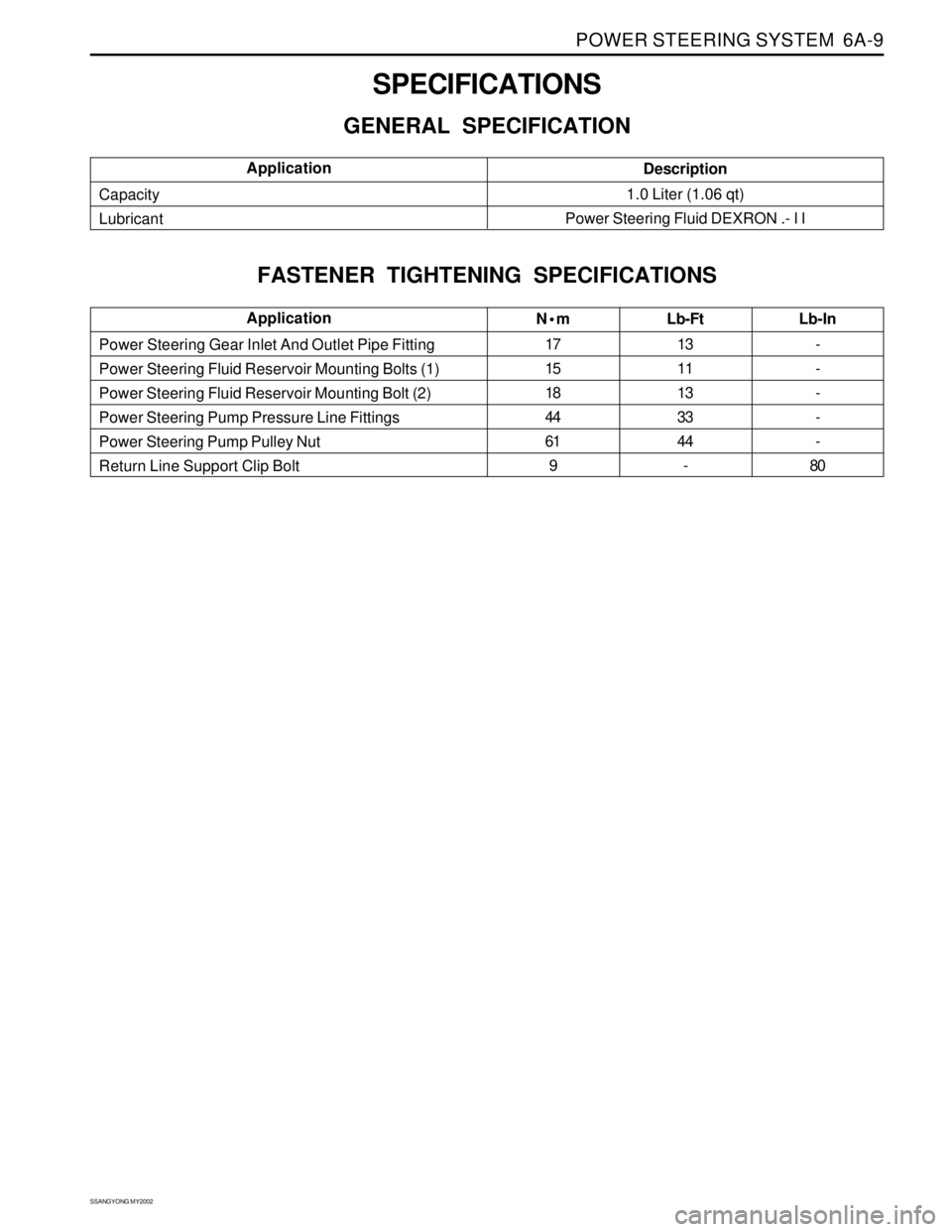

SSANGYONG KORANDO 1997 Service Repair Manual POWER STEERING SYSTEM 6A-9 SSANGYONG MY2002 SPECIFICATIONS GENERAL SPECIFICATION N•m 17 15 18 44 61 9Lb-Ft 13 11 13 33 44 - Power Steering Gear Inlet And Outlet Pipe Fitting Power Steering Fluid Re

Page 1461 of 2053

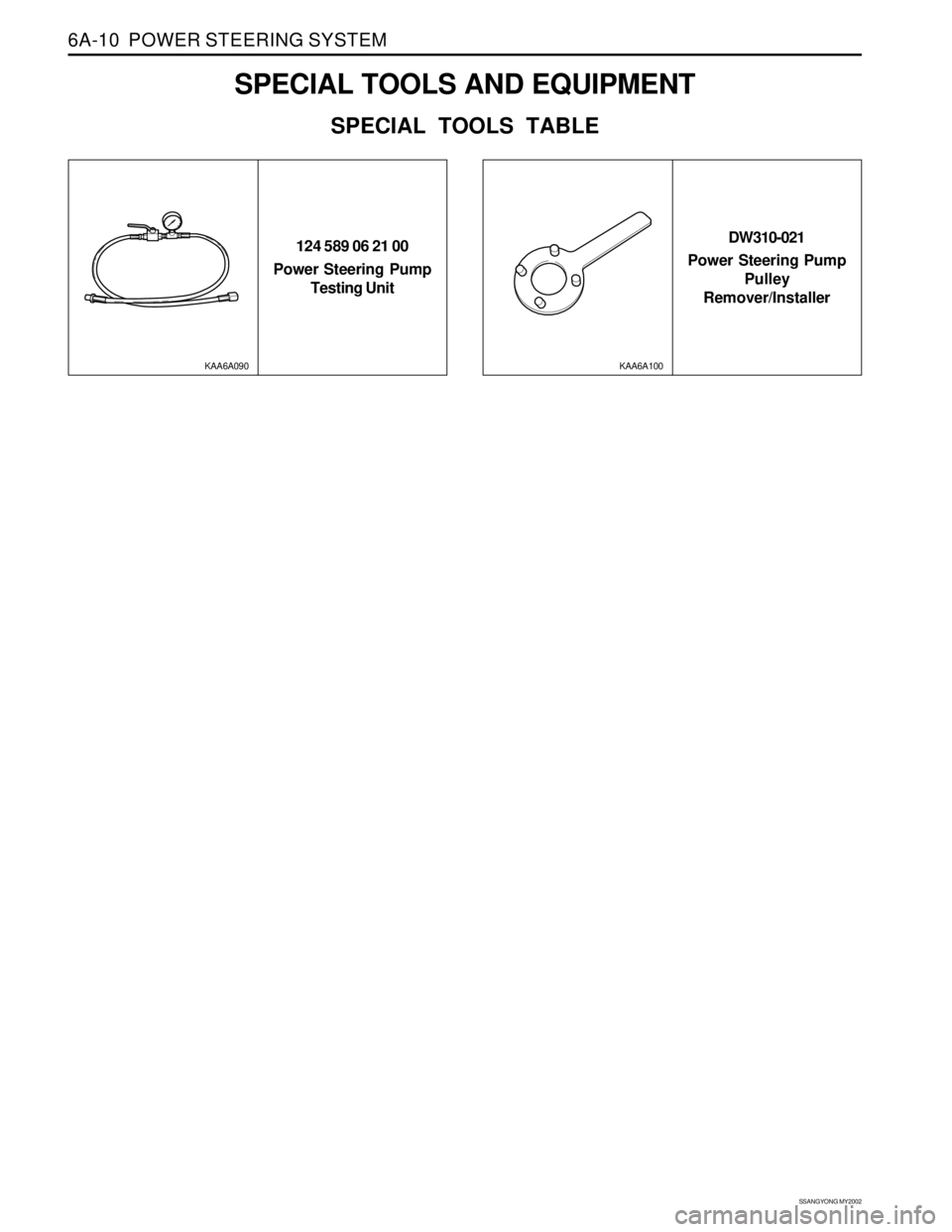

SSANGYONG KORANDO 1997 Service Repair Manual SSANGYONG MY2002 6A-10 POWER STEERING SYSTEM SPECIAL TOOLS AND EQUIPMENT SPECIAL TOOLS TABLE 124 589 06 21 00 Power Steering Pump Testing Unit KAA6A090 DW310-021 Power Steering Pump Pulley Remover/In

Page 1462 of 2053

SSANGYONG KORANDO 1997 Service Repair Manual SECTION 6B POWER STEERING PUMP TABLE OF CONTENTS Description and Operation...................................6B-2 General Description.............................................6B-2 Diagnostic Inform

Page 1463 of 2053

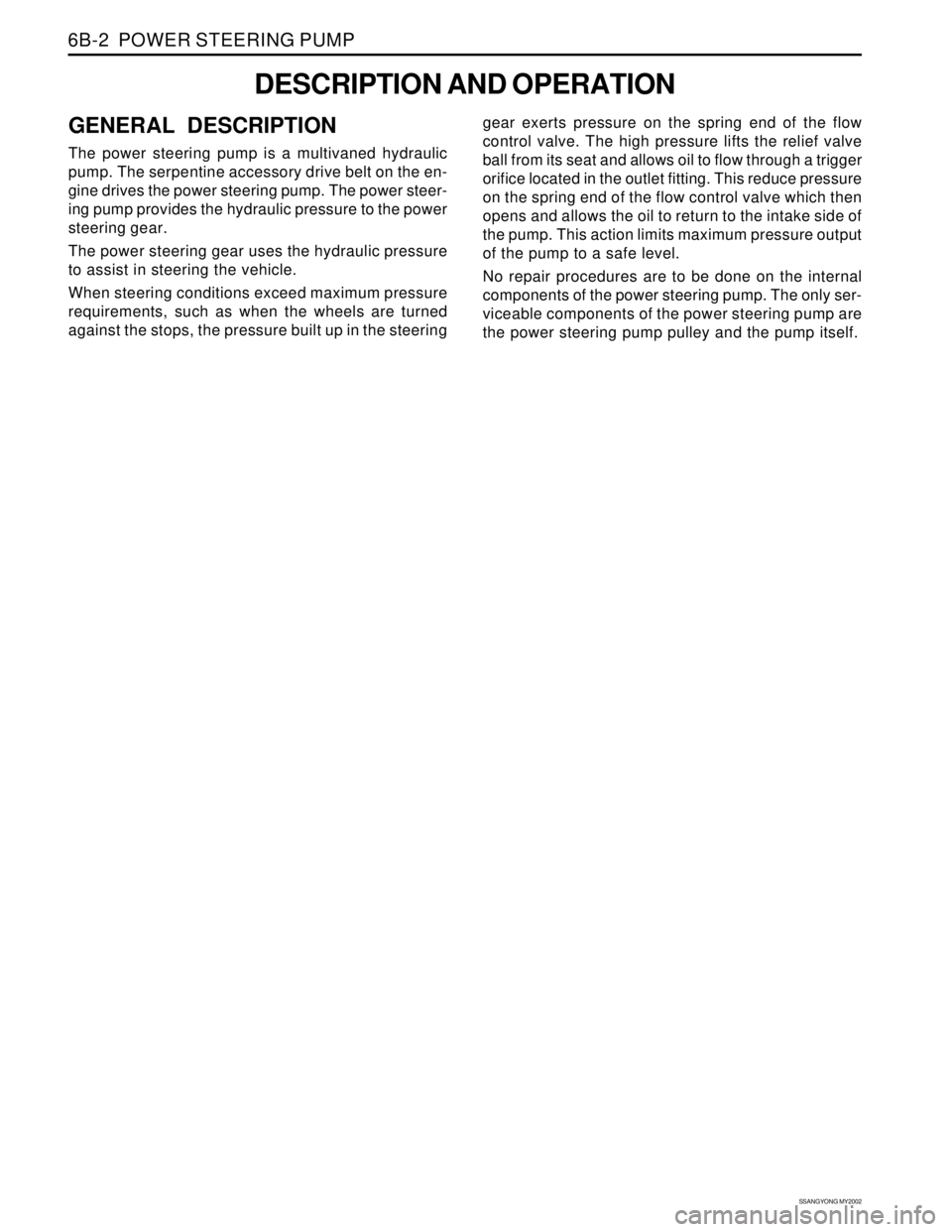

SSANGYONG KORANDO 1997 Service Repair Manual SSANGYONG MY2002 6B-2 POWER STEERING PUMP DESCRIPTION AND OPERATION GENERAL DESCRIPTION The power steering pump is a multivaned hydraulic pump. The serpentine accessory drive belt on the en- gine dri

Page 1464 of 2053

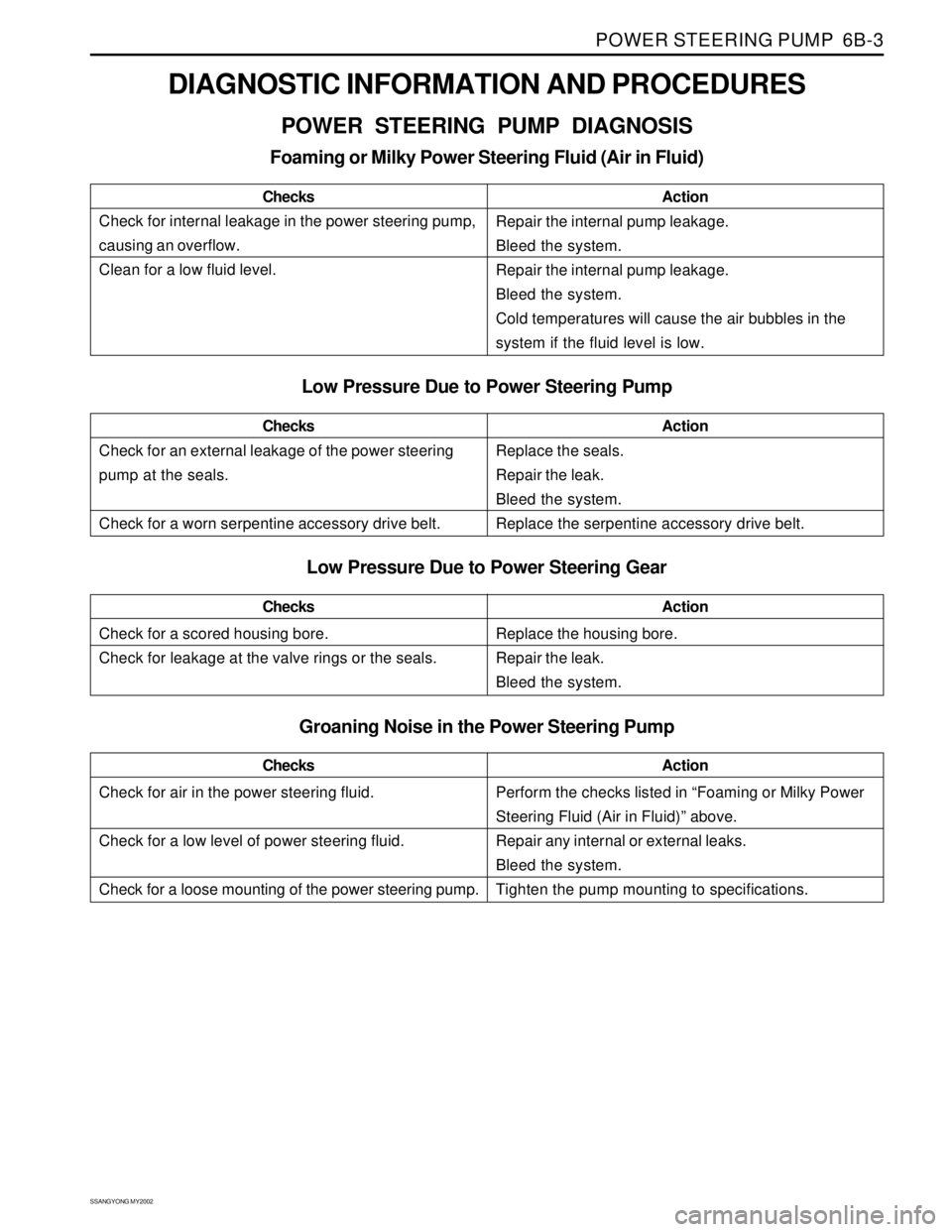

SSANGYONG KORANDO 1997 Service Repair Manual POWER STEERING PUMP 6B-3 SSANGYONG MY2002 DIAGNOSTIC INFORMATION AND PROCEDURES POWER STEERING PUMP DIAGNOSIS Foaming or Milky Power Steering Fluid (Air in Fluid) Low Pressure Due to Power Steering P
