Page 1073 of 2053

SSANGYONG KORANDO 1997 Service Repair Manual SSANGYONG MY2002 4F-90 ABS AND TCS ABS CIRCUIT (WITHOUT TCS): GASOLINE KAA4F250 SCHEMATIC AND ROUTING DIAGRAMS

Page 1074 of 2053

SSANGYONG KORANDO 1997 Service Repair Manual ABS AND TCS 4F-91 SSANGYONG MY2002 ABS / TCS CIRCUIT (1 OF 2): GASOLINE - INDICATOR, RELAY (ABD, MOTOR, VALVE), HYDRAULIC MODULATOR KAA4F260

Page 1075 of 2053

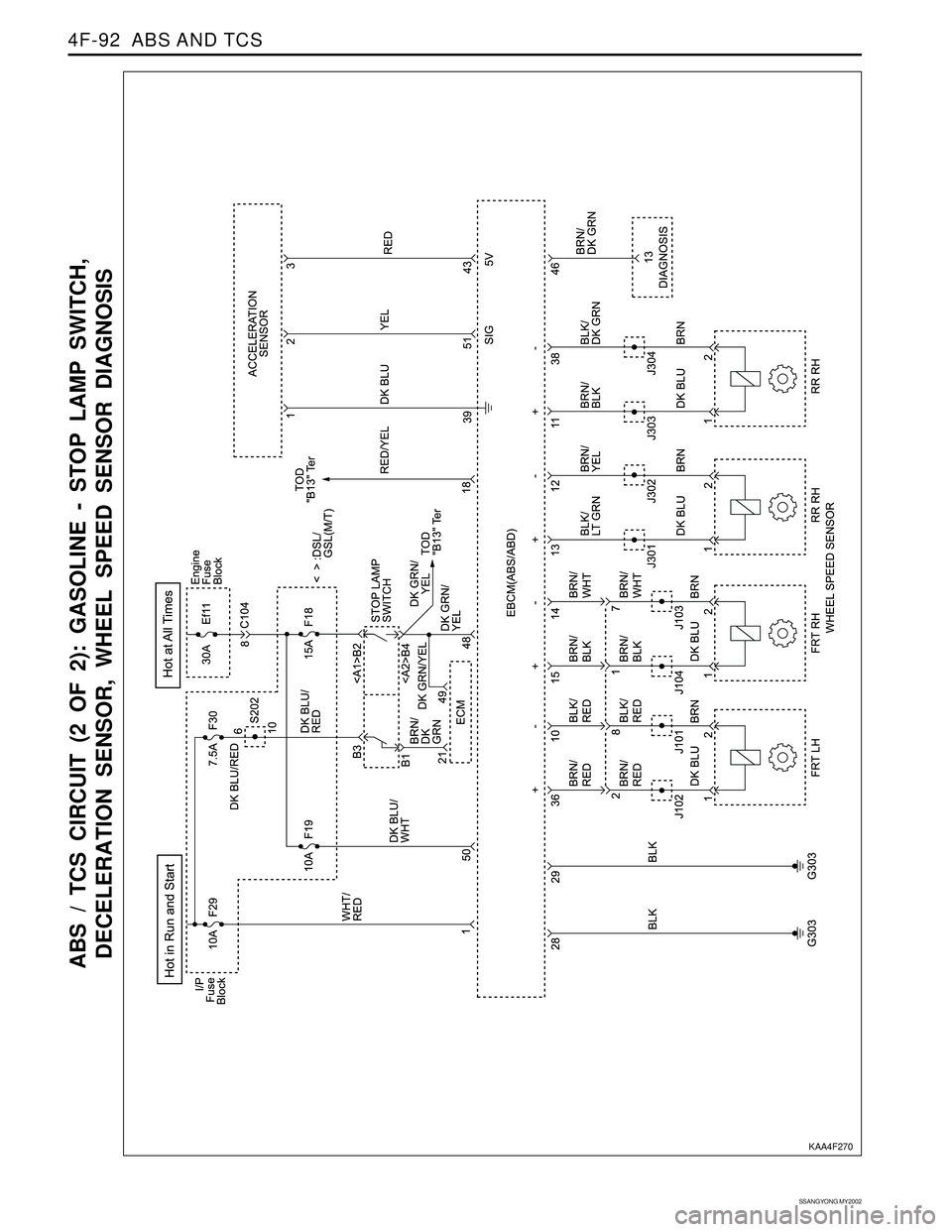

SSANGYONG KORANDO 1997 Service Repair Manual SSANGYONG MY2002 4F-92 ABS AND TCS ABS / TCS CIRCUIT (2 OF 2): GASOLINE - STOP LAMP SWITCH, DECELERATION SENSOR, WHEEL SPEED SENSOR DIAGNOSIS KAA4F270

Page 1076 of 2053

SSANGYONG KORANDO 1997 Service Repair Manual ABS AND TCS 4F-93 SSANGYONG MY2002 ABS / ABD (AUTOMATIC BRAKE DIFFERENTIAL LOCK): DIESEL - INDICATOR, RELAY (ABD, MOTOR, VALVE) HYDRAULIC MODULATOR KAA4F280

Page 1077 of 2053

SSANGYONG KORANDO 1997 Service Repair Manual SSANGYONG MY2002 4F-94 ABS AND TCS ABS / ABD (AUTOMATIC BRAKE DIFFERENTIAL LOCK): DIESEL - STOPLAMP SWITCH, ACCELERATION SENSOR, WHEEL SPEED SENSOR DIAGNOSIS KAA4F290

Page 1078 of 2053

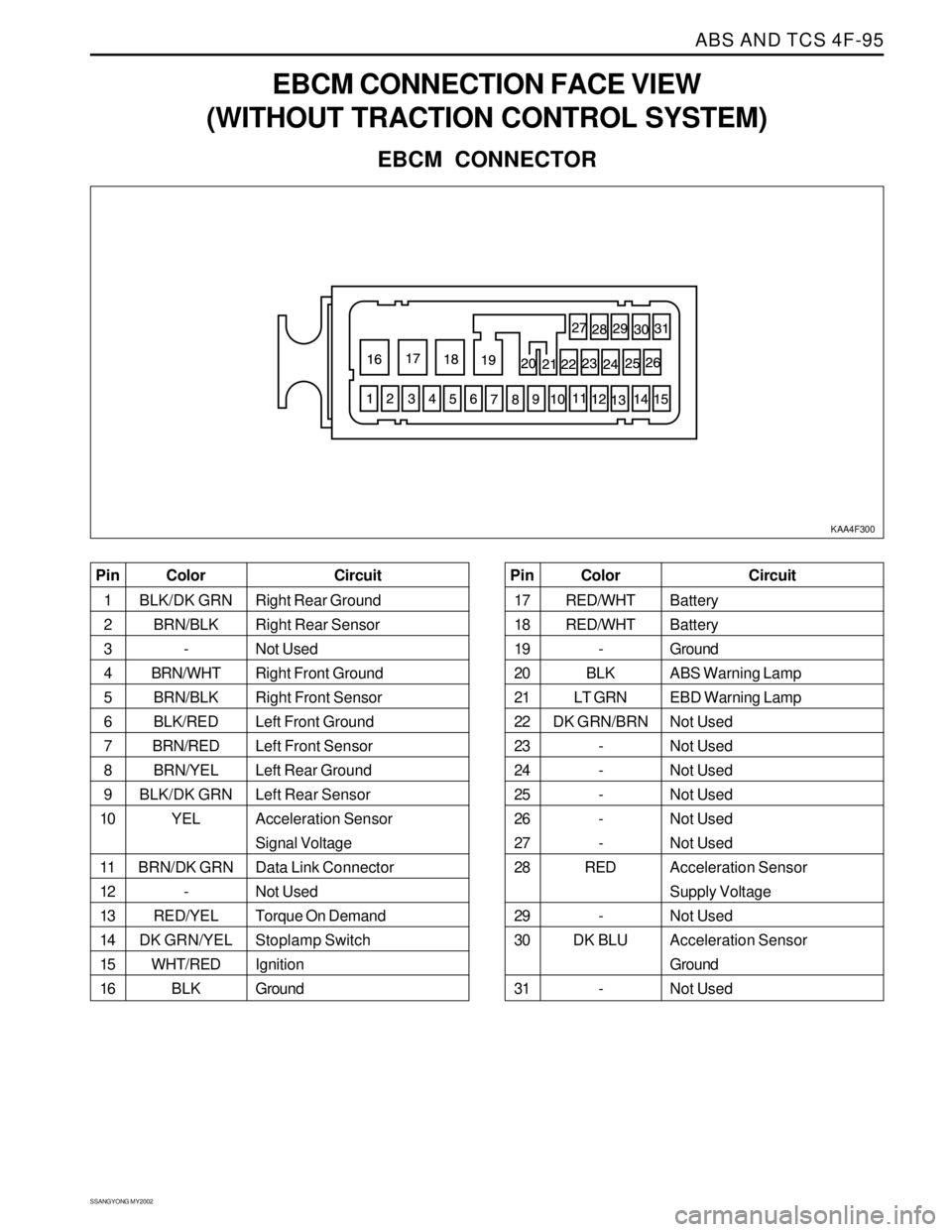

SSANGYONG KORANDO 1997 Service Repair Manual ABS AND TCS 4F-95 SSANGYONG MY2002 EBCM CONNECTION FACE VIEW (WITHOUT TRACTION CONTROL SYSTEM) EBCM CONNECTOR KAA4F300 Color BLK/DK GRN BRN/BLK - BRN/WHT BRN/BLK BLK/RED BRN/RED BRN/YEL BLK/DK GRN YEL

Page 1079 of 2053

SSANGYONG KORANDO 1997 Service Repair Manual SSANGYONG MY2002 4F-96 ABS AND TCS HYDRAULIC MODULATOR CONNECTOR KAA4F310 Color - WHT/BLK LT GRN/BLK RED/BRN BRN/YEL YEL/DK GRN – BRN Pin 1 2 3 4 5 6 7 8Circuit Not Used Right Front Inlet Valve Rig

Page 1080 of 2053

SSANGYONG KORANDO 1997 Service Repair Manual ABS AND TCS 4F-97 SSANGYONG MY2002 KAA4F320 Color WHT/RED BLK/DK GRN YEL/DK GRN RED/BRN BRN LT GRN/BLK DK BLU/BLK - - BLK/RED BRN/BLK BRN/YEL BLK/LT GRN BRN/WHT BRN/BLK - - RED/YEL RED/BRN - - - - - D
