Page 1545 of 2053

SSANGYONG KORANDO 1997 Service Repair Manual SSANGYONG MY2002 7C-16 MANUAL & SEMIAUTO-HVAC Charging Refrigerant Charging for Gas 1. Connect the tap valve to the refrigerant tank. 2. Open the low pressure and adjust the low-side reading below 4

Page 1546 of 2053

SSANGYONG KORANDO 1997 Service Repair Manual MANUAL & SEMIAUTO-HVAC 7C-17 SSANGYONG MY2002 ����� ����� ����� Operation Check Notice: Operation Check is recommended before removing the manifold gauge. 1. Install the manifold gauge set. 2. Run t

Page 1547 of 2053

SSANGYONG KORANDO 1997 Service Repair Manual SSANGYONG MY2002 7C-18 MANUAL & SEMIAUTO-HVAC Total Oil Capacity 265 cc COMPRESSOR OIL REPLACEMENT Before Oil Replacement When any part is replaced or there are a lot of gas leaks in the A/C system,

Page 1548 of 2053

SSANGYONG KORANDO 1997 Service Repair Manual MANUAL & SEMIAUTO-HVAC 7C-19 SSANGYONG MY2002 KAA7C200 1 Condenser 2 Bolt................................ 4 - 6 Nm (35 - 53 lb-in) 3 Condenser Fan4 Sub Fan (Gasoline Engine) 5 Resister (Gasoline En

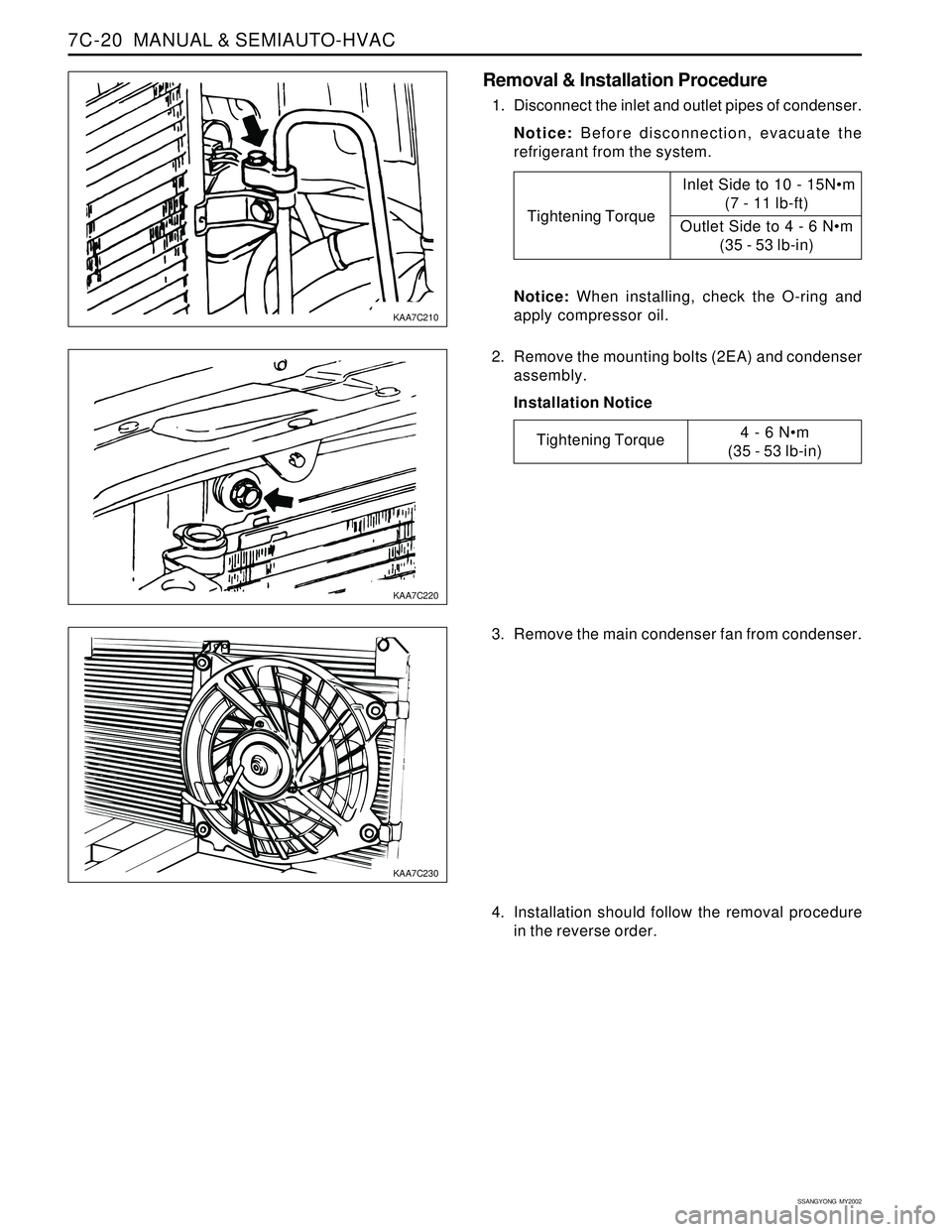

Page 1549 of 2053

SSANGYONG KORANDO 1997 Service Repair Manual SSANGYONG MY2002 7C-20 MANUAL & SEMIAUTO-HVAC KAA7C210 KAA7C220 KAA7C230 Removal & Installation Procedure 1. Disconnect the inlet and outlet pipes of condenser. Notice: Before disconnection, evacuat

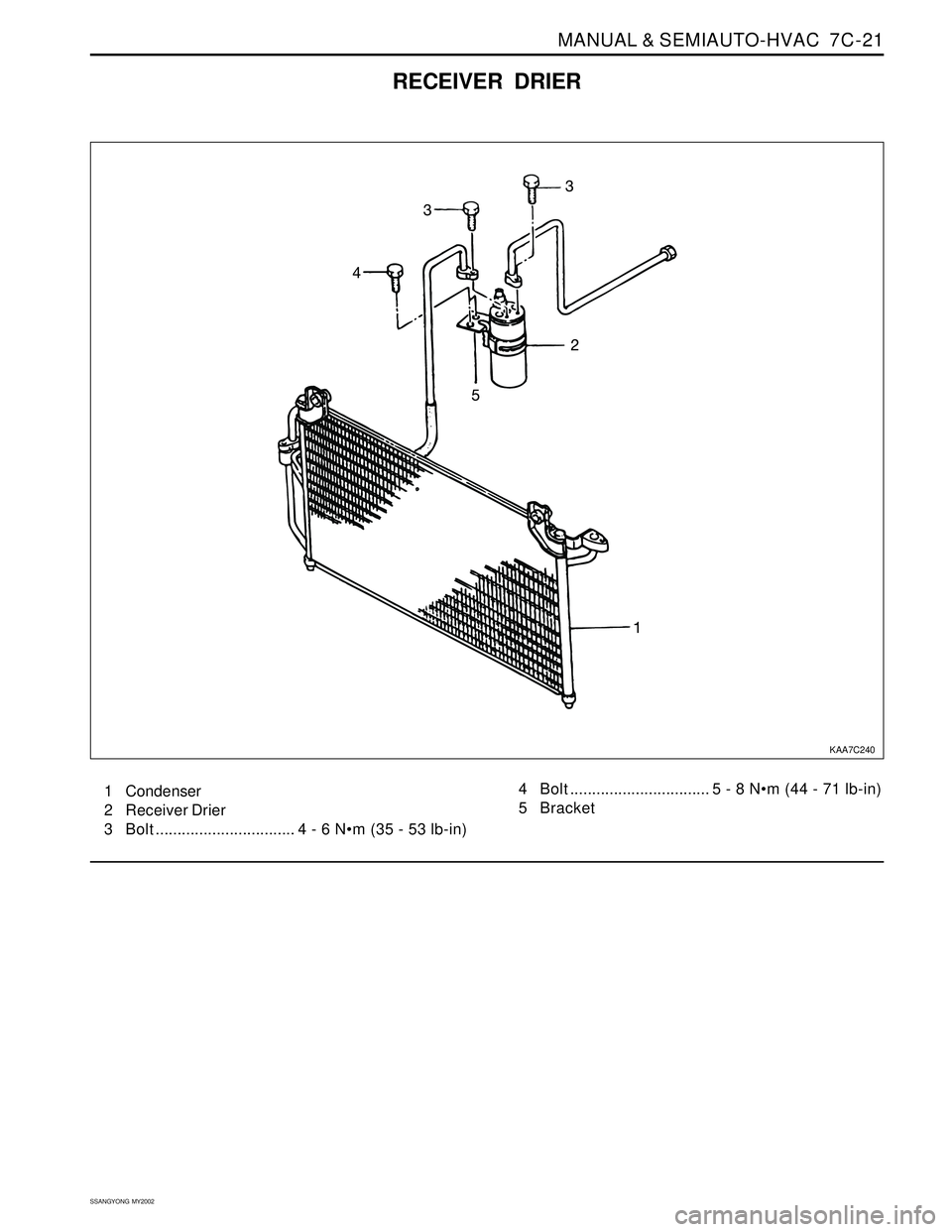

Page 1550 of 2053

SSANGYONG KORANDO 1997 Service Repair Manual MANUAL & SEMIAUTO-HVAC 7C-21 SSANGYONG MY2002 KAA7C240 1 Condenser 2 Receiver Drier 3 Bolt................................ 4 - 6 Nm (35 - 53 lb-in)4 Bolt................................ 5 - 8 Nm (

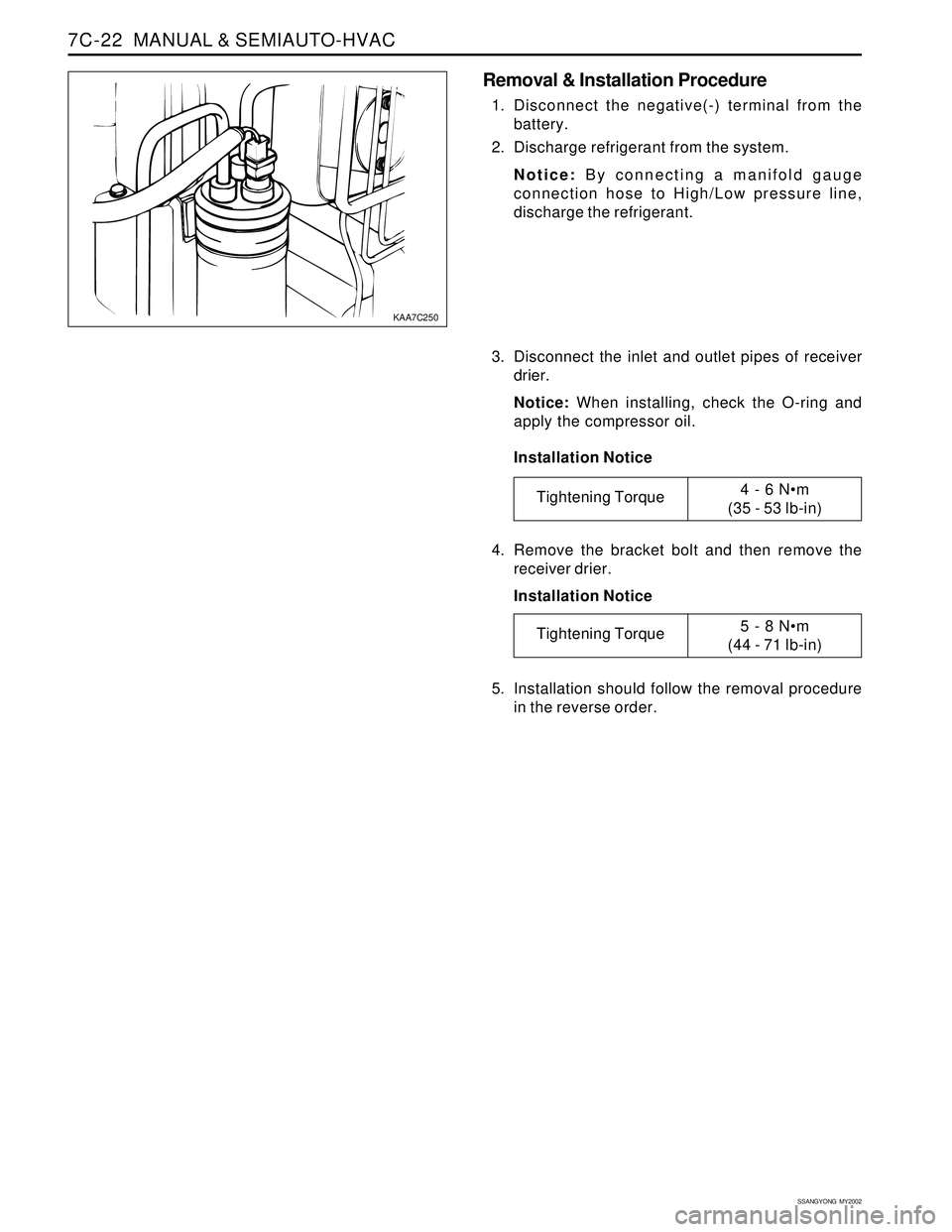

Page 1551 of 2053

SSANGYONG KORANDO 1997 Service Repair Manual SSANGYONG MY2002 7C-22 MANUAL & SEMIAUTO-HVAC 3. Disconnect the inlet and outlet pipes of receiver drier. Notice: When installing, check the O-ring and apply the compressor oil. Installation Notice

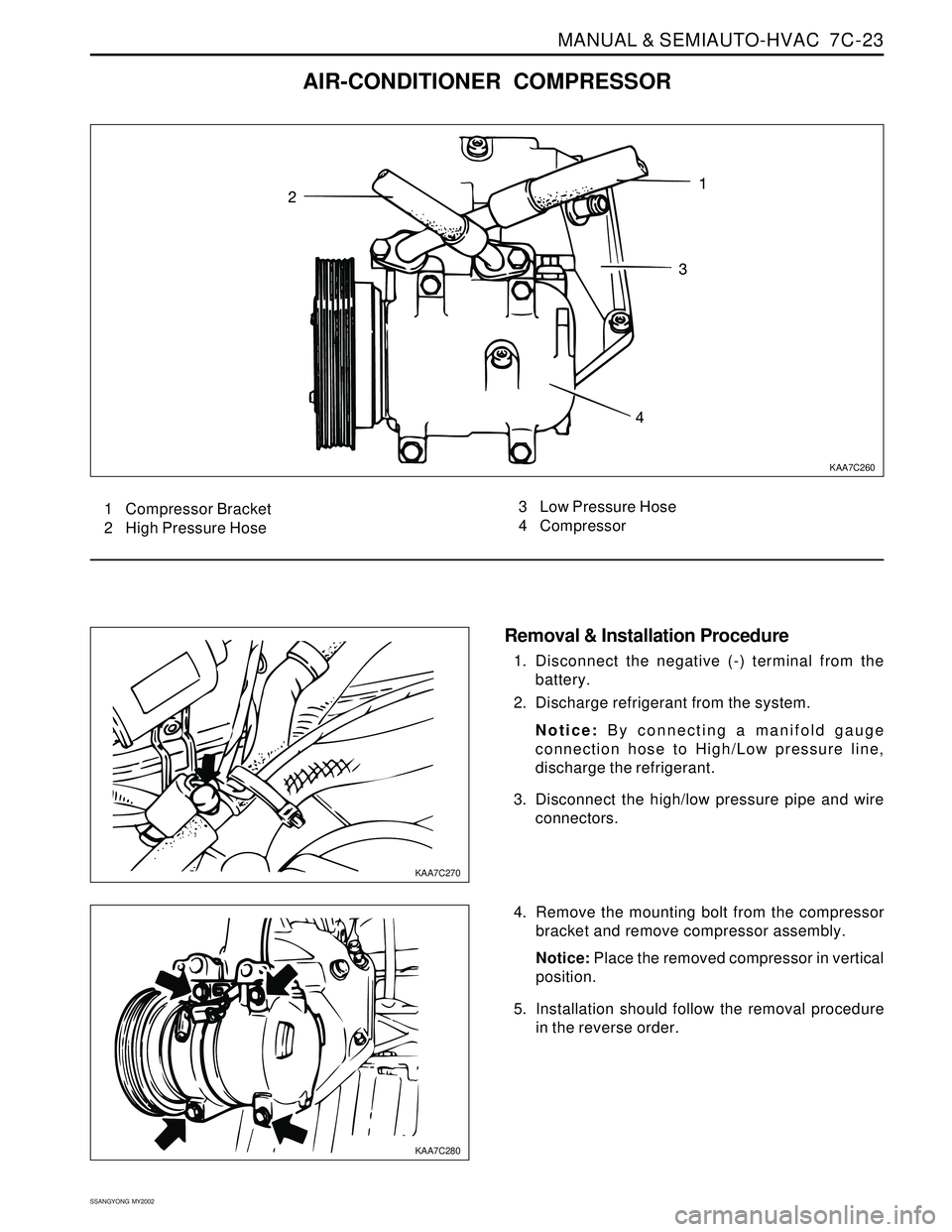

Page 1552 of 2053

SSANGYONG KORANDO 1997 Service Repair Manual MANUAL & SEMIAUTO-HVAC 7C-23 SSANGYONG MY2002 KAA7C260 1 Compressor Bracket 2 High Pressure Hose3 Low Pressure Hose 4 Compressor AIR-CONDITIONER COMPRESSOR Removal & Installation Procedure 1. Discon
