Page 945 of 2053
SSANGYONG MY2002
4C-2 POWER BOOSTER
DESCRIPTION AND OPERATION
GENERAL DESCRIPTION
The power booster is a double-diaphragm, vacuum-sus
pended unit. In normal operating mode, with the service
brakes in the release position, a vacuum-suspended
booster operates with a vacuum on both sides of its
diaphragm. When the brakes are applied, air at
atmospheric pressure is admitted to one side of the
diaphragm to provide the power assist.When the brakes are released, atmospheric air is shut
off from that side of the diaphragm. The air is then
drawn from the booster through the vacuum check
valve by the vacuum source.
Important: If any hydraulic component is removed or
disconnected, it may be necessary to bleed all or part
of the brake system. Refer to Section 4F, Antilock
Brake System and Traction Control System.
Page 946 of 2053
POWER BOOSTER 4C-3
SSANGYONG MY2002
KAA4C080
COMPONENT LOCATOR
1 Brake Fluid Level Switch Connector
2 Brake Fluid Reservoir
3 Power Booster4 Brake Lines
(Master Cylinder-to-Hydraulic Modulator)
5 Master Cylinder
Page 947 of 2053
SSANGYONG MY2002
4C-4 POWER BOOSTER
DIAGNOSTIC INFORMATION AND PROCEDURES
KAA4C020
2. Push the pedal down and hold in this position.
3. Start the engine.
4. The booster is OK if the pedal drops further because
of extra force produced.
If the brake pedal does not drop, the vacuum system
(vacuum hoses, check valve, etc.) is probably
defective and should be checked. If no defect is
revealed by checking the vacuum system, the defect
is in the booster itself.POWER BOOSTER FUNCTIONAL
CHECK
1. With the engine stopped, eliminate vacuum in the
booster by pumping the brake pedal several times.
Page 948 of 2053
POWER BOOSTER 4C-5
SSANGYONG MY2002
REPAIR INSTRUCTIONS
KAA4C030
KAA4A040
KAA4C050
ON-VEHICLE SERVICE
POWER BOOSTER ASSEMBLY
Removal and Installation Procedure
1. Remove the master cylinder. Refer to Section 4B,
Master Cylinder.
2. Remove the vacuum hose from the booster.
3. Remove the clevis pin and disconnect the pedal
and brake booster push rod.
Installation Notice:
•Apply the grease around the hole of clevis pin.
4. Remove the power booster mounting nuts and re-
move the booster from the dash panel.
Installation Notice
Tightening Torque 17 Nm (13 lb-ft)
Install the new gasket.
5. Installation should follow the removal procedure
in the reverse order.
Page 949 of 2053

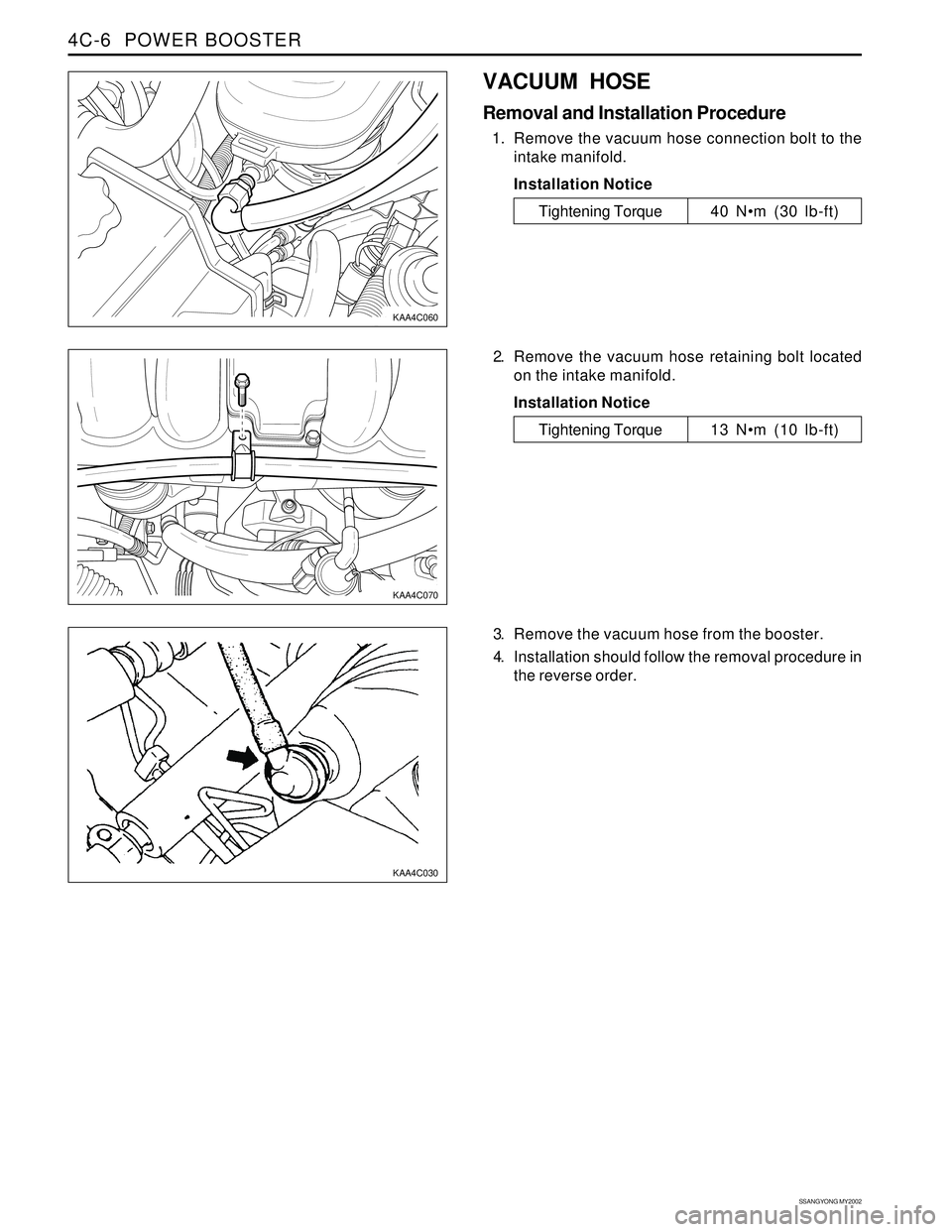

SSANGYONG MY2002
4C-6 POWER BOOSTER
3. Remove the vacuum hose from the booster.
4. Installation should follow the removal procedure in
the reverse order.
VACUUM HOSE
Removal and Installation Procedure
1. Remove the vacuum hose connection bolt to the
intake manifold.
Installation Notice
2. Remove the vacuum hose retaining bolt located
on the intake manifold.
Installation Notice
KAA4C060
KAA4C070
KAA4C030
Tightening Torque 40 Nm (30 lb-ft)
Tightening Torque 13 Nm (10 lb-ft)
Page 950 of 2053
POWER BOOSTER 4C-7
SSANGYONG MY2002
10
30
10 Power Booster Mounting Nuts
Vacuum Hose Connection Bolt
Vacuum Hose Retaining BoltN•m Application
Lb-In
FASTENER TIGHTENING SPECIFICATIONS
Lb-Ft
13
40
13-
-
-
SPECIFICATIONS
GENERAL SPECIFICATION
Application
Type
RetioDescription
Vacuum Assisted
5.6 : 1
Page 951 of 2053

Description and Operation...................................4D-2
General Description..............................................4D-2
Brake Caliper.......................................................4D-2
Brake Pads..........................................................4D-2
Brake Rotor.........................................................4D-2
Component Locator.............................................4D-3
Front Brake Assembly.........................................4D-3
Caliper Assembly................................................4D-4
Diagnostic Information and Procedures..............4D-5
Pad Inspection....................................................4D-5
Front Disc Brake Rotor Inspection........................4D-5Repair Instructions................................................4D-6
On-Vehicle Service.................................................4D-6
Brake Pads.........................................................4D-6
Front Disc Brake Rotor .........................................4D-6
Caliper Assembly................................................4D-7
Splash Shield......................................................4D-7
Unit Repair............................................................4D-8
Brake Caliper......................................................4D-8
Specifications.....................................................4D-10
Fastener Tightening Specifications.....................4D-10
SECTION 4D
FRONT BRAKES
TABLE OF CONTENTS
Page 952 of 2053

SSANGYONG MY2002
4D-2 FRONT BRAKES
DESCRIPTION AND OPERATION
GENERAL DESCRIPTION
When the brakes are applied, fluid pressure is sent to
each brake caliper. The pressure at the caliper is ex-
erted equally against the caliper piston. The pressure
applied to the piston is transmitted directly to the
inboard brake pad. This forces the pad against the inner
surface of the brake rotor. At the same time, fluid
pressure within the caliper piston bore forces the caliper
to slide inward on its guide pins. This action brings the
outboard pad into contact with the outer surface of the
brake rotor. This pressure on both sides of the brake
rotor causes friction, bringing the vehicle to a stop.
BRAKE CALIPER
The caliper has a single bore and is mounted to the
steering knuckle with two mounting bolts. Hydraulic
pressure, created by applying the brake pedal, is con-
verted by the caliper to a stopping force. This force
acts equally against the piston and the bottom of the
caliper bore to move the piston outward and to slide
the caliper inward, resulting in a clamping action on
the rotor. This clamping action forces the linings against
the rotor, creating friction to stop the vehicle.Important:
•Replace all components included in the repair kits
used to service the caliper.
Lubricate the rubber parts with clean brake fluid to
ease assembly.
Do not use lubricated shop air on brake parts, as
damage to the rubber components may result.
If any hydraulic component is removed or discon-
nected, it may be necessary to bleed all or part of
the brake system. Refer to Section 4F, Antilock
Brake System And Traction Control System.
Replace the pads in axle sets only.
The torque values specified are for dry, unlubricated
fasteners.
Perform the service operations on a clean bench,
free from all oily material.
BRAKE PADS
There are two brake pads mounted to each caliper, one
inboard and one outboard. As front disc brake pad wear,
master cylinder reservoir brake fluid level will drop. Fluid
level should be checked after replacing pads.
BRAKE ROTOR
Each front disc brake rotor is vented to help cool it dur-
ing and after brake applications.
