Page 1649 of 2053

SSANGYONG KORANDO 1997 Service Repair Manual SUPPLEMENTAL RESTRAINTS SYSTEM 8B-67 SSANGYONG MY2002 SPECIFICATIONS GENERAL SPECIFICATION Nm 4 8 16 12Lb-Ft - - 12 - Clock Spring Mounting Bolt Driver Airbag Module Mounting Nuts Passenger Airbag

Page 1650 of 2053

SSANGYONG KORANDO 1997 Service Repair Manual SSANGYONG MY2002 8B-68 SUPPLEMENTAL RESTRAINTS SYSTEM SCHEMATIC AND WIRING DIAGRAMS SUPPLEMENTAL RESTRAINT SYSTEM KAA8B190

Page 1651 of 2053

SSANGYONG KORANDO 1997 Service Repair Manual SUPPLEMENTAL RESTRAINTS SYSTEM 8B-69 SSANGYONG MY2002 SUPPLEMENTAL RESTRAINT SYSTEM SCHEMATIC DIAGRAM KAA8B200

Page 1652 of 2053

SSANGYONG KORANDO 1997 Service Repair Manual SECTION 9A BODY WIRING SYSTEM CAUTION: Disconnect the negative battery cable before removing or installing any electrical unit or when a tool or equipment could easily come in contact with exposed ele

Page 1653 of 2053

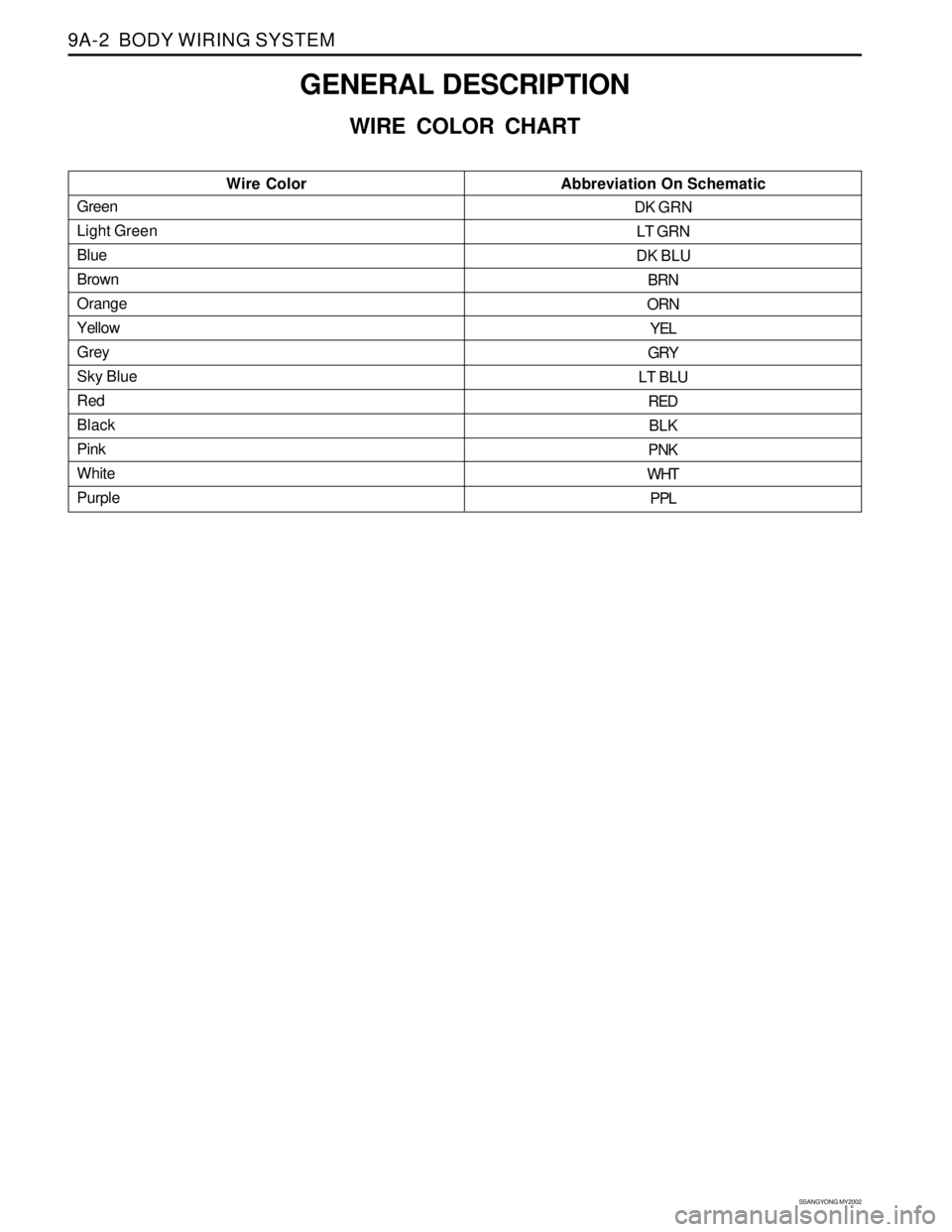

SSANGYONG KORANDO 1997 Service Repair Manual SSANGYONG MY2002 9A-2 BODY WIRING SYSTEM GENERAL DESCRIPTION WIRE COLOR CHART Green Light Green Blue Brown Orange Yellow Grey Sky Blue Red Black Pink White PurpleWire Color Abbreviation On Schematic

Page 1654 of 2053

SSANGYONG KORANDO 1997 Service Repair Manual BODY WIRING SYSTEM 9A-3 SSANGYONG MY2002 ENGINE ROOM FUSE & RELAY BOX Position Of Relay And Fuse (Front View) KAA9A010

Page 1655 of 2053

SSANGYONG KORANDO 1997 Service Repair Manual SSANGYONG MY2002 9A-4 BODY WIRING SYSTEM Position Of Relay And Fuse (Rear View) KAA9A020

Page 1656 of 2053

SSANGYONG KORANDO 1997 Service Repair Manual BODY WIRING SYSTEM 9A-5 SSANGYONG MY2002 USAGE OF FUSE IN ENGINE ROOM FUSE BOX Alternator Main - Gasoline Alternator Main - Diesel Not Used Not Used Not Used Not Used Not Used Ignition SW Not Used B
