5A-210 AUTOMATIC TRANSMISSION
SSANGYONG MY2002

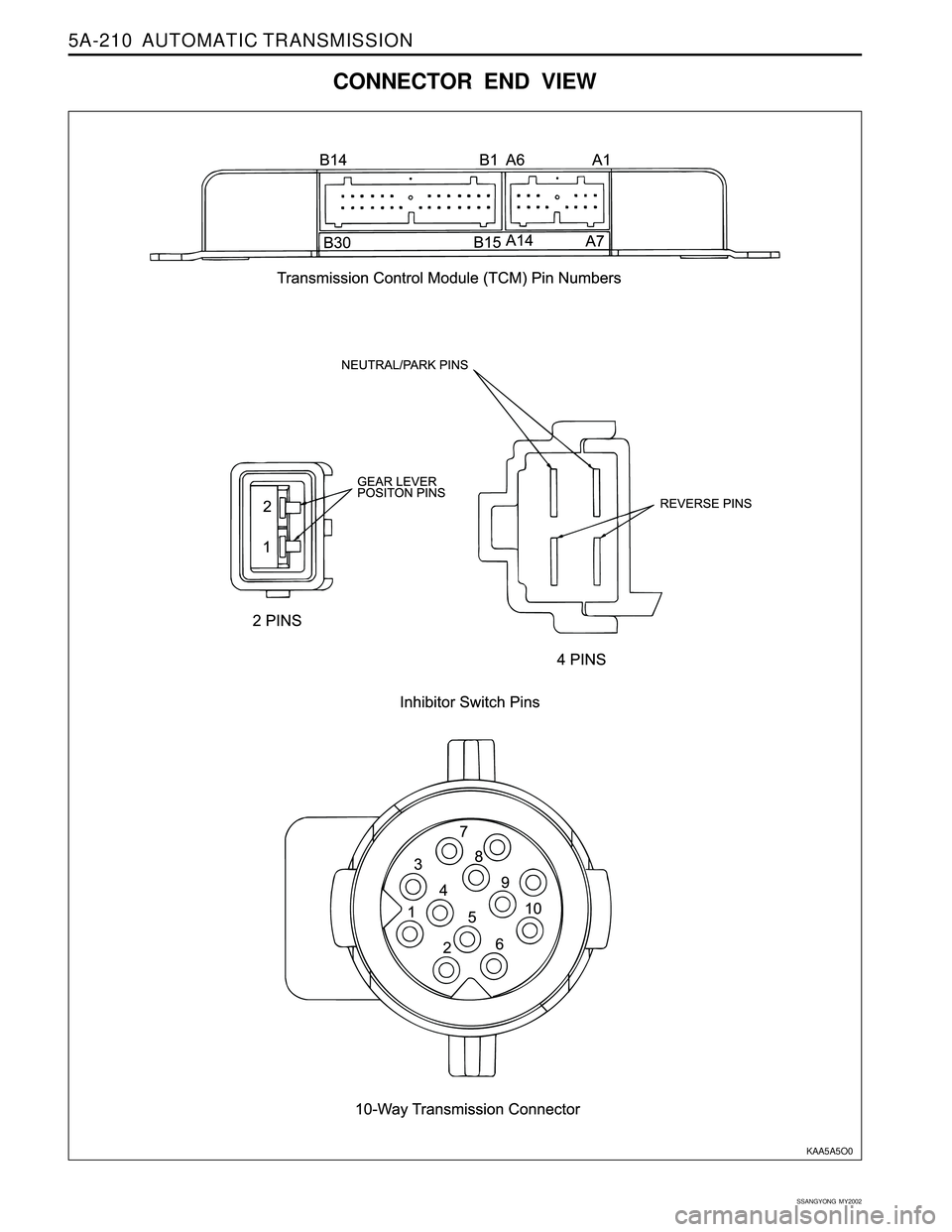

CONNECTOR END VIEW
KAA5A5O0
Page 1306 of 2053
AUTOMATIC TRANSMISSION 5A-211
SSANGYONG MY2002
KAA5A2S0
0555 - 336263
Cross Shaft Bullet

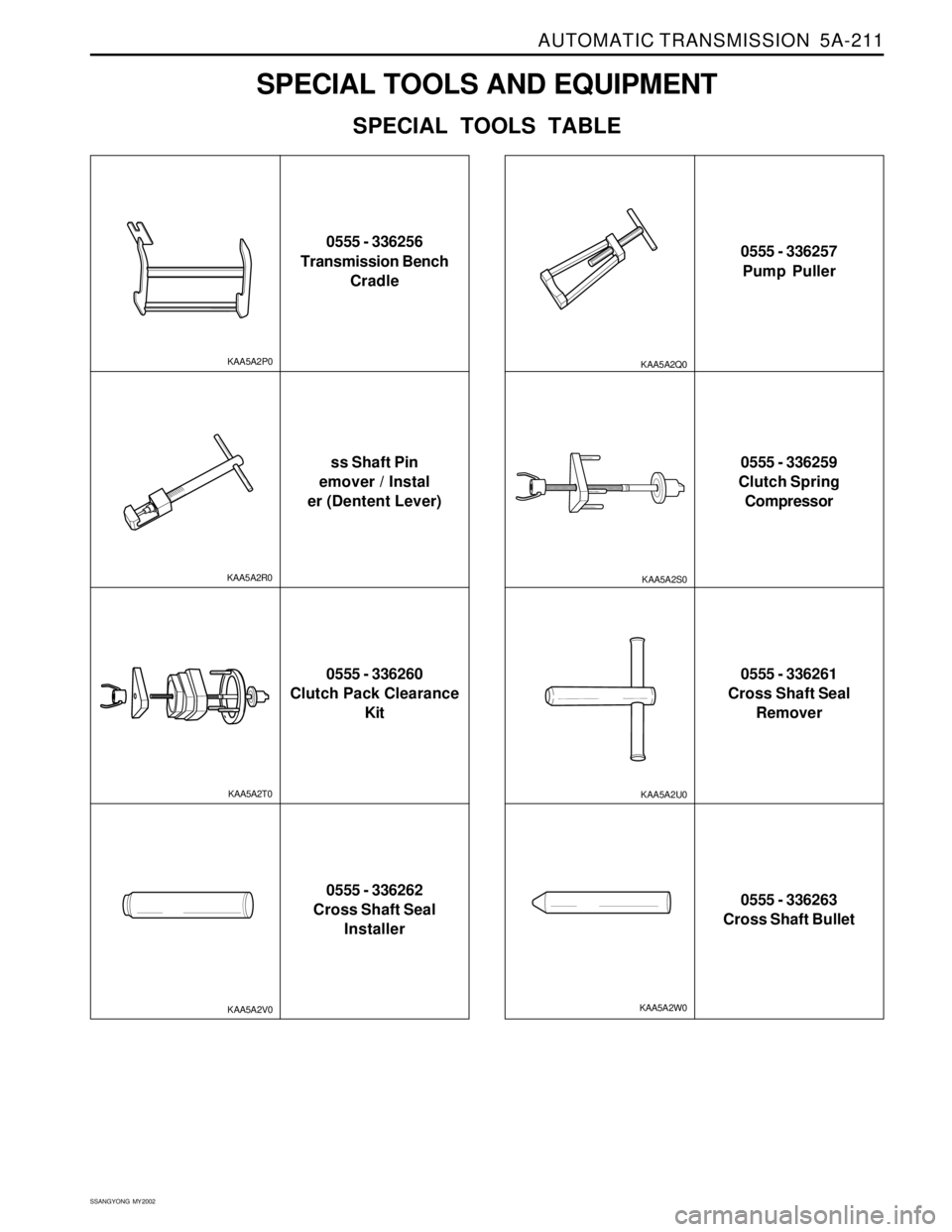

SPECIAL TOOLS AND EQUIPMENT
SPECIAL TOOLS TABLE
0555 - 336256
Transmission Bench
Cradle
0555 - 336260
Clutch Pack Clearance
Kit
0555 - 336262
Cross Shaft Seal
Installer0555 - 336257
Pump Puller
0555 - 336259
Clutch Spring
Compressor
0555 - 336261
Cross Shaft Seal
Remover
ss Shaft Pin
emover / Instal
er (Dentent Lever)
KAA5A2P0
KAA5A2R0
KAA5A2T0
KAA5A2V0KAA5A2W0KAA5A2U0 KAA5A2Q0
Page 1307 of 2053
5A-212 AUTOMATIC TRANSMISSION
SSANGYONG MY2002

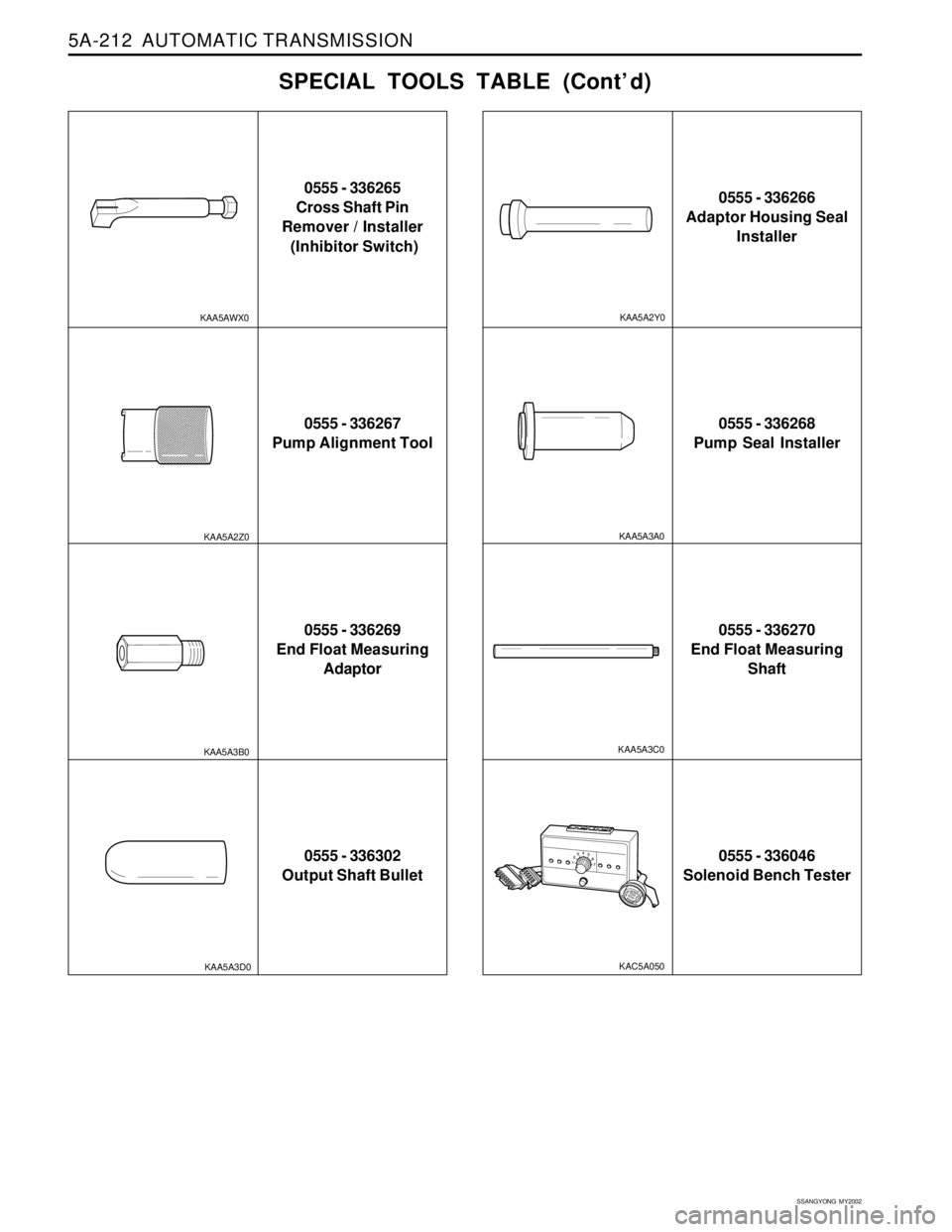

SPECIAL TOOLS TABLE (Cont’ d)
0555 - 336265
Cross Shaft Pin
Remover / Installer
(Inhibitor Switch)
0555 - 336267
Pump Alignment Tool
0555 - 336269
End Float Measuring
Adaptor
0555 - 336302
Output Shaft Bullet0555 - 336046
Solenoid Bench Tester0555 - 336266
Adaptor Housing Seal
Installer
0555 - 336268
Pump Seal Installer
0555 - 336270
End Float Measuring
Shaft
KAA5AWX0
KAA5A2Z0
KAA5A3B0
KAA5A3D0KAA5A2Y0
KAC5A050 KAA5A3A0
KAA5A3C0
Page 1308 of 2053
AUTOMATIC TRANSMISSION 5A-213
SSANGYONG MY2002
0555 - 332083
Solenoid /Thermistor
Electronic Tester

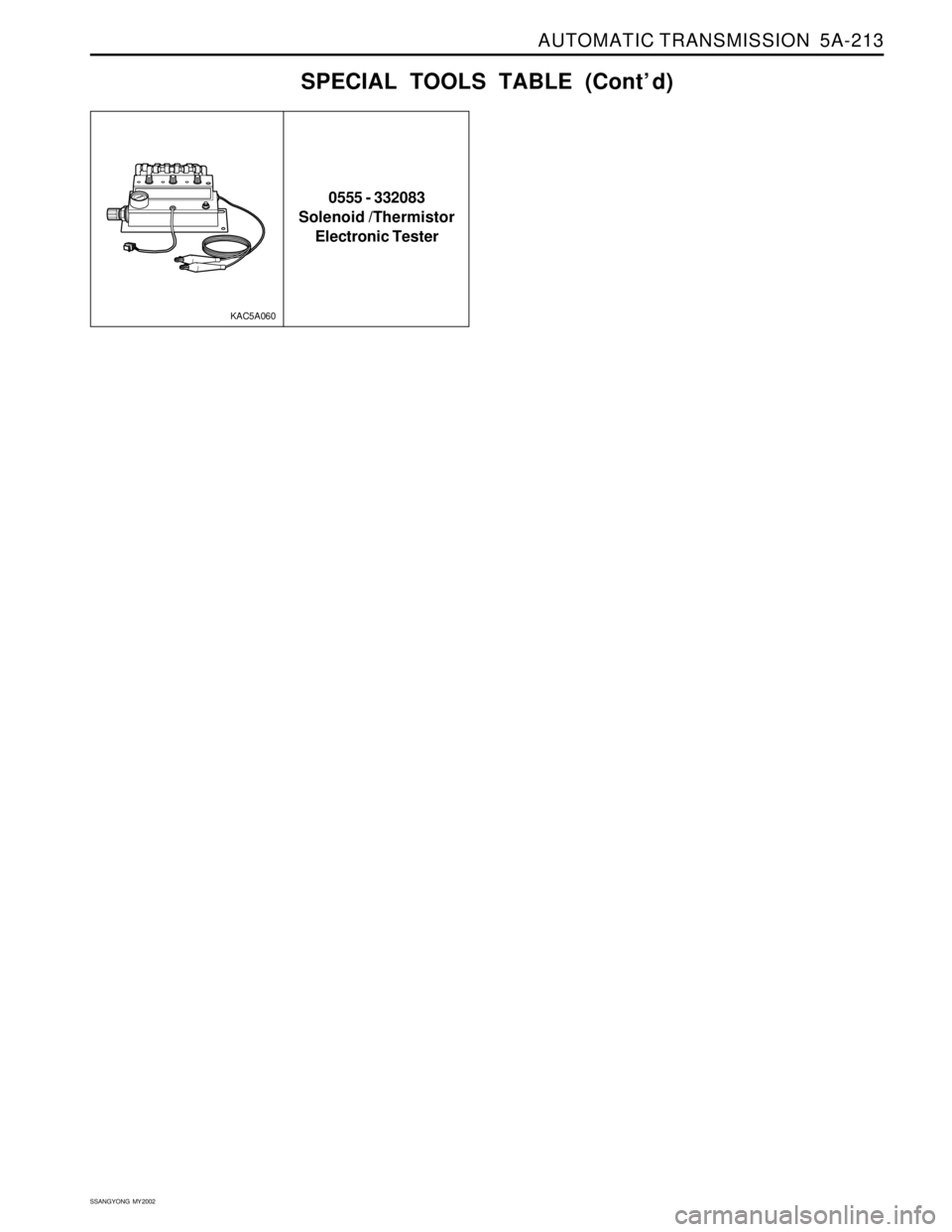

SPECIAL TOOLS TABLE (Cont’ d)
KAC5A060
Page 1309 of 2053

SECTION 5B
MANUAL TRANSMISSION
TABLE OF CONTENTS
General Description and Operation.....................5B-2
Shift Lever...........................................................5B-2
Transmission Assembly.......................................5B-2
Specifications......................................................5B-3
Diagnostic Information and Procedures..............5B-4
Diagnosis Table...................................................5B-6
Component Locator............................................5B-7
Cross-Sectional View ...........................................5B-7
Power Flow..........................................................5B-8
Seni-Remote Kit Disassembly and Assembly.......5B-9
Transmission Assembly.....................................5B-10
Transmission Assembly Disassembled View......5B-11Maintenance and Repair................................... 5B-14
On-Vehicle Service...............................................5B-14
Semi-Remote Kit................................................5B-14
Transmission.....................................................5B-19
Unit Repair.......................................................... 5B-24
Major Unit..........................................................5B-24
Main Shaft.........................................................5B-34
Input Shaft........................................................5B-38
Counter Shaft....................................................5B-40
Extension Housing.............................................5B-40
Shift Cover........................................................5B-41
Inspection of Components.................................5B-45
Page 1310 of 2053
SSANGYONG MY2002
5B-2 MANUAL TRANSMISSION

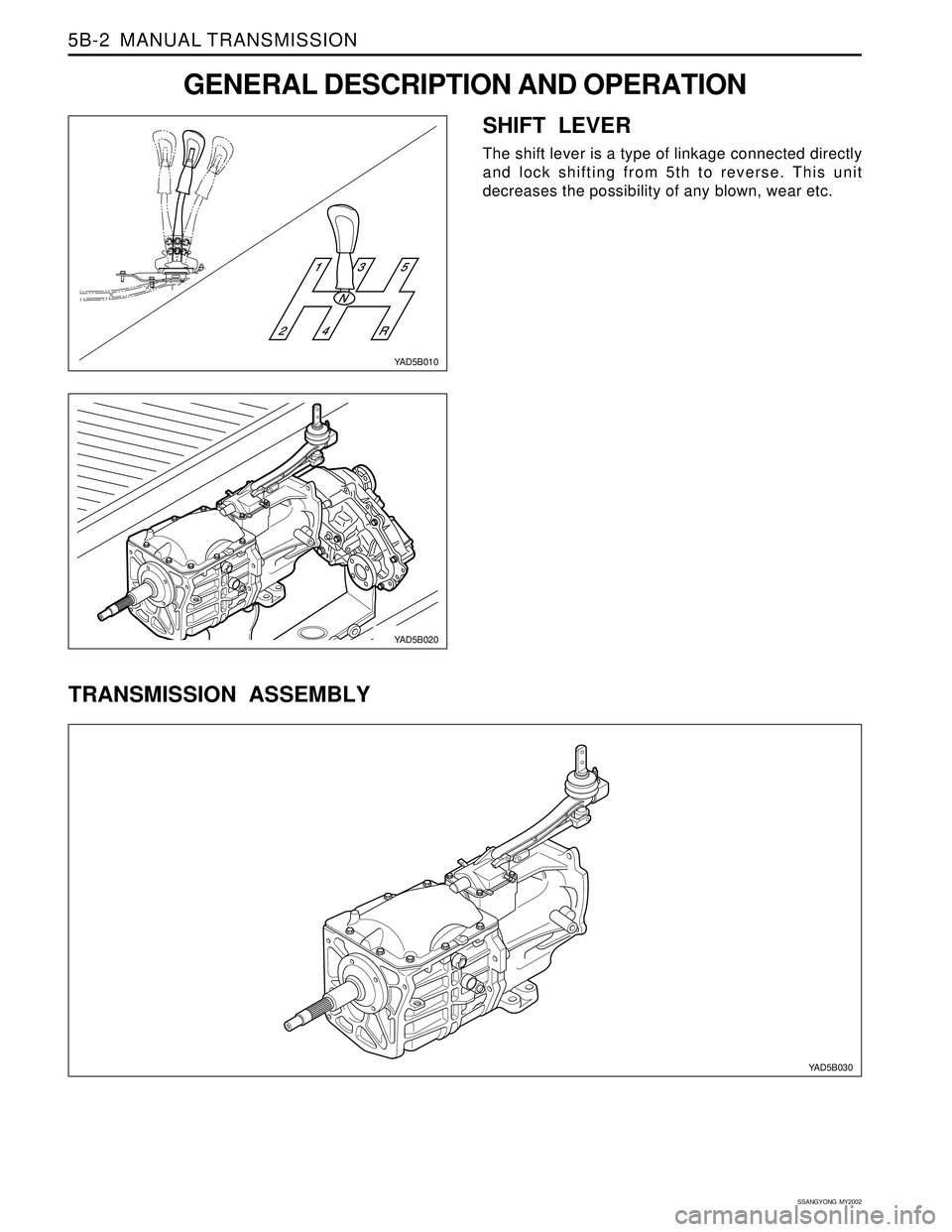

GENERAL DESCRIPTION AND OPERATION
SHIFT LEVER
The shift lever is a type of linkage connected directly
and lock shifting from 5th to reverse. This unit
decreases the possibility of any blown, wear etc.
YAD5B010
YAD5B020
YAD5B030
TRANSMISSION ASSEMBLY
Page 1311 of 2053
MANUAL TRANSMISSION 5B-3
SSANGYONG MY2002
Model
Type
Gear Ratio
Oil
Weight (Dry)1st
2nd
3rd
4th
5th
Reverse
Specification
Capacity(litre)
Change Interval Application
SPECIFICATIONS
T5WC
Floor Change
3.969 : 1
2.341 : 1
1.457 : 1
1.000 : 1
0.851 :1
3.710 : 1
ATF DEXRON II / III
3.4 L
Check : Every 15,000 km,
Replace : Every 50,000 km
33kg
Description
Notice: Add LUBRIZOL (280cc) in oil after overhauling.
