Page 1689 of 2053

SSANGYONG KORANDO 1997 Service Repair Manual LIGHTING SYSTEM 9B-15 SSANGYONG MY2002 REPAIR INSTRUCTIONS KAA9B020 KAA9B030 ON-VEHICLE SERVICE UNIT REPAIR HEAD LAMPS Removal and Installation Procedure 1. Open the hood. 2. Disconnect the negative

Page 1690 of 2053

SSANGYONG KORANDO 1997 Service Repair Manual SSANGYONG MY2002 9B-16 LIGHTING SYSTEM KAA9B050 KAA9B060 FRONT COMBINATION LAMP Removal and Installation Procedure 1. Disconnect negative battery cable. 2. Remove the screws and nuts. Installation N

Page 1691 of 2053

SSANGYONG KORANDO 1997 Service Repair Manual LIGHTING SYSTEM 9B-17 SSANGYONG MY2002 KAA9B070 REAR COMBINATION LAMPS Removal and Installation Procedure 1. Disconnect the negative battery cable. 2. Remove the screws and the lamp assembly 3. Remo

Page 1692 of 2053

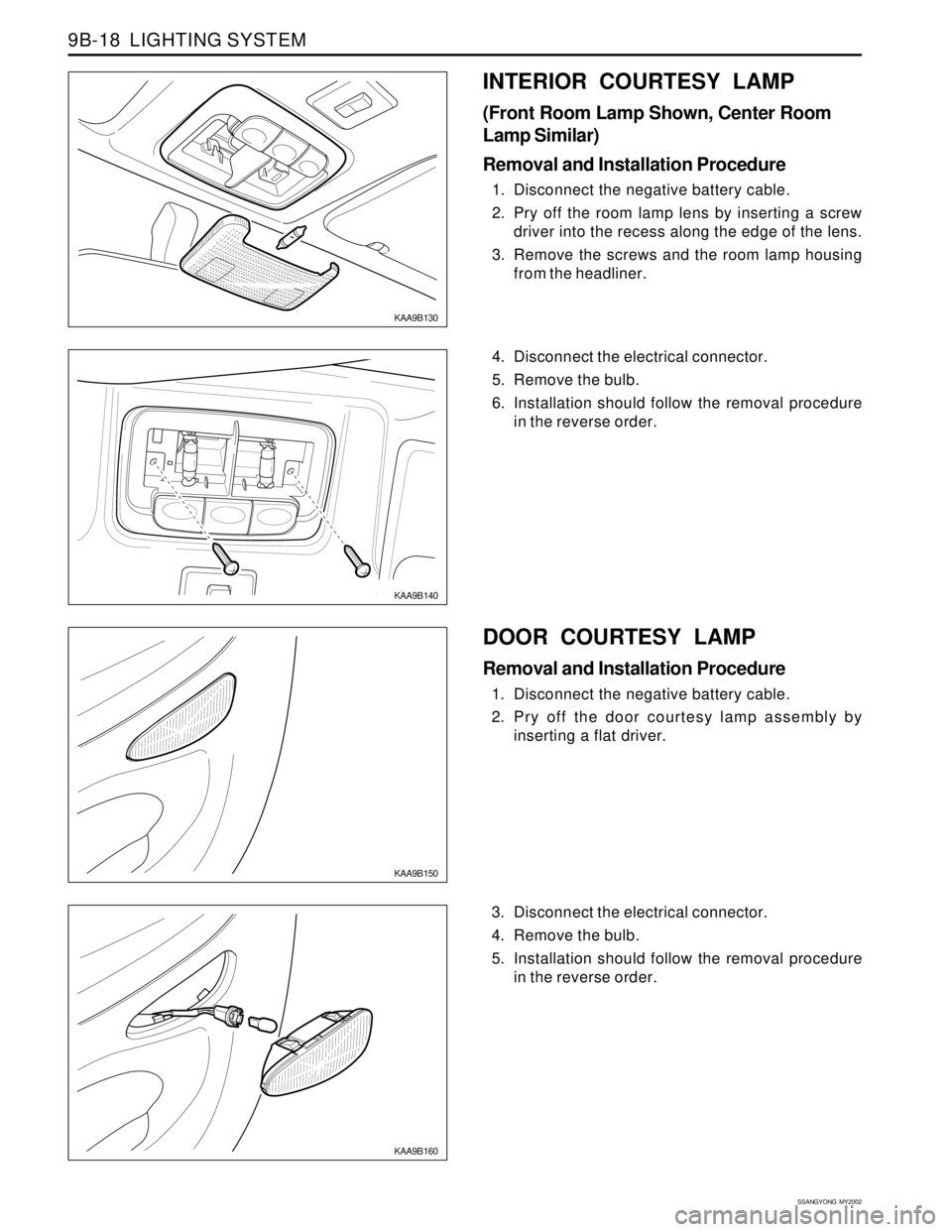

SSANGYONG KORANDO 1997 Service Repair Manual SSANGYONG MY2002 9B-18 LIGHTING SYSTEM KAA9B130 KAA9B140 4. Disconnect the electrical connector. 5. Remove the bulb. 6. Installation should follow the removal procedure in the reverse order. INTERIO

Page 1693 of 2053

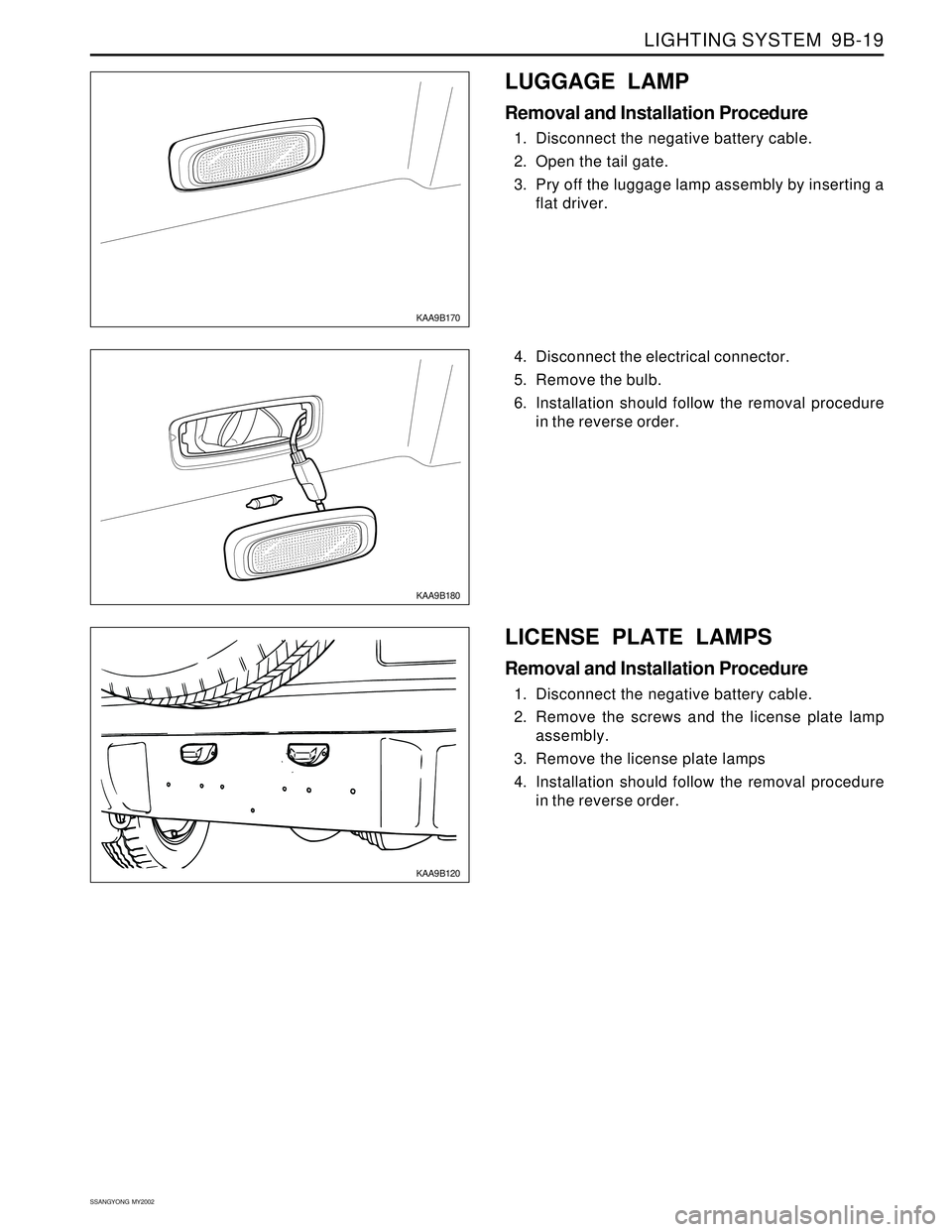

SSANGYONG KORANDO 1997 Service Repair Manual LIGHTING SYSTEM 9B-19 SSANGYONG MY2002 KAA9B170 KAA9B180 4. Disconnect the electrical connector. 5. Remove the bulb. 6. Installation should follow the removal procedure in the reverse order. LUGGAGE

Page 1694 of 2053

SSANGYONG KORANDO 1997 Service Repair Manual SSANGYONG MY2002 9B-20 LIGHTING SYSTEM SPECIFICATIONS BULB USAGE CHART FASTENER TIGHTENING SPECIFICATIONS Headlamp High/Low Turn Signal Lamp Position Lamp Front Side Maker Lamp Tail Lamp Stop Lamp R

Page 1695 of 2053

SSANGYONG KORANDO 1997 Service Repair Manual LIGHTING SYSTEM 9B-21 SSANGYONG MY2002 SCHEMATIC AND ROUTING DIAGRAMS HEAD LAMP LEVELING DEVICE (HLLD) : GASOLINE KAA9B190

Page 1696 of 2053

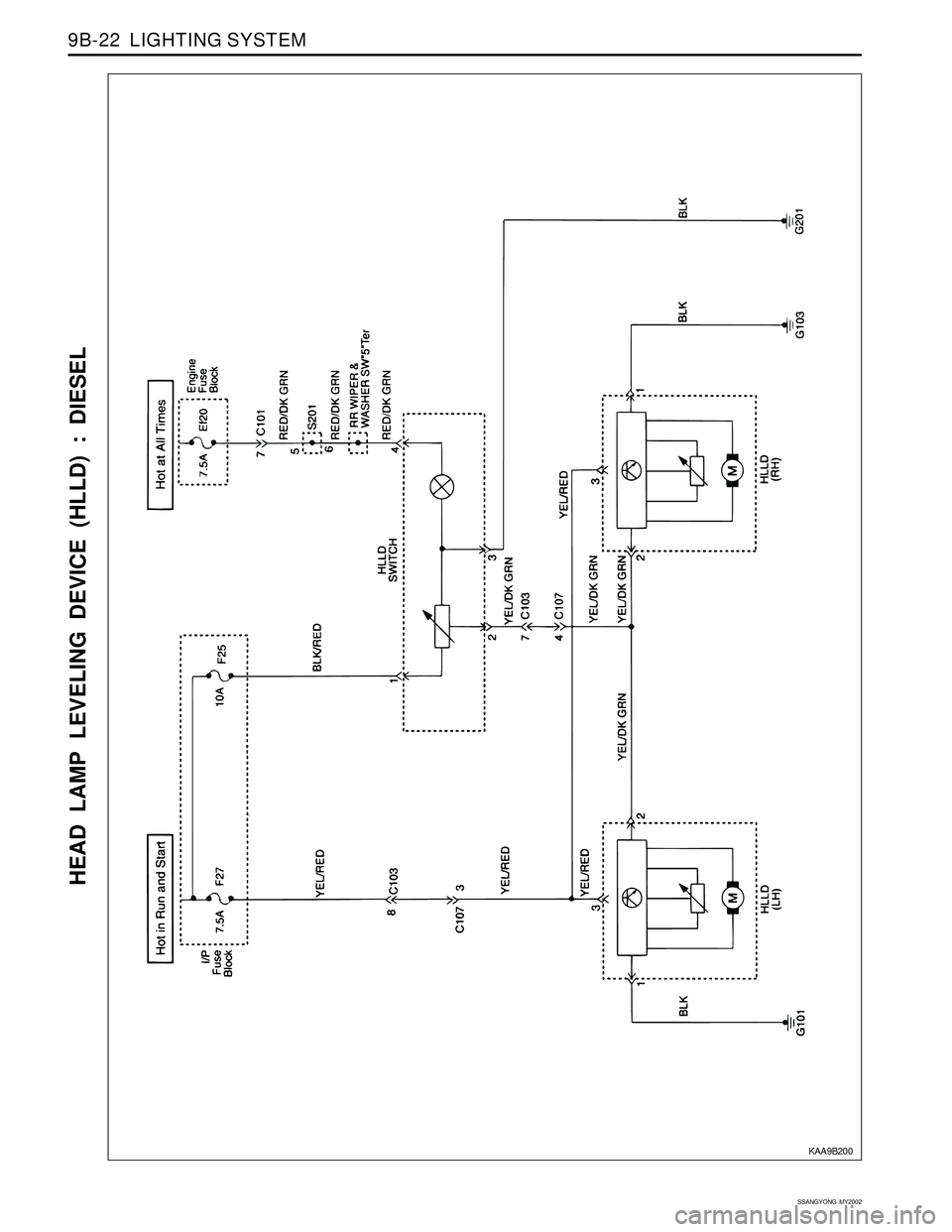

SSANGYONG KORANDO 1997 Service Repair Manual SSANGYONG MY2002 9B-22 LIGHTING SYSTEM HEAD LAMP LEVELING DEVICE (HLLD) : DIESEL KAA9B200
