1995 ACURA TL Service Repair Manual

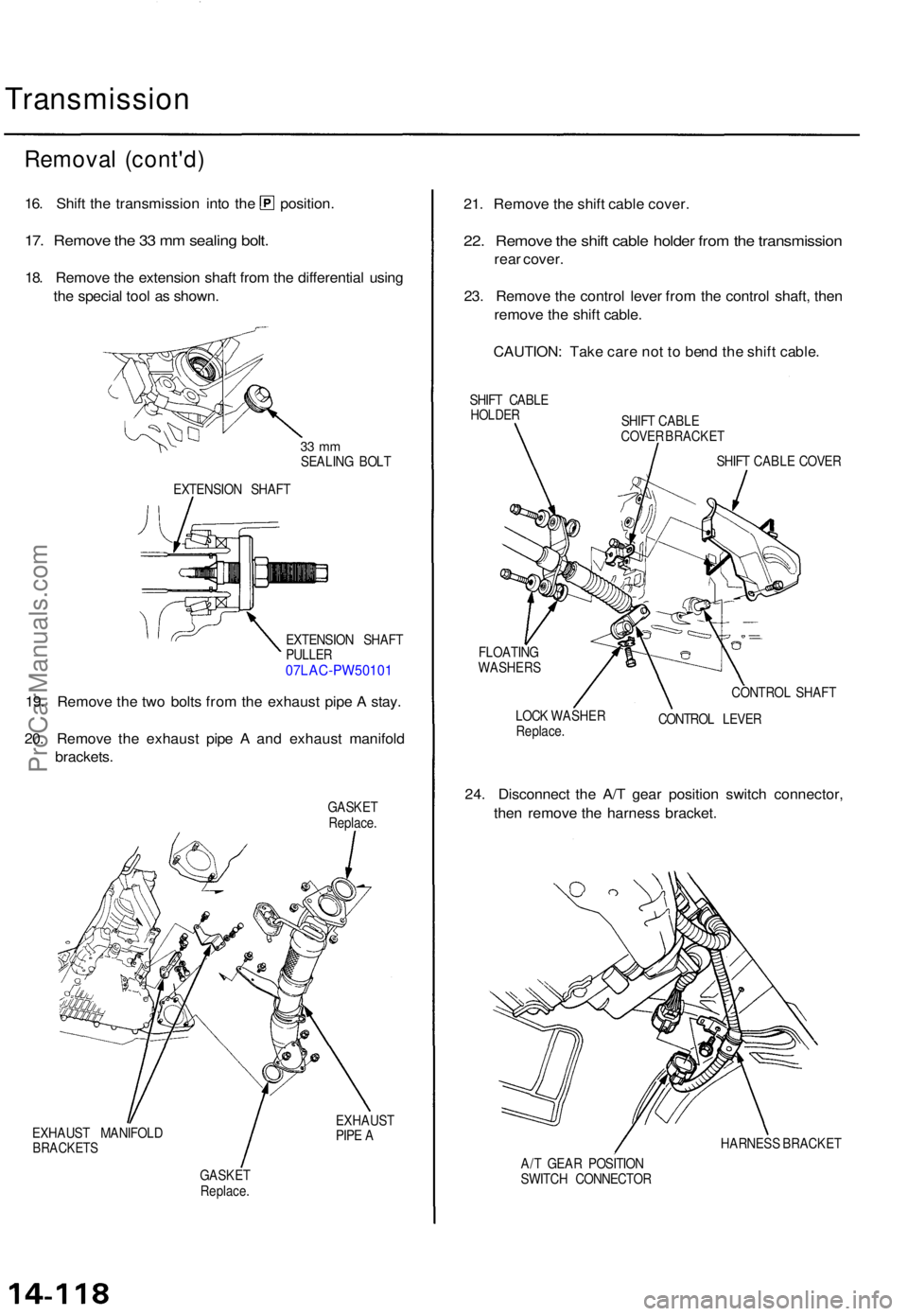

Transmission
Removal (cont'd )
16. Shif t th e transmissio n int o th e position .
17. Remov e th e 3 3 m m sealin g bolt .
18. Remov e th e extensio n shaf t fro m th e differentia l usin g
th e specia l too l a s shown .
33 m mSEALIN G BOL T
EXTENSIO N SHAF T
EXTENSIO N SHAF T
PULLE R
07LAC-PW5010 1
19. Remov e th e tw o bolt s fro m th e exhaus t pip e A stay .
20 . Remov e th e exhaus t pip e A an d exhaus t manifol d
brackets .
GASKET
Replace .
EXHAUS T MANIFOL D
BRACKETS
EXHAUST
PIP E A
GASKE T
Replace .
21. Remov e th e shif t cabl e cover .
22. Remov e th e shif t cabl e holde r fro m th e transmissio n
rear cover .
23 . Remov e th e contro l leve r fro m th e contro l shaft , the n
remov e th e shif t cable .
CAUTION : Tak e car e no t t o ben d th e shif t cable .
SHIFT CABL EHOLDE RSHIFT CABL E
COVE R BRACKE T
SHIF T CABL E COVE R
FLOATIN G
WASHER S
LOCK WASHE R
Replace . CONTRO
L SHAF T
CONTRO L LEVE R
24. Disconnec t th e A/ T gea r positio n switc h connector ,
the n remov e th e harnes s bracket .
HARNES S BRACKE T
A/ T GEA R POSITIO N
SWITC H CONNECTO R
ProCarManuals.com

25. Remove the transmission mid mount nuts.

26. Place a jack under the transmission and raise the

transmission just enough to take weight off of the

mounts, then remove the mid mounts and mid mount

spacer as shown.

TRANSMISSION

TRANSMISSION

MID MOUNT

NUT
MID MOUNT

SPACER

MID MOUNT

MID MOUNTS

OFFSET WRENCH

(Commercially available)
27. Remove the transmission housing mounting bolts.

28. Remove the torque converter cover mounting bolt on

the torque converter housing side.

NOTE: Do not remove the torque converter cover

mounting bolt on the differential carrier side and the

torque converter cover.

TRANSMISSION

HOUSING

MOUNTING

BOLT

DOWEL PIN

TORQUE CONVERTER

COVER

Do not remove.

Do not remove

this bolt.
TRANSMISSION HOUSING

MOUNTING BOLT

TORQUE CONVERTER COVER

MOUNTING BOLT

Remove this bolt.

29. Pull the transmission away from the engine until it

clears the dowel pins, then lower it on the transmis-

sion jack.ProCarManuals.com

Illustrated Index

Transmission Housing/Lower Valve BodyProCarManuals.com

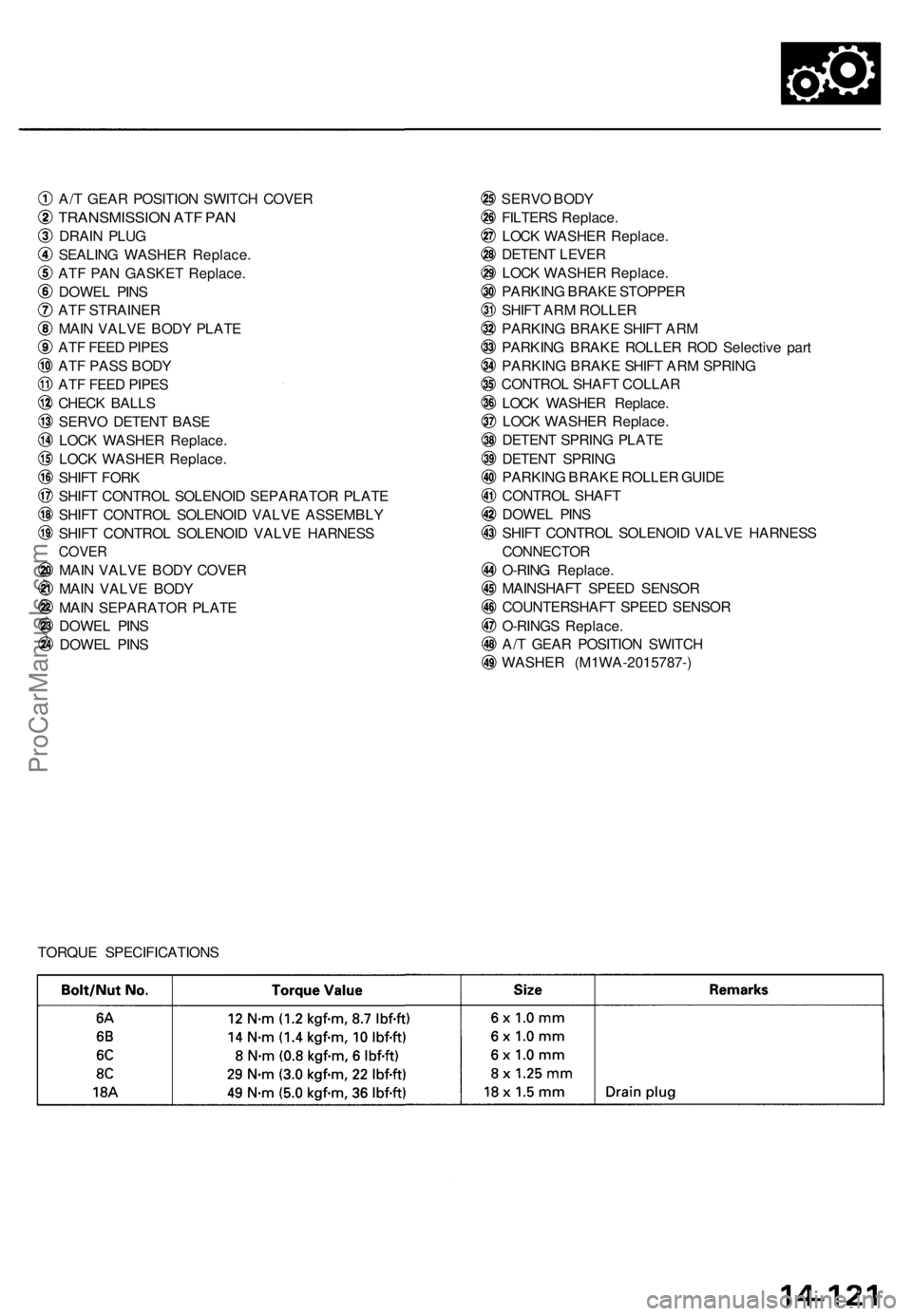

A/T GEA R POSITIO N SWITC H COVE R
TRANSMISSIO N AT F PA N
DRAI N PLU G
SEALIN G WASHE R Replace .
AT F PA N GASKE T Replace .
DOWE L PIN S
AT F STRAINE R
MAI N VALV E BOD Y PLAT E
AT F FEE D PIPE S
AT F PAS S BOD Y
AT F FEE D PIPE S
CHEC K BALL S
SERV O DETEN T BAS E
LOC K WASHE R Replace .
LOC K WASHE R Replace .
SHIF T FOR K
SHIF T CONTRO L SOLENOI D SEPARATO R PLAT E
SHIF T CONTRO L SOLENOI D VALV E ASSEMBL Y
SHIF T CONTRO L SOLENOI D VALV E HARNES S
COVER
MAIN VALV E BOD Y COVE R
MAI N VALV E BOD Y
MAI N SEPARATO R PLAT E
DOWE L PIN S
DOWE L PIN S SERV
O BOD Y
FILTER S Replace .
LOC K WASHE R Replace .
DETEN T LEVE R
LOC K WASHE R Replace .
PARKIN G BRAK E STOPPE R
SHIF T AR M ROLLE R
PARKIN G BRAK E SHIF T AR M
PARKIN G BRAK E ROLLE R RO D Selectiv e par t
PARKIN G BRAK E SHIF T AR M SPRIN G
CONTRO L SHAF T COLLA R
LOC K WASHE R Replace .
LOC K WASHE R Replace .
DETEN T SPRIN G PLAT E
DETEN T SPRIN G
PARKIN G BRAK E ROLLE R GUID E
CONTRO L SHAF T
DOWE L PIN S
SHIF T CONTRO L SOLENOI D VALV E HARNES S
CONNECTO R
O-RIN G Replace .
MAINSHAF T SPEE D SENSO R
COUNTERSHAF T SPEE D SENSO R
O-RING S Replace .
A/ T GEA R POSITIO N SWITC H
WASHE R (M1WA-2015787- )
TORQU E SPECIFICATION S
ProCarManuals.com

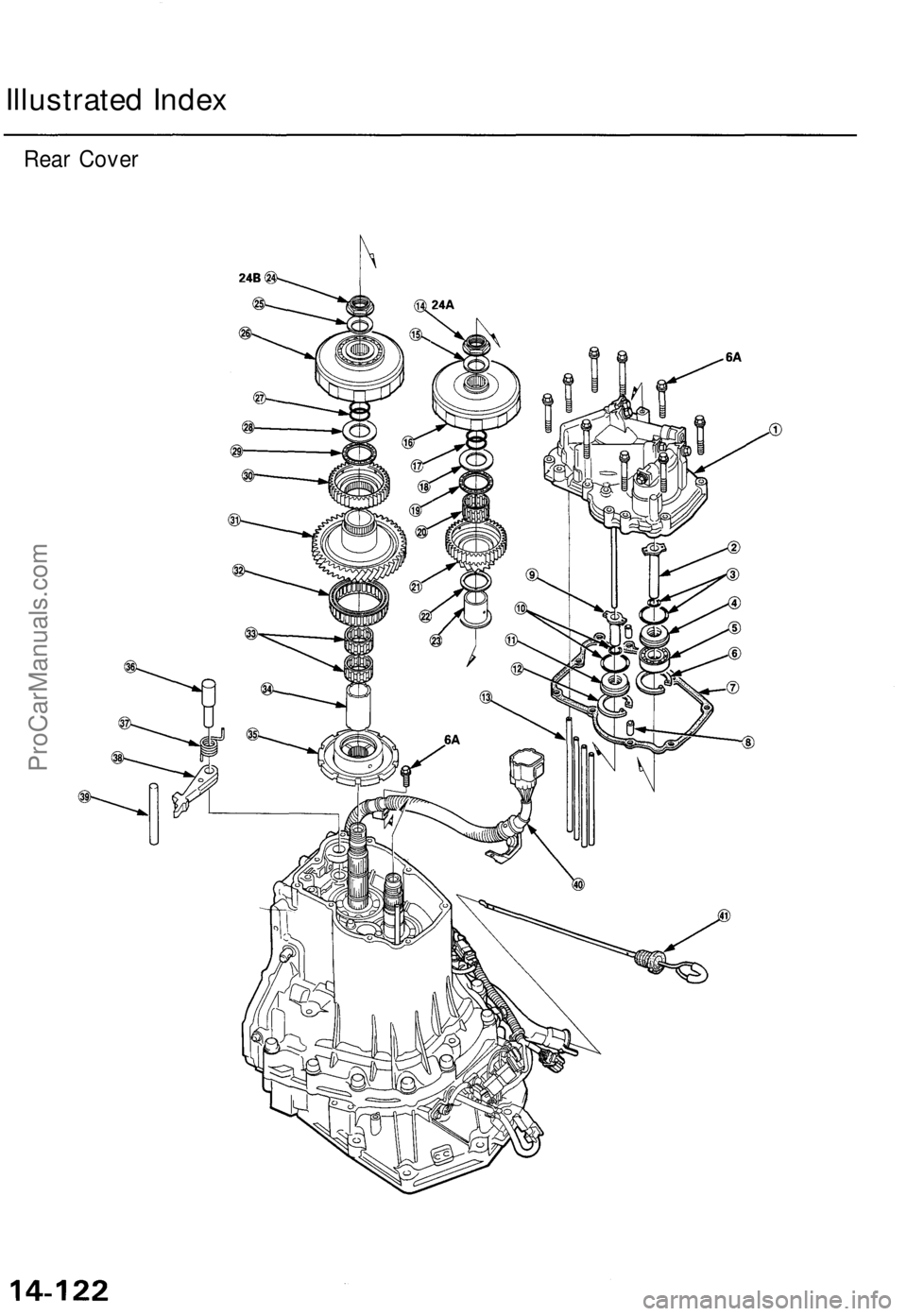

Illustrated Index

Rear CoverProCarManuals.com

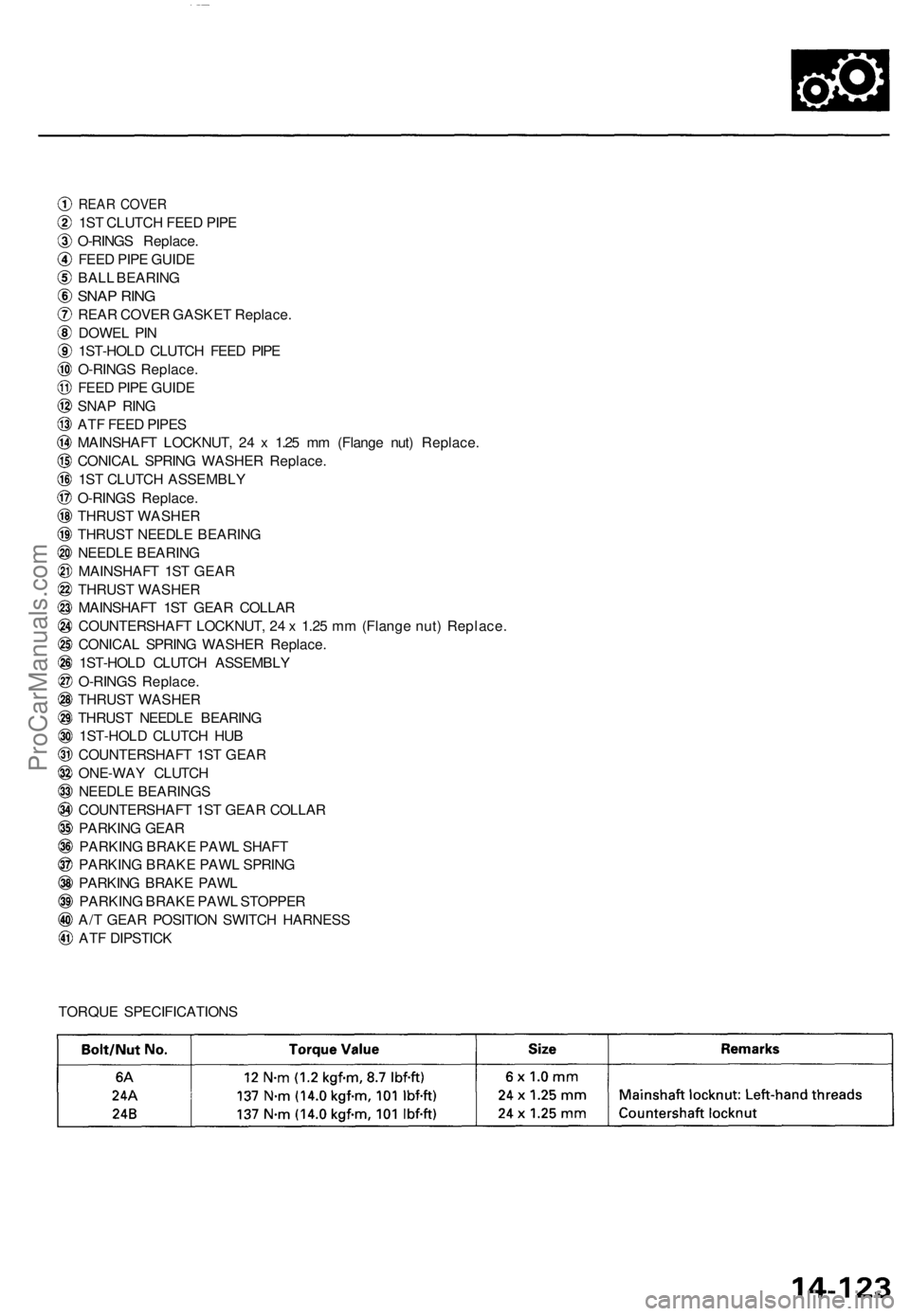

REAR COVE R
1ST CLUTC H FEE D PIP E
O-RING S Replace .
FEE D PIP E GUID E
BAL L BEARIN G
SNAP RIN G
REA R COVE R GASKE T Replace .
DOWE L PI N
1ST-HOL D CLUTC H FEE D PIP E
O-RING S Replace .
FEE D PIP E GUID E
SNA P RIN G
AT F FEE D PIPE S
MAINSHAF T LOCKNUT , 2 4 x 1.2 5 m m (Flang e nut ) Replace .
CONICA L SPRIN G WASHE R Replace .
1S T CLUTC H ASSEMBL Y
O-RING S Replace .
THRUS T WASHE R
THRUS T NEEDL E BEARIN G
NEEDL E BEARIN G
MAINSHAF T 1S T GEA R
THRUS T WASHE R
MAINSHAF T 1S T GEA R COLLA R
COUNTERSHAF T LOCKNUT , 2 4 x 1.2 5 m m (Flang e nut ) Replace .
CONICA L SPRIN G WASHE R Replace .
1ST-HOL D CLUTC H ASSEMBL Y
O-RING S Replace .
THRUS T WASHE R
THRUS T NEEDL E BEARIN G
1ST-HOL D CLUTC H HU B
COUNTERSHAF T 1S T GEA R
ONE-WA Y CLUTC H
NEEDL E BEARING S
COUNTERSHAF T 1S T GEA R COLLA R
PARKIN G GEA R
PARKIN G BRAK E PAW L SHAF T
PARKIN G BRAK E PAW L SPRIN G
PARKIN G BRAK E PAW L
PARKIN G BRAK E PAW L STOPPE R
A/ T GEA R POSITIO N SWITC H HARNES S
AT F DIPSTIC K
TORQU E SPECIFICATION S
ProCarManuals.com

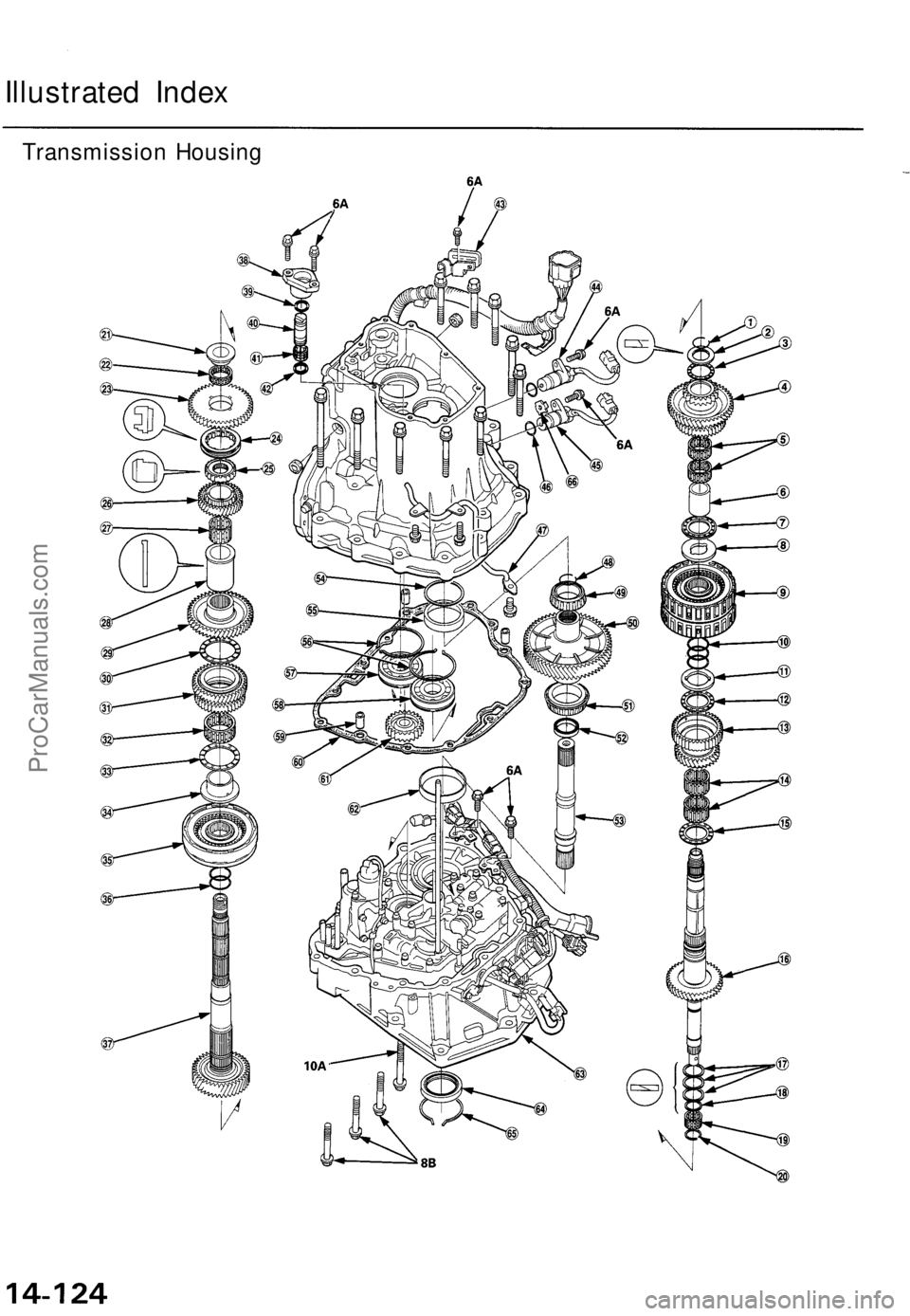

Illustrated Index

Transmission HousingProCarManuals.com

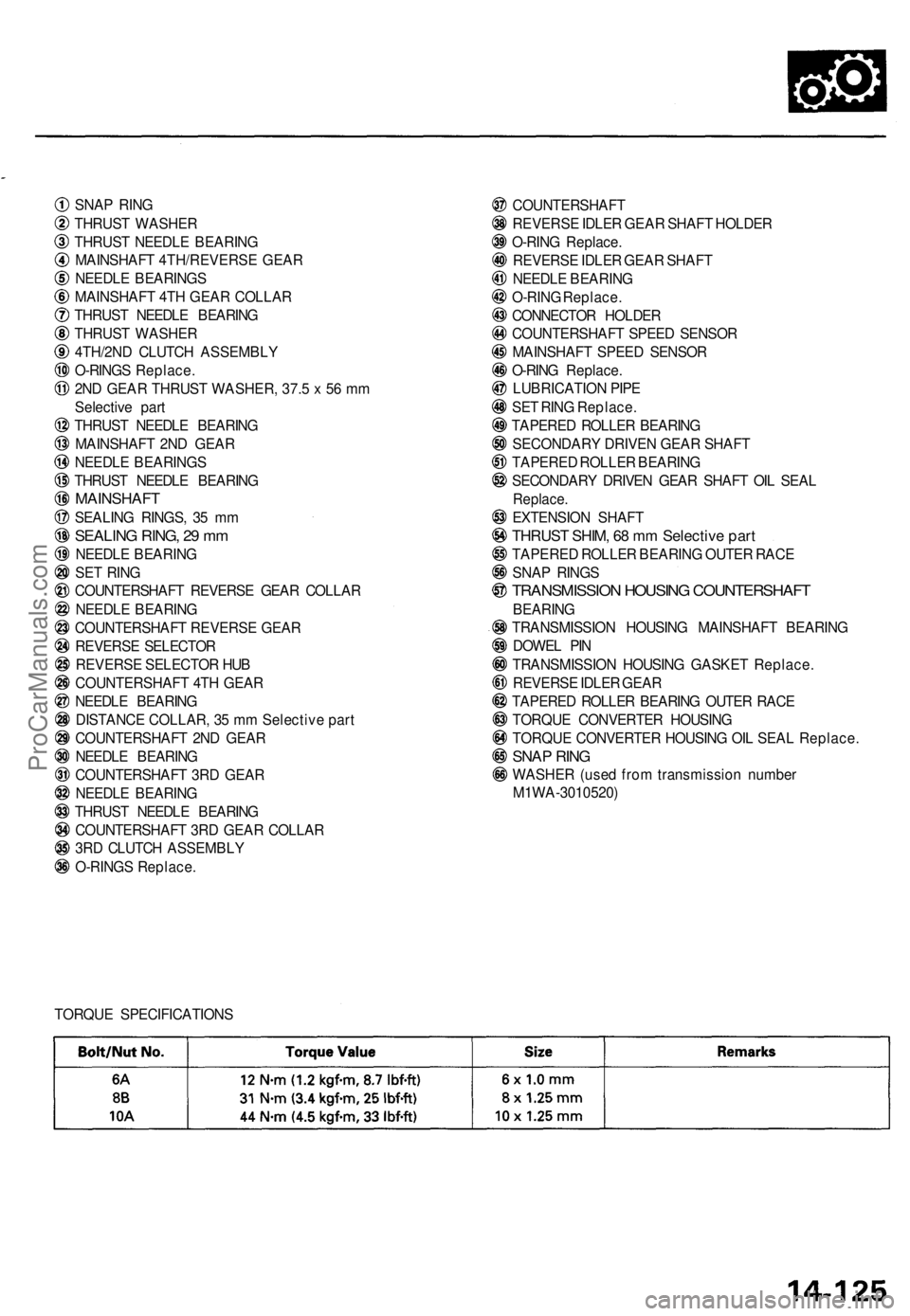

SNAP RIN G
THRUS T WASHE R
THRUS T NEEDL E BEARIN G
MAINSHAF T 4TH/REVERS E GEA R
NEEDL E BEARING S
MAINSHAF T 4T H GEA R COLLA R
THRUS T NEEDL E BEARIN G
THRUS T WASHE R
4TH/2N D CLUTC H ASSEMBL Y
O-RING S Replace .
2N D GEA R THRUS T WASHER , 37. 5 x 56 m m
Selectiv e par t
THRUS T NEEDL E BEARIN G
MAINSHAF T 2N D GEA R
NEEDL E BEARING S
THRUS T NEEDL E BEARIN G
MAINSHAF T
SEALING RINGS , 3 5 m m
SEALIN G RING , 2 9 m m
NEEDL E BEARIN G
SE T RIN G
COUNTERSHAF T REVERS E GEA R COLLA R
NEEDL E BEARIN G
COUNTERSHAF T REVERS E GEA R
REVERS E SELECTO R
REVERS E SELECTO R HU B
COUNTERSHAF T 4T H GEA R
NEEDL E BEARIN G
DISTANC E COLLAR , 3 5 m m Selectiv e par t
COUNTERSHAF T 2N D GEA R
NEEDL E BEARIN G
COUNTERSHAF T 3R D GEA R
NEEDL E BEARIN G
THRUS T NEEDL E BEARIN G
COUNTERSHAF T 3R D GEA R COLLA R
3R D CLUTC H ASSEMBL Y
O-RING S Replace . COUNTERSHAF
T
REVERS E IDLE R GEA R SHAF T HOLDE R
O-RIN G Replace .
REVERS E IDLE R GEA R SHAF T
NEEDL E BEARIN G
O-RIN G Replace .
CONNECTO R HOLDE R
COUNTERSHAF T SPEE D SENSO R
MAINSHAF T SPEE D SENSO R
O-RIN G Replace .
LUBRICATIO N PIP E
SE T RIN G Replace .
TAPERE D ROLLE R BEARIN G
SECONDAR Y DRIVE N GEA R SHAF T
TAPERE D ROLLE R BEARIN G
SECONDAR Y DRIVE N GEA R SHAF T OI L SEA L
Replace .
EXTENSIO N SHAF T
THRUS T SHIM , 6 8 m m Selectiv e par t
TAPERE D ROLLE R BEARIN G OUTE R RAC E
SNA P RING S
TRANSMISSIO N HOUSIN G COUNTERSHAF T
BEARING
TRANSMISSIO N HOUSIN G MAINSHAF T BEARIN G
DOWE L PI N
TRANSMISSIO N HOUSIN G GASKE T Replace .
REVERS E IDLE R GEA R
TAPERE D ROLLE R BEARIN G OUTE R RAC E
TORQU E CONVERTE R HOUSIN G
TORQU E CONVERTE R HOUSIN G OI L SEA L Replace .
SNAP RIN G
WASHE R (use d fro m transmissio n numbe r
M1WA-3010520 )
TORQU E SPECIFICATION S
