Page 1369 of 1771

Doors
Glass Adjustmen t (cont'd )
12. Adjus t clearanc e "B " a s follows .
"B" (se e pag e
20-26 )
GLAS S
a. Pus h th e insid e stabilizer s agains t th e glas s lightly ,
the n faste n th e insid e stabilizers .
NOTE : Chec k tha t th e glas s move s smoothly .
INSIDESTABILIZE R
BOLT8 x 1.2 5 mm22 N- m (2. 2 kgf-m ,
1 6 Ibf-ft )
b. Loose n th e locknut , an d tur n th e adjustin g bol t
unti l th e clearanc e "B " i s withi n th e specifie d
value .
LOCKNU T
ADJUSTIN G BOL T
GLAS S
GLAS S
GUIDE
GLAS S
ADJUSTIN G BOL T
NOTE: Tur n th e fron t an d rea r adjustin g bolt s th e
sam e amoun t t o kee p th e regulato r paralle l wit h th e
seatin g surfac e o f th e door . Afte r tightenin g th e
adjustin g bolts , mak e sur e tha t th e end s o f th e
adjustin g bolt s stil l projec t ou t o f th e locknuts .
GLASS
REGULATO R
DOO R
ADJUSTIN G BOLT S
c. Alig n th e fron t sas h wit h th e glas s usin g th e
adjustin g bol t a t th e botto m o f th e fron t sash .
d . Mov e th e glas s u p an d dow n to sea t it , the n mea -
sur e clearanc e "B " a t th e designate d locations .
e . Measur e clearanc e "H " agai n t o mak e sur e i t i s
stil l withi n th e specifie d limit s a t th e designate d
locations.
NOTE : Repea t th e abov e step s unti l th e correc t
clearance s ar e obtained .
LOCKNU T
REGULATO R
ProCarManuals.com
Page 1370 of 1771

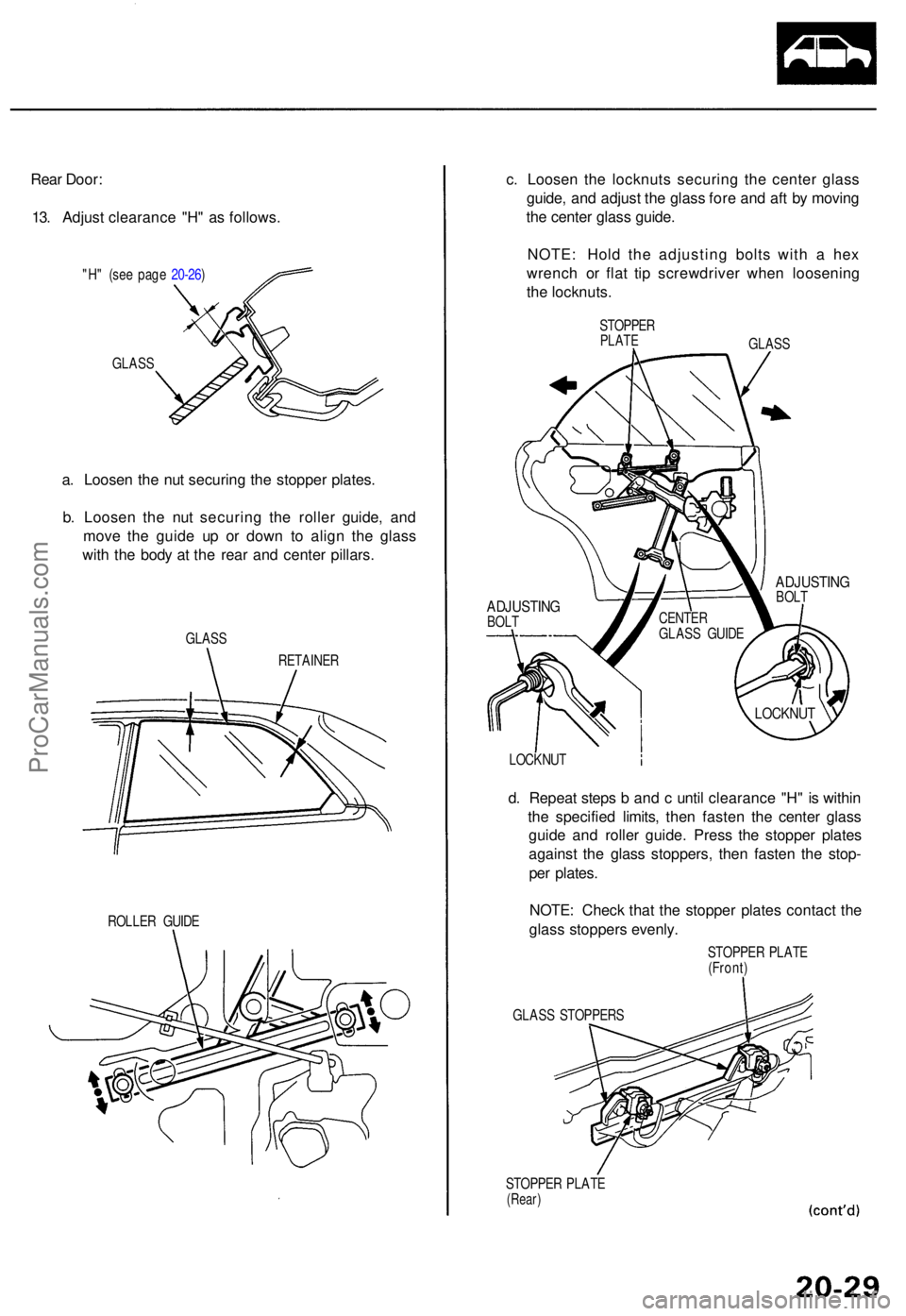

Rear Door :
13 . Adjus t clearanc e "H " a s follows .
"H" (se e pag e 20-26 )
GLAS S
a. Loose n th e nu t securin g th e stoppe r plates .
b . Loose n th e nu t securin g th e rolle r guide , an d
mov e th e guid e u p o r dow n t o alig n th e glas s
wit h th e bod y a t th e rea r an d cente r pillars .
GLASS
RETAINER
ROLLE R GUID E
c. Loose n th e locknut s securin g th e cente r glas s
guide , an d adjus t th e glas s for e an d af t b y movin g
th e cente r glas s guide .
NOTE : Hol d th e adjustin g bolt s wit h a he x
wrenc h o r fla t ti p screwdrive r whe n loosenin g
th e locknuts .
STOPPERPLATEGLAS S
LOCKNU T
d. Repea t step s b an d c unti l clearanc e "H " i s withi n
th e specifie d limits , the n faste n th e cente r glas s
guid e an d rolle r guide . Pres s th e stoppe r plate s
agains t th e glas s stoppers , the n faste n th e stop -
pe r plates .
NOTE : Chec k tha t th e stoppe r plate s contac t th e
glas s stopper s evenly .
STOPPE R PLAT E
(Front )
GLAS S STOPPER S
STOPPE R PLAT E
(Rear)
ADJUSTIN GBOLT CENTE
R
GLAS S GUID E
ADJUSTIN GBOLT
LOCKNU T
ProCarManuals.com
Page 1371 of 1771

Doors
Glass Adjustmen t (cont'd )
14. Adjus t clearanc e "B " a s follows .
"B" (se e pag e 20-26 )
GLAS S
a. Pus h th e glas s outward , the n pus h th e insid e stabi -
lizer s agains t th e glas s lightly . Faste n th e insid e
stabilizers .
NOTE : Chec k tha t th e glas s move s smoothly .
GLASS
INSIDESTABILIZER S
INSIDESTABILIZE R
b. Loose n th e uppe r locknu t o n th e cente r glas s
guide, an d tur n th e adjustin g bol t unti l clearanc e
"B" i s withi n th e specifie d value .
ADJUSTIN G BOL T
CENTE RGLASSGUIDE
LOCKNU T12 x 1.2 5 mm22 N- m (2. 2 kgf m ,16 Ibf-ft )
ADJUSTIN GBOLT
GLAS S
• NOTE : D o no t adjus t th elowe r adjustin g bolt s o nthe cente r glas s guide .
c. Mov e th e glas s u p an d dow n t o sea t it , the n mea -
sur e clearanc e "B " a t th e designate d locations .
d . Measur e clearanc e "H " agai n t o mak e sur e i t i s
stil l withi n th e specifie d limit s a t th e designate d
locations.
NOTE : Repea t th e abov e step s unti l th e correc t
clearance s ar e obtained .
CENTER GLAS SGUIDE
CENTE R GLAS SGUIDE
ProCarManuals.com
Page 1372 of 1771

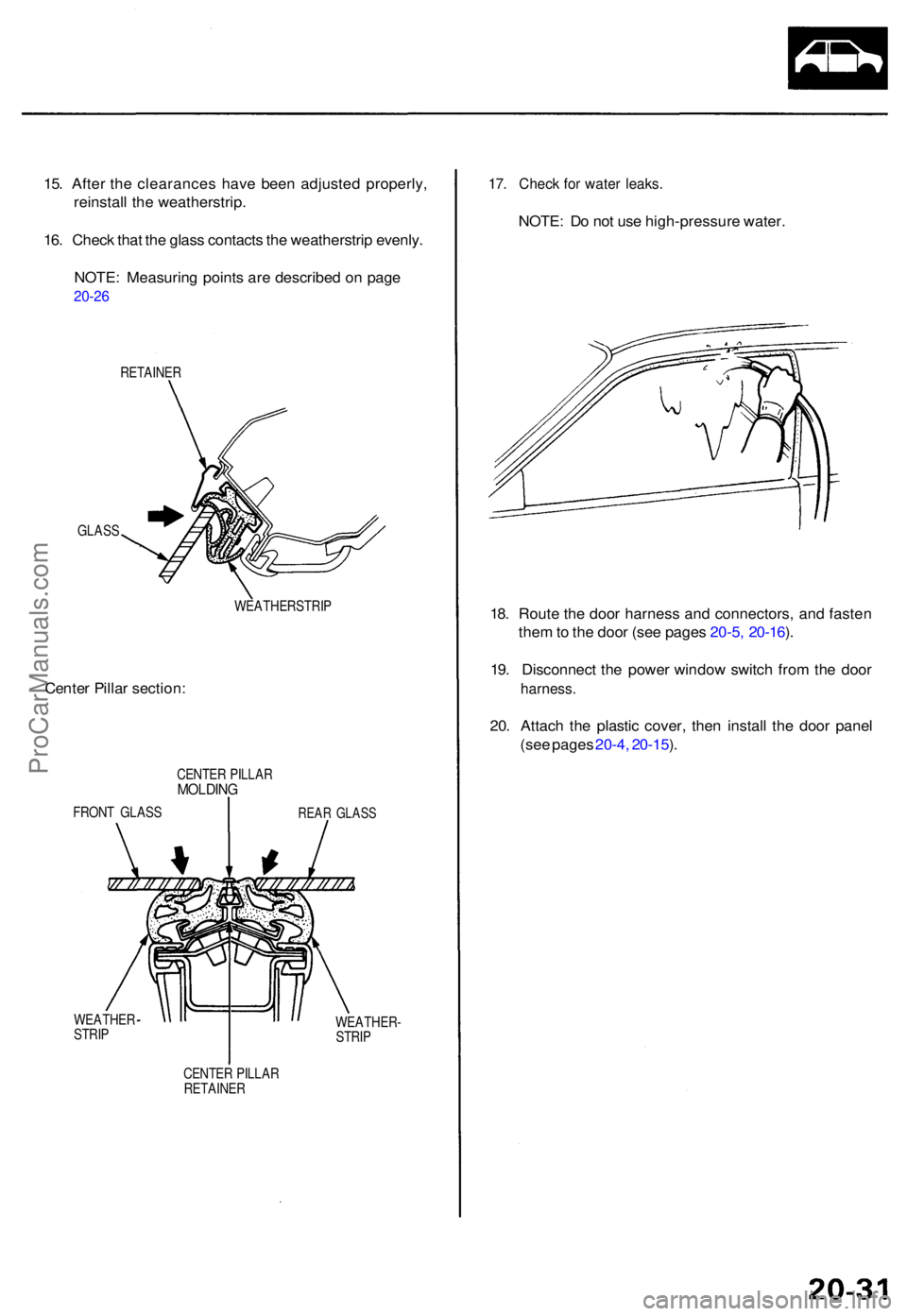

15. Afte r th e clearance s hav e bee n adjuste d properly ,
reinstal l th e weatherstrip .
16 . Chec k tha t th e glas s contact s th e weatherstri p evenly .
NOTE : Measurin g point s ar e describe d o n pag e
20-2 6
RETAINE R
GLAS S
WEATHERSTRIP
Center Pilla r section :
CENTER PILLA RMOLDIN G
FRONT GLAS SREAR GLAS S
WEATHE R
STRI P WEATHER
-
STRIP
CENTE R PILLA R
RETAINE R
17. Chec k fo r wate r leaks .
NOTE: D o no t us e high-pressur e water .
18 . Rout e th e doo r harnes s an d connectors , an d faste n
the m to th e doo r (se e page s 20-5 , 20-16 ).
19 . Disconnec t th e powe r windo w switc h fro m th e doo r
harness .
20. Attac h th e plasti c cover , the n instal l th e doo r pane l
(se e page s 20-4 , 20-15 ).
ProCarManuals.com
Page 1373 of 1771

Doors
Positio n Adjustmen t
NOTE: Plac e th e vehicl e o n a firm , leve l surfac e whe n
adjustin g th e doors .
After installin g th e door , chec k fo r a flus h fi t wit h th e
body , the n chec k fo r equa l gap s betwee n th e front , rear ,
an d botto m doo r edge s an d th e body . Th e doo r an d
bod y edge s shoul d als o b e parallel . Adjus t a t th e hinge s
a s shown .
CAUTION : Plac e a sho p towe l o n th e jac k t o preven t
damag e t o th e doo r whe n loosenin g th e doo r an d hing e
mountin g bolt s fo r adjustment .
DOOR MOUNTIN G BOLT S8 x 1.2 5 mm29 N- m (3. 0 kgf-m , 2 2 Ibf-ft )Loose n th e doo r mountin g bolt s
slightl y to mov e th e doo r I N o r OU T
unti l it' s flus h wit h th e body . I f
necessary , yo u ca n instal l a shi m
behin d on e hing e to mak e th e doo redge s PARALLE L wit h th e body .
DOORHING E
HINGE MOUNTIN G BOLT S8 x 1.2 5 mm29 N- m (3. 0 kgf-m , 2 2 Ibf-ft )Loose n th e hing e mountin gbolts, an d mov e th e doo rBACKWAR D o r FORWARD ,UP o r DOW N a s necessar yto equaliz e th e gaps .
Lower th eglass .
DOOR CUSHION S
NOTE: Chec k fo r wate r leaks .If necessary , adjustth e doo r cushion .
SHOP TOWE L
JACK
The doo r an d bod y edge s shoul d b e parallel .
ProCarManuals.com
Page 1374 of 1771
Doors
Strike r Adjustmen t
Front:
Make sur e th e doo r latche s securel y withou t slamming .
I f i t need s adjustment :
1 . Dra w a lin e aroun d th e strike r fo r reference .
2 . Loose n th e screws , an d mov e th e strike r I N o r OU T
to mak e th e latc h fi t tighte r o r looser . Mov e th e
strike r U P o r DOW N t o alig n i t wit h th e latc h open -
ing . The n lightl y tighte n th e screw s an d recheck .
NOTE : Hol d th e oute r handl e out , an d pus h th e
doo r agains t th e bod y t o b e sur e th e strike r allow s a
flus h fit .
STRIKE R
SCREW S8 x 1.2 5 mm18 N- m (1. 8 kgf-m , 1 3 Ibf-ft )
3. I f th e doo r latche s properly , tighte n th e screw s an d
recheck .
ProCarManuals.com
Page 1375 of 1771
Rear:
Make sure the door latches securely without slamming.
If it needs adjustment:
NOTE: The striker nuts are fixed. The striker can be
adjusted 1.5 mm (0.059 in) up or down, and 3 mm (0.1 in)
in or
out.
1. Loosen the screws, then insert a shop towel between
the body and striker.
3 mm
(0.1
in)
STRIKER
Insert a shop towel
between the body and
striker.
PLASTIC
HAMMER
SCREWS
8 x
1.25
mm
18 N-m (1.8 kgf-m,
13 Ibf-ft)
SHOP
TOWEL
2. Lightly tighten the screws.
3. Wrap the striker with a shop towel, then adjust the
striker by tapping it with a plastic hammer.
CAUTION: Do not strike the striker too hard.
NOTE: Hold the outer handle out, and push the door
against the body to be sure the striker allows a flush
fit.
4. If the door latches properly, loosen the screws, then
remove a shop towel. Tighten the screws and
recheck.
3 mm
(0.1
in)
1.5 mm
(0.059 in)
1.5 mm
(0.059 in)ProCarManuals.com
Page 1376 of 1771

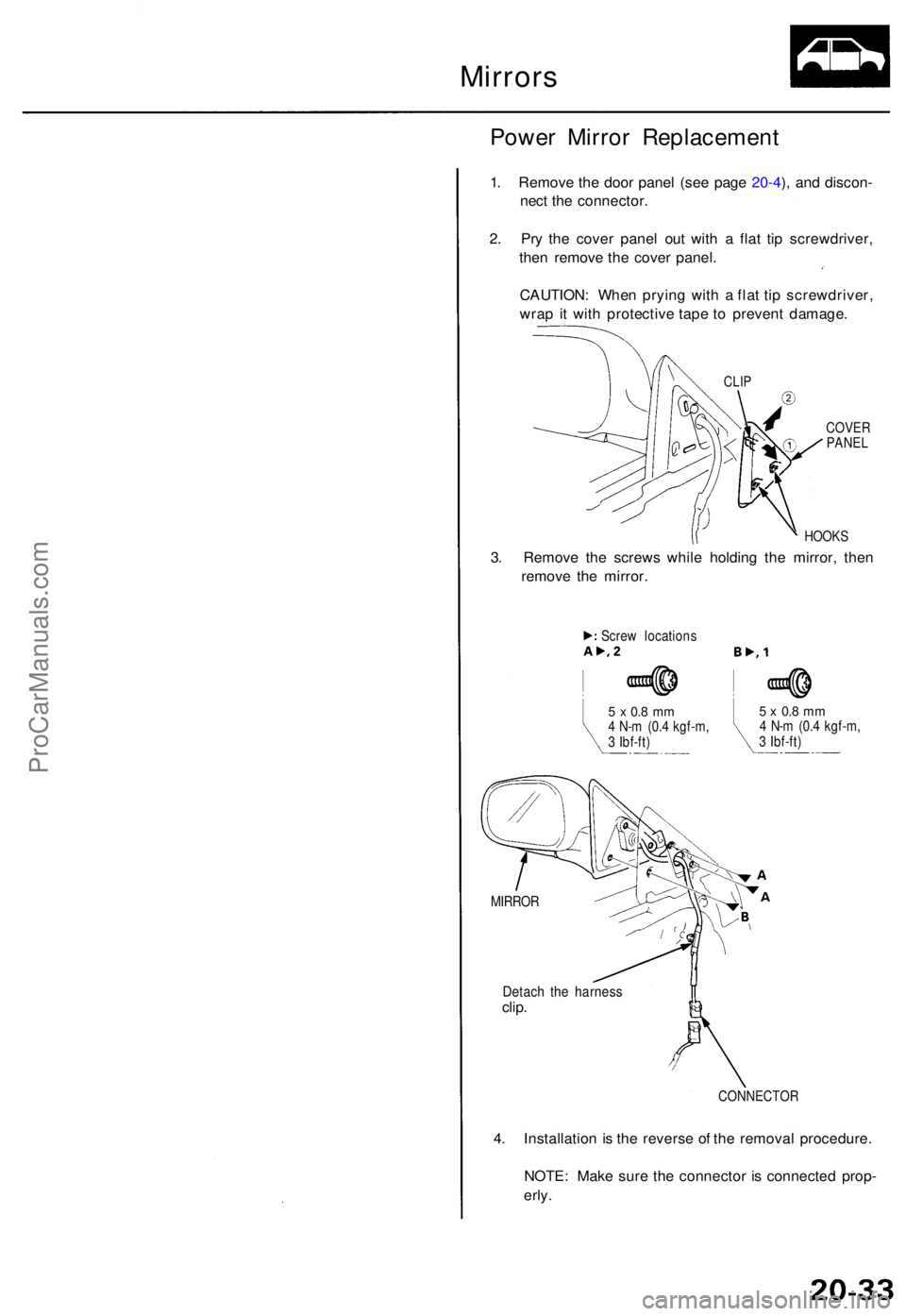

Mirrors
Power Mirro r Replacemen t
1. Remov e th e doo r pane l (se e pag e 20-4 ), an d discon -
nec t th e connector .
2 . Pr y th e cove r pane l ou t wit h a fla t ti p screwdriver ,
the n remov e th e cove r panel .
CAUTION : Whe n pryin g wit h a fla t ti p screwdriver ,
wra p i t wit h protectiv e tap e t o preven t damage .
COVER
PANE L
HOOK S
3. Remov e th e screw s whil e holdin g th e mirror , the n
remov e th e mirror .
Detach th e harnes sclip.
CONNECTO R
4. Installatio n i s th e revers e o f th e remova l procedure .
NOTE : Mak e sur e th e connecto r i s connecte d prop -
erly .
CLIP
5 x 0. 8 m m4 N- m (0. 4 kgf-m ,
3 Ibf-ft )5 x 0. 8 m m4 N- m (0. 4 kgf-m ,
3 Ibf-ft )
Scre
w location s
MIRRO R
