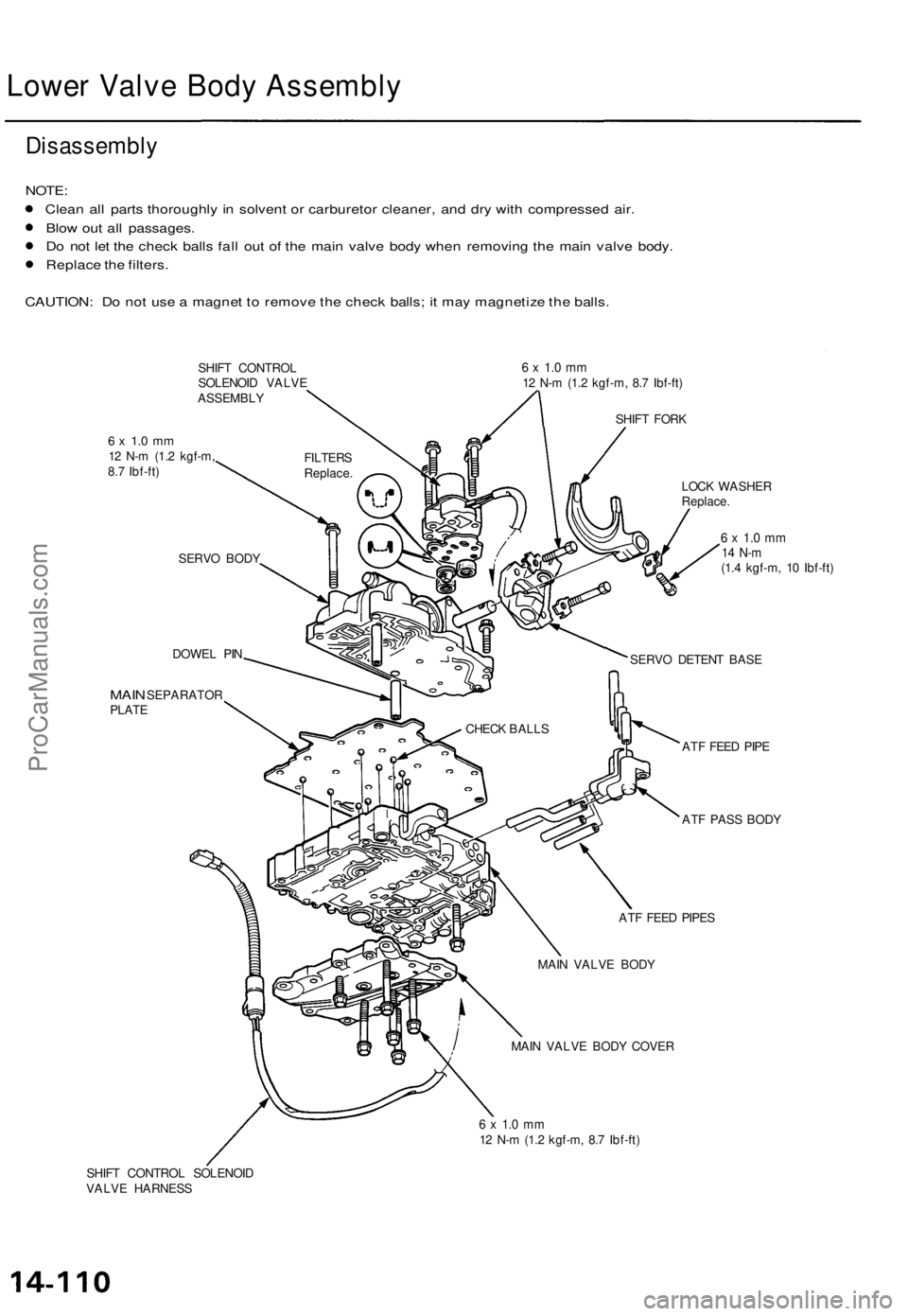

Lower Valv e Bod y Assembl y
Disassembl y
NOTE:
Clea n al l part s thoroughl y i n solven t o r carbureto r cleaner , an d dr y wit h compresse d air .
Blo w ou t al l passages .
D o no t le t th e chec k ball s fal l ou t o f th e mai n valv e bod y whe n removin g th e mai n valv e body .
Replac e th e filters .
CAUTION : D o no t us e a magne t t o remov e th e chec k balls ; i t ma y magnetiz e th e balls .
SHIFT CONTRO L
SOLENOI D VALV E
ASSEMBL Y
6 x 1. 0 m m12 N- m (1. 2 kgf-m ,
8. 7 Ibf-ft )
SERV O BOD Y
DOWE L PI N
MAI N SEPARATO R
PLAT E
6 x 1. 0 m m12 N- m (1. 2 kgf-m , 8. 7 Ibf-ft )
SHIF T FOR K
SERV O DETEN T BAS E
AT F FEE D PIP E
LOC
K WASHE R
Replace .
6 x 1. 0 m m14 N- m(1.4 kgf-m , 1 0 Ibf-ft )
AT F PAS S BOD Y
AT F FEE D PIPE S
MAI N VALV E BOD Y
MAI N VALV E BOD Y COVE R
6 x 1. 0 m m12 N- m (1. 2 kgf-m , 8. 7 Ibf-ft )
SHIF T CONTRO L SOLENOI D
VALV E HARNES S CHEC
K BALL S
FILTER
S
Replace .
ProCarManuals.com

Reassembly
NOTE:
• Coa t al l part s wit h ATF .
• Replac e th e filters .
• Instal l th e filter s i n th e directio n shown .
1 . Instal l th e mai n separato r plat e an d th e tw o dowe l
pin s o n th e mai n valv e body .
NOTE : Refe r t o pag e 14-141 , whe n installin g th e chec k
ball s o n th e mai n valv e body .
2 . Instal l th e serv o bod y o n th e mai n valv e bod y (tw o
bolts) .
3 . Instal l th e mai n valv e bod y cove r o n th e mai n valv e
bod y (si x bolts ) a s shown .
4 . Instal l th e on e bol t o n th e mai n valv e bod y a s shown .
5 . Instal l th e AT F fee d pipe s an d AT F pas s body .

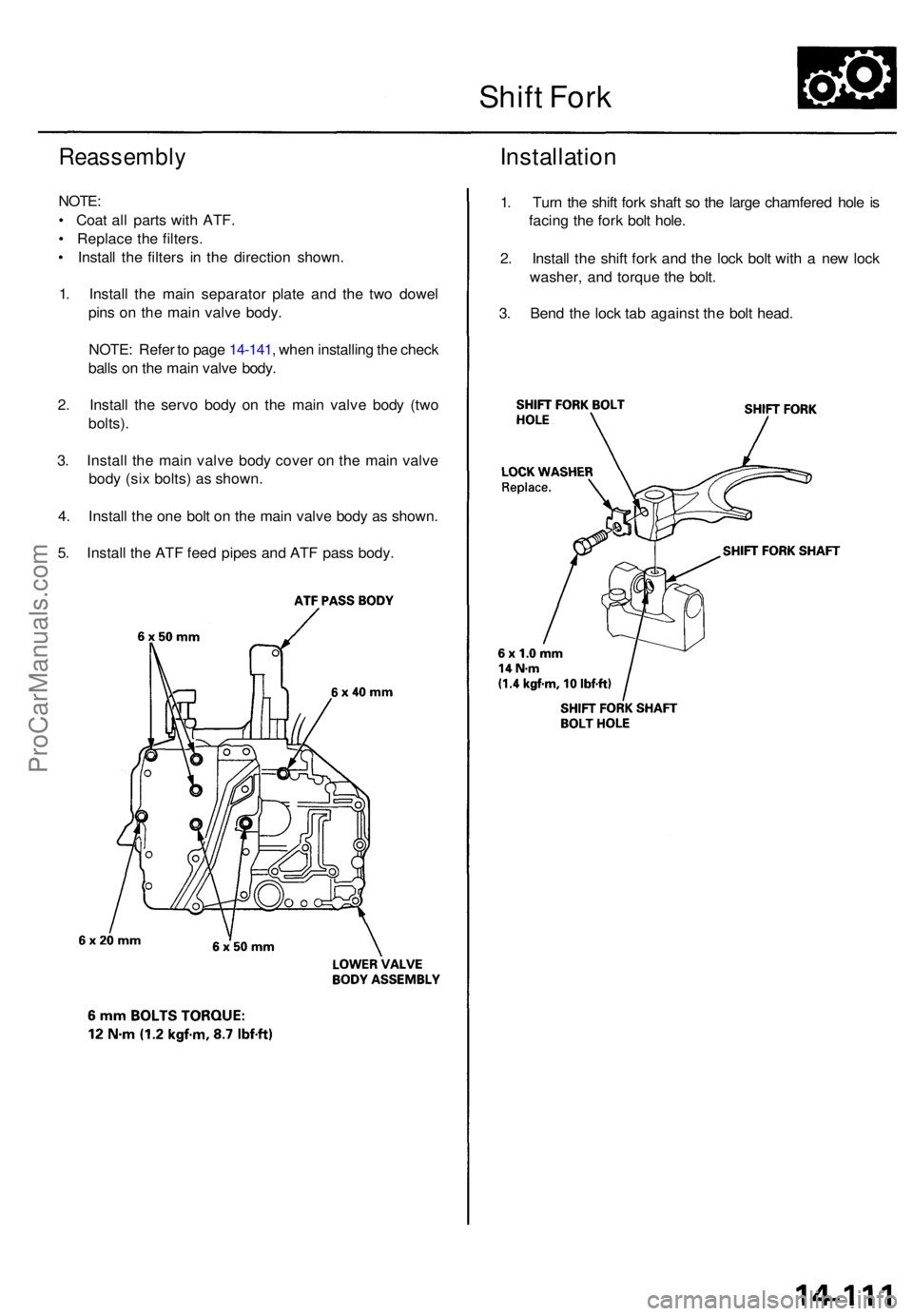

Shift For k
Installatio n
1. Tur n th e shif t for k shaf t s o th e larg e chamfere d hol e is
facin g th e for k bol t hole .
2 . Instal l th e shif t for k an d th e loc k bol t wit h a ne w loc k
washer , an d torqu e th e bolt .
3 . Ben d th e loc k ta b agains t th e bol t head .
ProCarManuals.com

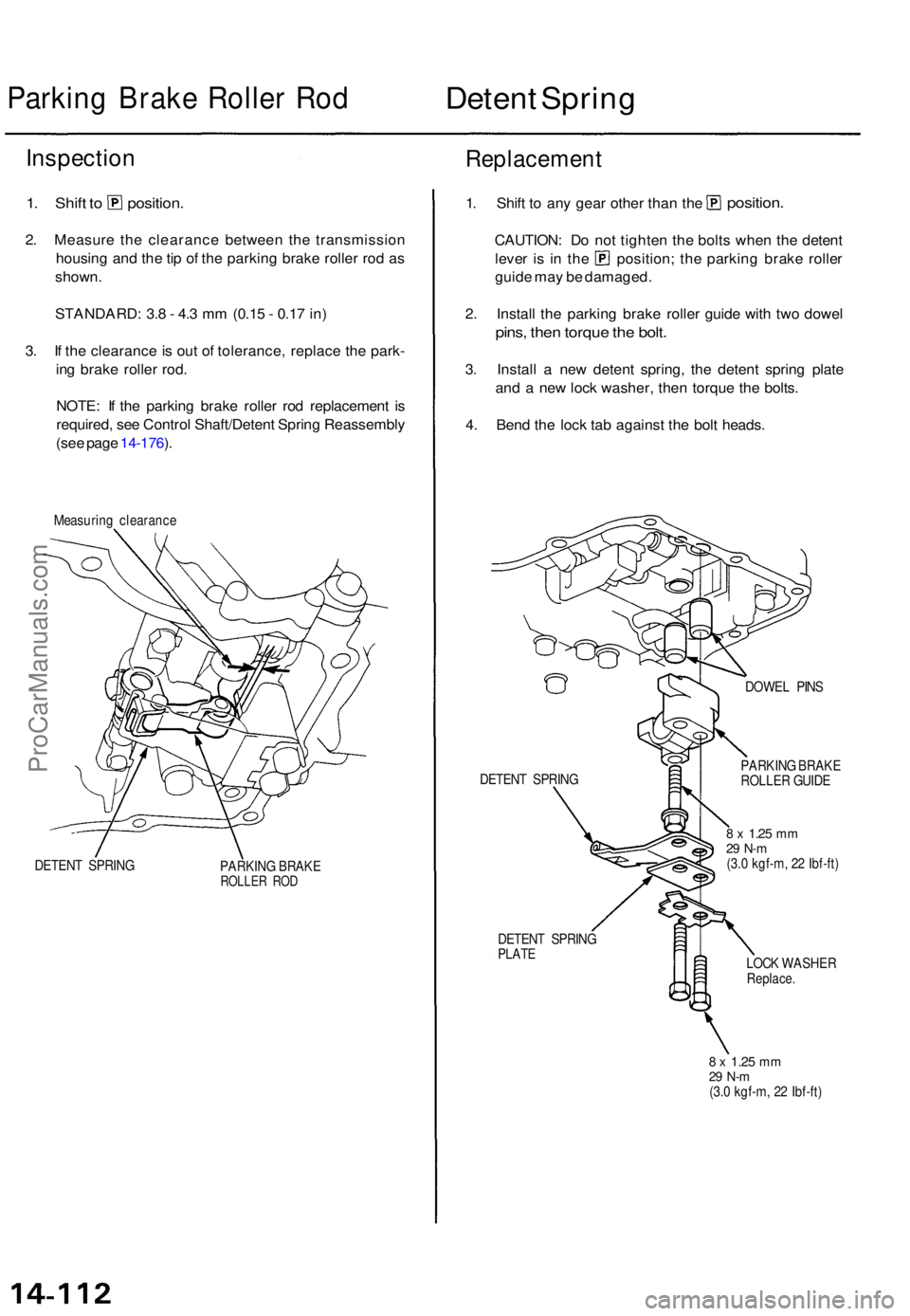

Parking Brak e Rolle r Ro dDeten t Sprin g
Inspectio n
1. Shif t t o position .
2. Measur e th e clearanc e betwee n th e transmissio n
housin g an d th e ti p o f th e parkin g brak e rolle r ro d a s
shown .
STANDARD : 3. 8 - 4. 3 m m (0.1 5 - 0.1 7 in )
3 . I f th e clearanc e is ou t o f tolerance , replac e th e park -
in g brak e rolle r rod .
NOTE : I f th e parkin g brak e rolle r ro d replacemen t i s
required , se e Contro l Shaft/Deten t Sprin g Reassembl y
(se e pag e 14-176 ).
Measurin g clearanc e
DETEN T SPRIN G
PARKING BRAK E
ROLLE R RO D
Replacemen t
1. Shif t t o an y gea r othe r tha n th eposition .
CAUTION : D o no t tighte n th e bolt s whe n th e deten t
lever i s i n th e position ; th e parkin g brak e rolle r
guid e ma y b e damaged .
2 . Instal l th e parkin g brak e rolle r guid e wit h tw o dowe l
pins, the n torqu e th e bolt .
3. Instal l a ne w deten t spring , th e deten t sprin g plat e
an d a ne w loc k washer , the n torqu e th e bolts .
4 . Ben d th e loc k ta b agains t th e bol t heads .
DETEN T SPRIN G
DETEN T SPRIN G
PLATE
DOWE L PIN S
PARKIN G BRAK E
ROLLE R GUID E
8 x 1.2 5 mm29 N- m(3.0 kgf-m , 2 2 Ibf-ft )
LOC K WASHE R
Replace.
8 x 1.2 5 mm29 N- m(3.0 kgf-m , 2 2 Ibf-ft )
ProCarManuals.com

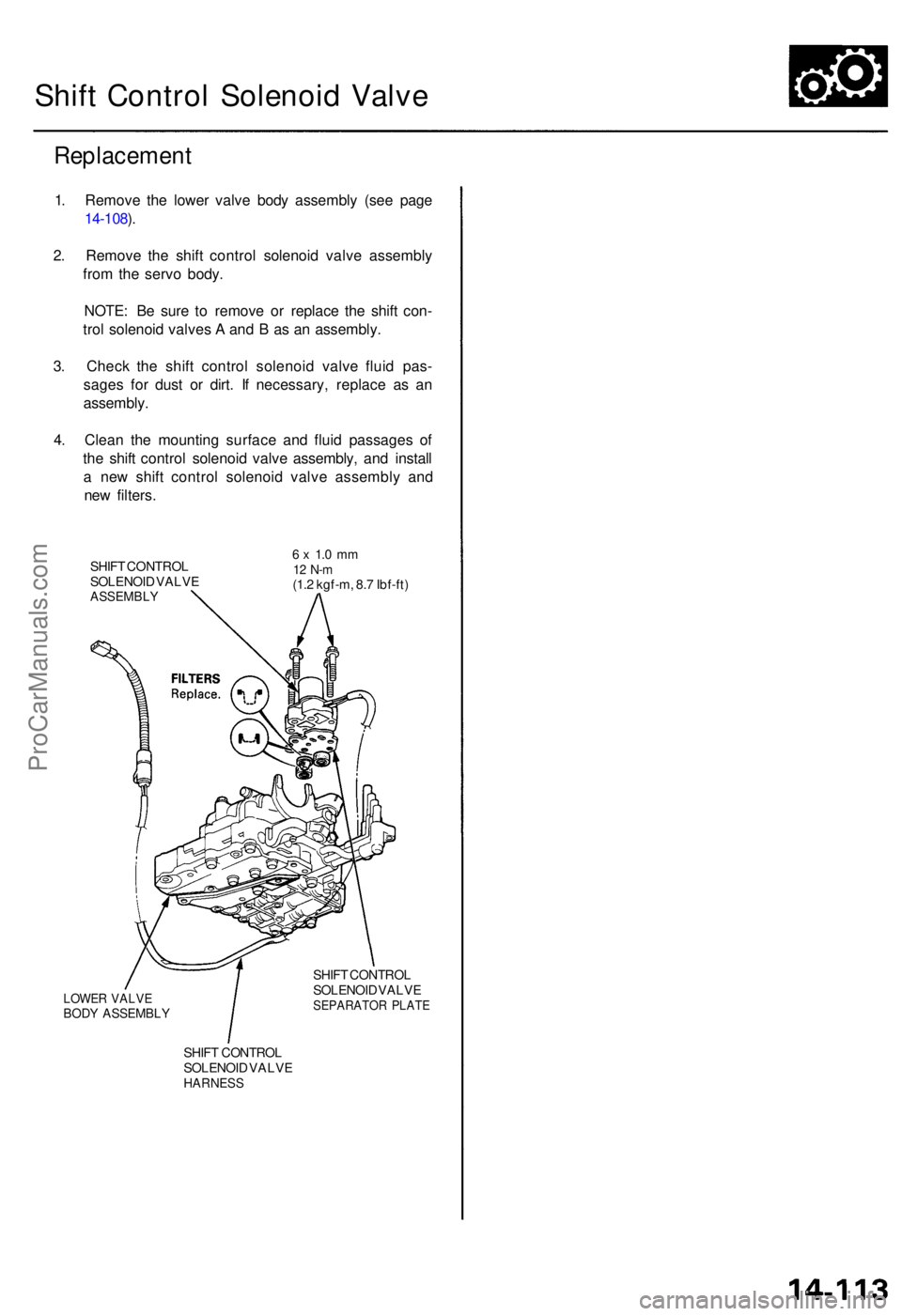

Shift Contro l Solenoi d Valv e
