1995 ACURA TL Service Repair Manual

Recovery

Use only service equipment that is U.L.-listed and is cer-

tified to meet the requirements of SAE J2210 to remove

HFC-134a (R-134a) from the air conditioner system.

CAUTION: Exposure to air conditioner refrigerant and

lubricant vapor or mist can irritate eyes, nose and

throat. Avoid breathing the air conditioner refrigerant

and lubricant vapor or mist.

If accidental system discharge occurs, ventilate work

area before resuming service.

R-134a service equipment or vehicle air conditioner sys-

tems should not be pressure tested or leak tested with

compressed air.

Some mixtures of air and R-134a have been

shown to be combustible at elevated pressures and can

result in fire or explosion causing injury or property dam-

age. Never use compressed air to pressure test R-134a

service equipment or vehicle air conditioner systems.

Additional health and safety information may be obtained

from the refrigerant and lubricant manufacturers.

1. Connect a R-134a refrigerant Recovery/Recycling/

Charging System to the vehicle, as shown, following

the equipment manufacturer's instructions.

2. Measure the amount of refrigerant oil removed from

the A/C system after the recovery process is com-

pleted.

NOTE: Be sure to install the same amount of new

refrigerant oil back into the A/C system before charg-

ing.
Recovery/Recycling/Charging System

HIGH-PRESSURE

SIDE
LOW-PRESSURE

SIDEProCarManuals.com

Compressor

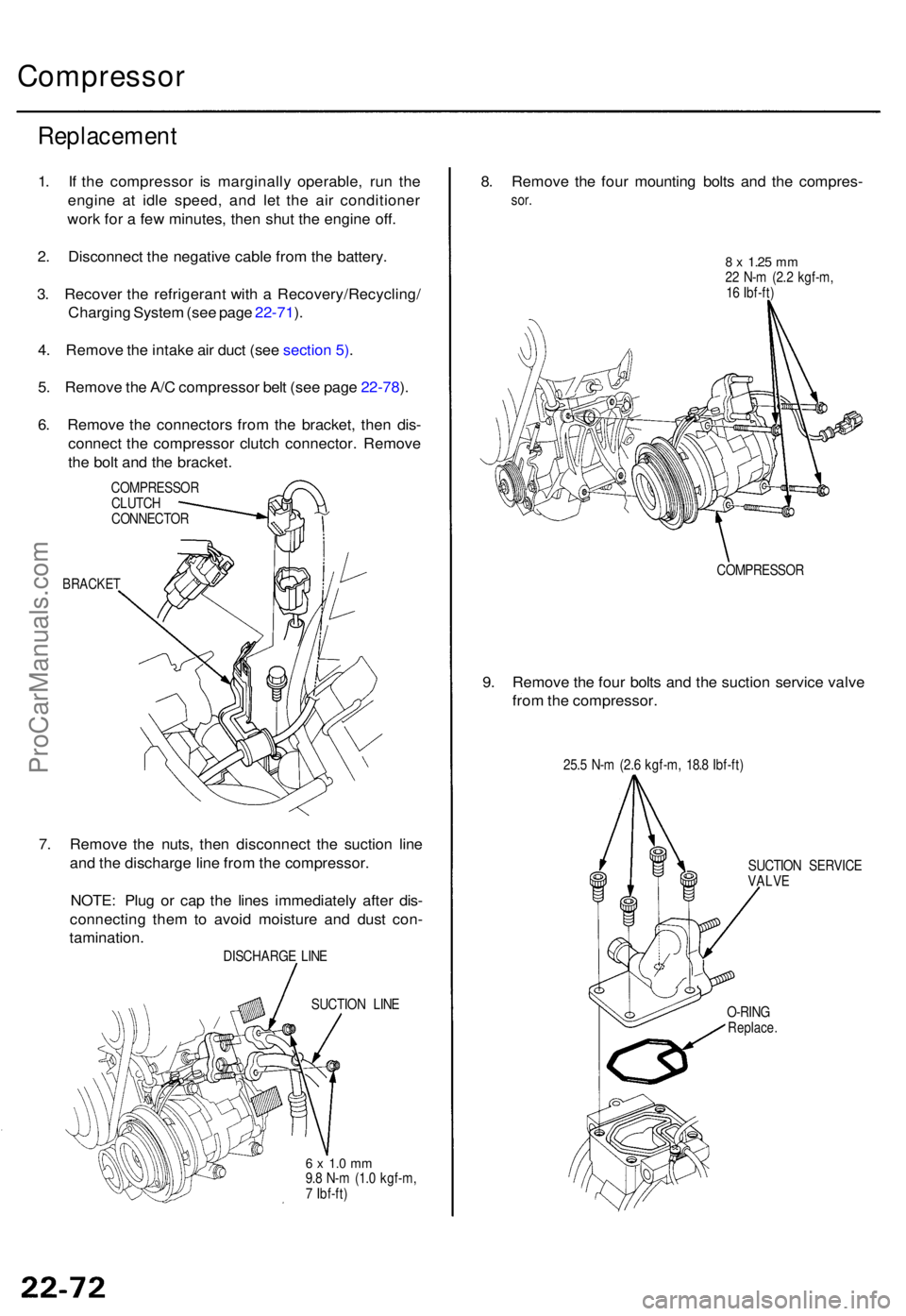

Replacemen t
1. I f th e compresso r i s marginall y operable , ru n th e
engin e a t idl e speed , an d le t th e ai r conditione r
wor k fo r a fe w minutes , the n shu t th e engin e off .
2 . Disconnec t th e negativ e cabl e fro m th e battery .
3 . Recove r th e refrigeran t wit h a Recovery/Recycling /
Chargin g Syste m (se e pag e 22-71 ).
4 . Remov e th e intak e ai r duc t (se e sectio n 5) .
5 . Remov e th e A/ C compresso r bel t (se e pag e 22-78 ).
6 . Remov e th e connector s fro m th e bracket , the n dis -
connec t th e compresso r clutc h connector . Remov e
th e bol t an d th e bracket .
COMPRESSO R
CLUTC H
CONNECTO R
BRACKET
7. Remov e th e nuts , the n disconnec t th e suctio n lin e
an d th e discharg e lin e fro m th e compressor .
NOTE : Plu g o r ca p th e line s immediatel y afte r dis -
connectin g the m to avoi d moistur e an d dus t con -
tamination .
DISCHARG E LIN E
SUCTIO N LIN E
6 x 1. 0 m m9.8 N- m (1. 0 kgf-m ,
7 Ibf-ft )
8. Remov e th e fou r mountin g bolt s an d th e compres -
sor.
8 x 1.2 5 mm22 N- m (2. 2 kgf-m ,
1 6 Ibf-ft )
COMPRESSO R
9. Remov e th e fou r bolt s an d th e suctio n servic e valv e
fro m th e compressor .
25.5 N- m (2. 6 kgf-m , 18. 8 Ibf-ft )
SUCTIO N SERVIC E
VALV E
O-RIN G
Replace .
ProCarManuals.com

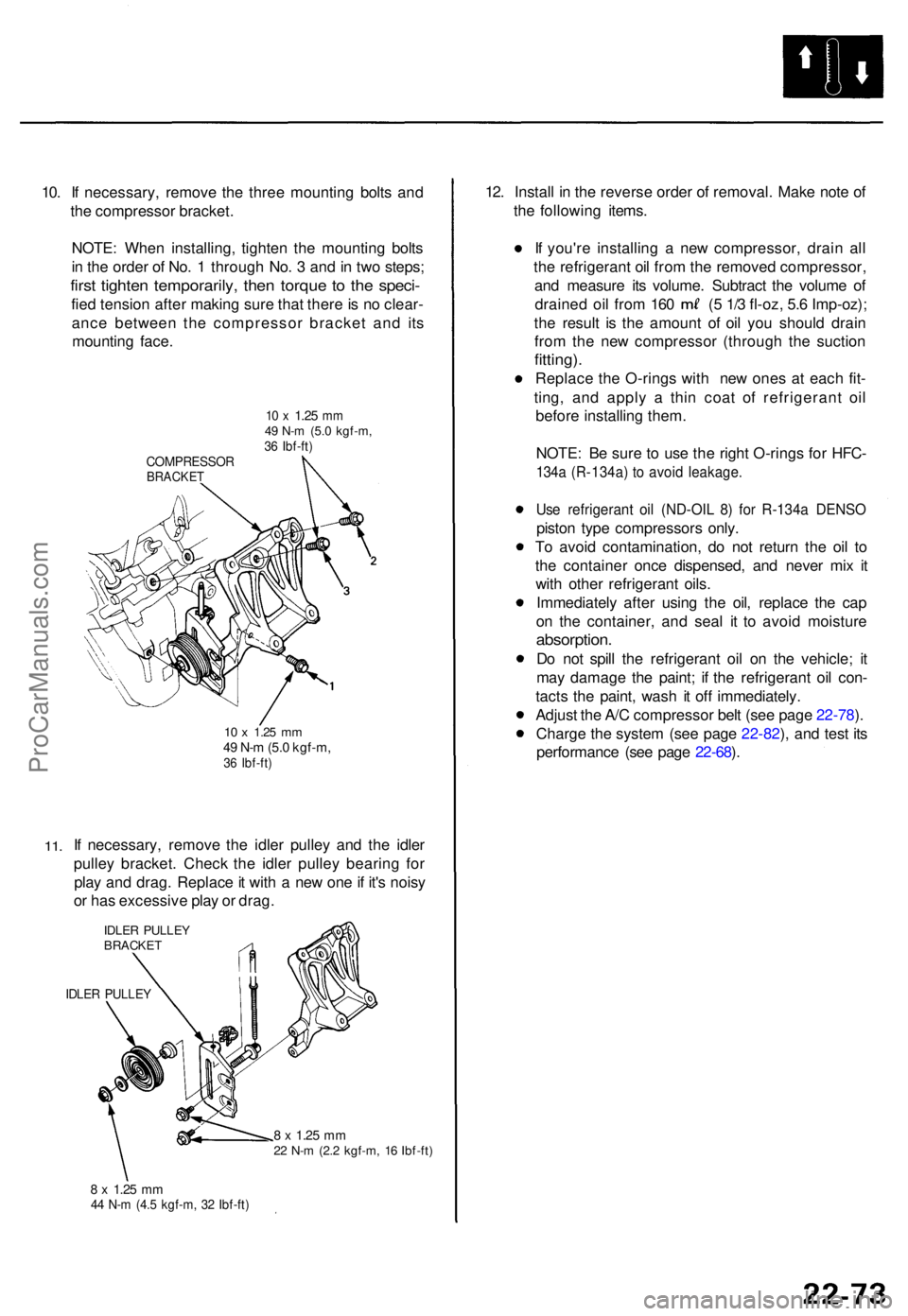

10. I f necessary , remov e th e thre e mountin g bolt s an d
th e compresso r bracket .
NOTE : Whe n installing , tighte n th e mountin g bolt s
i n th e orde r o f No . 1 throug h No . 3 an d in tw o steps ;
first tighte n temporarily , the n torqu e t o th e speci -
fied tensio n afte r makin g sur e tha t ther e is n o clear -
anc e betwee n th e compresso r bracke t an d it s
mountin g face .
10 x 1.2 5 mm49 N- m (5. 0 kgf-m ,36 Ibf-ft )COMPRESSO RBRACKET
11.
10 x 1.2 5 mm49 N- m (5. 0 kgf-m ,36 Ibf-ft )
If necessary , remov e th e idle r pulle y an d th e idle r
pulle y bracket . Chec k th e idle r pulle y bearin g fo r
pla y an d drag . Replac e it wit h a ne w on e if it' s nois y
o r ha s excessiv e pla y o r drag .
IDLER PULLE YBRACKE T
IDLER PULLE Y
8 x 1.2 5 mm22 N- m (2. 2 kgf-m , 1 6 Ibf-ft )
8 x 1.2 5 mm44 N- m (4. 5 kgf-m , 3 2 Ibf-ft )
12. Instal l i n th e revers e orde r o f removal . Mak e not e o f
th e followin g items .
I f you'r e installin g a ne w compressor , drai n al l
th e refrigeran t oi l fro m th e remove d compressor ,
an d measur e it s volume . Subtrac t th e volum e o f
draine d oi l fro m 16 0 ( 5 1/ 3 fl-oz , 5. 6 Imp-oz) ;
th e resul t i s th e amoun t o f oi l yo u shoul d drai n
fro m th e ne w compresso r (throug h th e suctio n
fitting).
Replac e th e O-ring s wit h ne w one s a t eac h fit -
ting , an d appl y a thi n coa t o f refrigeran t oi l
befor e installin g them .
NOTE : B e sur e t o us e th e righ t O-ring s fo r HFC -
134a (R-134a ) t o avoi d leakage .
Use refrigeran t oi l (ND-OI L 8 ) fo r R-134 a DENS O
piston typ e compressor s only .
T o avoi d contamination , d o no t retur n th e oi l t o
th e containe r onc e dispensed , an d neve r mi x i t
wit h othe r refrigeran t oils .
Immediatel y afte r usin g th e oil , replac e th e ca p
o n th e container , an d sea l i t t o avoi d moistur e
absorption .
Do no t spil l th e refrigeran t oi l o n th e vehicle ; i t
ma y damag e th e paint ; i f th e refrigeran t oi l con -
tact s th e paint , was h i t of f immediately .
Adjus t th e A/ C compresso r bel t (se e pag e 22-78 ).
Charg e th e syste m (se e pag e 22-82 ), an d tes t it s
performanc e (se e pag e 22-68 ).
ProCarManuals.com

Compressor

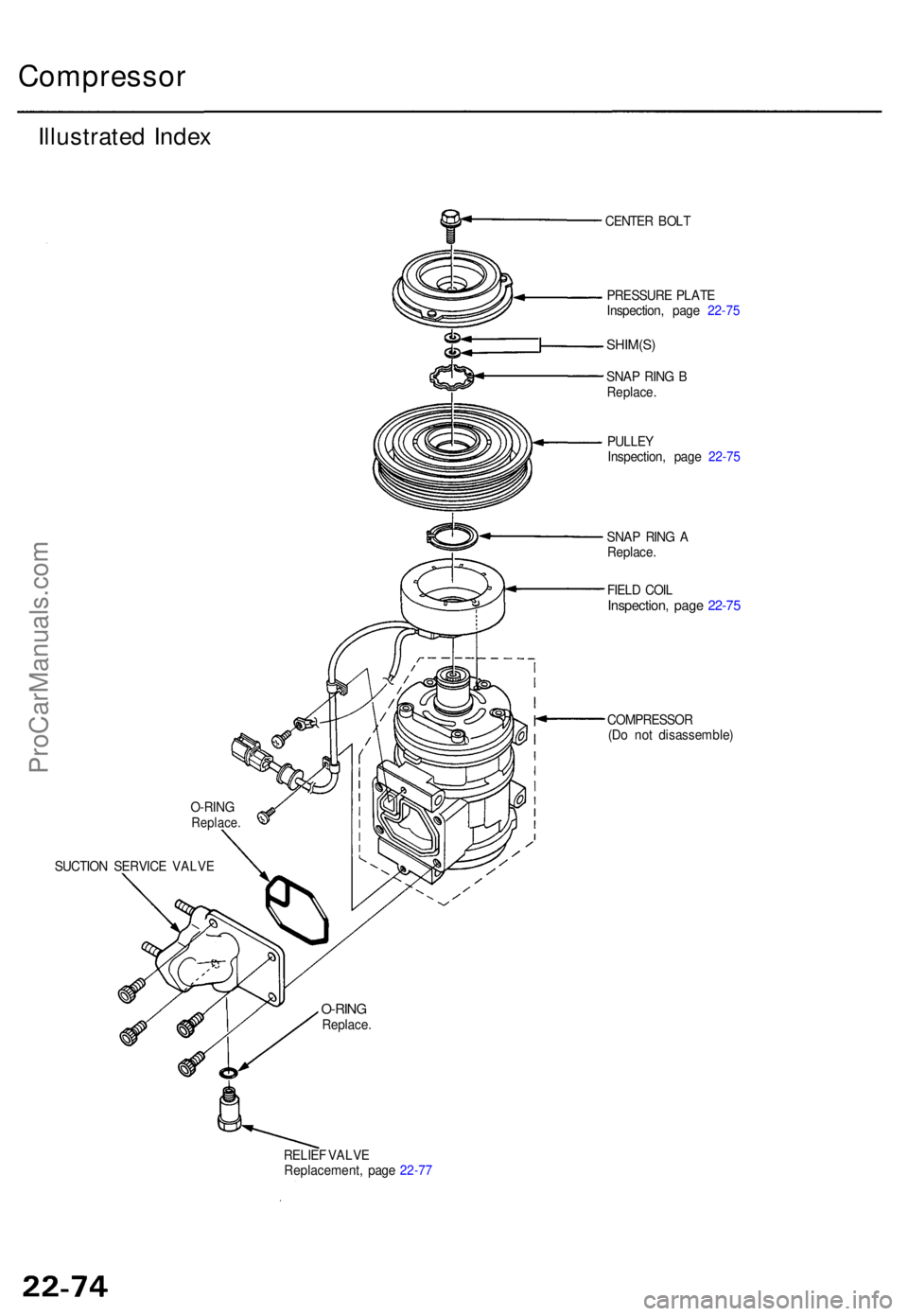

Illustrated Inde x
SUCTIO N SERVIC E VALV E CENTE
R BOL T
PRESSUR E PLAT E
Inspection , pag e 22-7 5
SHIM(S )
SNAP RIN G B
Replace .
PULLE Y
Inspection , pag e 22-7 5
SNA P RIN G A
Replace .
FIEL D COI L
Inspection , pag e 22-7 5
COMPRESSO R
(D o no t disassemble )
RELIE F VALV E
Replacement , pag e 22-7 7
O-RIN
G
Replace .
O-RINGReplace .
ProCarManuals.com

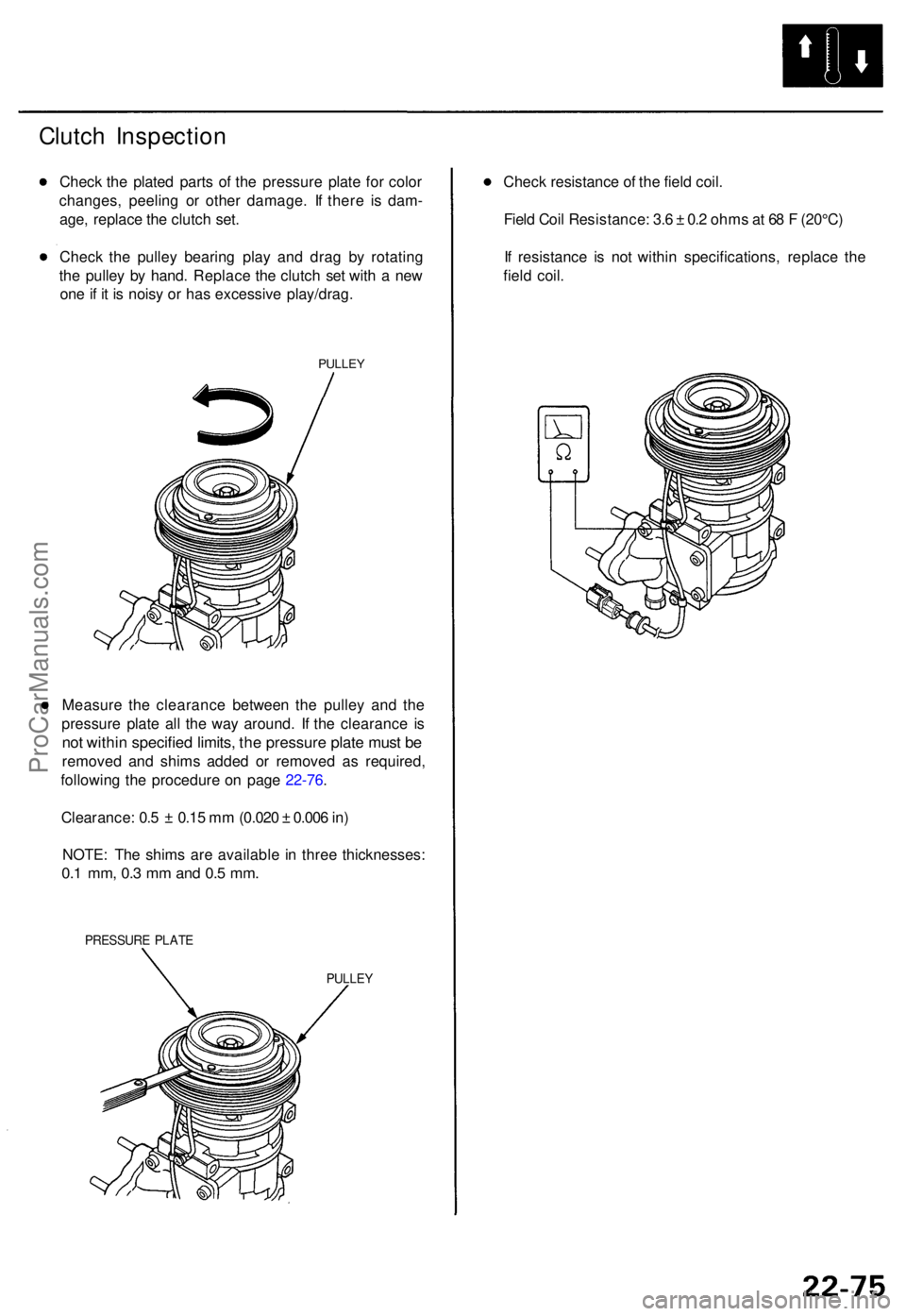

Clutch Inspectio n
Check th e plate d part s o f th e pressur e plat e fo r colo r
changes , peelin g o r othe r damage . I f ther e i s dam -
age , replac e th e clutc h set .
Chec k th e pulle y bearin g pla y an d dra g b y rotatin g
th e pulle y b y hand . Replac e th e clutc h se t wit h a ne w
on e if i t i s nois y o r ha s excessive play/drag.
PULLEY
Measur e th e clearanc e betwee n th e pulle y an d th e
pressur e plat e al l th e wa y around . I f th e clearanc e i s
no t withi n specifie d limits , th e pressur e plat e mus t b e
remove d an d shim s added or remove d a s required ,
followin g th e procedur e o n pag e 22-76 .
Clearance : 0. 5 ± 0.1 5 m m (0.02 0 ± 0.00 6 in )
NOTE : Th e shim s ar e availabl e i n thre e thicknesses :
0.1 mm , 0. 3 m m an d 0. 5 mm .
PRESSUR E PLAT E
PULLE Y
Check resistanc e o f th e fiel d coil .
Fiel d Coi l Resistance : 3. 6 ± 0. 2 ohm s a t 6 8 F (20°C )
I f resistanc e i s no t withi n specifications , replac e th e
fiel d coil .
ProCarManuals.com

Compressor

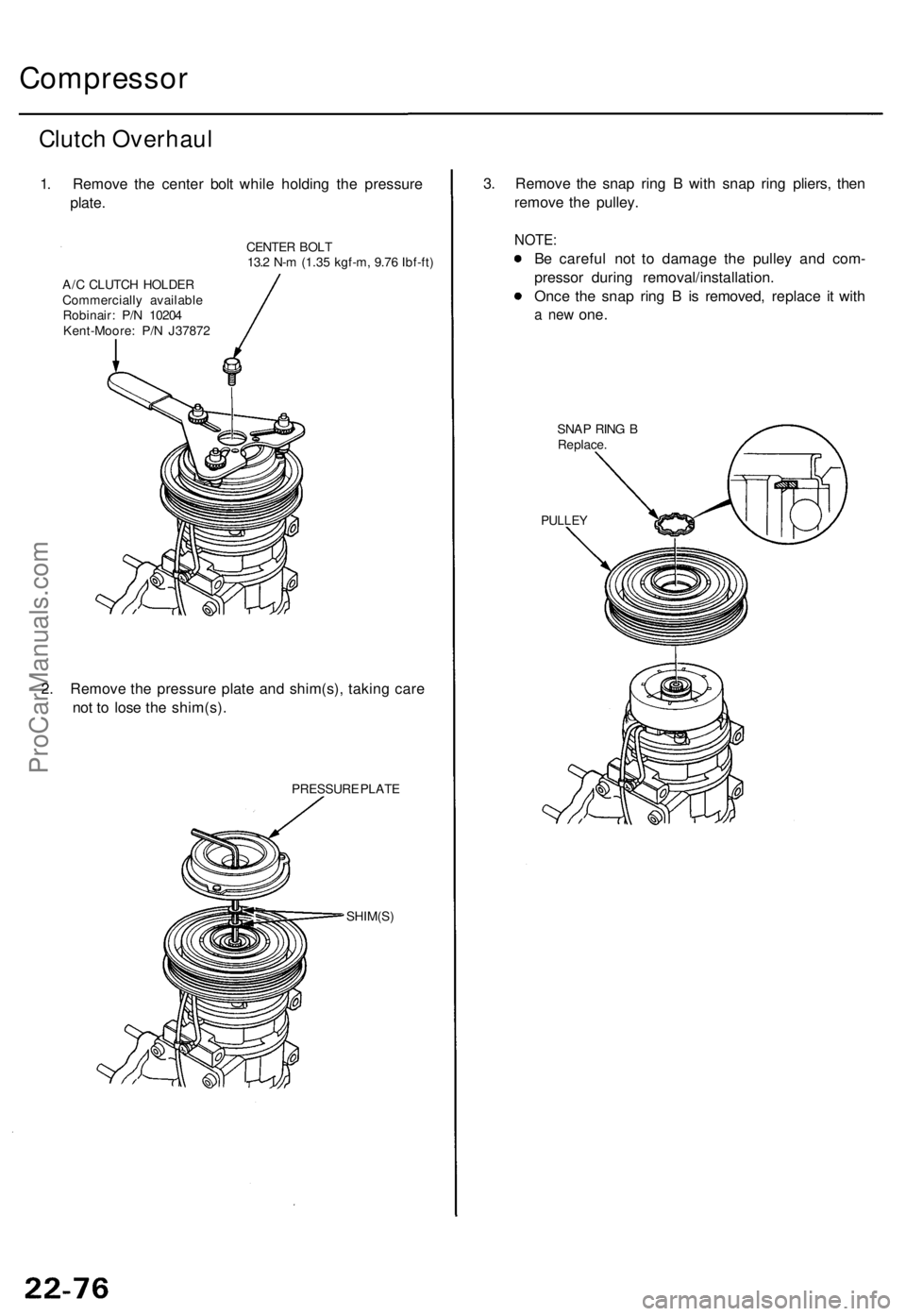

Clutch Overhau l
1. Remov e th e cente r bol t whil e holdin g th e pressur e
plate .
CENTE R BOL T
13. 2 N- m (1.3 5 kgf-m , 9.7 6 Ibf-ft )
A/ C CLUTC H HOLDE R
Commerciall y availabl e
Robinair : P/ N 1020 4
Kent-Moore : P/ N J3787 2
2. Remov e th e pressur e plat e an d shim(s) , takin g car e
no t t o los e th e shim(s) .
PRESSUR E PLAT E
SHIM(S )
3. Remov e th e sna p rin g B wit h sna p rin g pliers , the n
remov e th e pulley .
NOTE:
Be carefu l no t t o damag e th e pulle y an d com -
presso r durin g removal/installation .
Onc e th e sna p rin g B is removed , replac e i t wit h
a ne w one .
SNA P RIN G B
Replace .
PULLEY
ProCarManuals.com

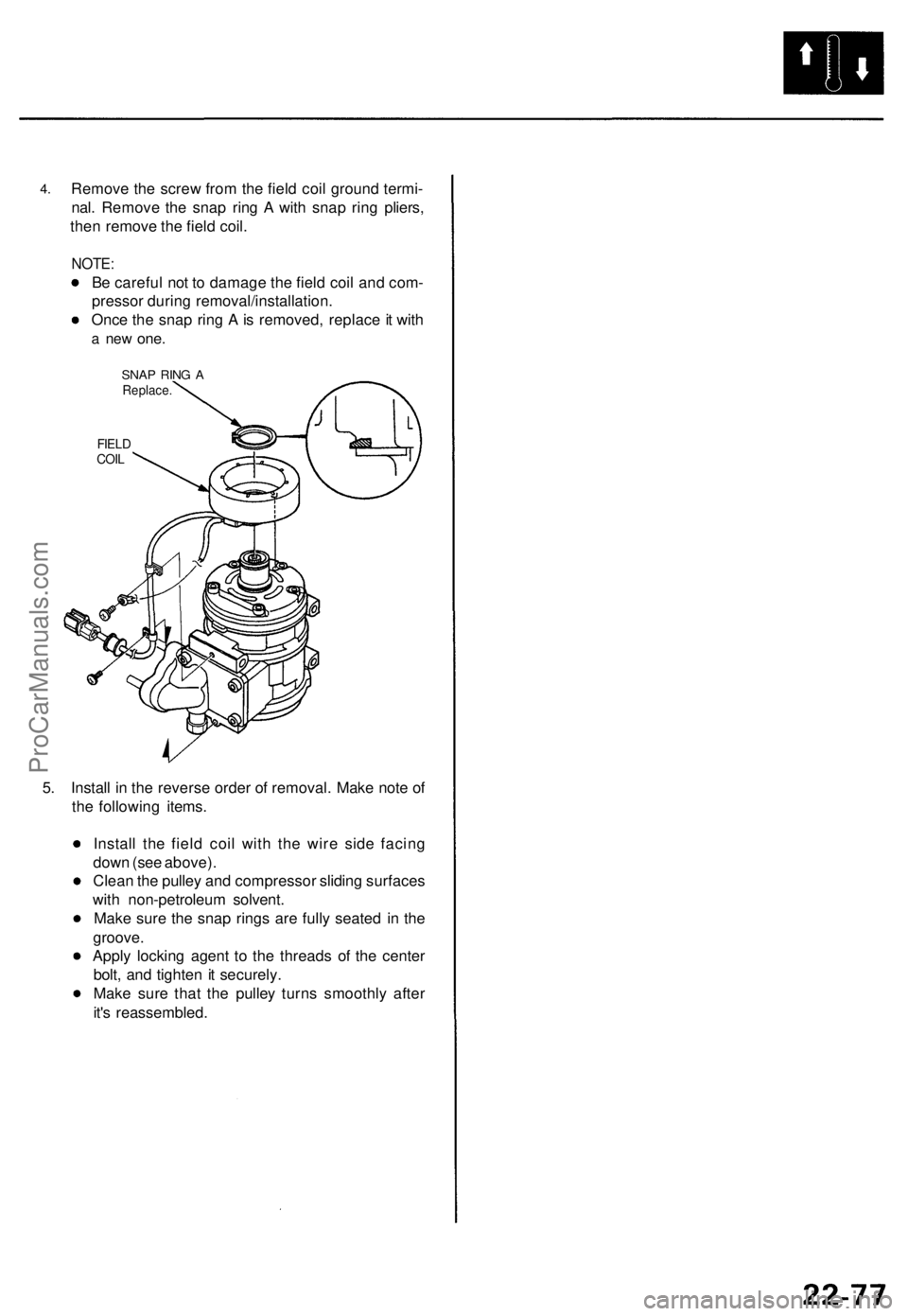

4.

Remove the screw from the field coil ground termi-

nal. Remove the snap ring A with snap ring pliers,

then remove the field coil.

NOTE:

Be careful not to damage the field coil and com-

pressor during removal/installation.

Once the snap ring A is removed, replace it with

a new
one.

SNAP RING A

Replace.

FIELD

COIL

5. Install in the reverse order of removal. Make note of

the following items.

Install the field coil with the wire side facing

down (see above).

Clean the pulley and compressor sliding surfaces

with non-petroleum solvent.

Make sure the snap rings are fully seated in the

groove.

Apply locking agent to the threads of the center

bolt, and tighten it securely.

Make sure that the pulley turns smoothly after

it's reassembled.ProCarManuals.com

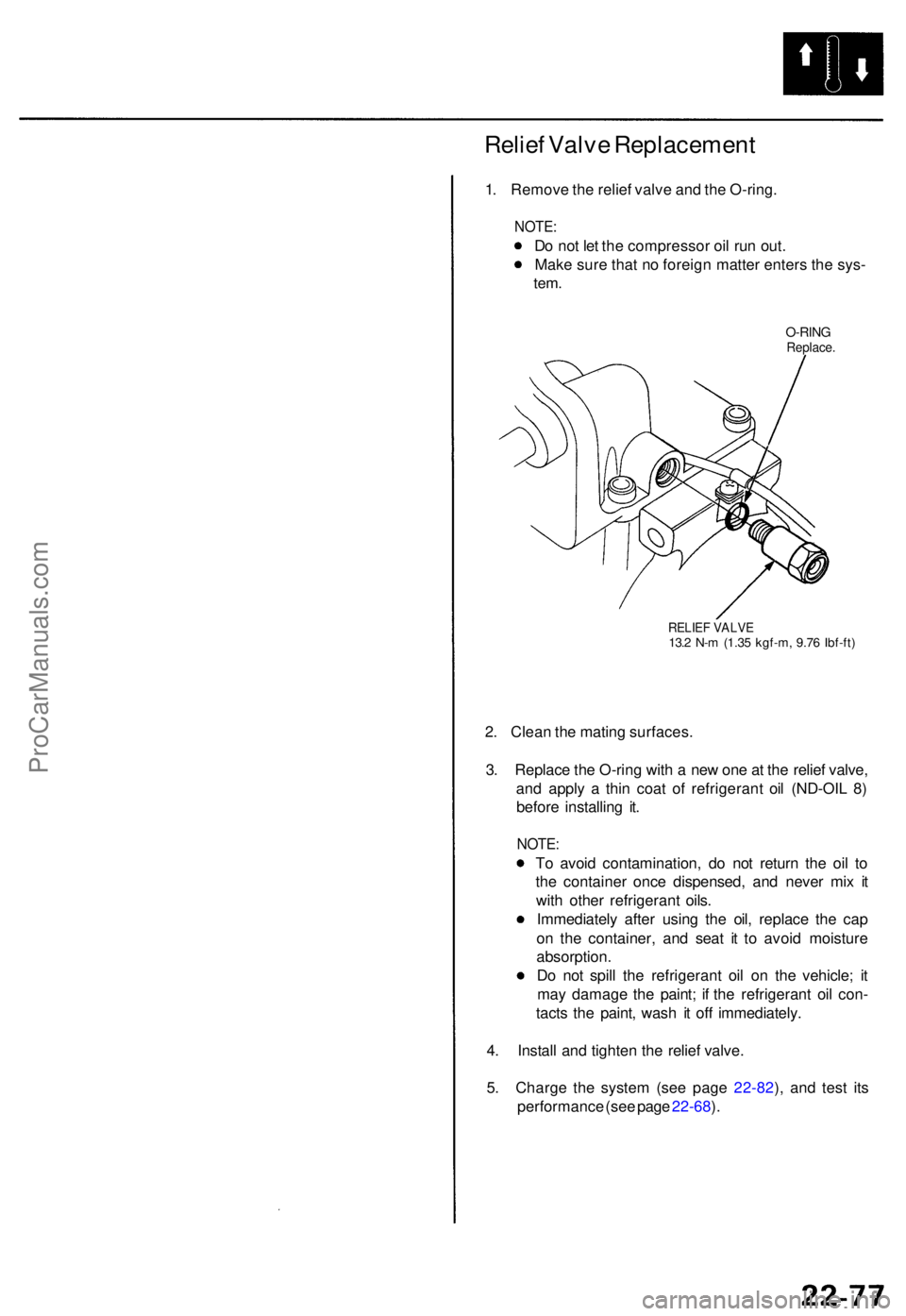

Relief Valv e Replacemen t
1. Remov e th e relie f valv e an d th e O-ring .
NOTE:
Do no t le t th e compresso r oi l ru n out .
Mak e sur e tha t n o foreig n matte r enter s th e sys -
tem.
O-RIN GReplace .
RELIEF VALV E13.2 N- m (1.3 5 kgf-m , 9.7 6 Ibf-ft )
2. Clea n th e matin g surfaces .
3 . Replac e th e O-rin g wit h a ne w on e a t th e relie f valve ,
an d appl y a thi n coa t o f refrigeran t oi l (ND-OI L 8 )
befor e installin g it .
NOTE :
To avoi d contamination , d o no t retur n th e oi l t o
th e containe r onc e dispensed , an d neve r mi x i t
wit h othe r refrigeran t oils .
Immediatel y afte r usin g th e oil , replac e th e cap
o n th e container , an d sea t i t t o avoi d moistur e
absorption .
D o no t spil l th e refrigeran t oi l o n th e vehicle ; i t
ma y damag e th e paint ; i f th e refrigeran t oi l con -
tact s th e paint , was h i t of f immediately .
4 . Instal l an d tighte n th e relie f valve .
5 . Charg e th e syste m (se e pag e 22-82 ), an d tes t it s
performanc e (se e pag e 22-68 ).
